7″ Android HMI Panel PC| A133P Quad-Core| RS232/ RS485| 500 nits IPS| Open Frame

$122.00


7″ Android HMI Panel PC| A133P Quad-Core| RS232/ RS485| 500 nits IPS| Open Frame

SKU GCI-S07-A133P

7″ Android HMI Panel PC| A133P Quad-Core| RS232/ RS485| 500 nits IPS| Open Frame. Industrial Android HMI panel PC for machine control, SCADA operator stations, kiosk and embedded projects. GeniusCore.

Highlights
İşlemci: Allwinner A133P, Quad-Core Cortex-A53, 1,8 GHz
Bellek / depolama: 2 GB RAM + 16 GB eMMC (satışa sunulan konfigürasyon)
USB: 4 × USB 2.0
Seri port: RS232 / RS485
Ekran boyutu: 7 inç IPS LCD
Çözünürlük: 1024 × 600 piksel
Android işletim sistemi
Technical specifications

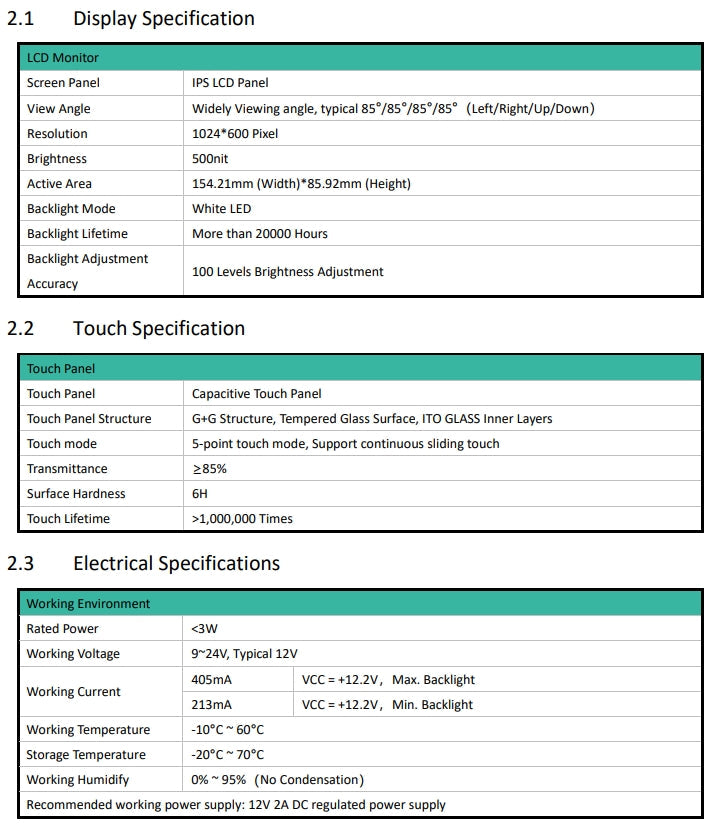

Ekran boyutu 7 inç IPS LCD
Çözünürlük 1024 × 600 piksel
Parlaklık 500 cd/m²
Dokunmatik Kapasitif multi-touch
Yapı Open frame endüstriyel panel
İşlemci Allwinner A133P, Quad-Core Cortex-A53, 1,8 GHz
Bellek / depolama 2 GB RAM + 16 GB eMMC (satışa sunulan konfigürasyon)
USB 4 × USB 2.0
Seri port RS232 / RS485
Kablosuz Wi-Fi desteği
Montaj Open frame / panel gömülü montaj
Feature Android işletim sistemi
Feature SCADA, kiosk ve gömülü HMI uygulamaları için uygun
Feature Endüstriyel DC besleme (tipik 12–24 V)
Feature Kompakt open frame tasarım
Feature Endüstriyel açık çerçeve (open frame) gövde
Feature CE uyumlu endüstriyel tasarım
Package contents
7 inç A133P Android open frame HMI panel PC
Montaj / bağlantı aksesuarları (konfigürasyona göre)
Kullanım kılavuzu

Specifications may vary by configuration. Contact us for project options.

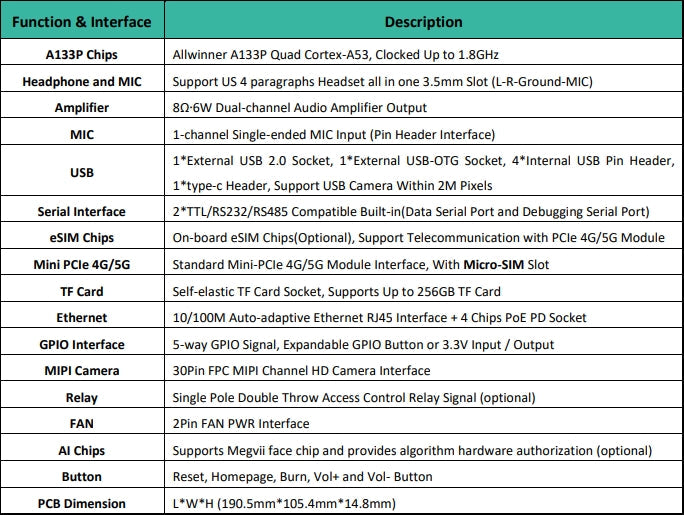

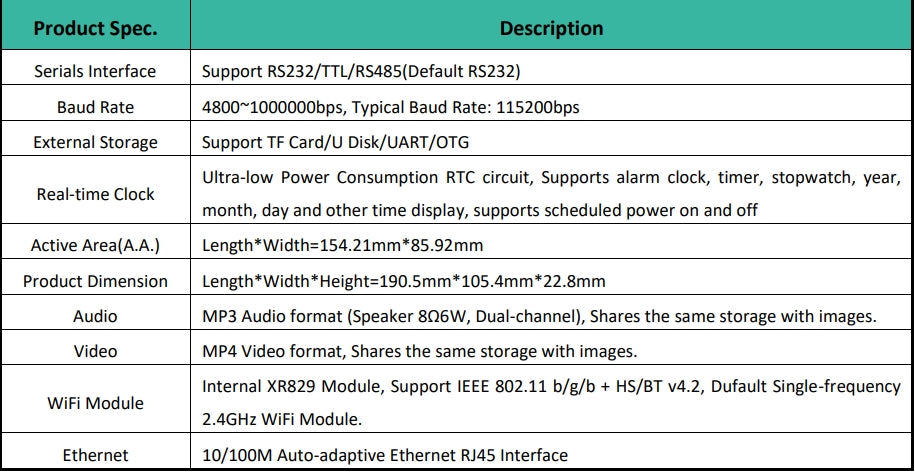

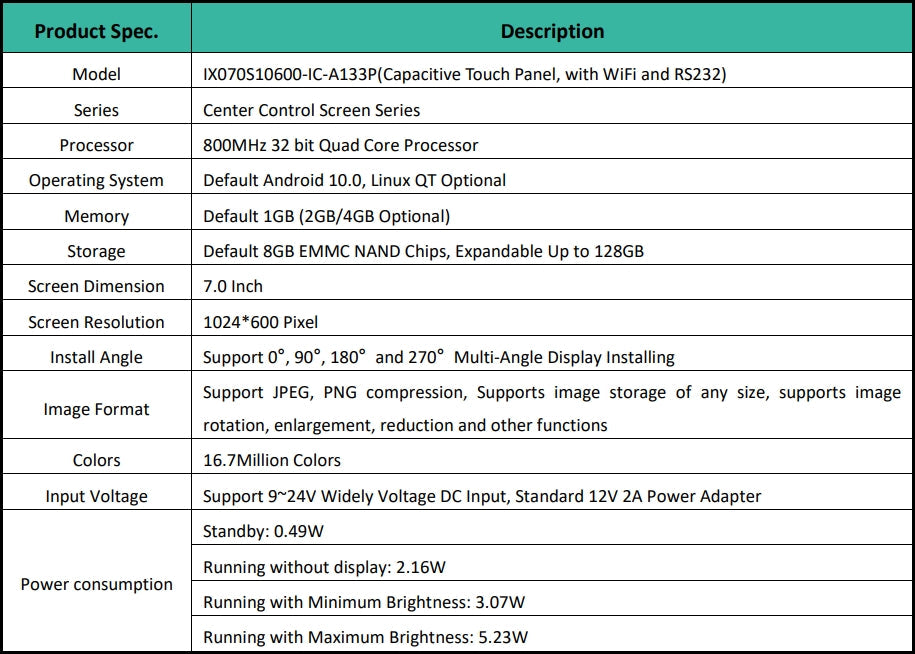

Specification Details
Screen size 7″
Form factor Open Frame
CPU / SoC Allwinner A133P, Quad-Core Arm Cortex-A53 @ up to 1.8 GHz
GPU Imagination PowerVR GE8300
Operating system Android 10; Linux (Ubuntu / QT) support
Typical memory 1 GB / 2 GB LPDDR4 (configuration dependent)
Typical storage 8–32 GB eMMC (configuration dependent)
Display interface LVDS / MIPI-DSI industrial panel
Touch Capacitive multi-touch (optional non-touch)
I/O USB 2.0, RS232 / RS485, Ethernet (model dependent)
Wireless Wi-Fi; optional 4G/5G module (model dependent)
Power input DC 12–24 V
Operating temperature −10 °C to +60 °C (typical industrial)
