Banana Pi

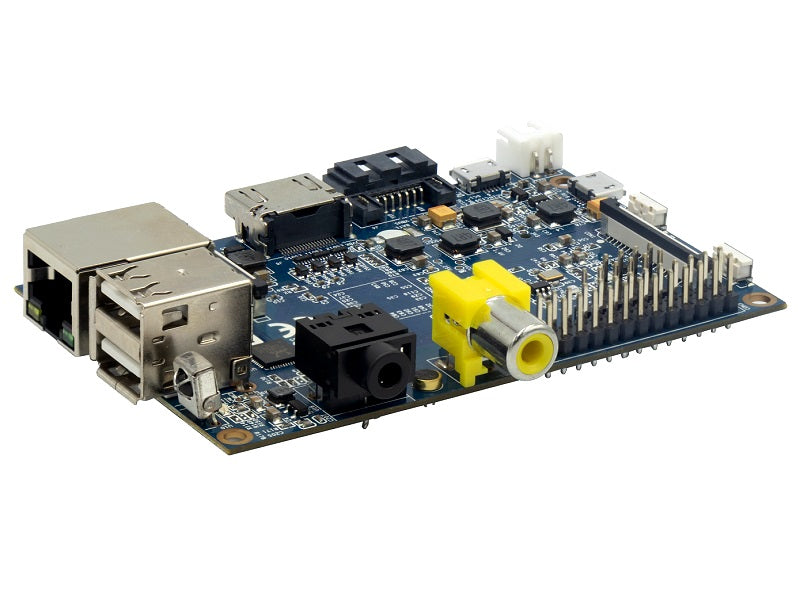

Banana Pi BPI-M1 Single Board Computer – 1GB RAM

$63.00

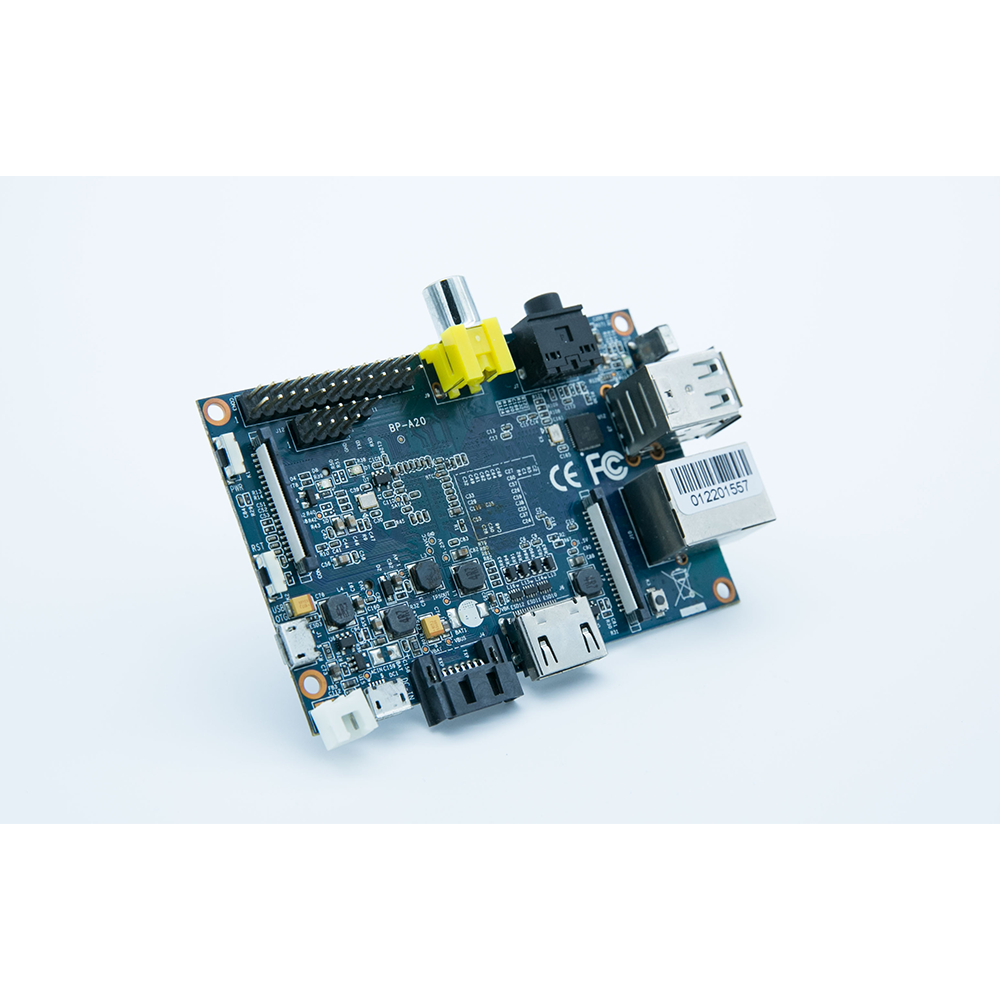

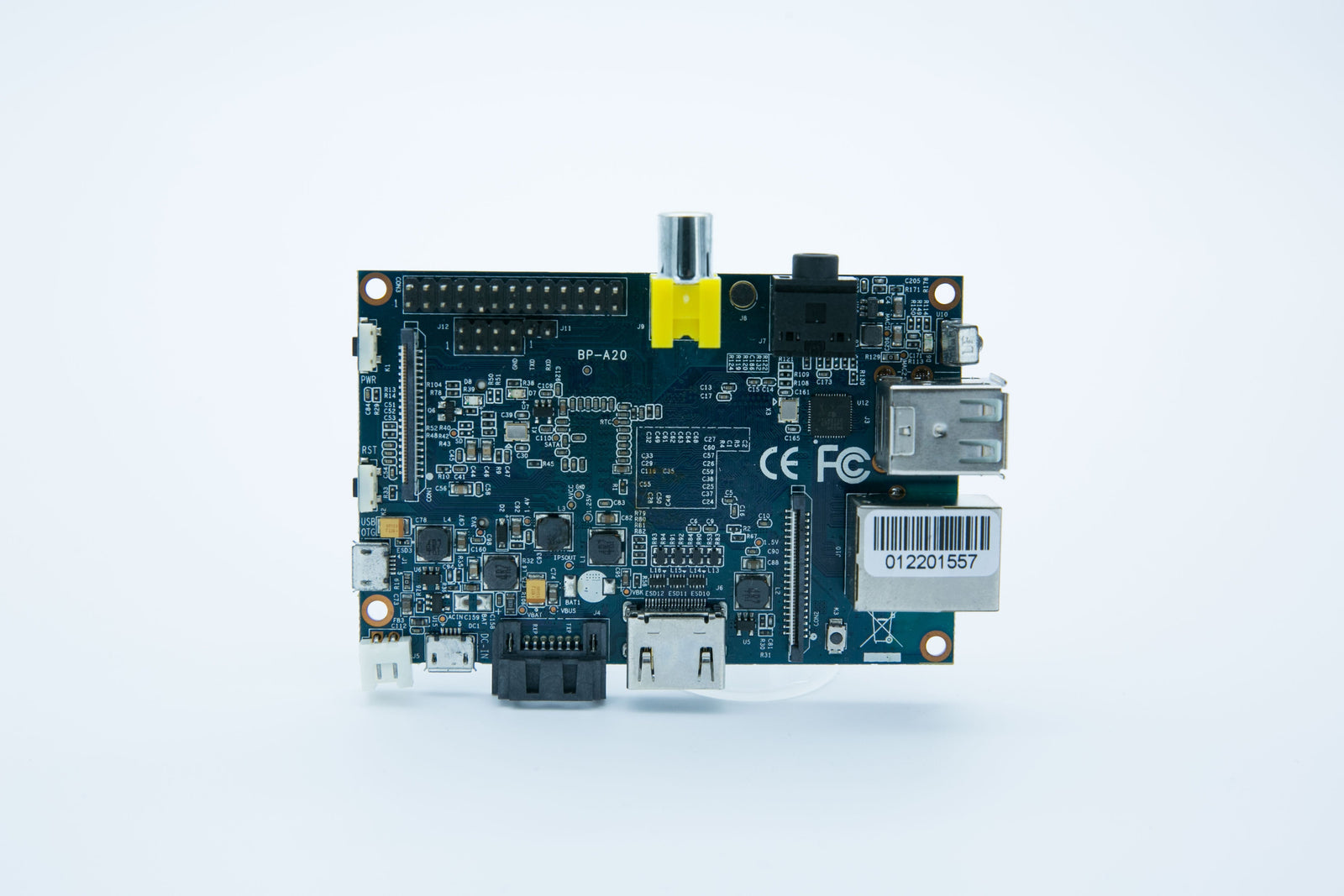

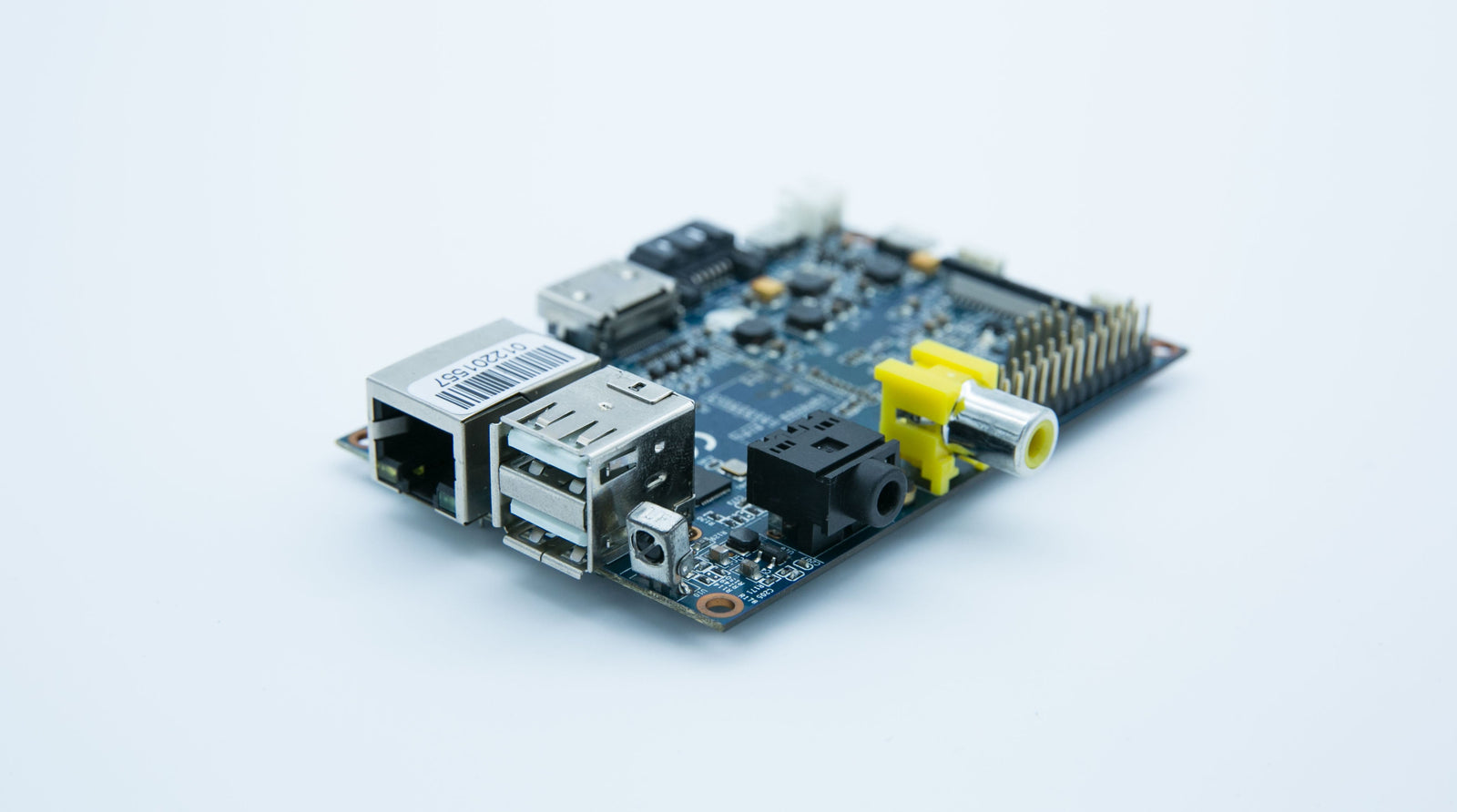

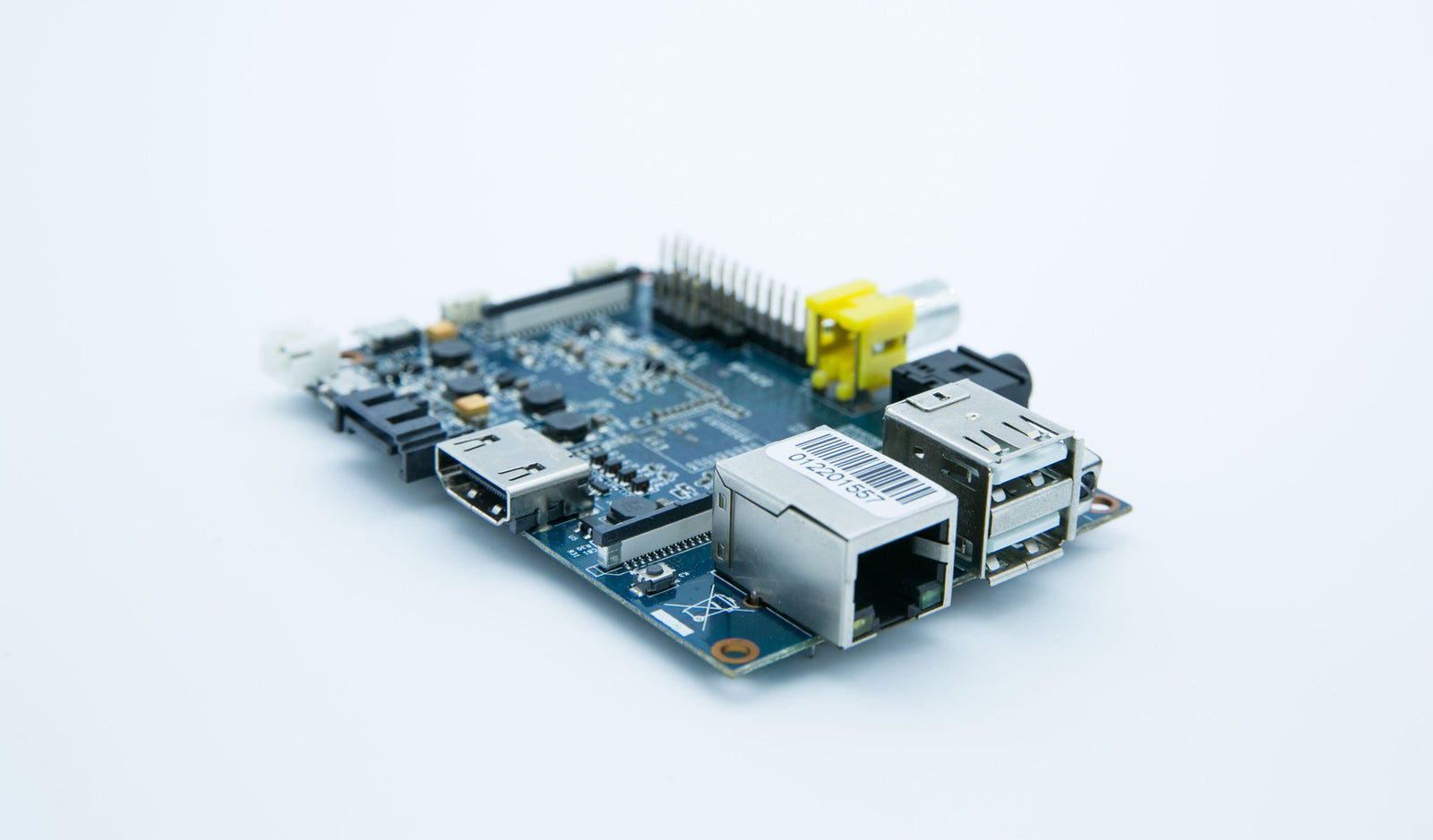

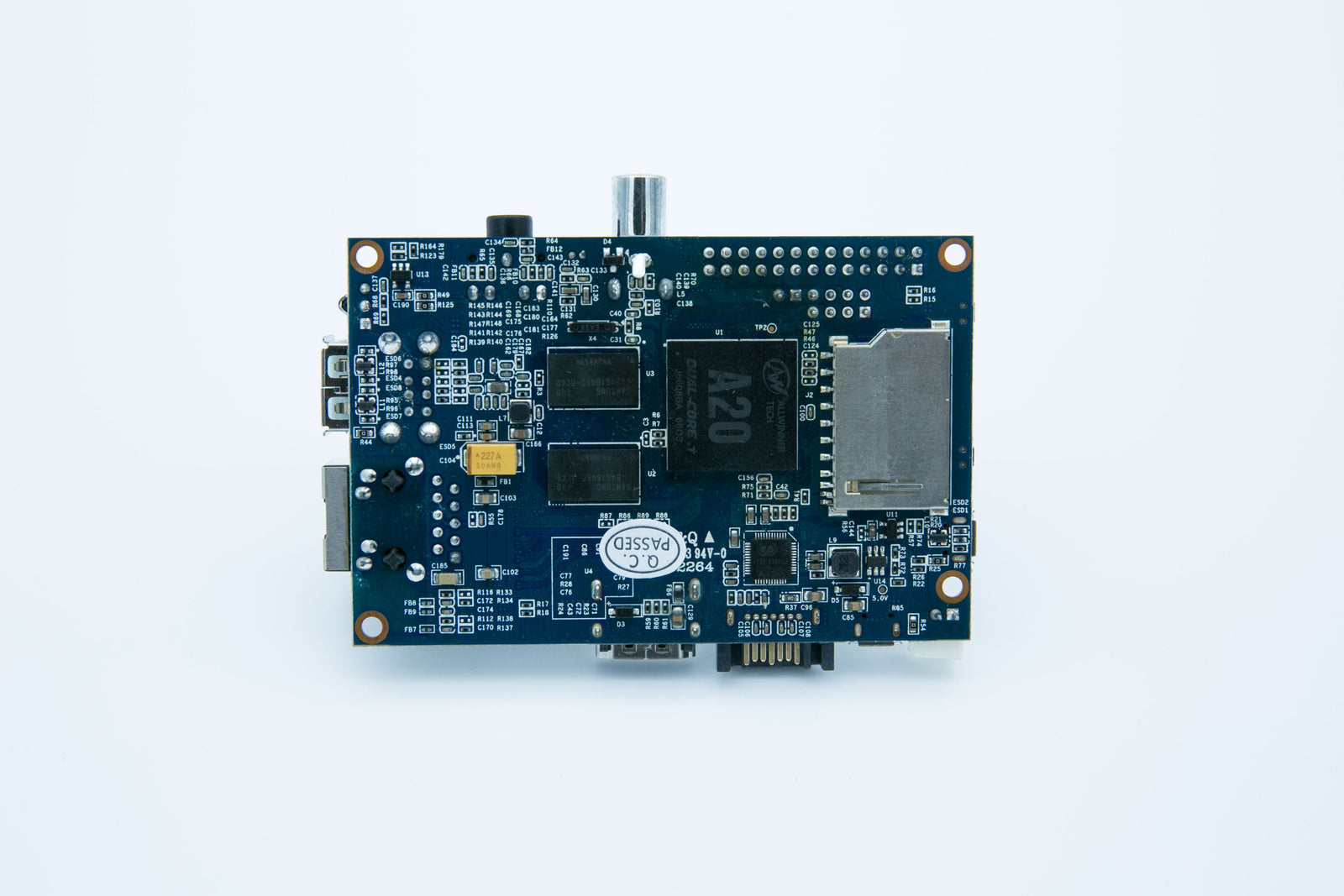

BananaPi BPI-M1 Board

SKU BPI-M1

BananaPi BPI-M1 Board — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: BPI-M1
Technical specifications
SKU BPI-M1
Product BananaPi BPI-M1 Board
Category BPI Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

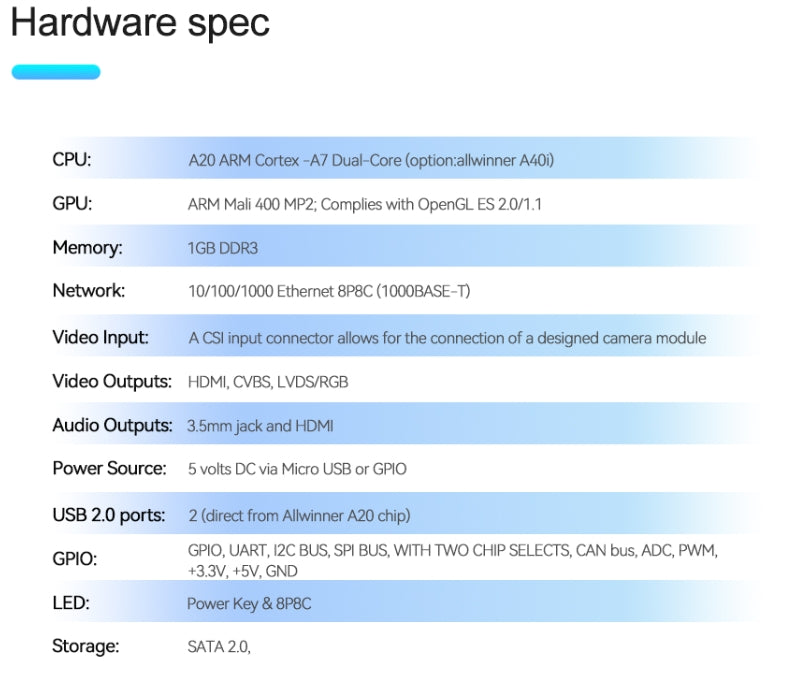

Specification Details
CPU A20 ARM Cortex -A7 Dual-Core
GPU ARM Mali 400 MP2; Complies with OpenGL ES 2.0/1.1
Memory 1GB DDR3
Network 10/100/1000 Ethernet 8P8C (1000BASE-T)
Video Input A CSI input connector allows for the connection of a designed camera module
Video Outputs HDMI, CVBS, LVDS/RGB
Audio Outputs 3.5mm jack and HDMI
Power 5 volts DC via Micro USB or GPIO
USB 2.0 ports 2 (direct from Allwinner A20 chip)
GPIO GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND
LED Power Key & 8P8C
Storage SATA 2.0,
CPU / SoC Allwinner A40i, Allwinner A20
