BananaPi BPI-M1 Plus Development Board

$34.00


BananaPi BPI-M1 Plus Development Board

SKU BPI-M1+

BananaPi BPI-M1 Plus Development Board

SKU BPI-M1+

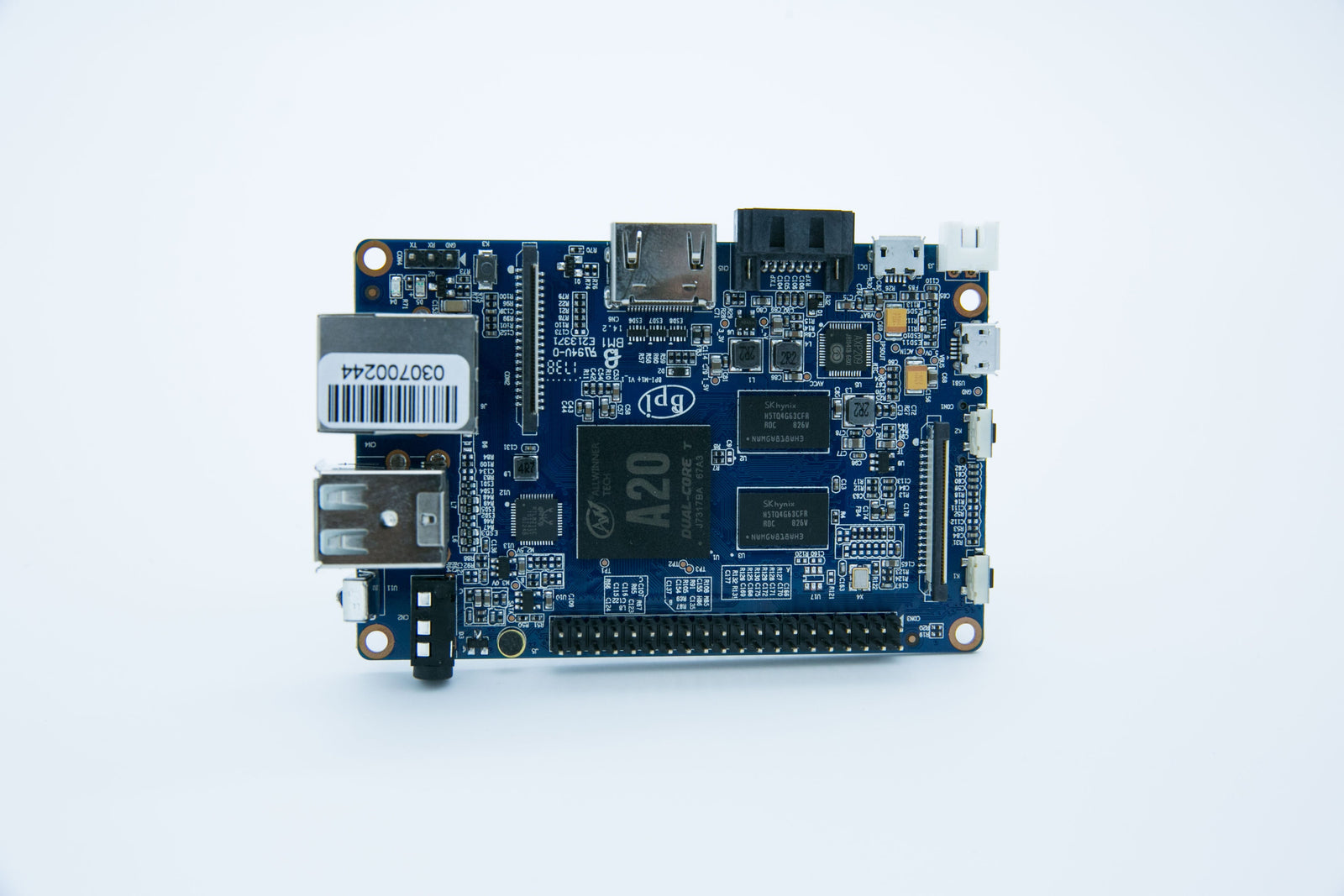

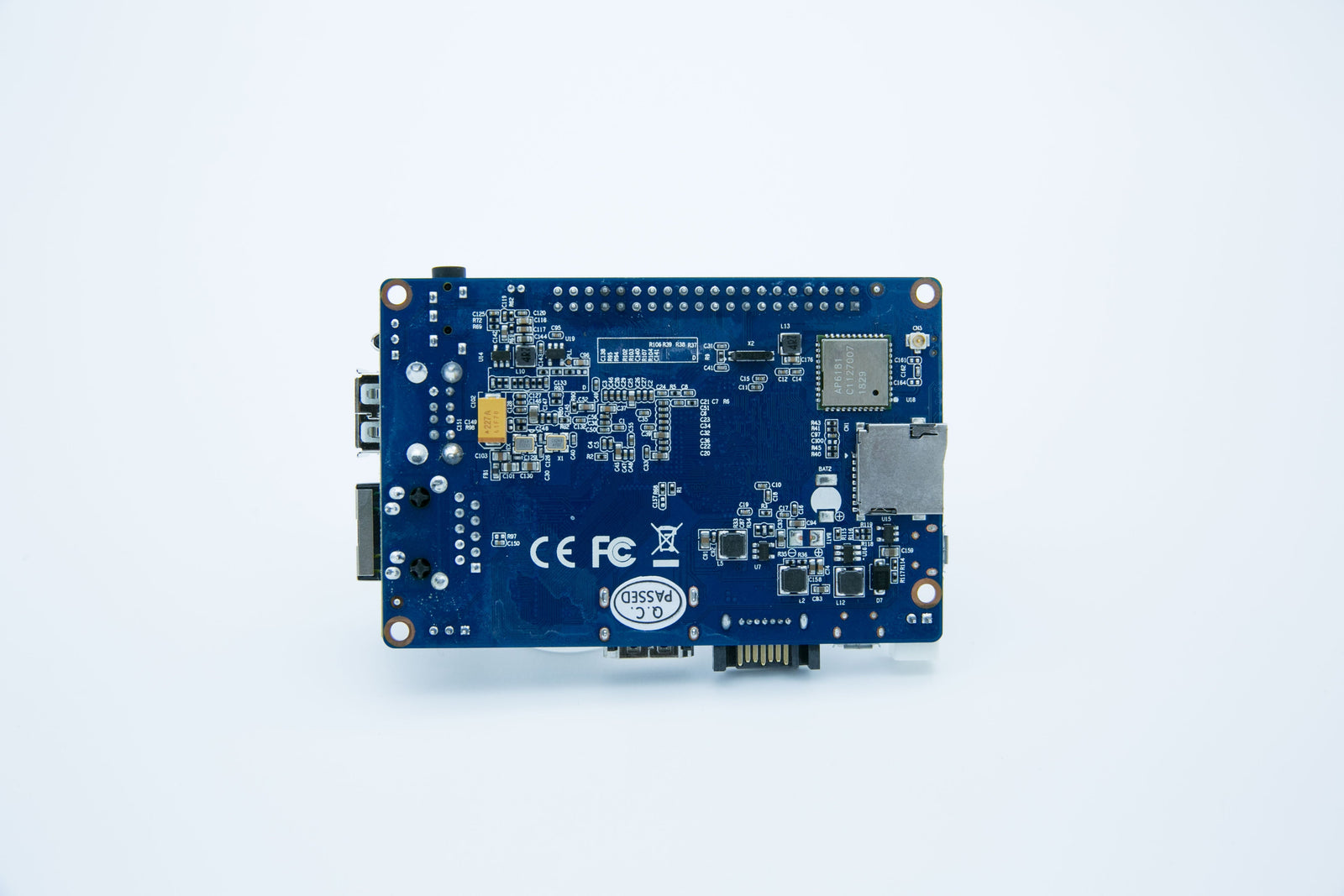

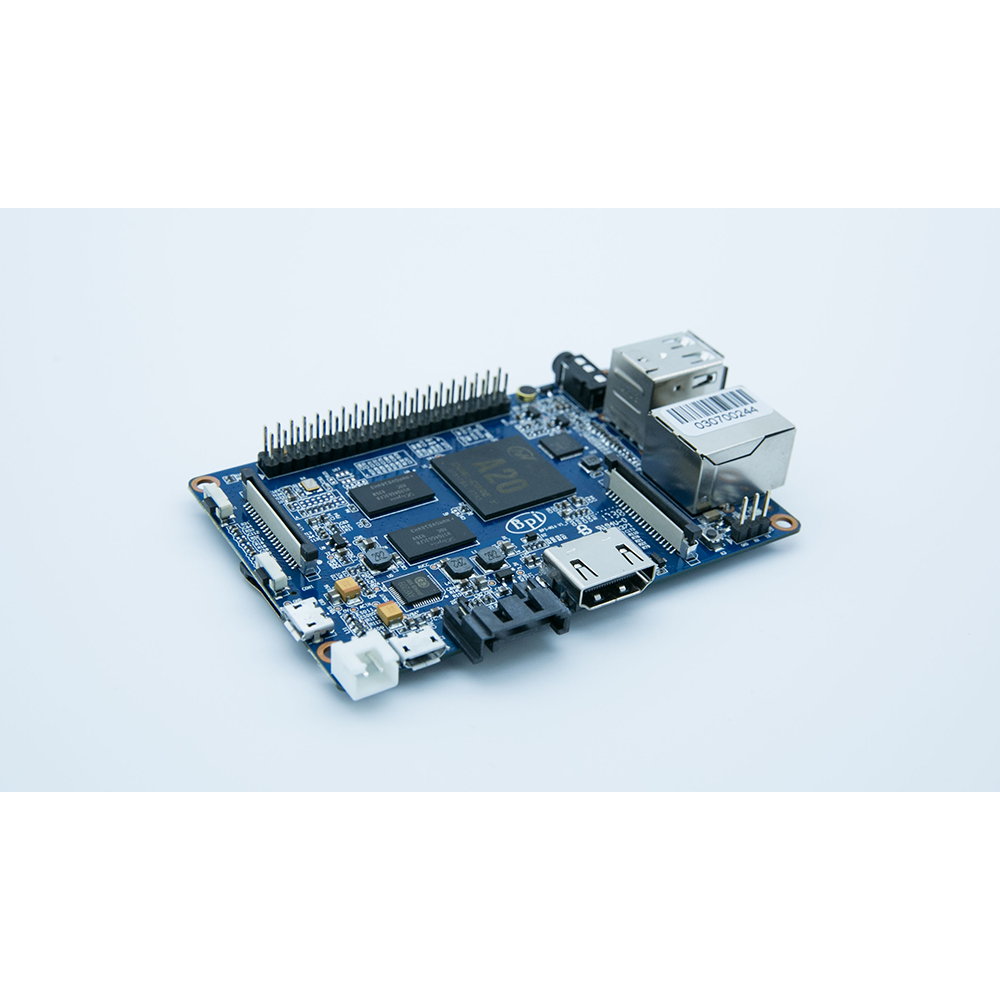

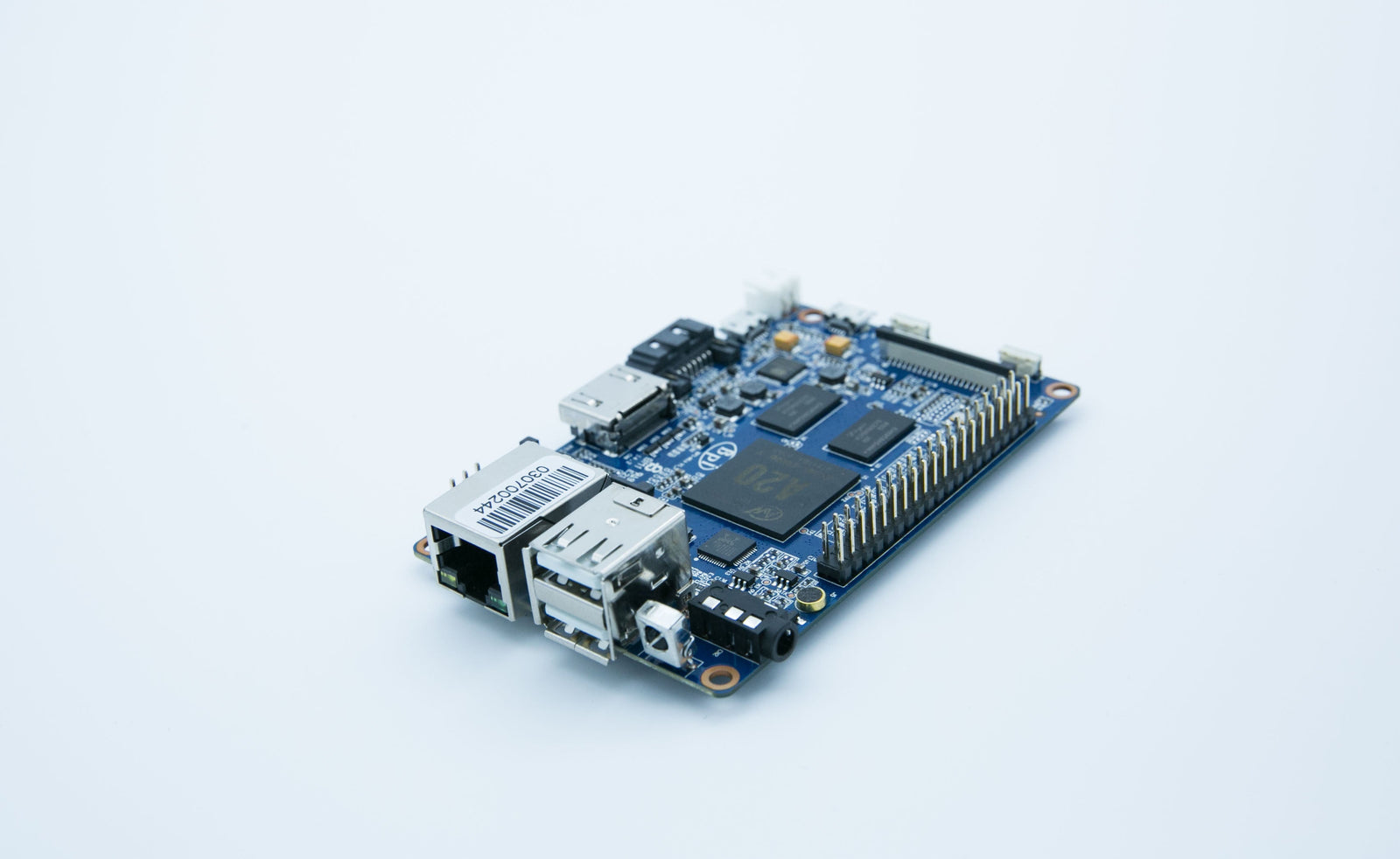

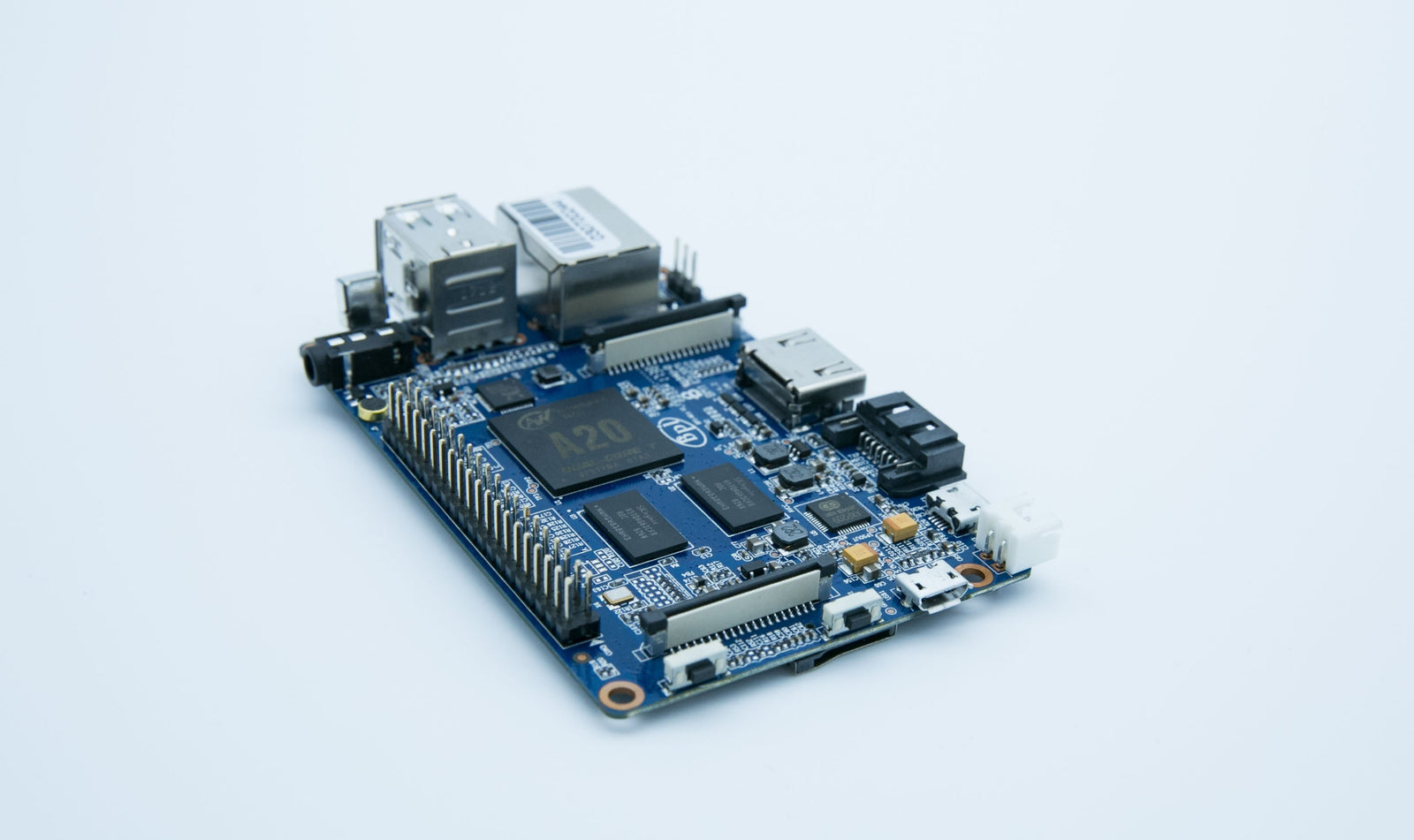

Banana Pi BPI-M1+

Allwinner A20 Dual-core 1.0GHz CPU

Mali-400 MP2 with Open GL ES 2.0/1.1.

1 GB DDR3 memory.

Wifi support onboard

1x SATA interface.

1x Gigabit LAN

1x USB otg and 2x USB 2.0

1X MIC

AV out

HDMI out

IR

CSI camera interface

DSI display interface

40 PIN gpio

3.7V lithium battery interface

Banana Pi BPI-M1+ upgrade is an open-source single-board computer that adds more connectivity to the classic bo

Specifications may vary by configuration. Contact us for project-specific options.

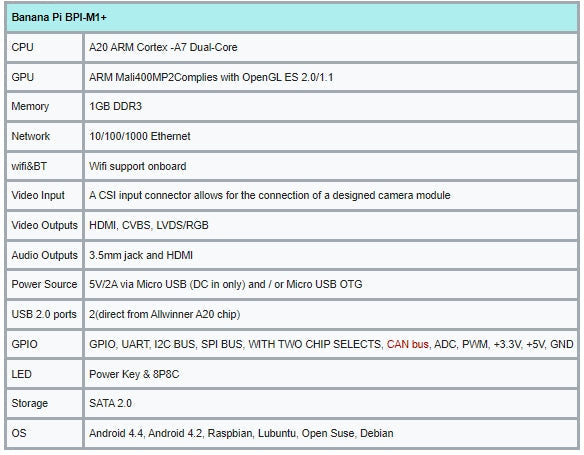

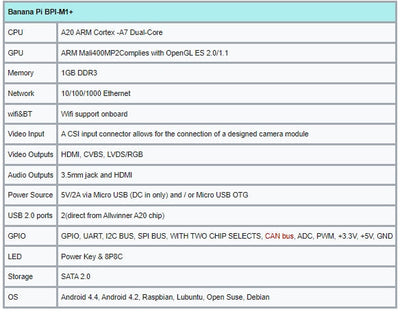

Specification Details
CPU A20 ARM Cortex -A7 Dual-Core
GPU ARM Mali400MP2Complies with OpenGL ES 2.0/1.1
Memory 1GB DDR3
Network 10/100/1000 Ethernet
wifi&BT Wifi support onboard
Video Input A CSI input connector allows for the connection of a designed camera module
Video Outputs HDMI, CVBS, LVDS/RGB
Audio Outputs 3.5mm jack and HDMI
Power Source 5V/2A via Micro USB (DC in only) and / or Micro USB OTG
USB 2.0 ports 2(direct from Allwinner A20 chip)
GPIO GPIO, UART, I2C BUS, SPI BUS, WITH TWO CHIP SELECTS, CAN bus, ADC, PWM, +3.3V, +5V, GND
LED Power Key & 8P8C
Storage SATA 2.0
OS Android 4.4, Android 4.2, Raspbian, Lubuntu, Open Suse, Debian
CPU / SoC Allwinner A20
