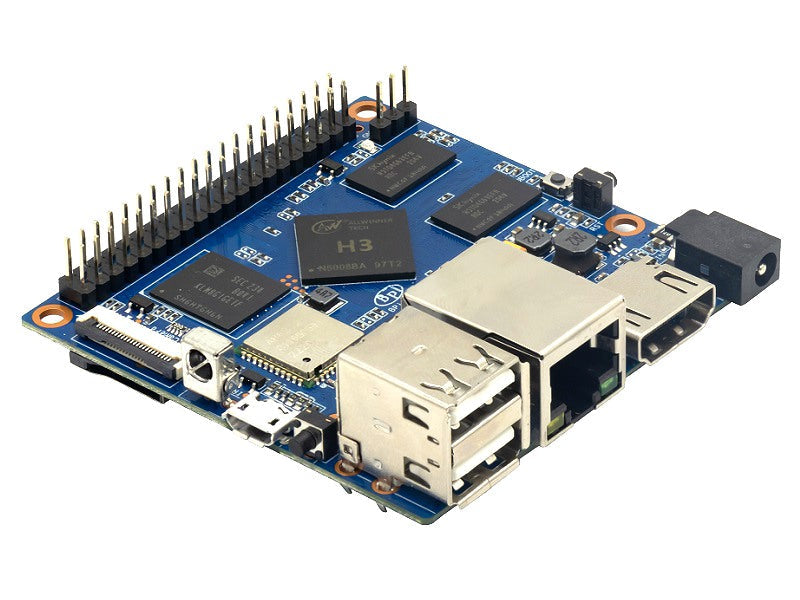

Banana Pi BPI-M2+ (H3) Single Board Computer – (1GB DDR3+8G eMMC)

$103.00

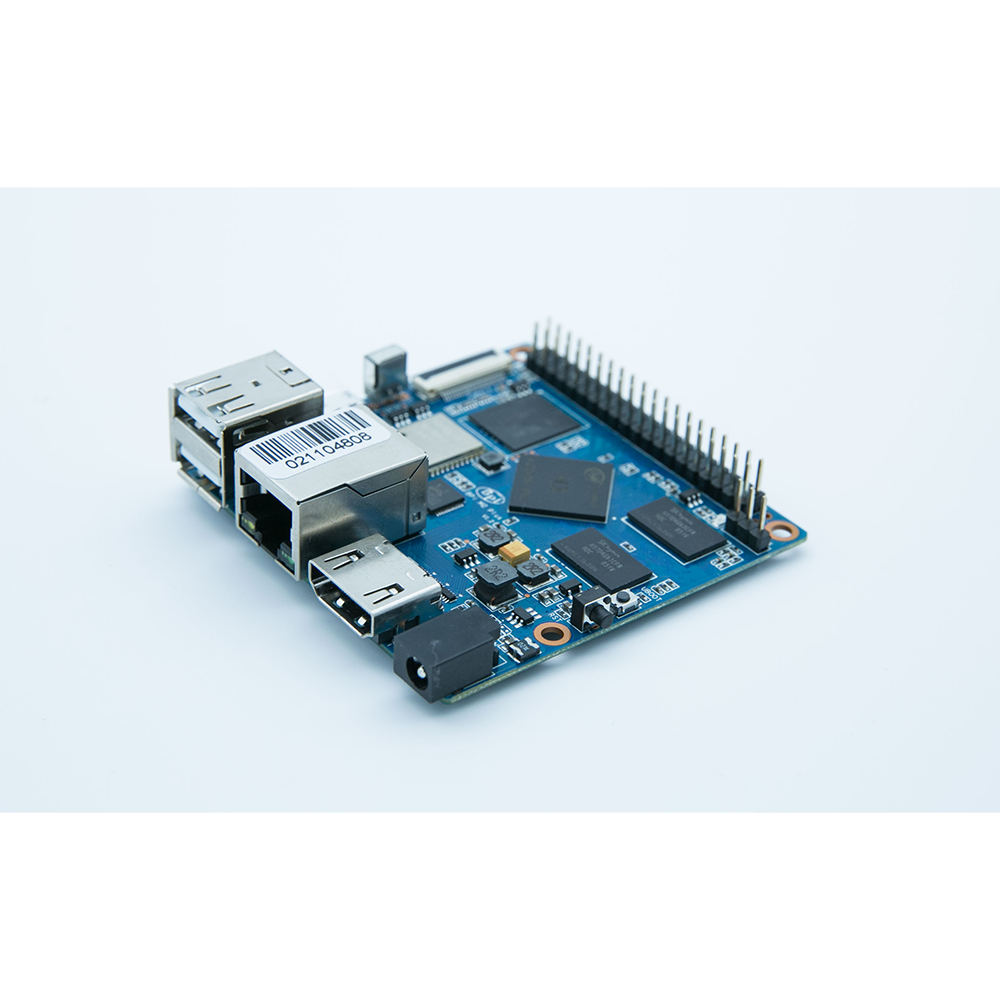

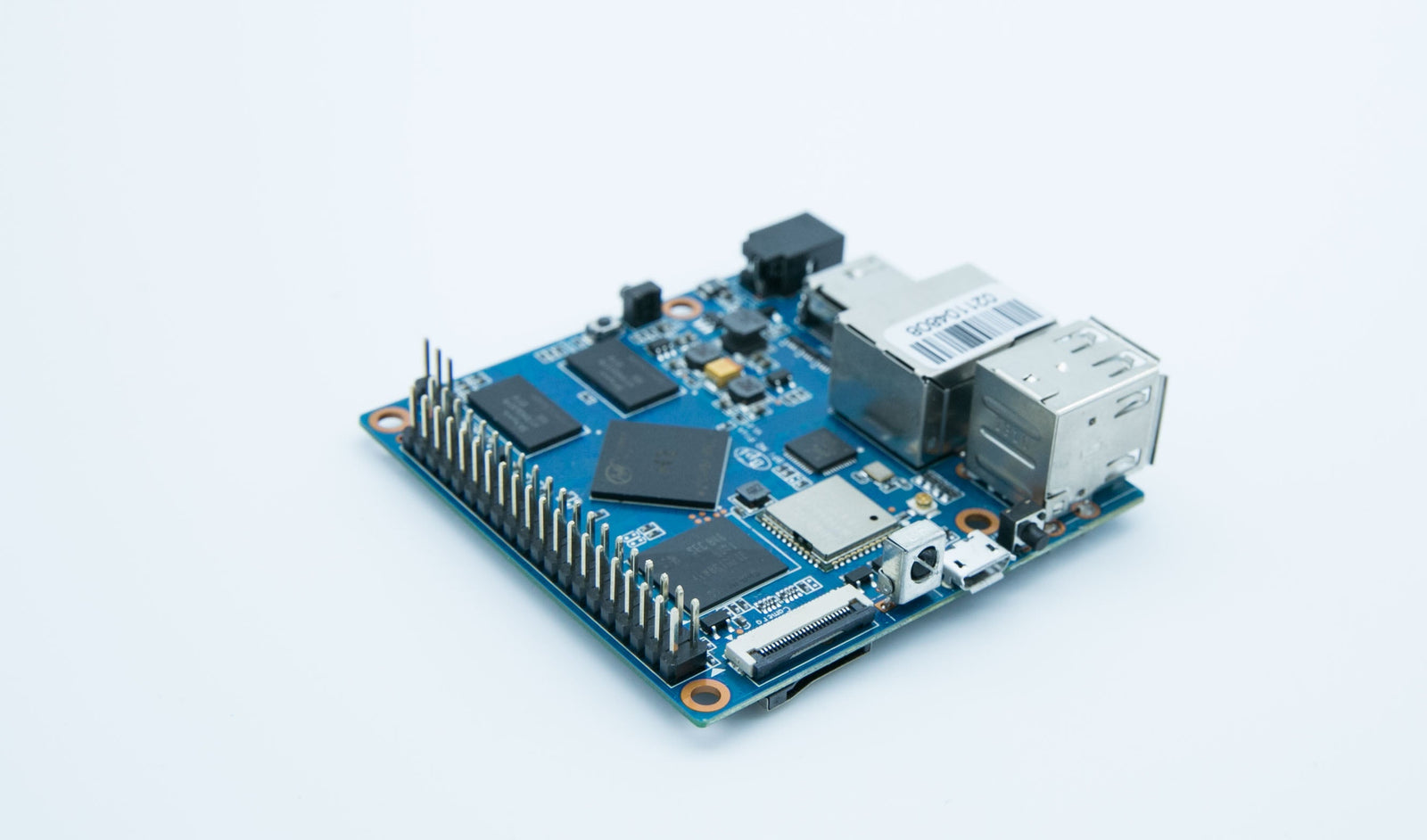

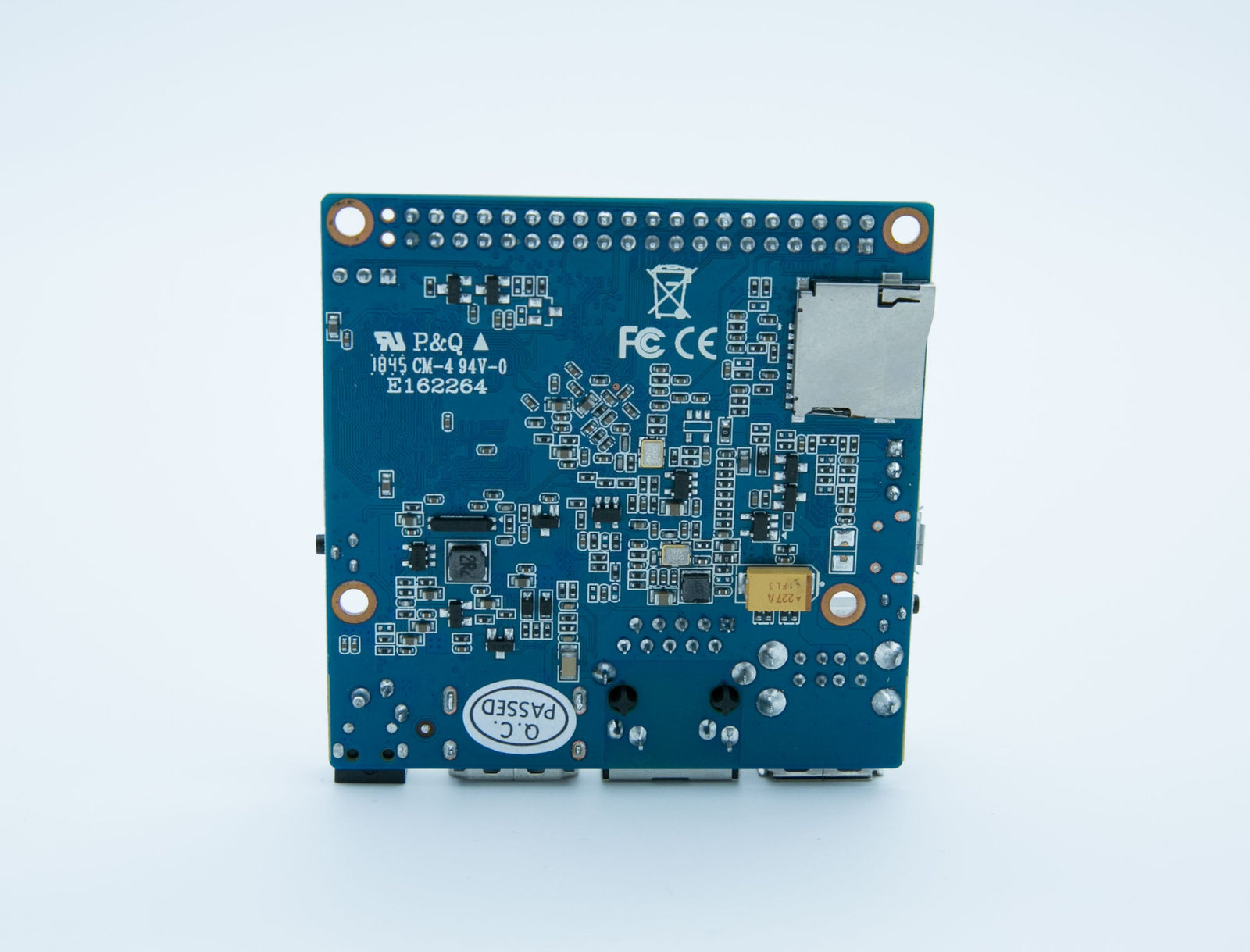

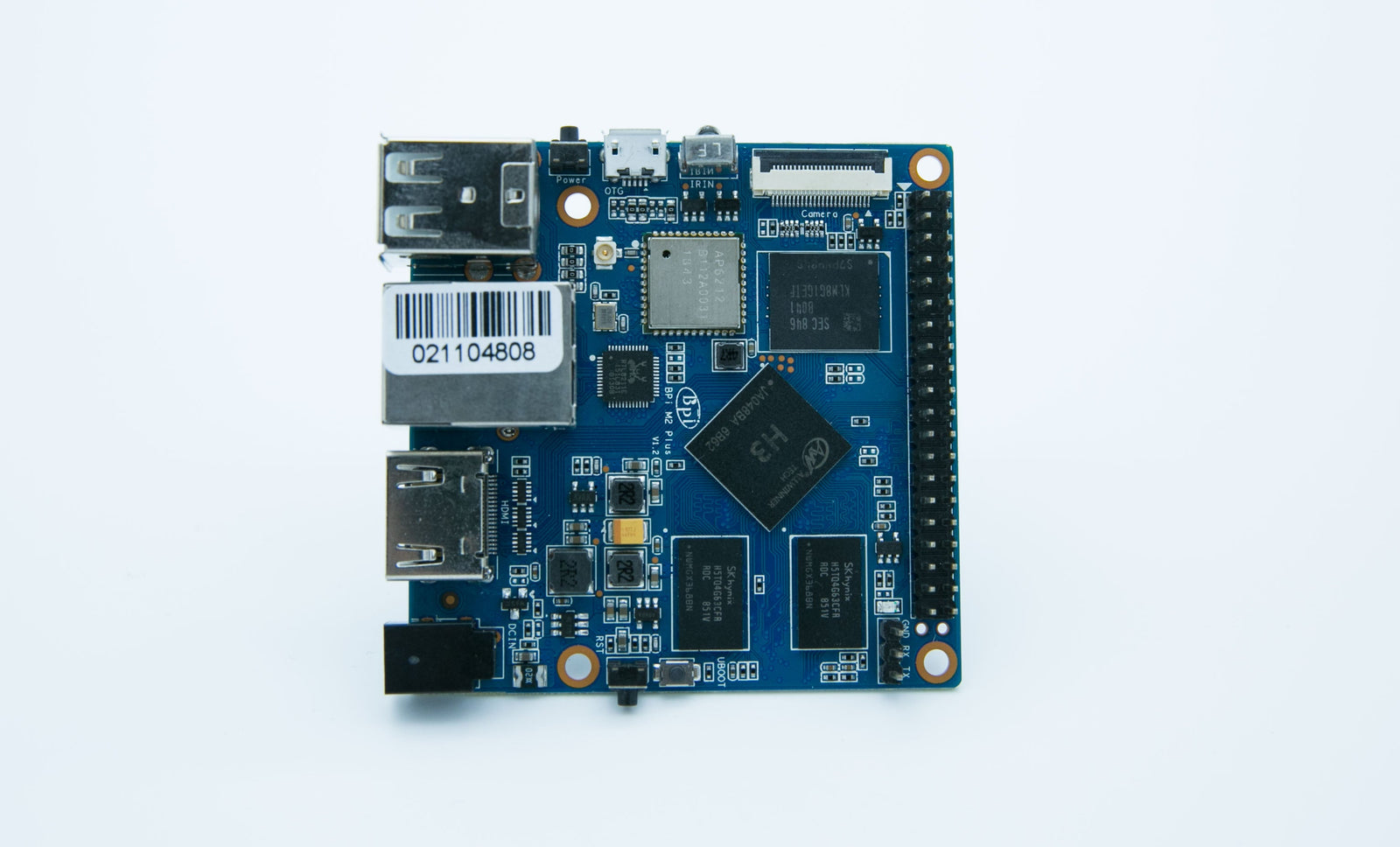

BananaPi BPI-M2 Plus Development Board

SKU BPI-M2PLUSH3

BananaPi BPI-M2 Plus Development Board — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: BPI-M2PLUSH3
Technical specifications
SKU BPI-M2PLUSH3
Product BananaPi BPI-M2 Plus Development Board
Category BPI Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

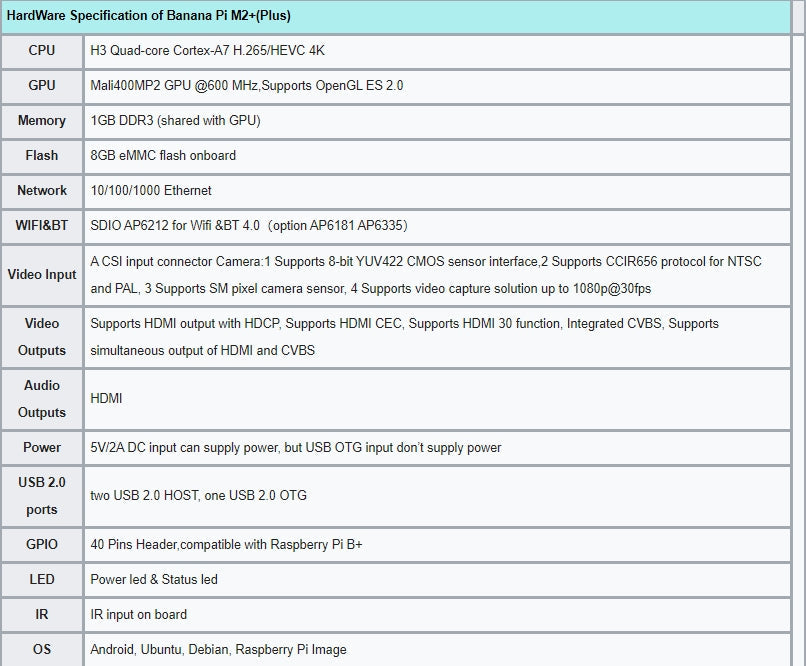

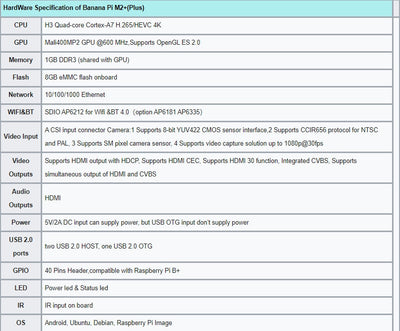

Specification Details

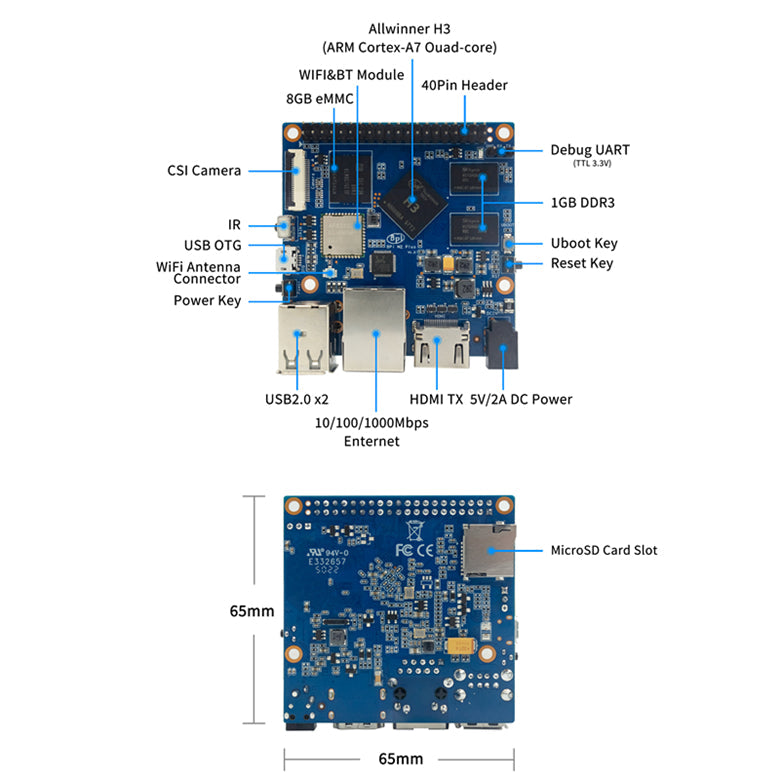

CPU H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU Mali400MP2 GPU @600 MHz,Supports OpenGL ES 2.0
Memory 1GB DDR3 (shared with GPU
Flash 8GB eMMC flash onboard
Network 10/100/1000 Ethernet
WIFI&BT K016/SDIO AP6212 for Wifi &BT 4.0(option AP6181 AP6335)
Video Input A CSI input connector Camera:1 Supports 8-bit YUV422 CMOS sensor interface,2 Supports CCIR656 protocol for NTSC and PAL, 3 Supports SM pixel camera sensor, 4 Supports video capture solution up to 1080p@30fps
Video Outputs Supports HDMI output with HDCP, Supports HDMI CEC, Supports HDMI 30 function, Integrated CVBS, Supports simultaneous output of HDMI and CVBS
Audio Outputs HDMI
Power 5V/2A DC input can supply power, but USB OTG input don’t supply power
USB 2.0 ports two USB 2.0 HOST, one USB 2.0 OTG
GPIO 40 Pins Header,compatible with Raspberry Pi B+
LED Power led & Status led
IR IR input on board
OS Android, Ubuntu, Debian, Raspberry Pi Image
CPU / SoC Allwinner H2+, Allwinner H3
