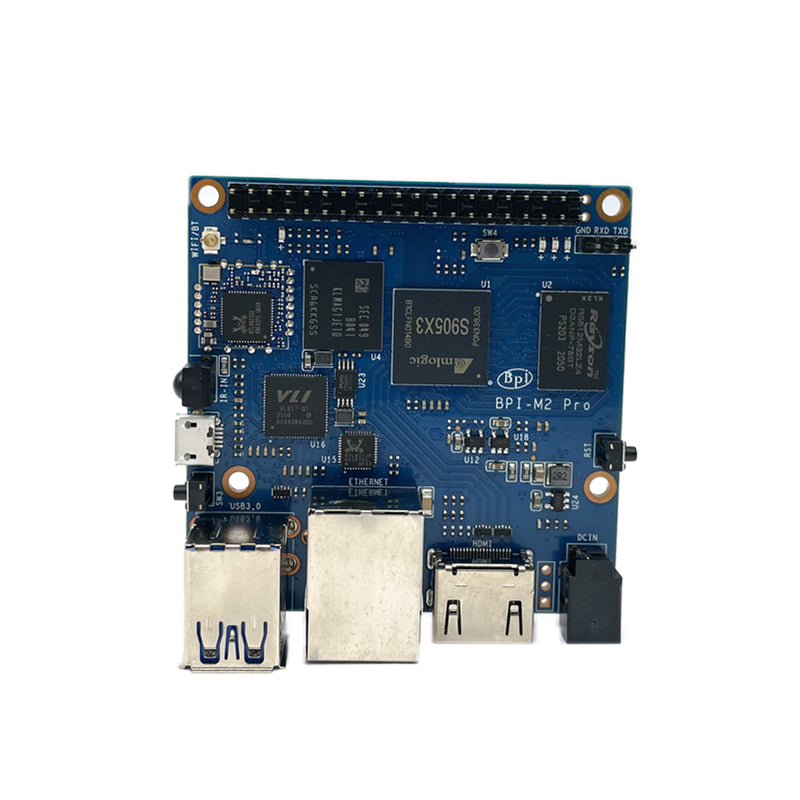

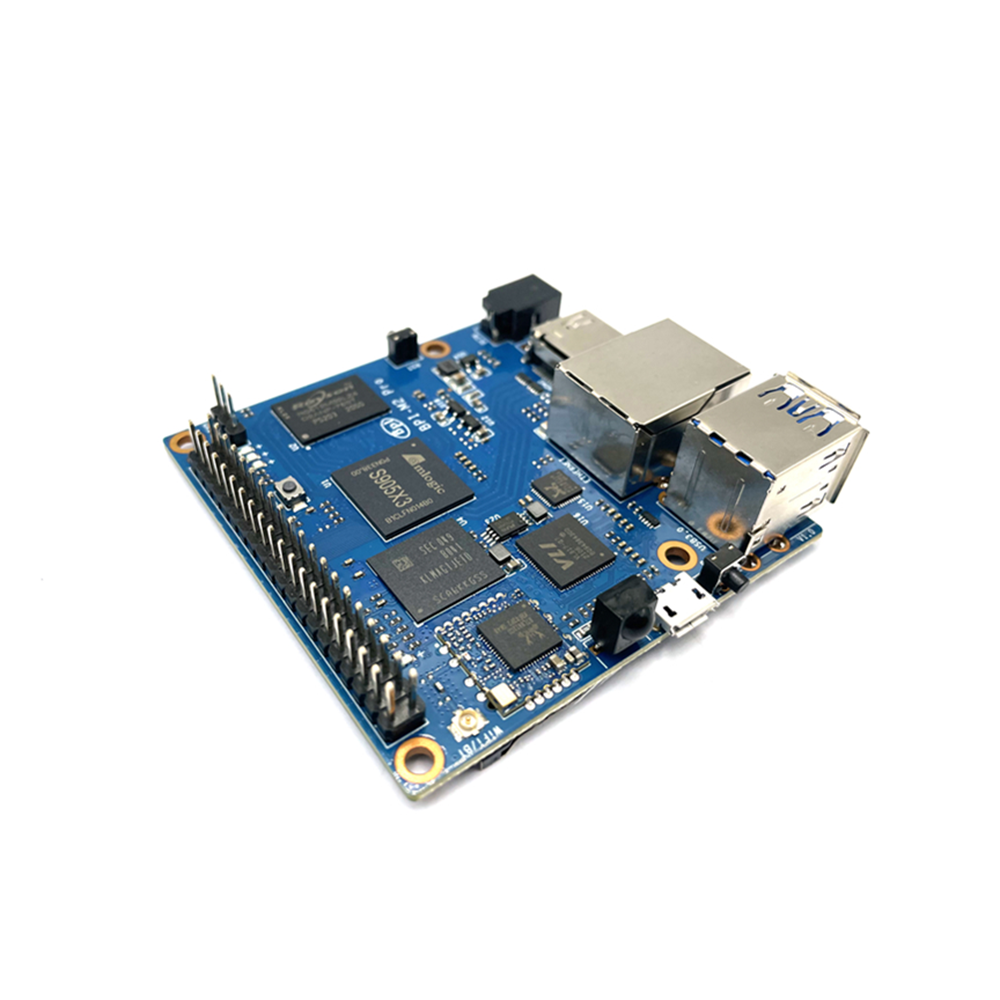

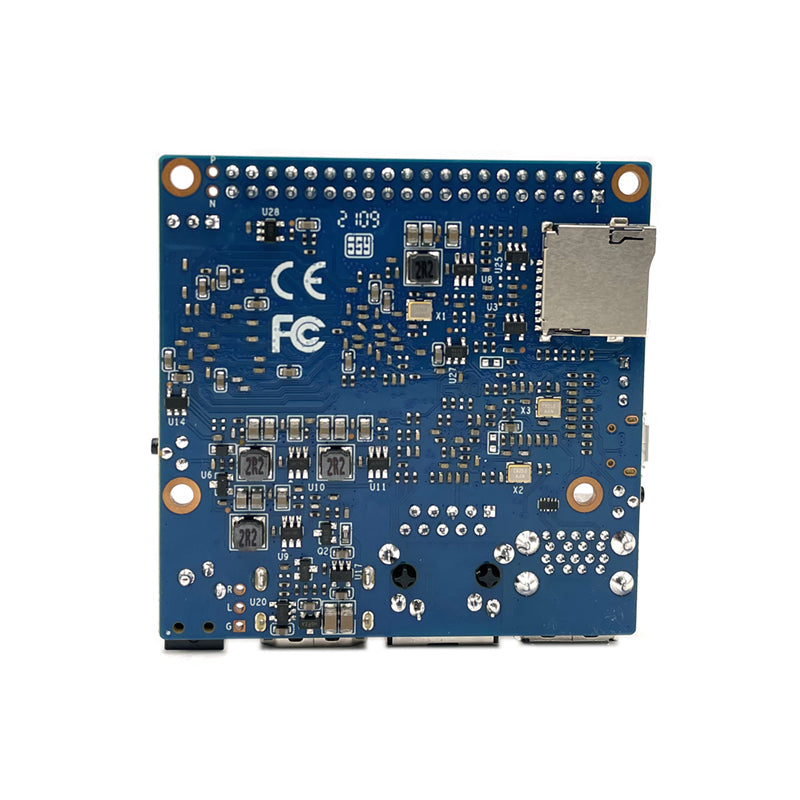

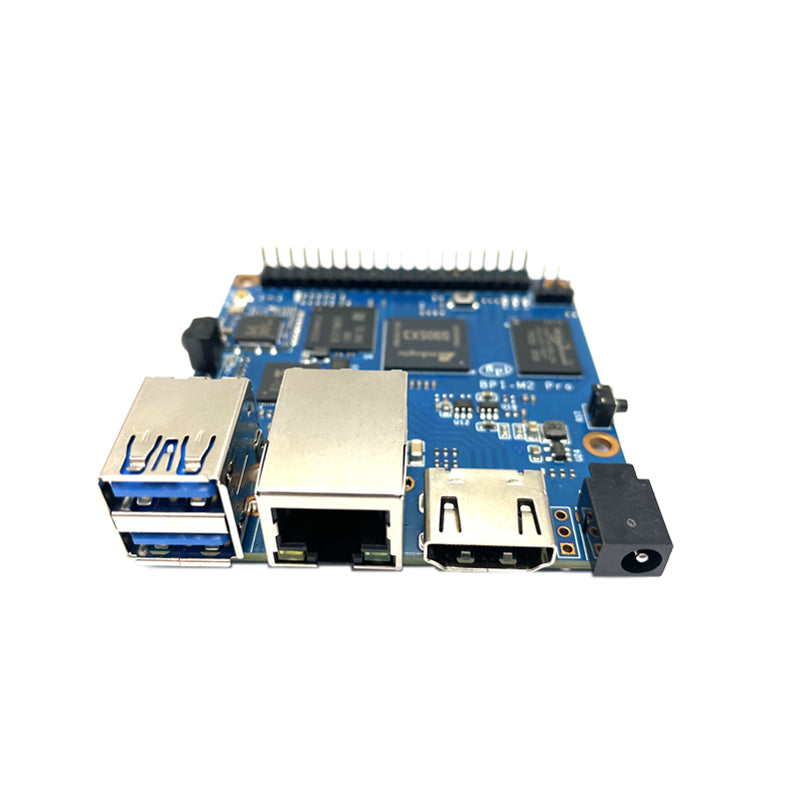

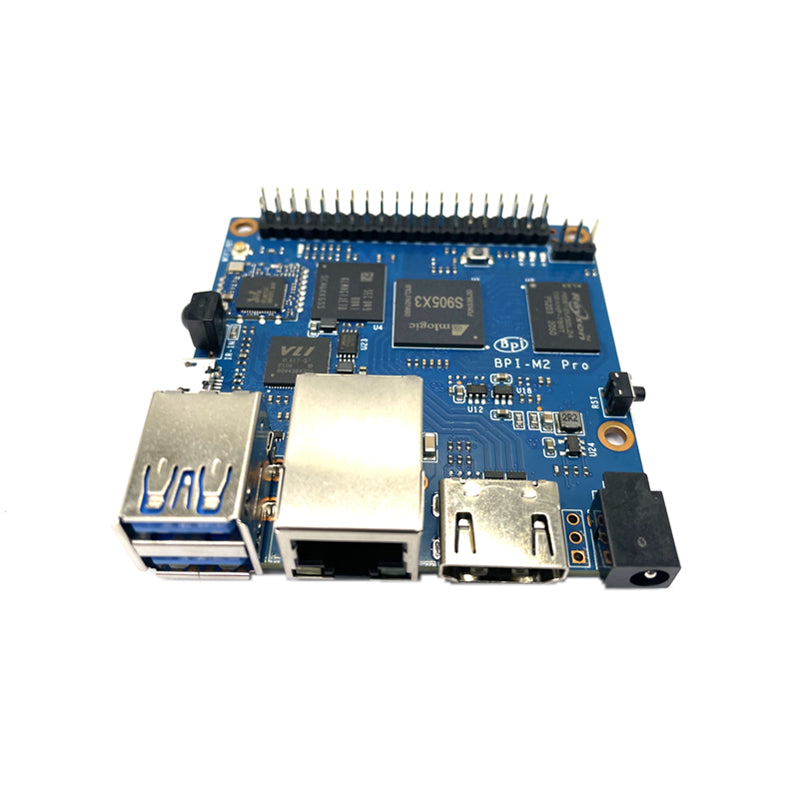

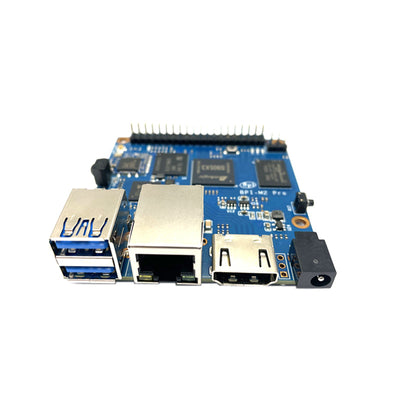

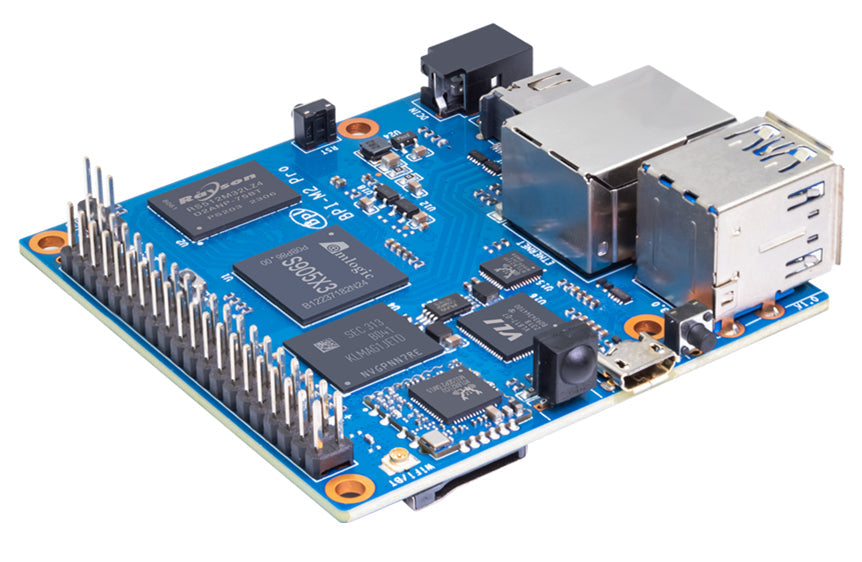

Banana Pi BPI-M2 PRO Single Board Computer – (2G DDR4+16G eMMC)

$79.00


BananaPi BPI-M2 PRO Development Board

SKU BPI-M2PRO

BananaPi BPI-M2 PRO Development Board — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: BPI-M2PRO
Technical specifications
SKU BPI-M2PRO
Product BananaPi BPI-M2 PRO Development Board
Category BPI Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

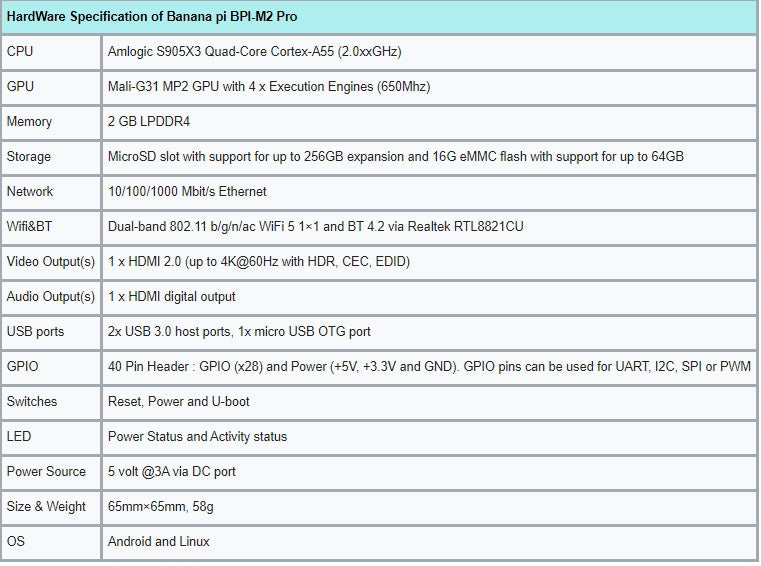

Specification Details
CPU Amlogic S905X3 64-bit Quad-Core Cortex-A55 (2.0xxGHz)
GPU Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
Memory 2 GB LPDDR4
Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
Network 10/100/1000 Mbit/s Ethernet
Wifi&BT Dual-band 802.11 b/g/n/ac WiFi 5 1×1 and Bluetooth 4.2 via Realtek RTL8821CU
Video Output(s) 1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)
Audio Output(s) 1 x HDMI digital output
USB ports 2x USB 3.0 host ports, 1x micro USB OTG port
GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
LED Power Status and Activity status
Power Source 5 volt @3A / 5 volt @2A via DC port
Size & Weight 65mm×65mm, 58g
OS Android and Linux
CPU / SoC Amlogic S905X3
