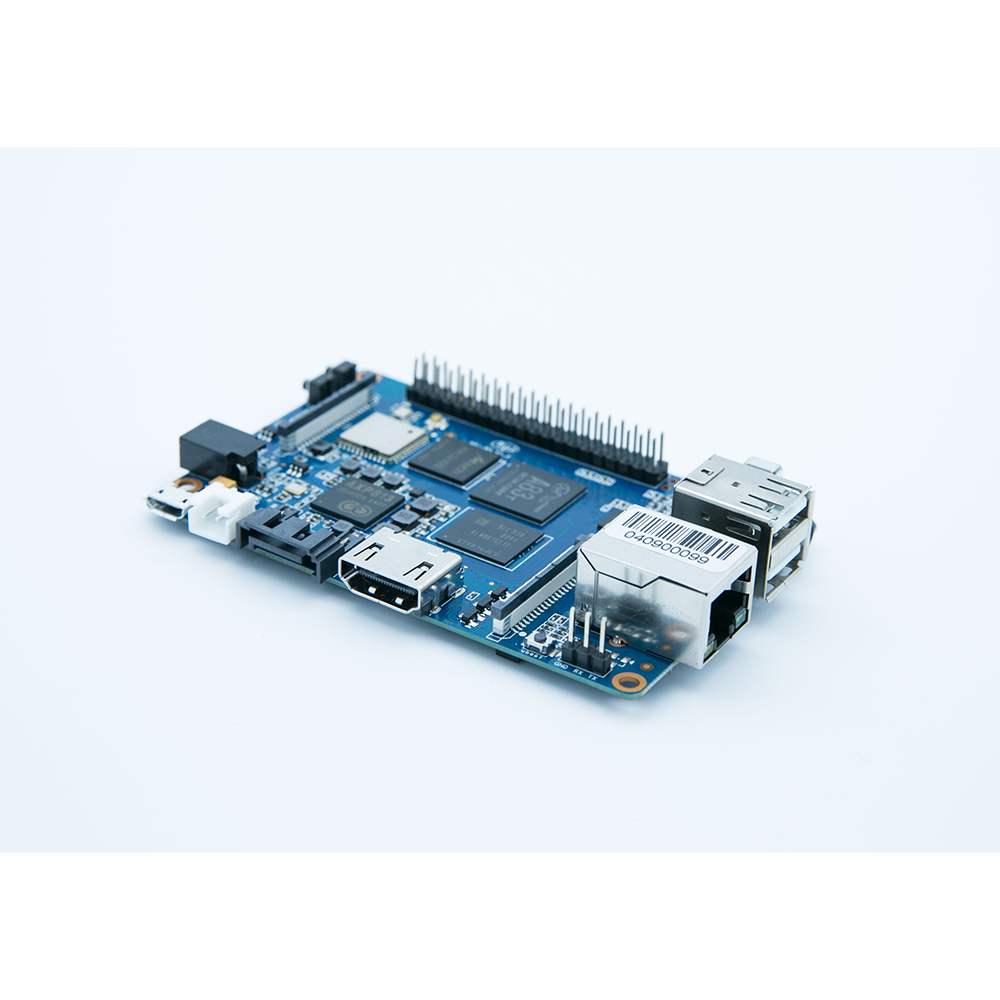

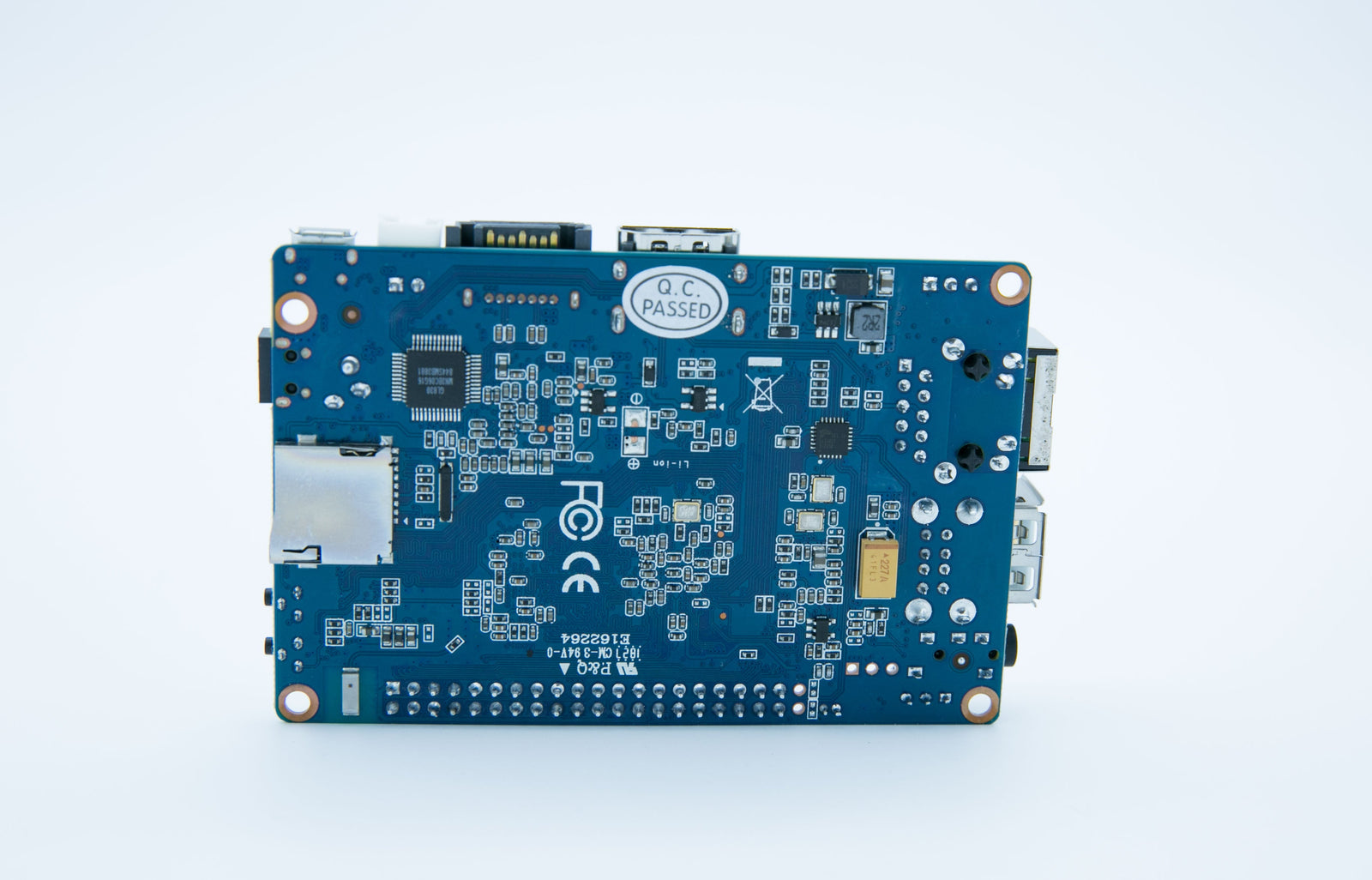

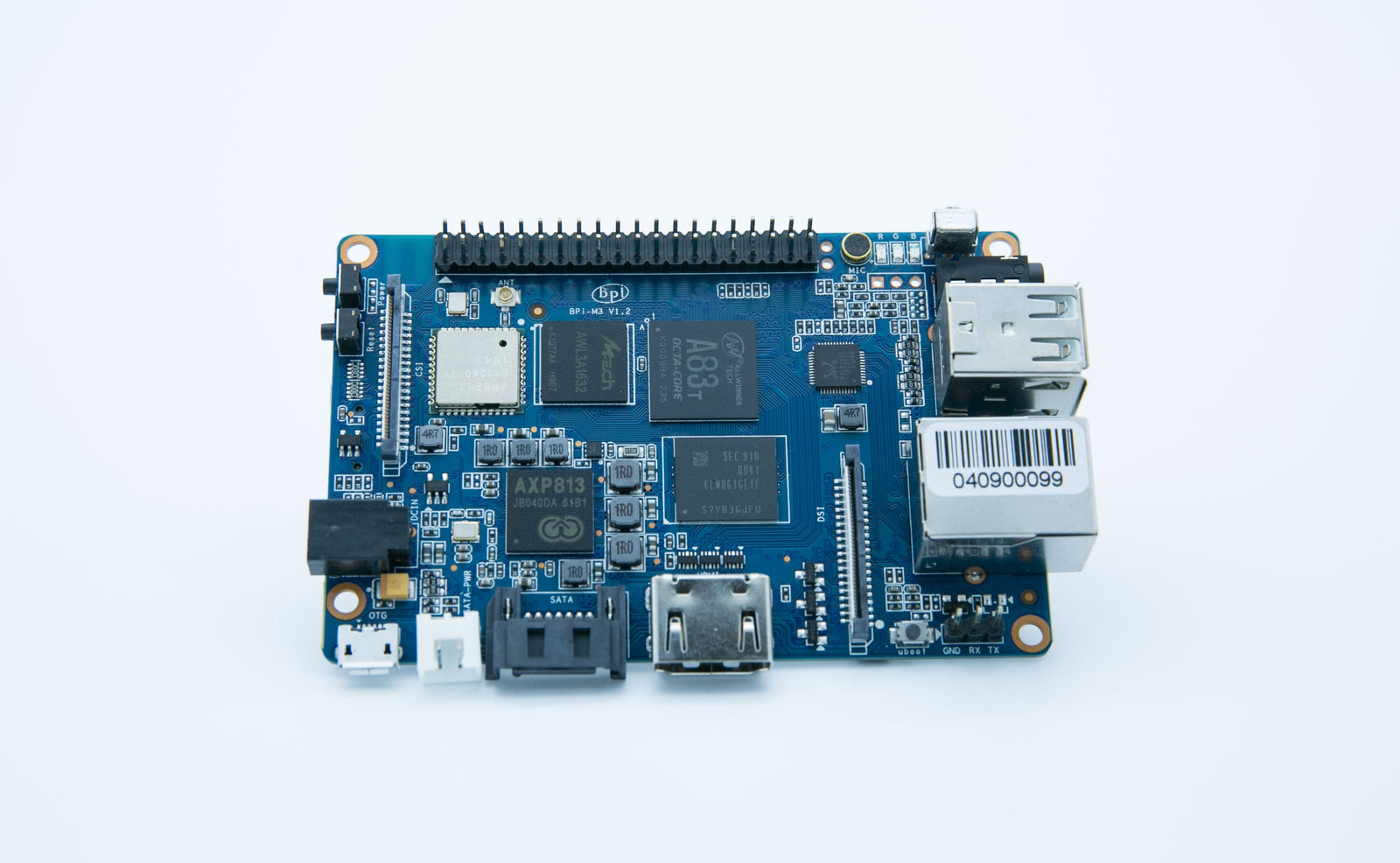

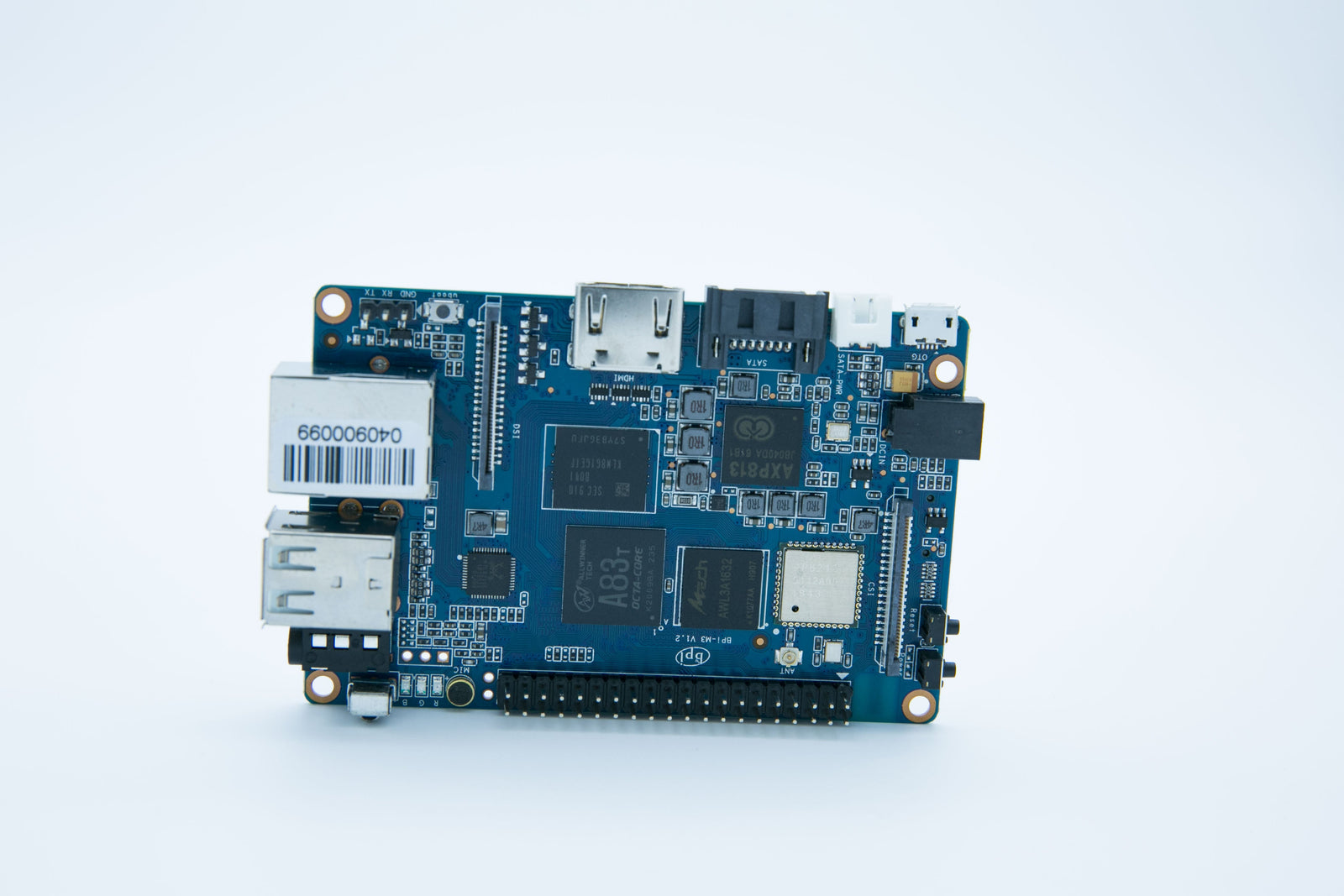

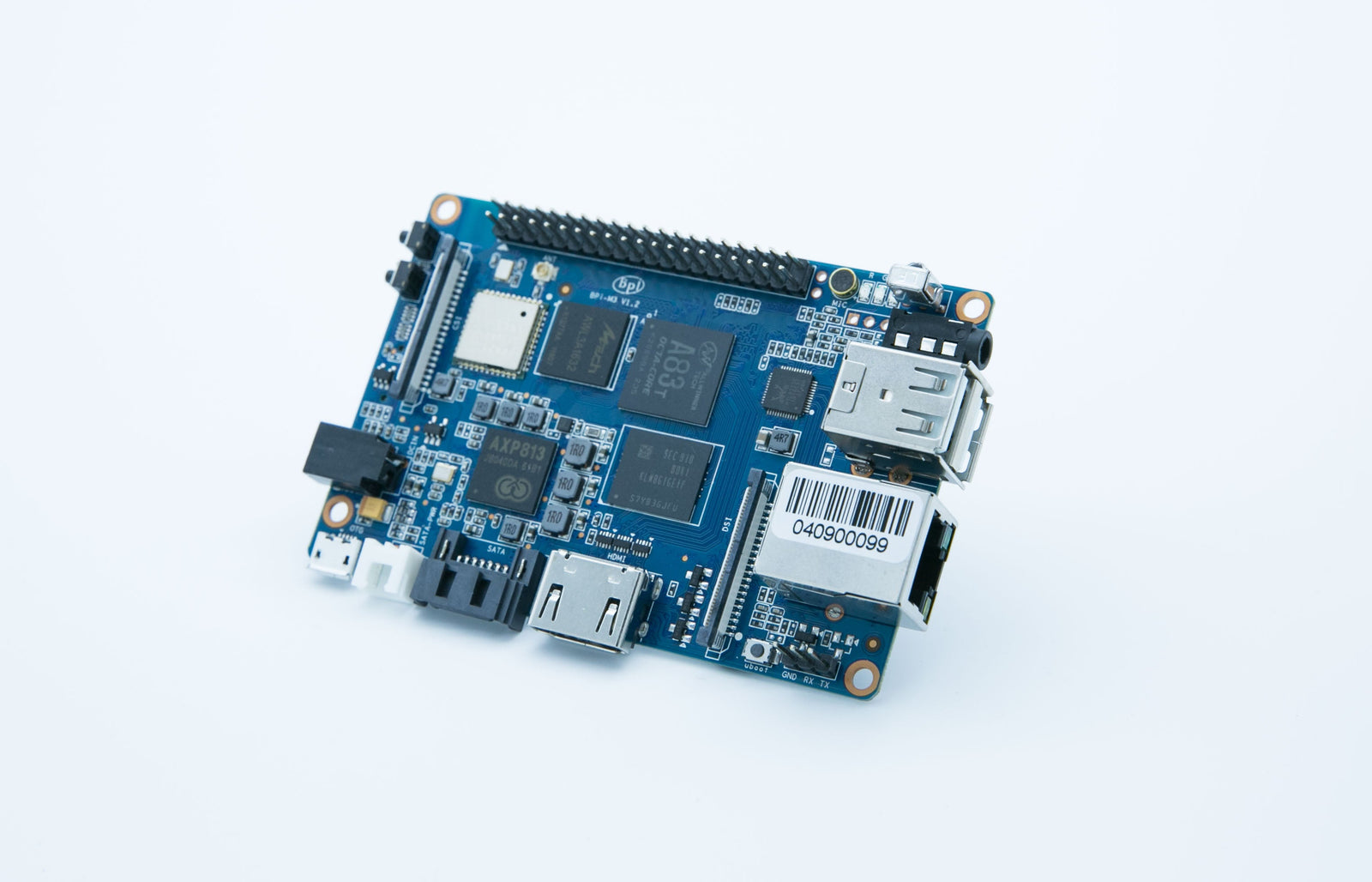

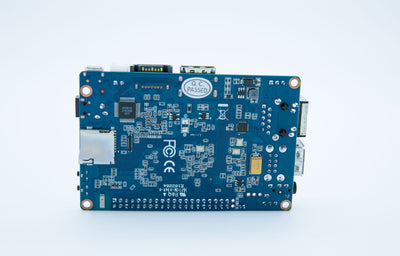

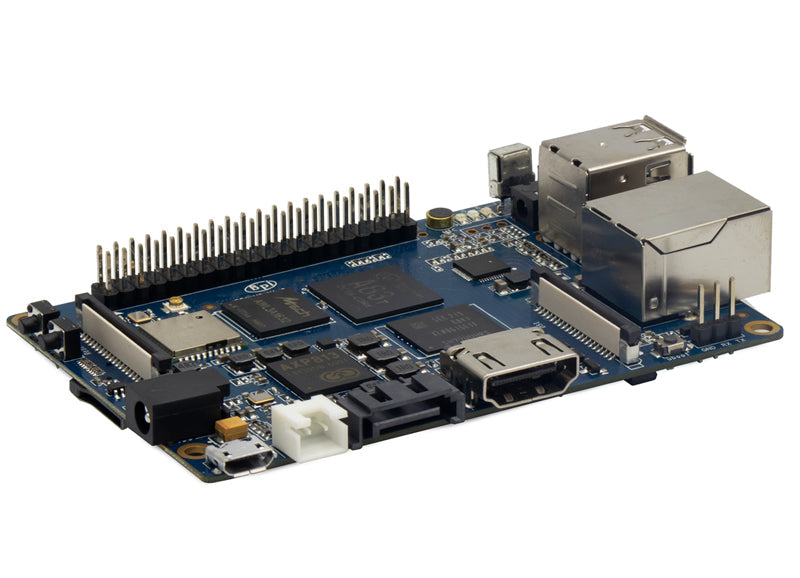

Banana Pi BPI-M3 Single Board Computer – (2GB DDR3+8G eMMC)

$76.00


BananaPi BPI-M3 Board

SKU BPI-M3

BananaPi BPI-M3 Board — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: BPI-M3
Technical specifications
SKU BPI-M3
Product BananaPi BPI-M3 Board
Category BPI Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

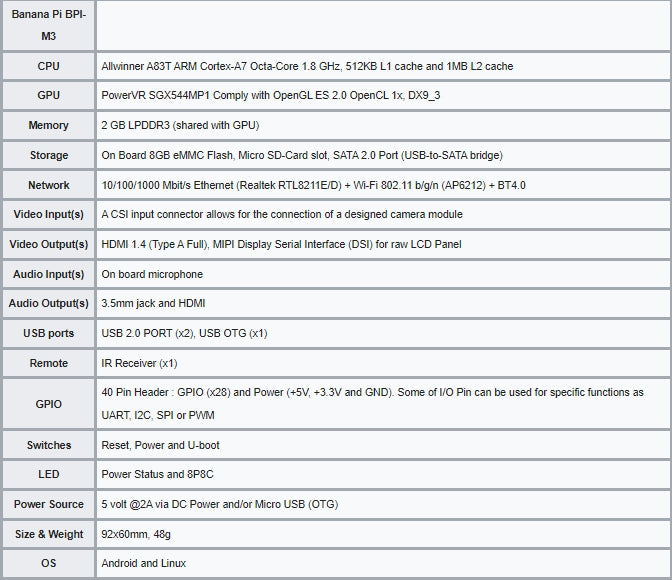

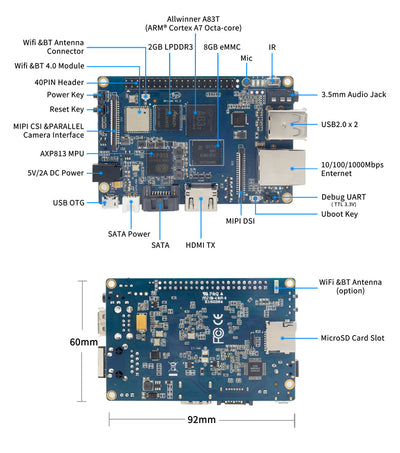

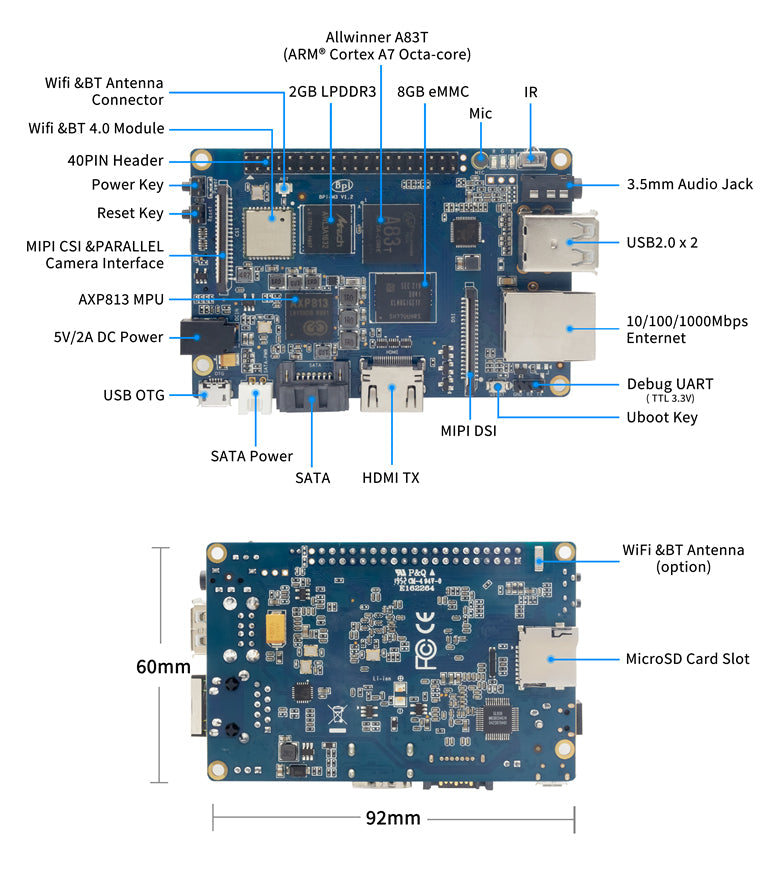

Specification Details
CPU Allwinner A83T ARM Cortex-A7 Octa-Core 1.8 GHz, 512KB L1 cache and 1MB L2 cache
GPU PowerVR SGX544MP1 Comply with OpenGL ES 2.0 OpenCL 1x, DX9_3
Memory 2 GB LPDDR3 (shared with GPU)
Storage On Board 8GB eMMC Flash, Micro SD-Card slot, SATA 2.0 Port (USB-to-SATA bridge)
Network 10/100/1000 Mbit/s Ethernet (Realtek RTL8211E/D) + Wi-Fi 802.11 b/g/n (AP6212) + Bluetooth BT4.0
Video Input(s) A CSI input connector allows for the connection of a designed camera module
Video Output(s) HDMI 1.4 (Type A Full), MIPI Display Serial Interface (DSI) for raw LCD Panel
Audio Input(s) On board microphone
Audio Output(s) 3.5mm jack and HDMI
USB ports USB 2.0 PORT (x2), USB OTG (x1)
GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM
LED Power Status and 8P8C
Power Source 5 volt @2A via DC Power and/or Micro USB (OTG)
Size & Weight 92x60mm, 48g
OS Android and Linux
CPU / SoC Allwinner A83T
