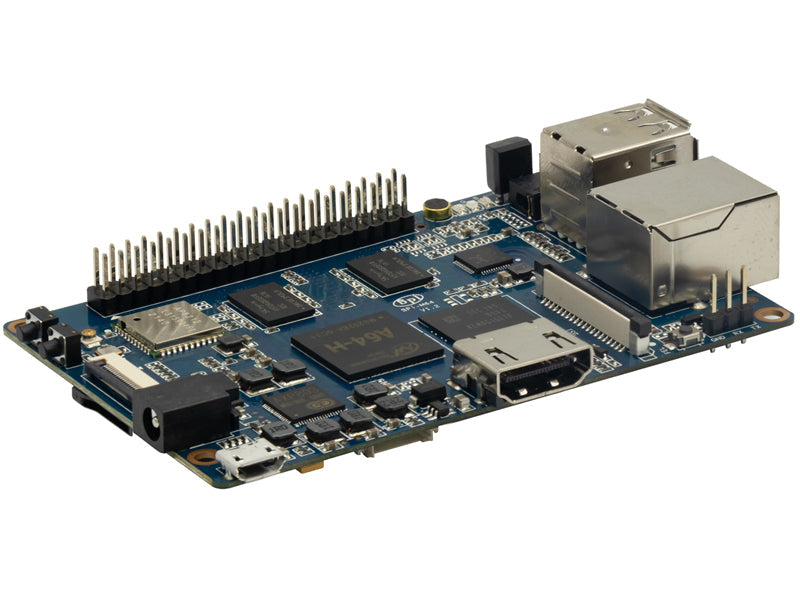

Banana Pi BPI-M64 Single Board Computer – (2GB DDR3+8G eMMC)

$74.00

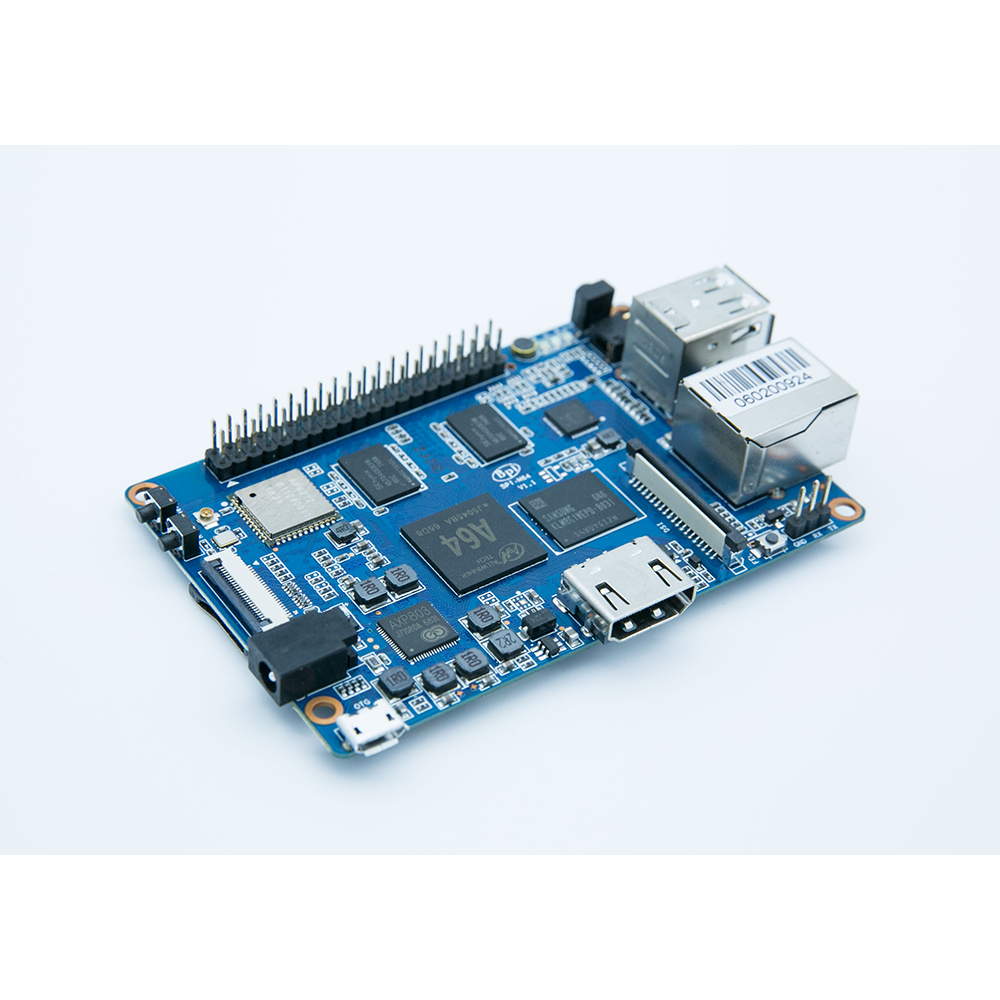

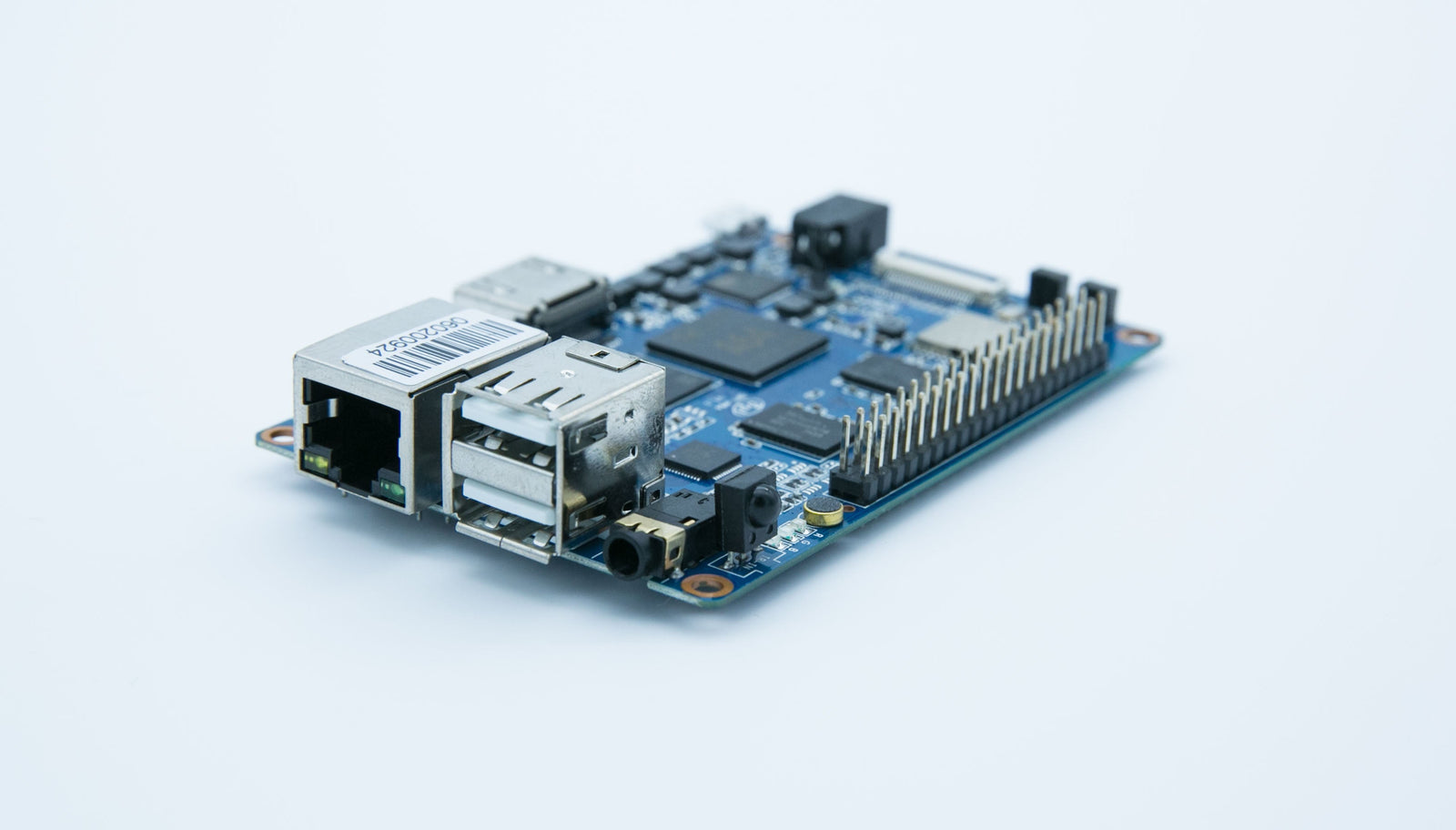

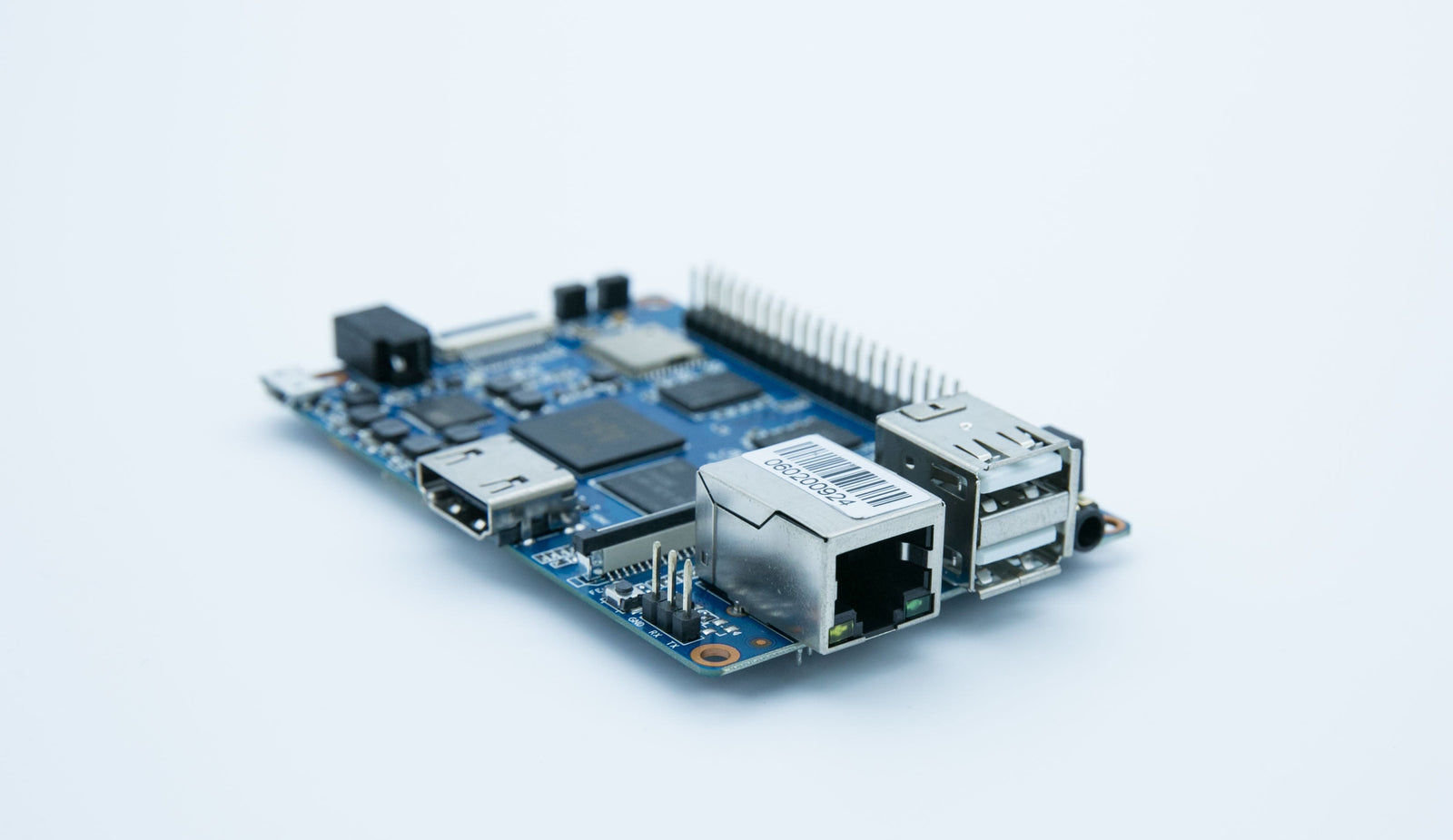

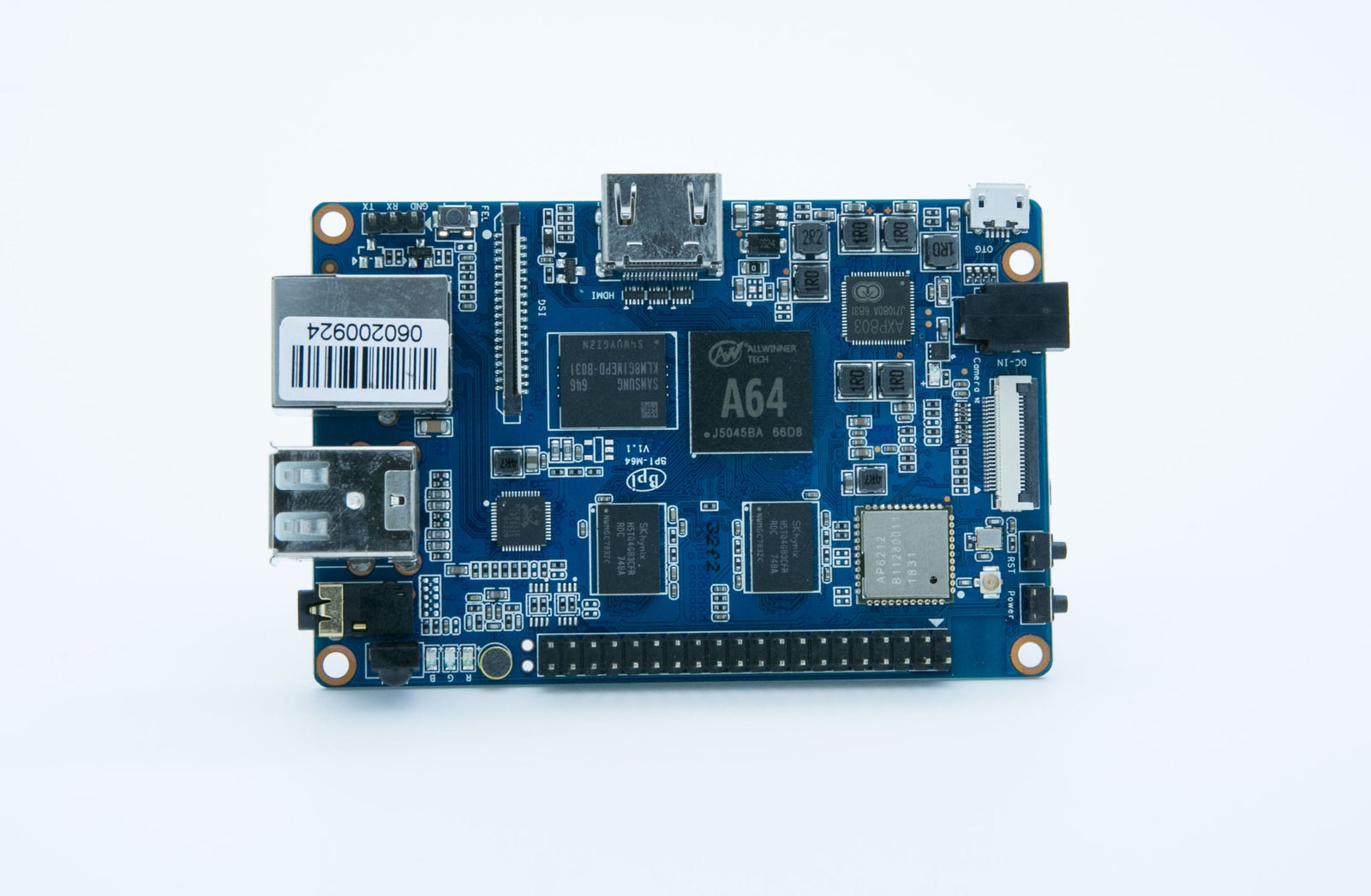

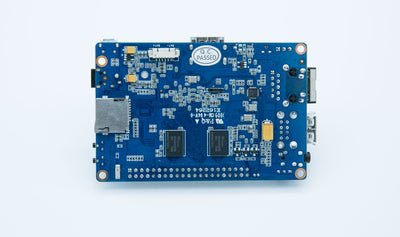

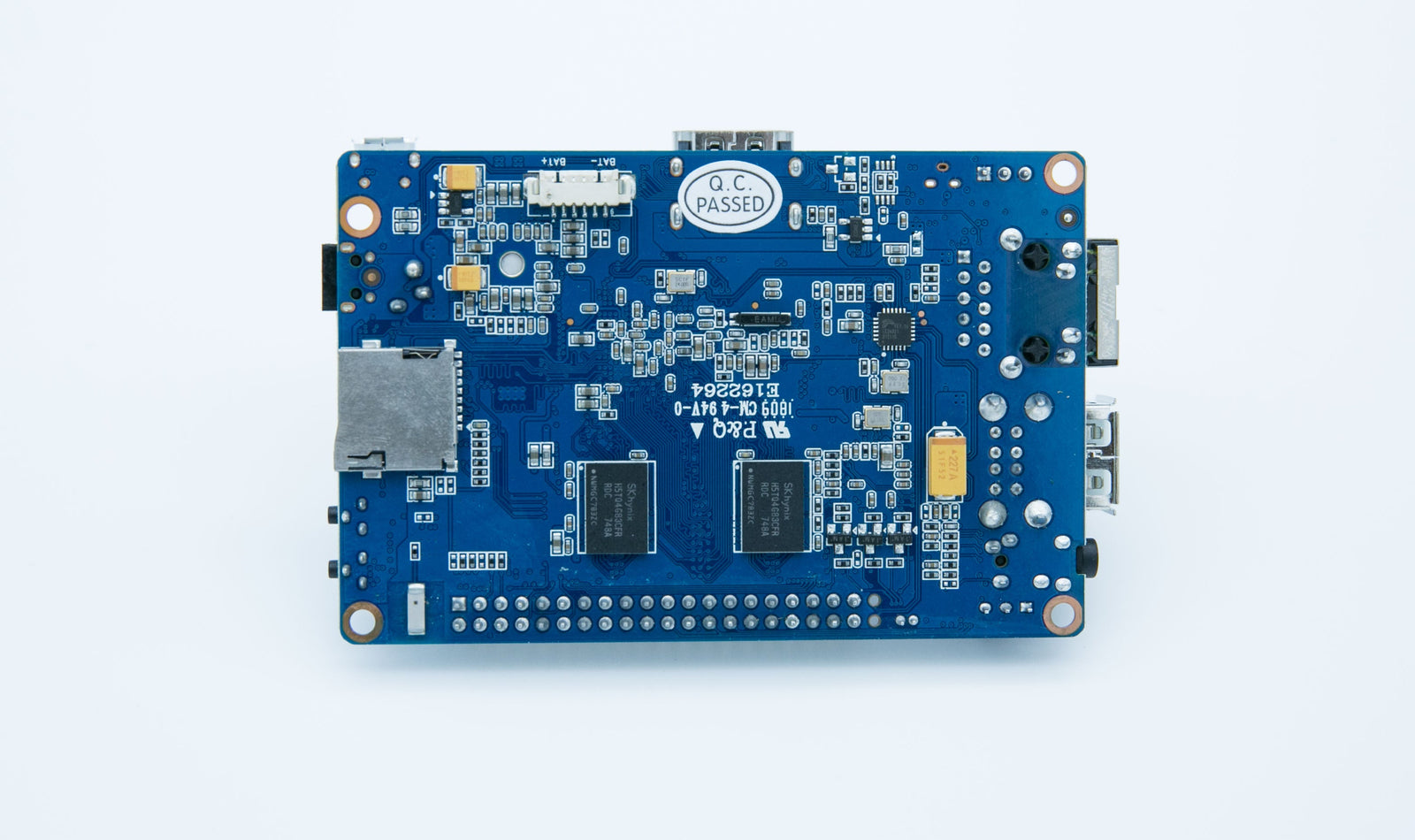

BananaPi BPI-M64 Board

SKU BPI-M64

BananaPi BPI-M64 Board — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: BPI-M64
Technical specifications
SKU BPI-M64
Product BananaPi BPI-M64 Board
Category BPI Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

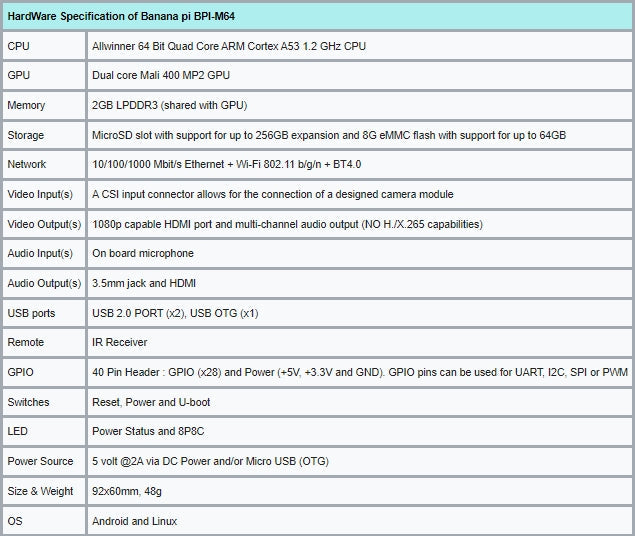

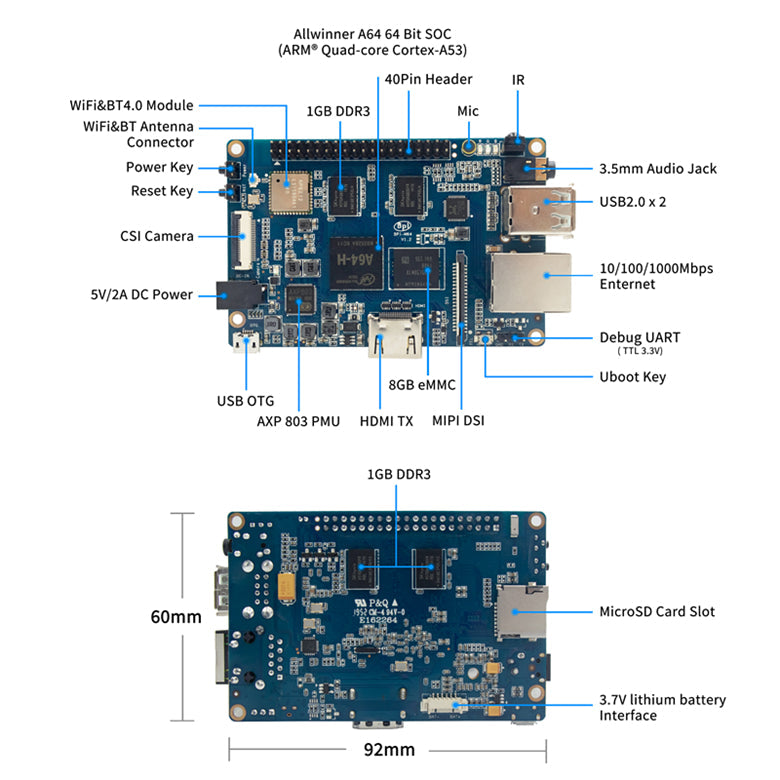

Specification Details
CPU Allwinner 64 Bit Quad Core ARM Cortex A53 1.2 GHz CPU
GPU Dual core Mali 400 MP2 GPU
Memory 2GB LPDDR3 (shared with GPU)
Storage MicroSD slot with support for up to 256GB expansion and 8G eMMC flash with support for up to 64GB
Network 10/100/1000 Mbit/s Ethernet + Wi-Fi 802.11 b/g/n + Bluetooth 4.0
Video Input(s) A CSI input connector allows for the connection of a designed camera module
Video Output(s) 1080p capable HDMI port and multi-channel audio output (NO H./X.265 capabilities)
Audio Input(s) On board microphone
Audio Output(s) 3.5mm jack and HDMI
USB ports USB 2.0 PORT (x2), USB OTG (x1)
GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
LED Power Status and 8P8C
Power Source 5 volt @2A via DC Power and/or Micro USB (OTG)
Size & Weight 92x60mm, 48g
OS Android and Linux
CPU / SoC Allwinner A64
