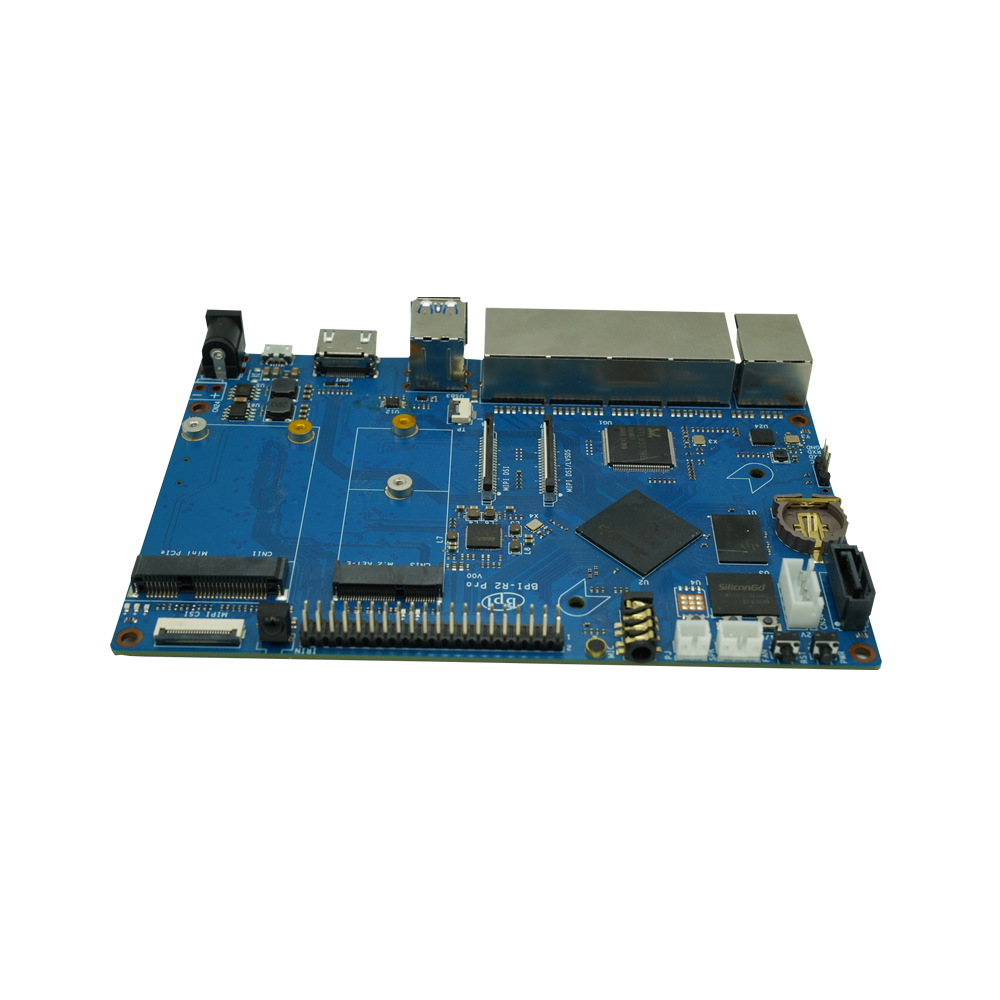

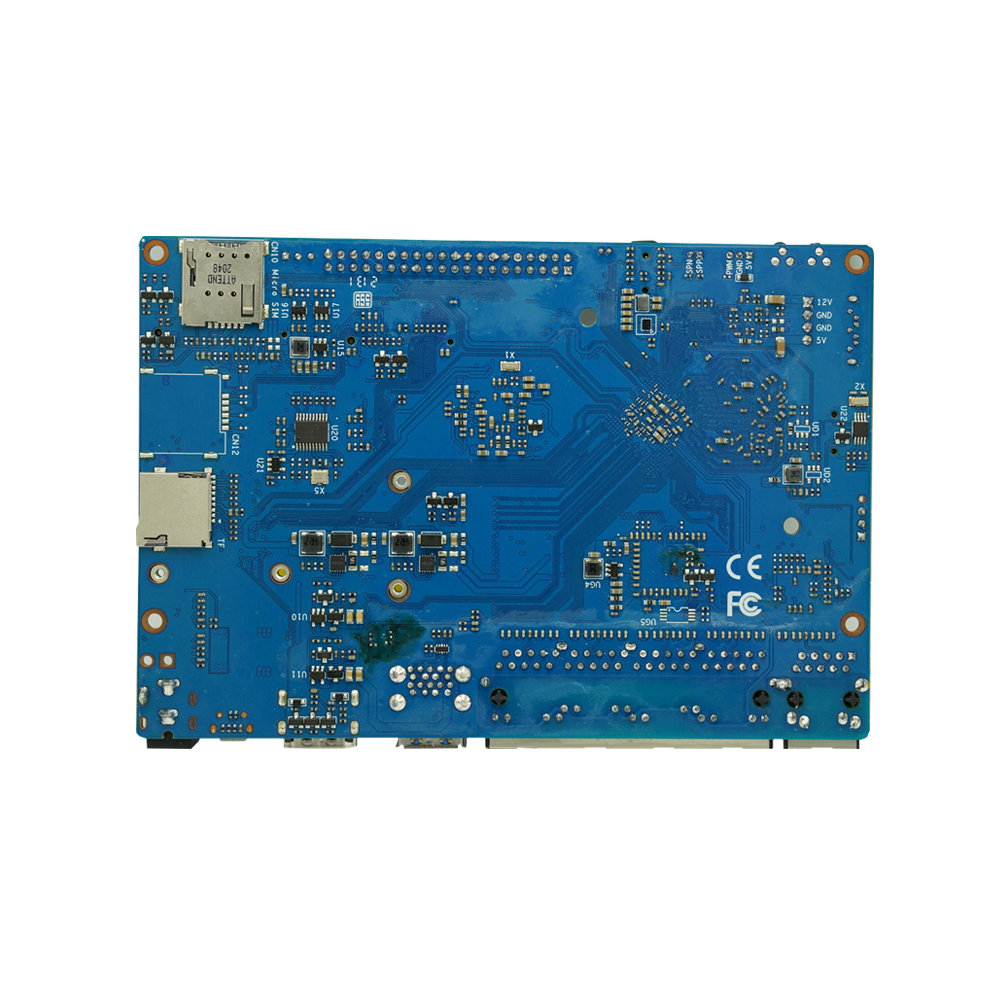

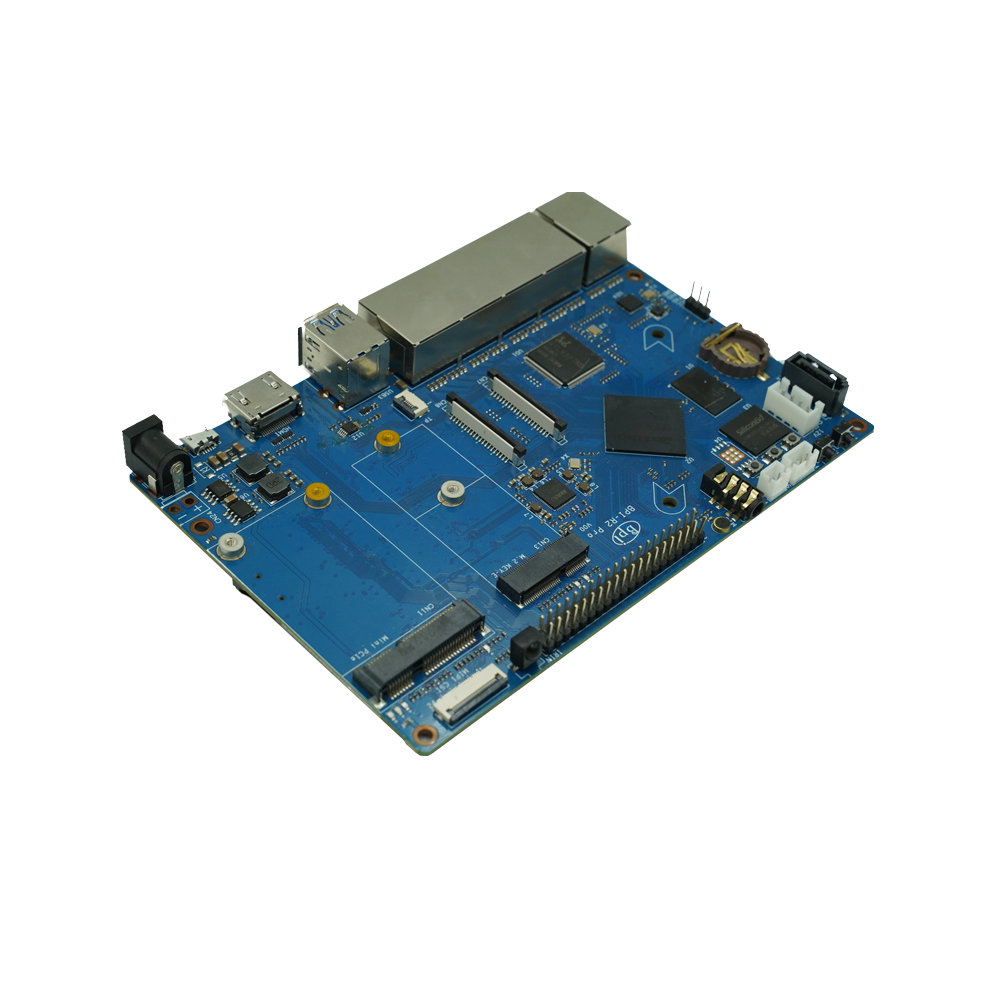

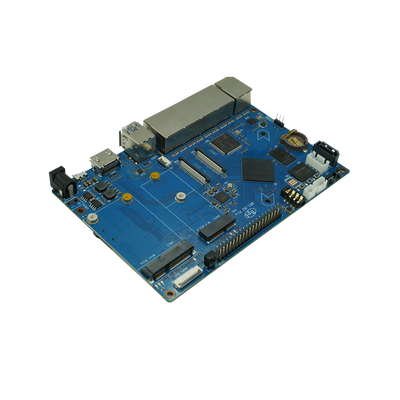

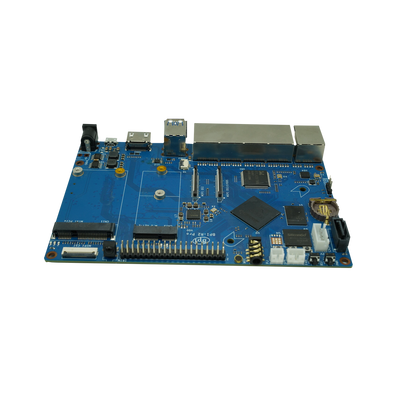

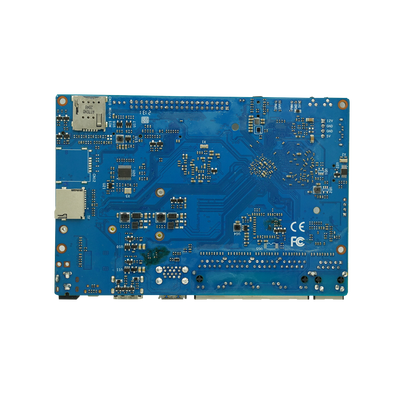

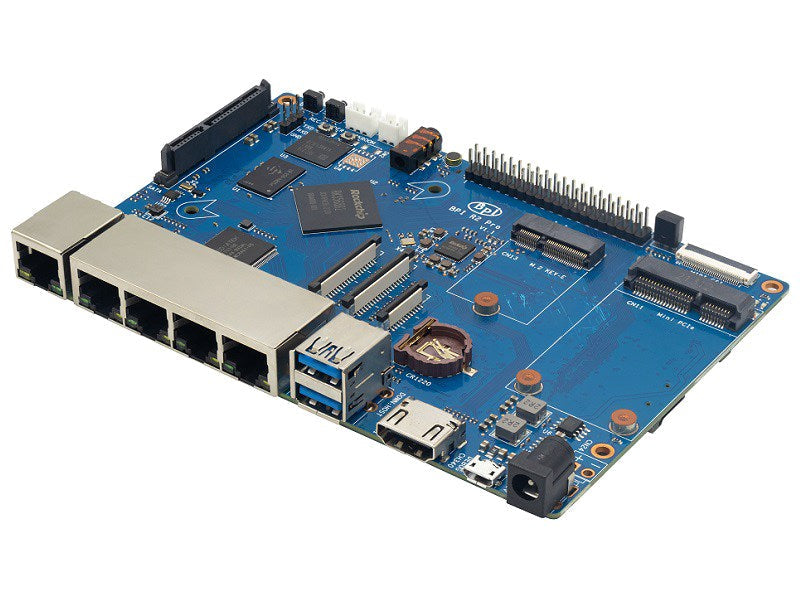

Banana Pi BPI-R2 PRO Router Board – (2G LPDDR4+16G eMMC)

$133.00

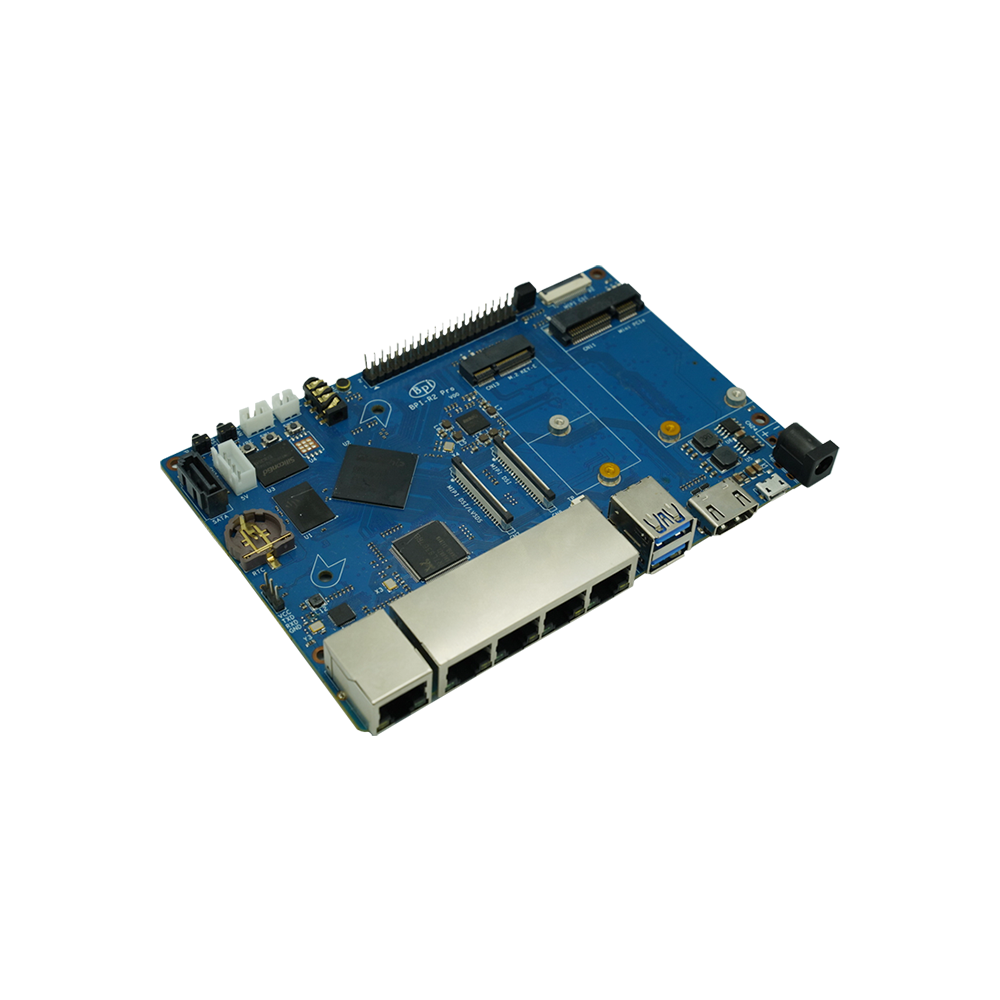

BananaPi BPI-R2 PRO Board

SKU BPI-R2PRO

BananaPi BPI-R2 PRO Board — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: BPI-R2PRO
Technical specifications
SKU BPI-R2PRO
Product BananaPi BPI-R2 PRO Board
Category BPI Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

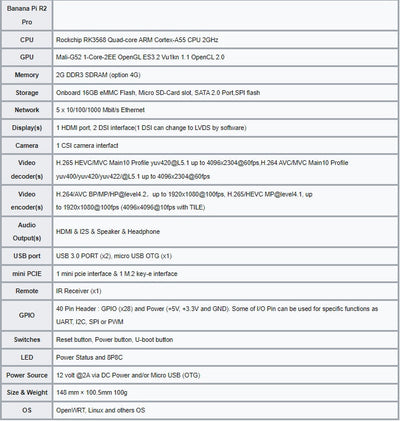

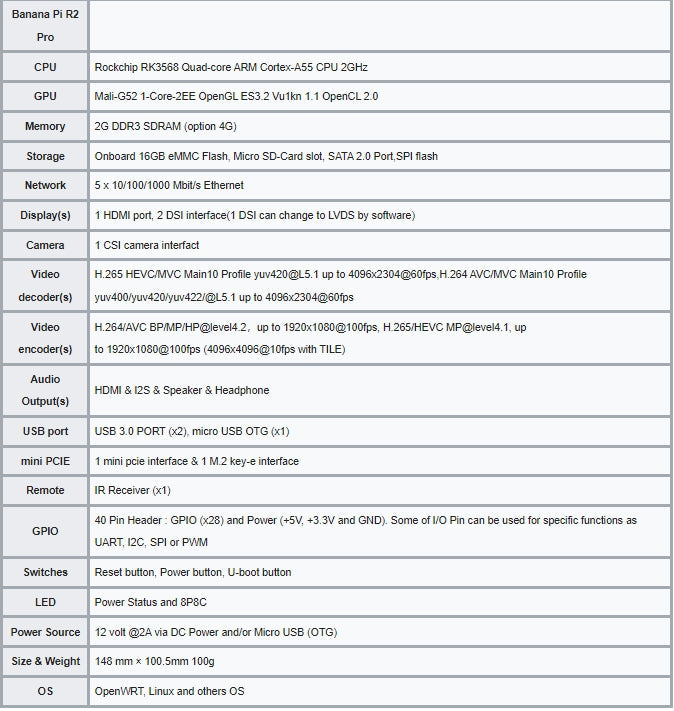

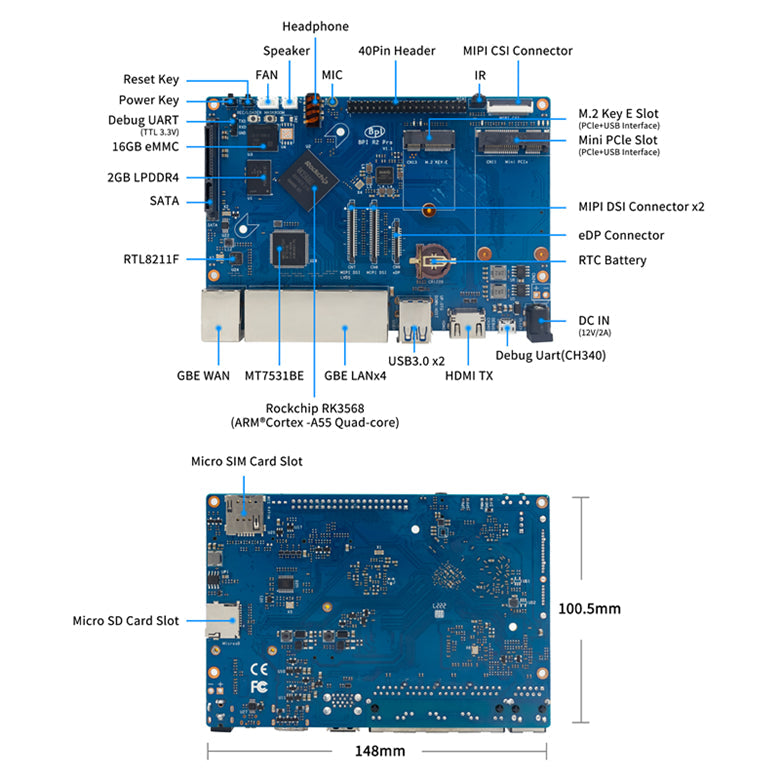

Specification Details
CPU Rockchip RK3568 Quad-core ARM Cortex-A55 CPU 2GHz
GPU Mali-G52 1-Core-2EE OpenGL ES3.2 Vu1kn 1.1 OpenCL 2.0
Memory 2G DDR3 SDRAM (option 4G)
Storage Onboard 16GB eMMC Flash, Micro SD-Card slot, SATA 3.0 Port,SPI flash
Network 5 x 10/100/1000 Mbit/s Ethernet
Display(s) 1 HDMI port, 2 DSI interface(1 DSI can change to LVDS by software)
Camera 1 CSI camera interface
Video decoder(s) H.265 HEVC/MVC Main10 Profile [email protected] up to 4096x2304@60fps,H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps
Video encoder(s) H.264/AVC BP/MP/[email protected],up to 1920x1080@100fps, H.265/HEVC [email protected], up to 1920x1080@100fps (4096x4096@10fps with TILE)
Audio Output(s) HDMI & I2S & Speaker & Headphone
USB port USB 3.0 PORT (x2), micro USB OTG (x1)
GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM
LED Power Status and 8P8C
Power Source 12 volt @2A via DC Power and/or Micro USB (OTG)
Size & Weight 148 mm × 100.5mm 100g
OS OpenWRT, Linux and others OS
CPU / SoC RK3568
