Banana Pi

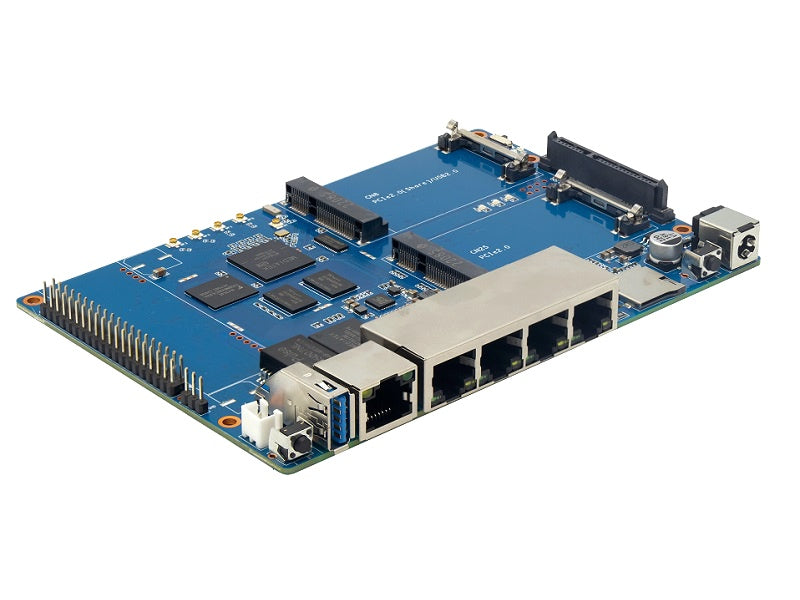

Banana Pi BPI-R64 Router Board – (1G DDR3+8G eMMC)

$133.00

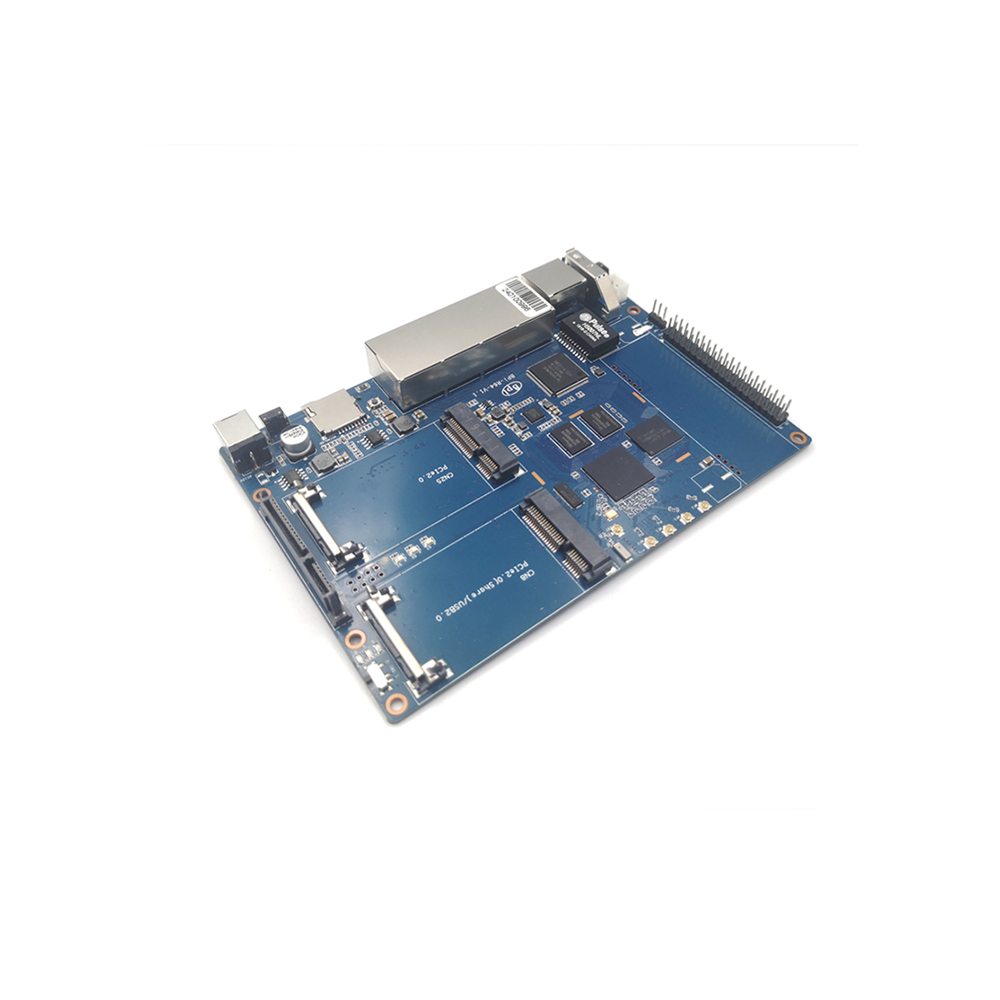

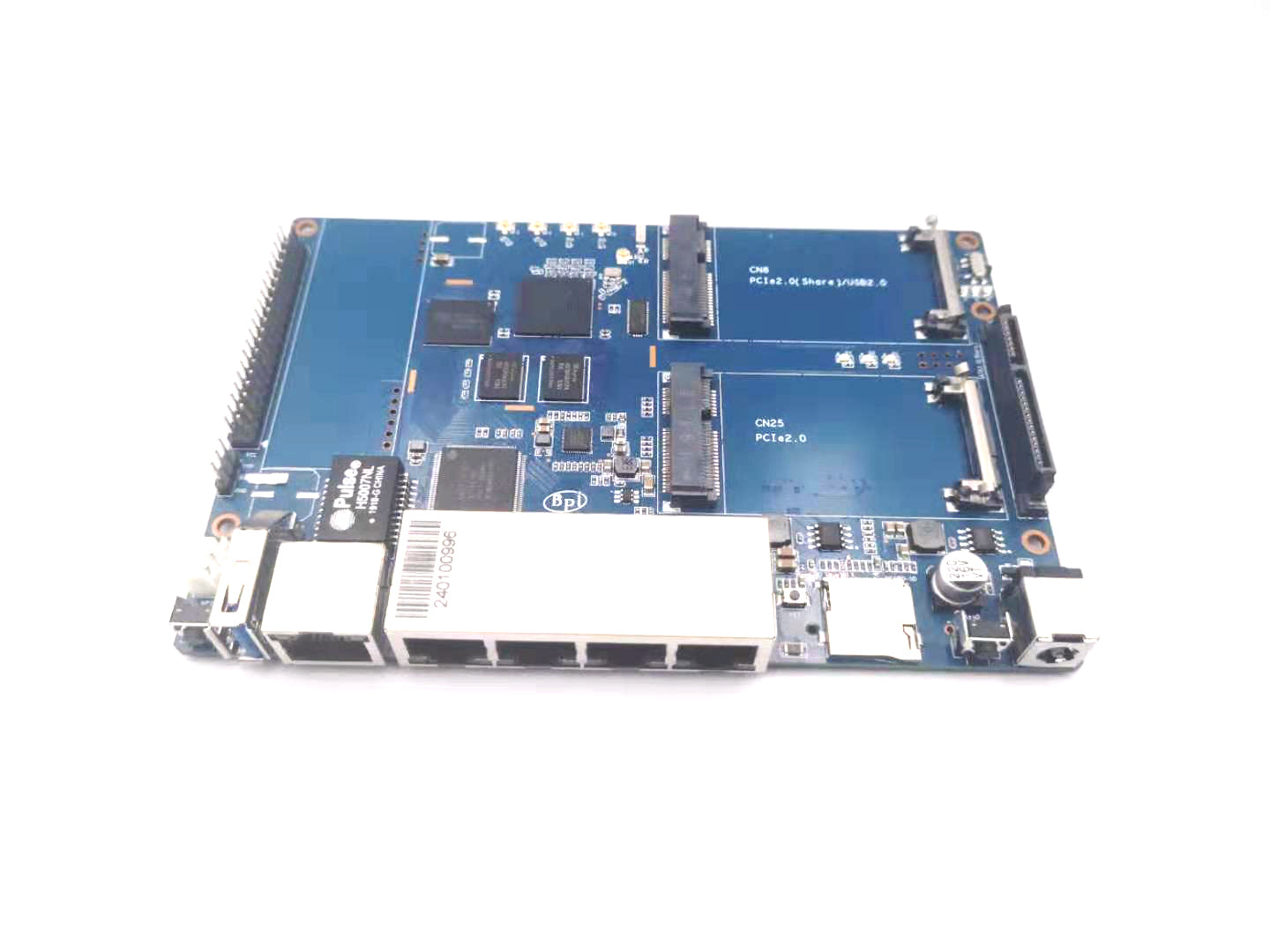

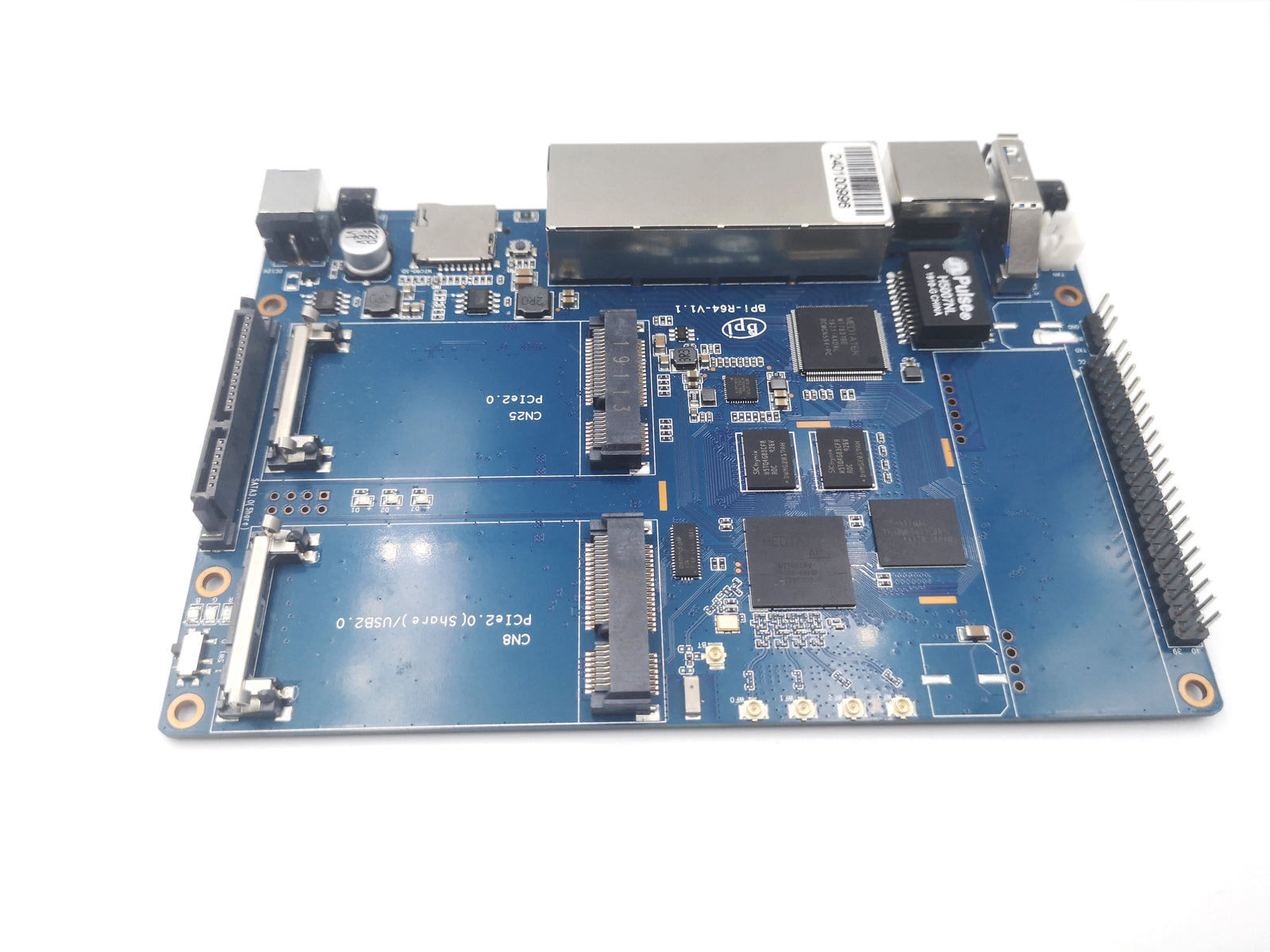

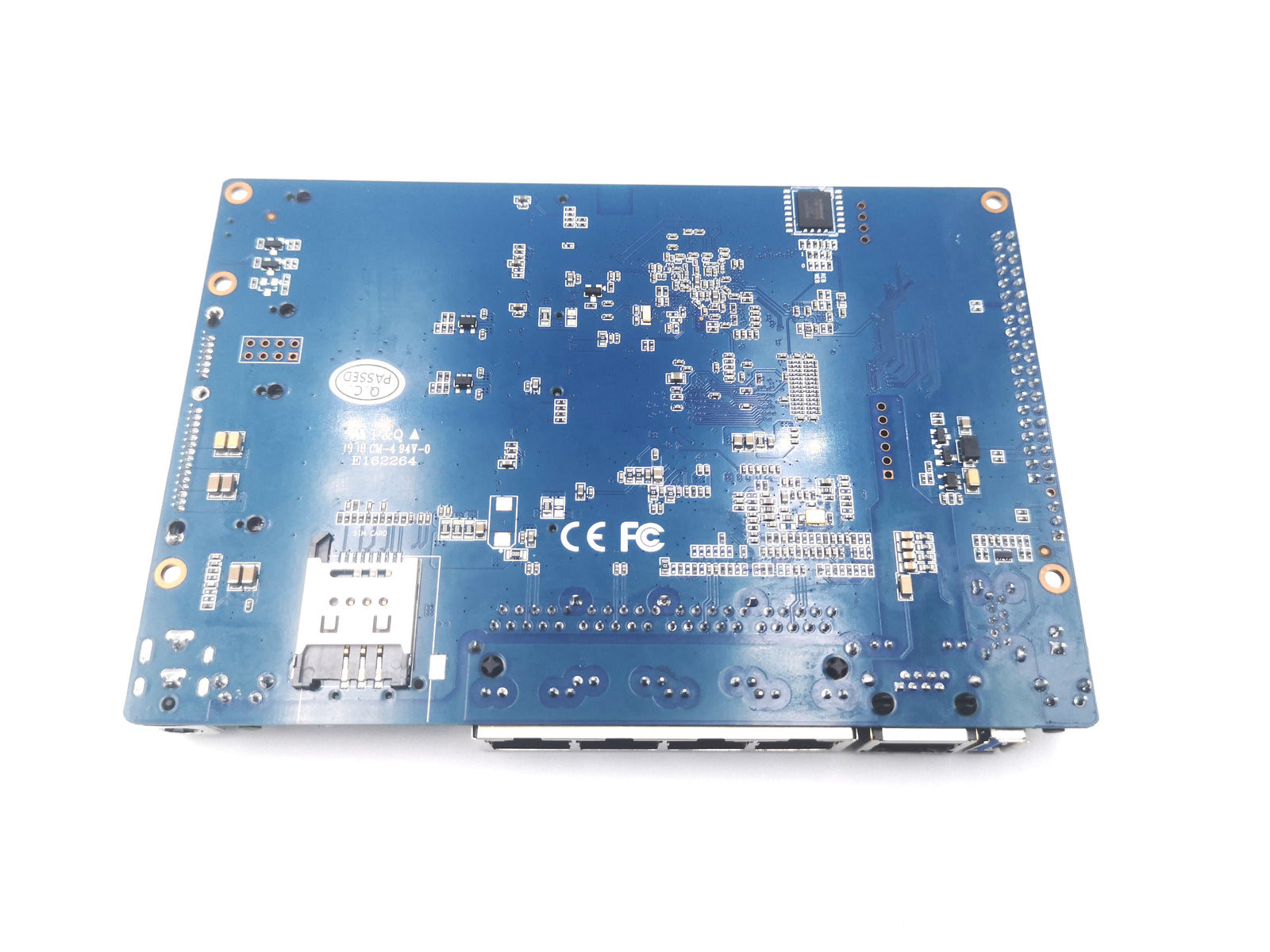

BananaPi BPI-R64 Board

SKU BPI-R64

BananaPi BPI-R64 Board — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: BPI-R64
Technical specifications
SKU BPI-R64
Product BananaPi BPI-R64 Board
Category BPI Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

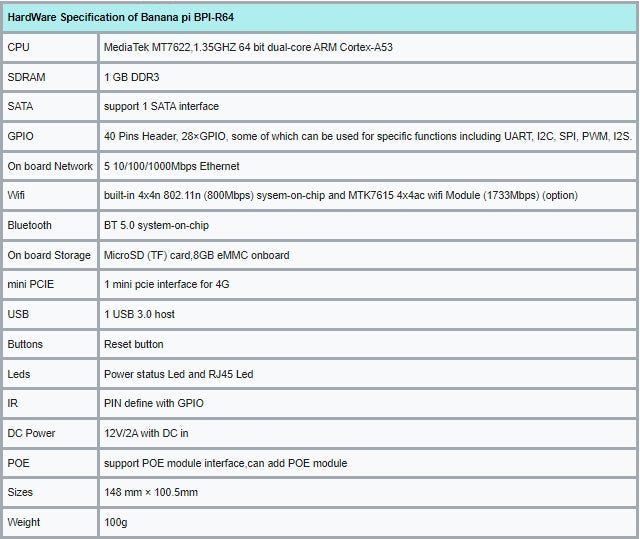

Specification Details
CPU MediaTek MT7622,1.35GHZ 64 bit dual-core ARM Cortex-A53
SDRAM 1 GB DDR3
GPIO 40 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
Wifi built-in 4x4n 802.11n (800Mbps) sysem-on-chip and MTK7615 4x4ac wifi Module (1733Mbps) (option)
Bluetooth Bluetooth 5.0 system-on-chip
USB 1 USB 3.0 host
Buttons Reset button
Leds Power status Led and RJ45 Led
IR PIN define with GPIO
Sizes 148 mm × 100.5mm same as Banana Pi BPI-R3 and Banana Pi BPI-R2
Weight 100g
CPU / SoC MT7622
