Banana Pi BPI-W3 Single Board Computer – (8G DDR4+32G eMMC)

$391.25

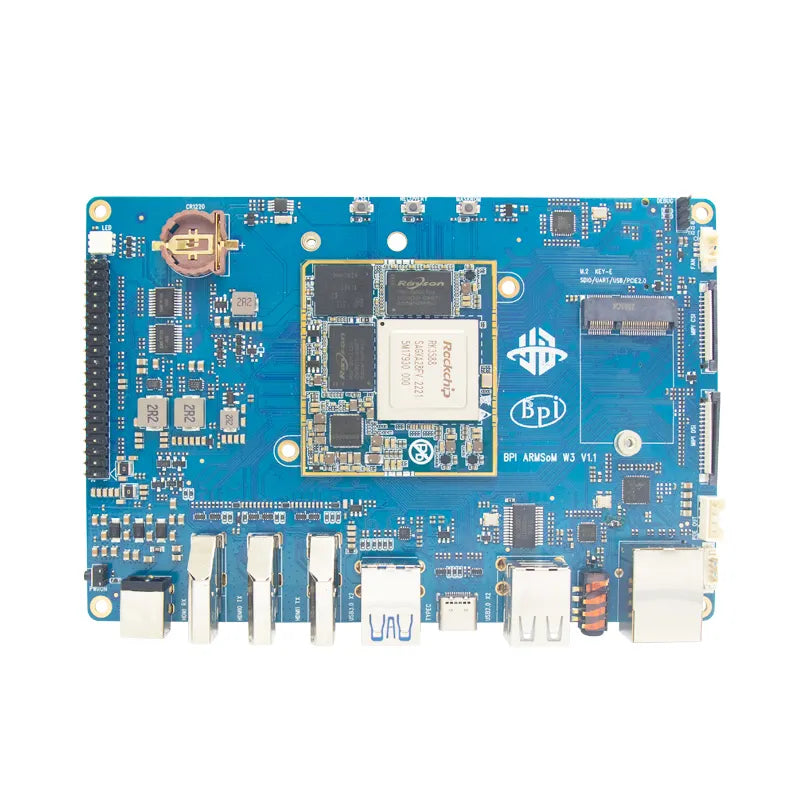

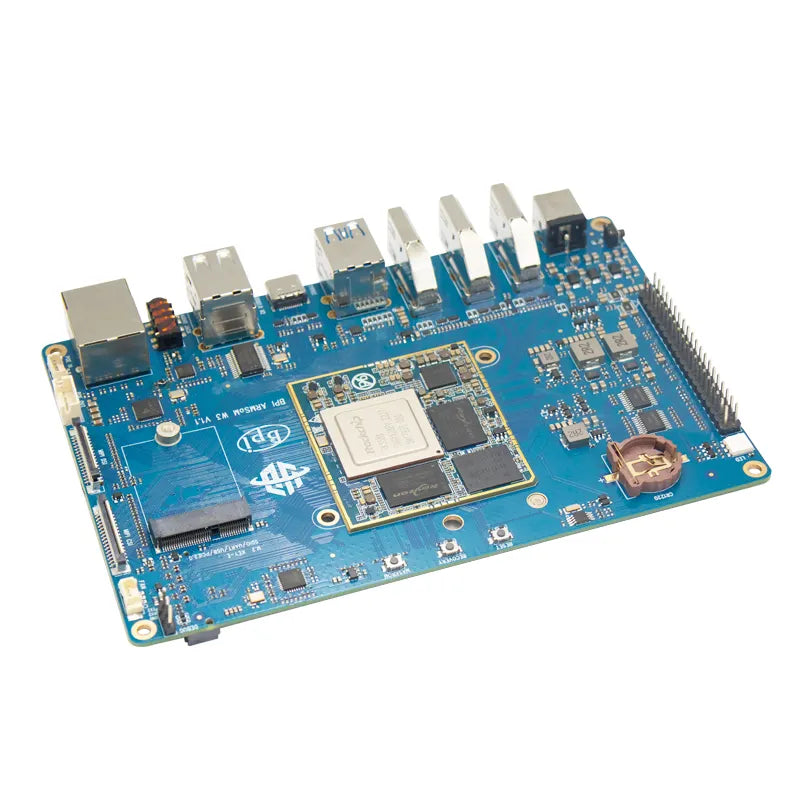

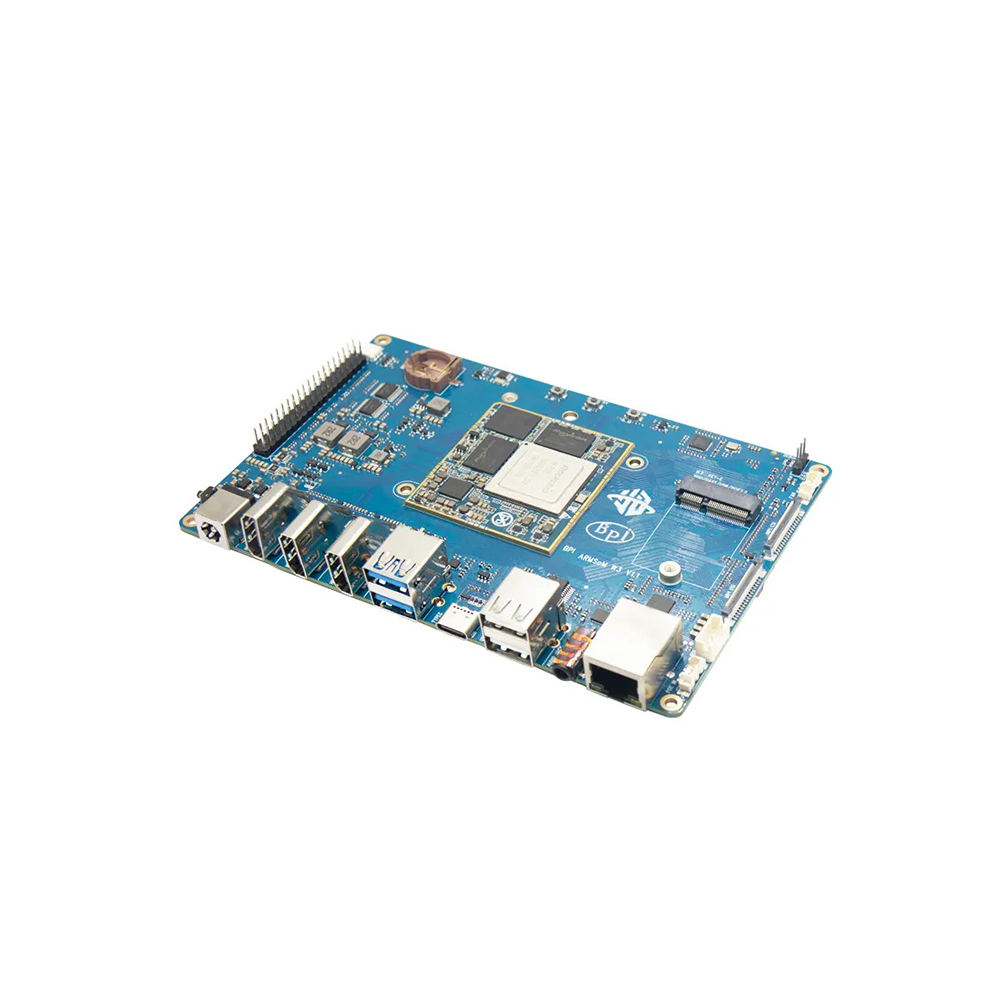

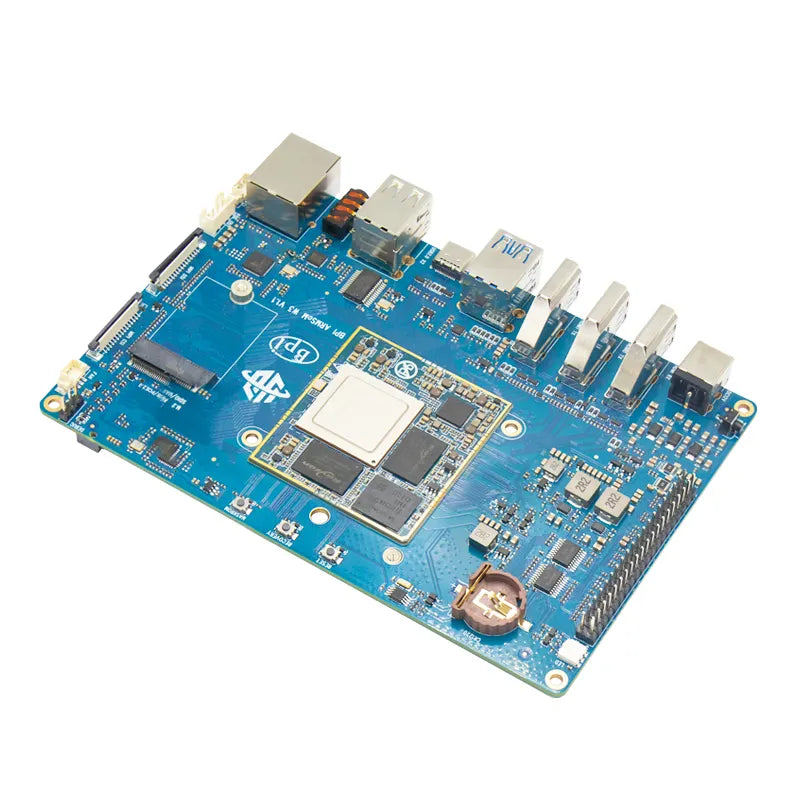

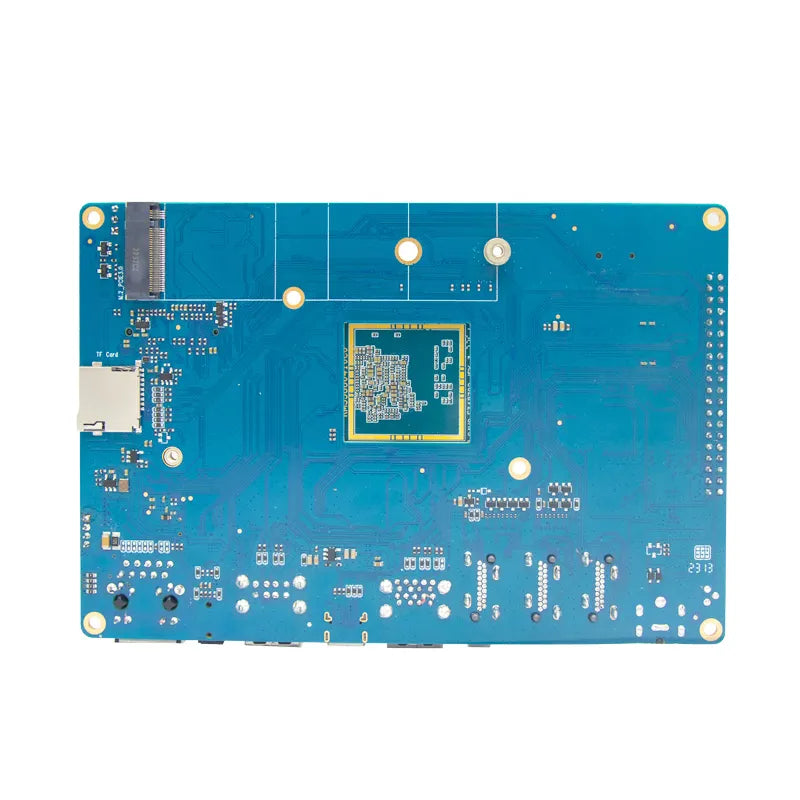

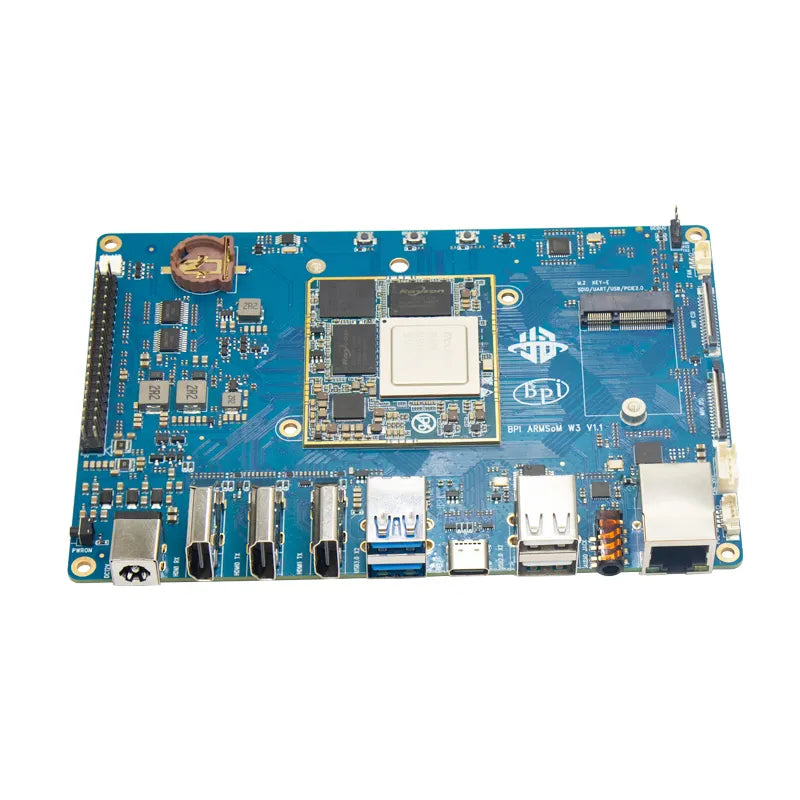

BananaPi BPI-W3 (8+32) Board

SKU BPI-W3

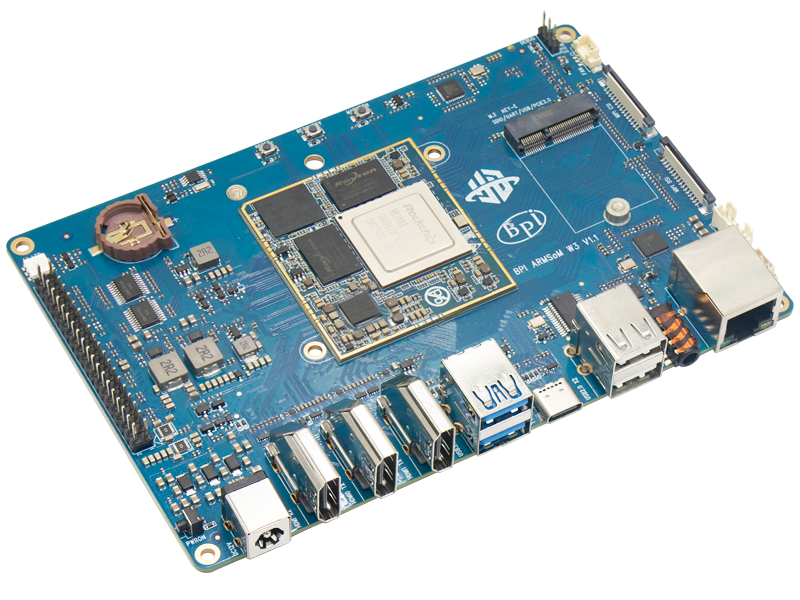

The Banana Pi BPI-W3 single board computer is designed and developed by bananapi team for professional and enterprise users, powered by Rockchip RK3588 SoC quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor with dynamic frequency scaling up to 2.4GHz. Embedded high -performance 3D and 2D image acceleration module, AI accelerator NPU with a built -in 6 TOPS computing power.

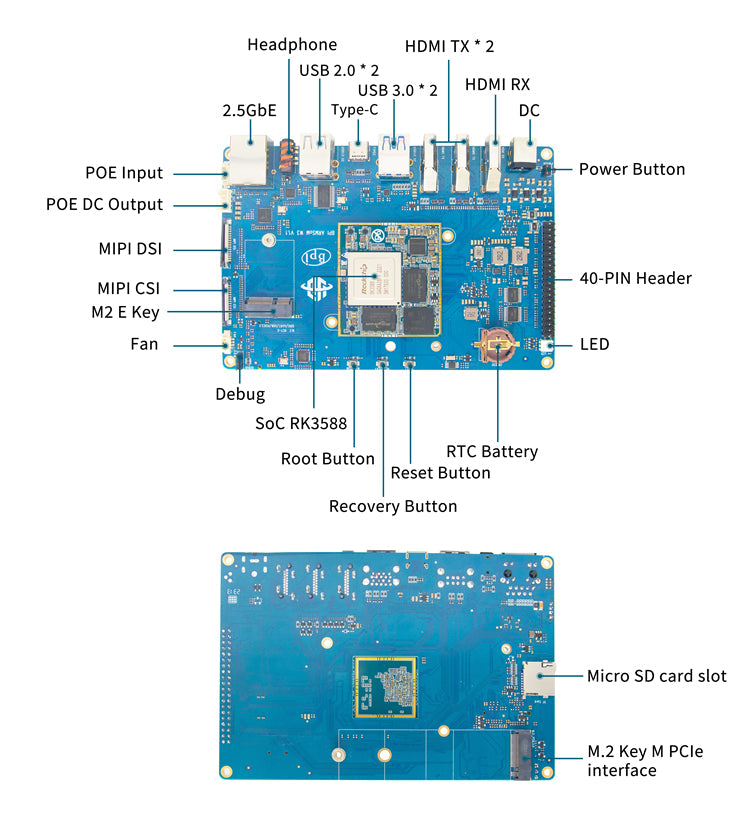

BPI-W3 up to 32GB 64bit LPDDR4X ram, up to   8K@60   HDMI OUT, HDMI IN, MIPI DSI, MIPI CSI, 3.5mm jack with mic, USB Port, 2.5GbE LAN, PCIe 3.0 x4, PCIe 2.0x2, 40-pin expansion header, RTC,POE,SD card, DC power,typec.

Technical specifications
138 I2S1_SDO1_M0 I2C7_SCL_M3 UART8_RTSN_M0 PWM14_M1 CAN1_RX_M1 GPIO4_B2 5
115 SPI1_CS1_M1 I2C8_SDA_M4 UART7_CTSN_M1 PWM15_IR_M0 GPIO3_C3 7
113 SPI1_CLK_M1 UART7_RX_M1 GPIO3_C1 11
111 SPI1_MOSI_M1 I2C3_SCL_M1 GPIO3_B7 13
112 SPI1_MISO_M1 I2C3_SDA_M1 UART7_TX_M1 GPIO3_C0 15
42 SPI0_MOSI_M2 UART4_RX_M2 GPIO1_B2 19
41 SPI0_MISO_M2 GPIO1_B1 21
43 SPI0_CLK_M2 UART4_TX_M2 GPIO1_B3 23
150 SPI3_CLK_M0 I2C0_SDA_M1 PWM7_IR_M3 GPIO4_C6 27
63 UART1_CTSN_M1 PWM15_IR_M3 GPIO1_D7 29
47 SPDIF_TX_M0 UART1_RX_M1 PWM13_M2 GPIO1_B7 31
103 PWM8_M0 GPIO3_A7 33
110 I2S2_LRCK_M1 UART3_RX_M1 PWM13_M0 CAN1_TX_M0 GPIO3_B6 35
4 +5.0V
6 GND
8 GPIO0_B5 UART2_TX_M0 I2C1_SCL_M0 I2S1_MCLK_M1 13
10 GPIO0_B6 UART2_RX_M0 I2C1_SDA_M0 I2S1_SCLK_M1 14
12 GPIO3_B5 CAN1_RX_M0 PWM12_M0 UART3_TX_M1 I2S2_SCLK_M1 109
14 GND
16 GPIO3_A4 100
18 GPIO4_C4 PWM5_M2 SPI3_MISO_M0 148
20 GND
22 SARADC_IN4
24 GPIO1_B4 UART7_RX_M2 SPI0_CS0_M2 44
26 GPIO1_B5 UART7_TX_M2 SPI0_CS1_M2 45
28 GPIO4_C5 PWM6_M2 I2C0_SCL_M1 SPI3_MOSI_M0 149
30 GND
32 GPIO3_C2 PWM14_M0 UART7_RTSN_M1 I2C8_SCL_M4 SPI1_CS0_M1 114
34 GND
36 GPIO3_B1 PWM2_M1 UART2_TX_M2 105
38 GPIO3_B2 PWM3_IR_M1 UART2_RX_M2 I2S2_SDI_M1 106
40 GPIO3_B3 UART2_RTSN I2S2_SDO_M1 107

Specifications may vary by configuration. Contact us for project-specific options.

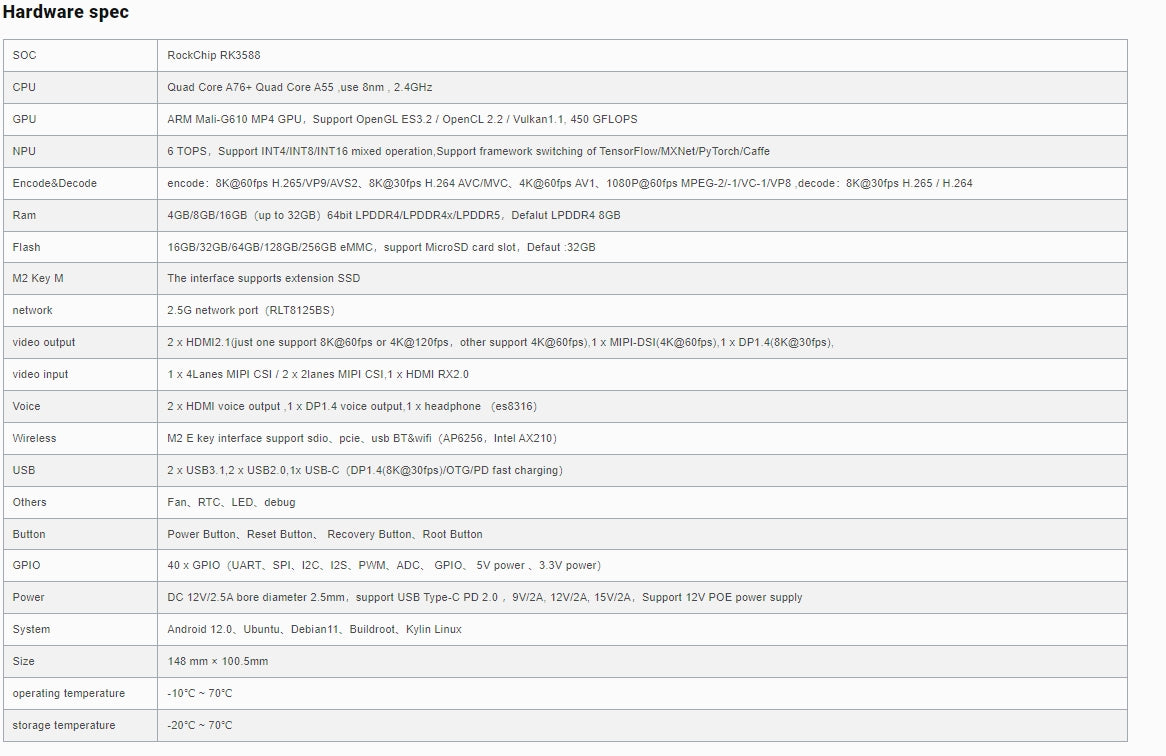

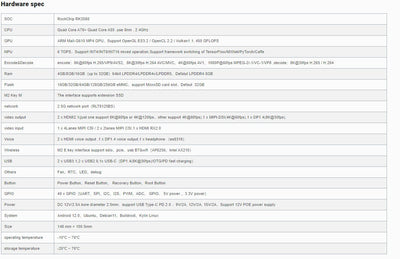

Specification Details
SOC RockChip RK3588
CPU Quad Core A76+ Quad Core A55 ,use 8nm , 2.4GHz
GPU ARM Mali-G610 MP4 GPU,Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
NPU 6 TOPS,Support INT4/INT8/INT16 mixed operation,Support framework switching of TensorFlow/MXNet/PyTorch/Caffe
Ram 4GB/8GB/16GB(up to 32GB)64bit LPDDR4/LPDDR4x/LPDDR5,Defalut LPDDR4 8GB
Flash 16GB/32GB/64GB/128GB/256GB eMMC,support MicroSD card slot,Defaut :32GB
network 2.5G network port(RLT8125BS)
video output 2 x HDMI2.1(just one support 8K@60fps or 4K@120fps,other support 4K@60fps),1 x MIPI-DSI(4K@60fps),1 x DP1.4(8K@30fps),
video input 1 x 4Lanes MIPI CSI / 2 x 2lanes MIPI CSI,1 x HDMI RX2.0
USB 2 x USB3.1,2 x USB2.0,1x USB-C(DP1.4(8K@30fps)/OTG/PD fast charging)
GPIO 40 x GPIO(UART、SPI、I2C、I2S、PWM、ADC、 GPIO、 5V power 、3.3V power)
Power DC 12V/2.5A bore diameter 2.5mm,support USB Type-C PD 2.0 ,9V/2A, 12V/2A, 15V/2A,Support 12V POE power supply
Size 148 mm × 100.5mm
operating temperature -10℃ ~ 70℃
storage temperature -20℃ ~ 70℃
CPU / SoC RK3588
