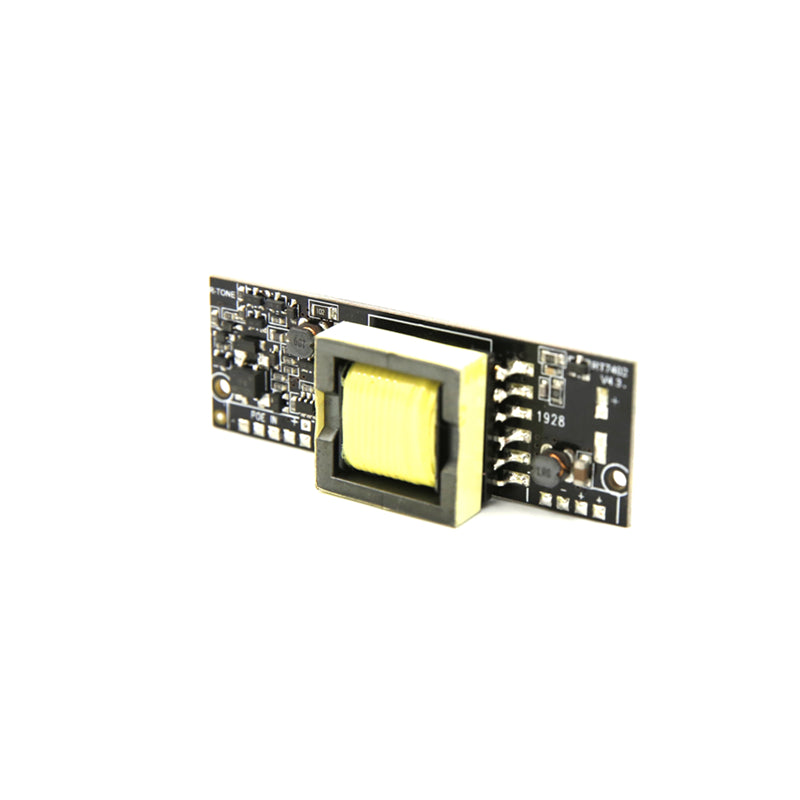

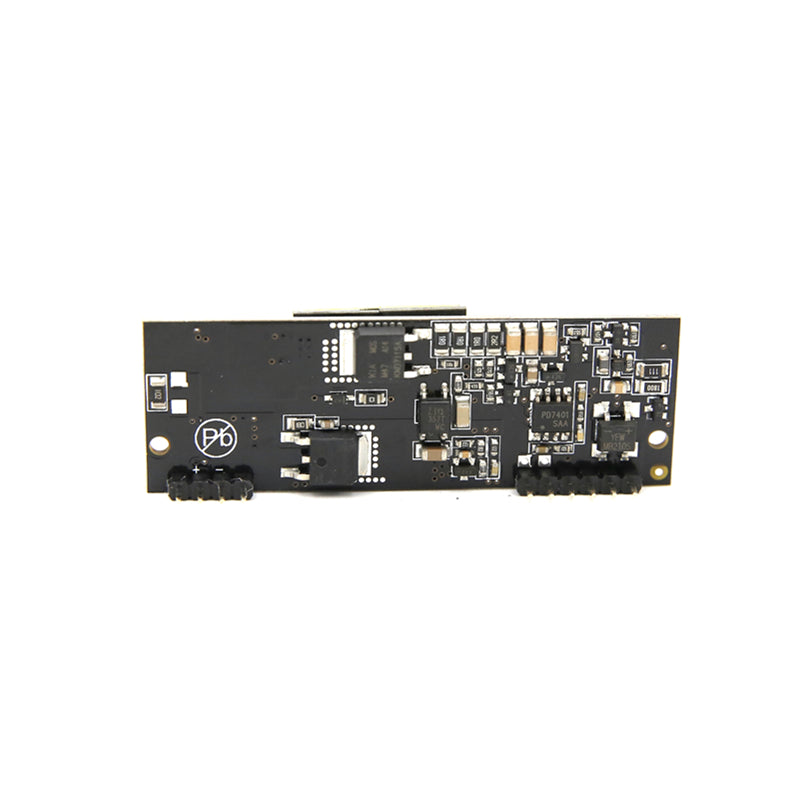

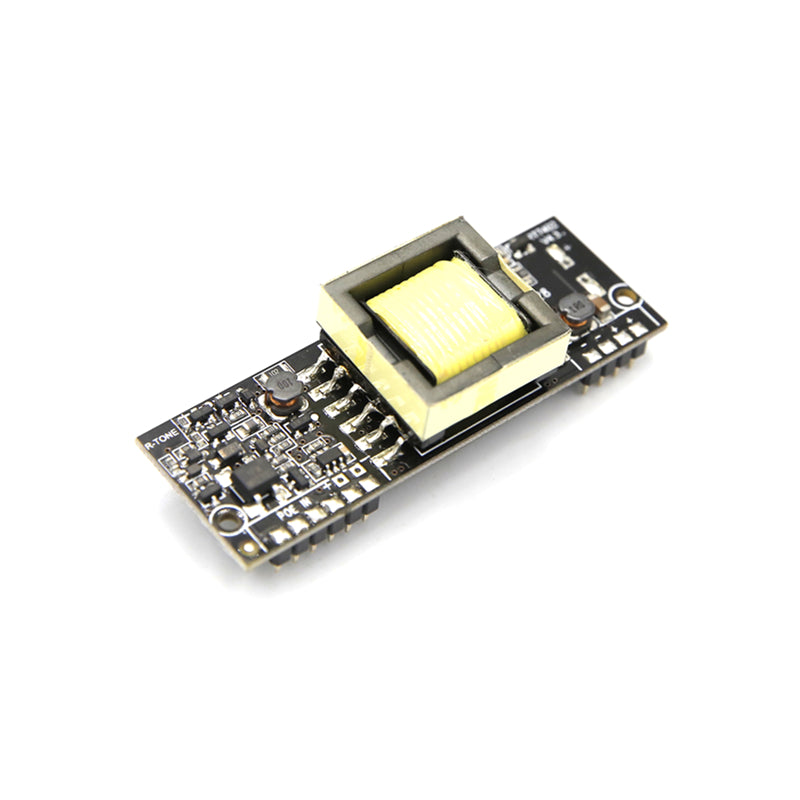

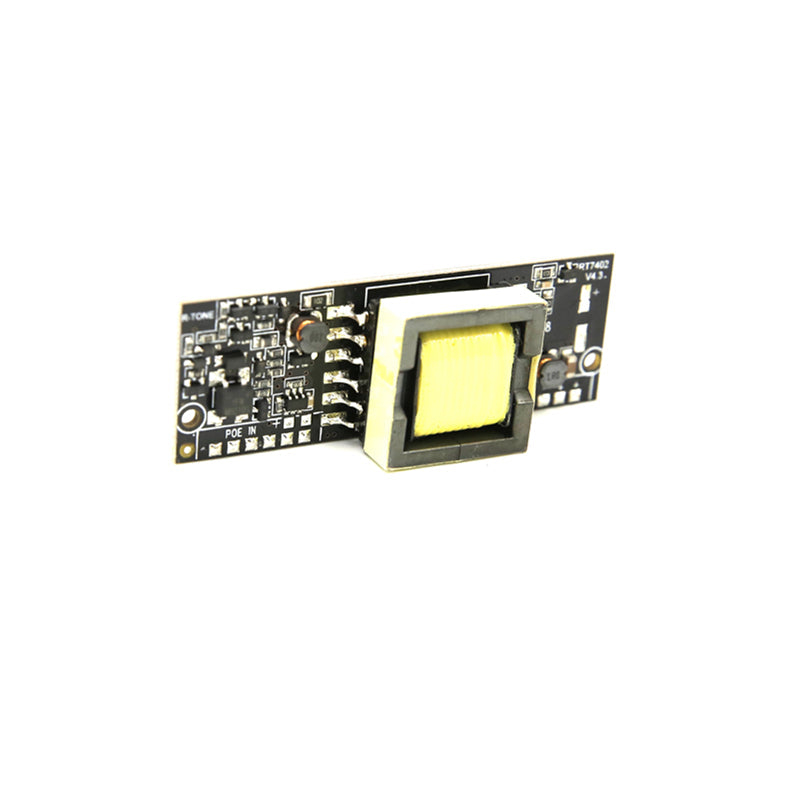

BPI-7402 POE Module For BPI-R64

$20.00


BPI-7402 POE Module For BPI-R64

SKU BPI-7402POEM

The BPI-7402 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af and IEEE 802.3at Power-over-Ethernet(PoE) standard.it is 30W POE PD Module ( Isolation Model),The BPI-7402 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 30W power to the port.

The DC/DC converter operates over a wide input voltage range and provides a regulatedoutput. The DC/DC converter also has built-in short-circuit output protection.

Technical specifications
1 VA1 RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive.
2 VA2 TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive.
3 VB1 Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive.
4 VB2 Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive.
5 AT-DET+ Internal rectifier bridge output +
6 GND Internal GND
7 -VDC DC Return. This pin is the return path for the +VDC output.
8 -VDC DC Return. This pin is the return path for the +VDC output.
9 +VDC DC Output. This pin provides the regulated output from the DC/DC converter.
10 +VDC DC Output. This pin provides the regulated output from the DC/DC converter.
BPI-7402 PoE module Parameter Symbol Min Max Units
1 DC Supply Voltage VCC -0.3 60 V
2 DC Supply Voltage Surge for 1ms VSURGE -0.6 80 V
3 Storage Temperature TS -40 100 OC

Specifications may vary by configuration. Contact us for project-specific options.
