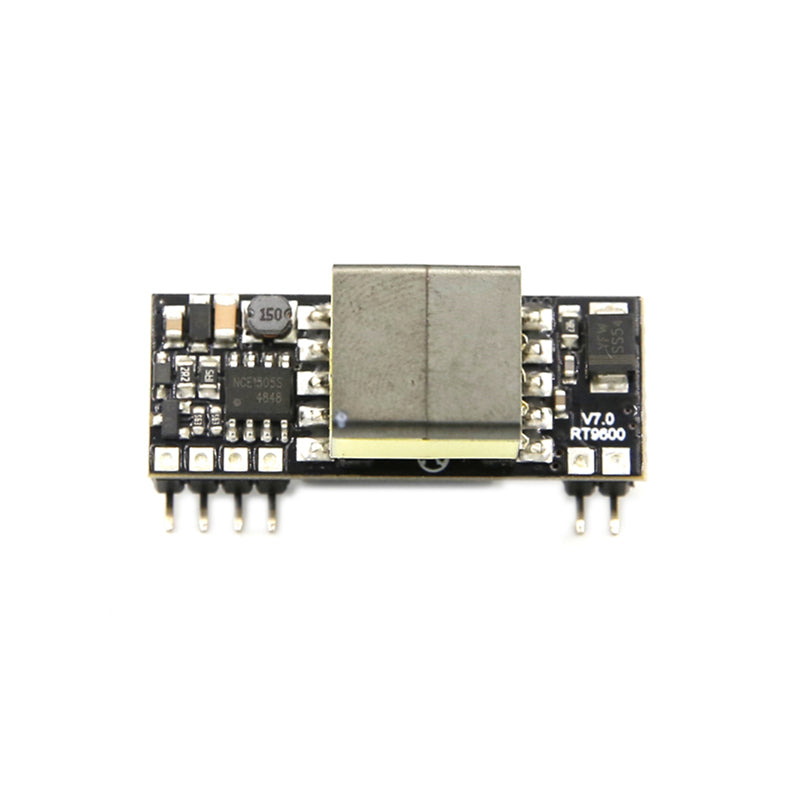

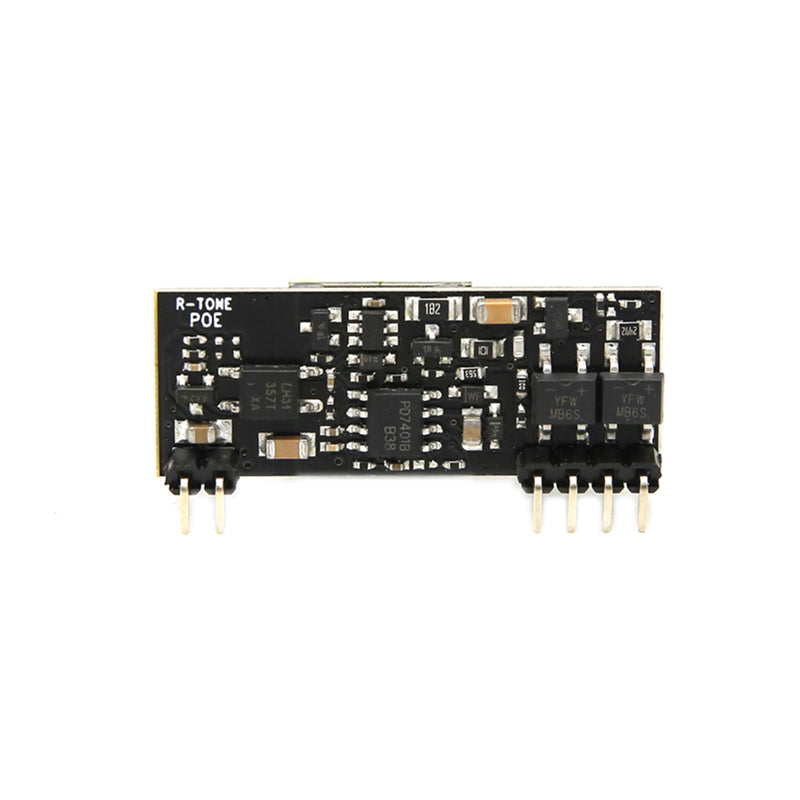

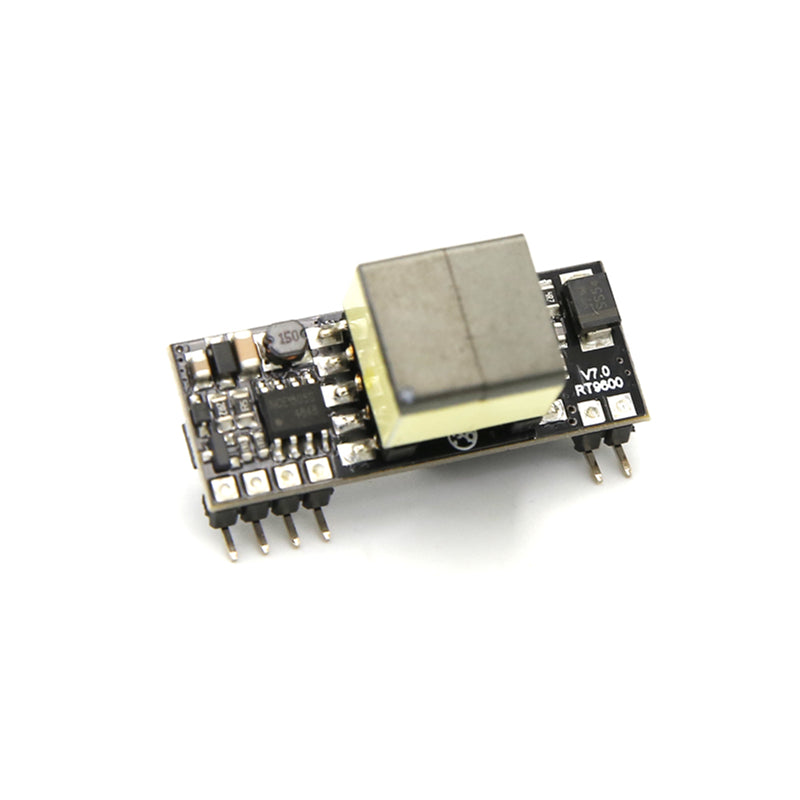

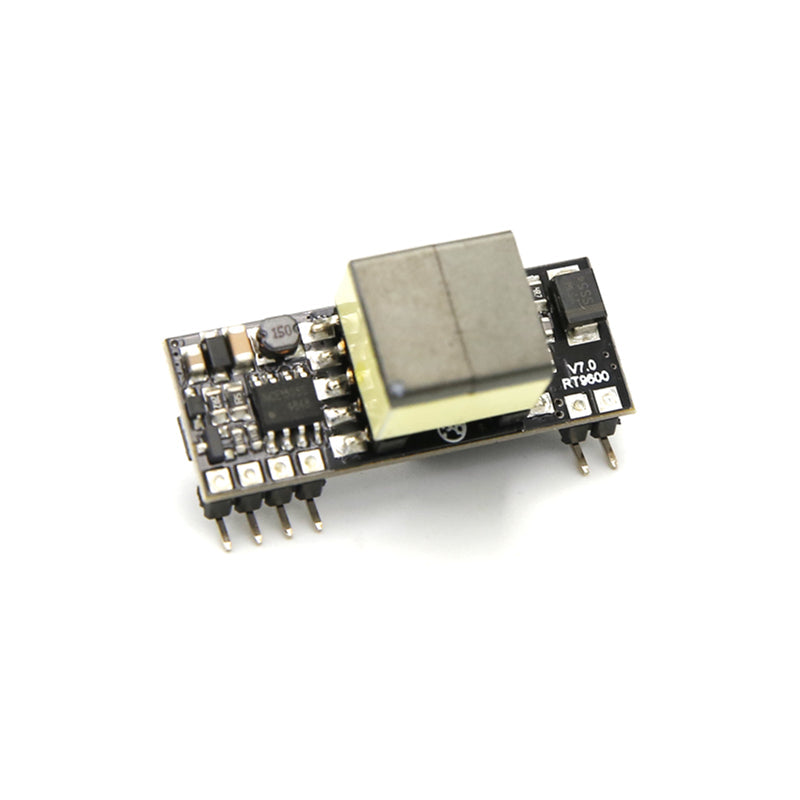

BPI-9600 POE Module For BPI-P2 Zero

$18.40


BPI-9600 POE Module For BPI-P2 Zero

SKU BPI-9600POEM

The BPI-9600 series of modules are designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet(PoE) standard. The BPI-9600 signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. The BPI-9600 provides a Class 0 signature.

The DC/DC converter operates over a wide input voltage range and provides a regulated output. The DC/DC converter also has built-in short-circuit output protection.

Technical specifications
BPI-9600-3.3V 3.3V 6.6W 3.3V SIL
BPI-9600 -5V 5V 10W 5V SIL
BPI-9600 -12V 12V 12W 12V SIL
BPI-9600 -24V 24V 12W 24V SIL
BPI-9600 PoE module Pin # Name Description
1 VA1 RX Input (1). This input pin is used in conjunction with VA2 and connects to the centre tap of the transformer connected to pins 1 & 2 of the RJ45 connector (RX) - it is not polarity sensitive.
2 VA2 TX Input (2). This input pin is used in conjunction with VA1 and connects to the centre tap of the transformer connected to pins 3 & 6 of the RJ45 connector (TX) - it is not polarity sensitive.
3 VB1 Direct Input (1). This input pin is used in conjunction with VB2 and connects to pin 4 & 5 of the RJ45 connector - it is not polarity sensitive.
4 VB2 Direct Input (2). This input pin is used in conjunction with VB1 and connects to pin 7 & 8 of the RJ45 connector - it is not polarity sensitive.
5 -VDC DC Return. This pin is the return path for the +VDC output.
6 +VDC DC Output. This pin provides the regulated output from the DC/DC converter.
BPI-9600 PoE module Parameter Symbol Min Max Units
1 DC Supply Voltage VCC -0.3 60 V
2 DC Supply Voltage Surge for 1ms VSURGE -0.6 80 V
3 Storage Temperature TS -40 100 OC
BPI-9600 PoE module Parameter Symbol Min Typ Max Units Units
1 Input Supply Voltage1 VIN 36 48 57 V V
2 Under Voltage Lockout VLOCK 30 36 V V
3 Operating Temperature2 TOP -20 25 70 Ta / OC BPI-9600

Specifications may vary by configuration. Contact us for project-specific options.
