NanoPi M4B- Versatile Single Board Computer for Development

$61.50
Opens WhatsApp with this product and current options


NanoPi M4B - Versatile Single Board Computer for Development

SKU NanoPi-M4B

NanoPi M4B - Versatile Single Board Computer for Development

Prepare the following items before using your NanoPi M4B. This guide will help you set up your device efficiently.

Technical specifications
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
RAM Dual-Channel 2GB DDR3
Flash no Onboard eMMC, but has a eMMC socket
Ethernet Native Gigabit Ethernet with unique MAC address
Wi-Fi/BT 802.11a/b/g/n/ac, Bluetooth 5.0, Wi-Fi and Bluetooth combo module
Video Input one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s,supports simultaneous input of dual camera data
Özellik Video output
Audio Out 3.5mm Dual channel headphone jack, or HDMI
Audio In one microphone input interface
USB Host two Native USB 3.0 Type-A ports, two Native USB 2.0 Type-A ports
Özellik microSD Slot x 1
Özellik 40Pin GPIO Extension ports:
Özellik 24Pin Extension ports:
Özellik Buttons:one PowerKey, one Recovery Key
Debug one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
LED 1 x power LED and 1 x GPIO Controlled LED
RTC Battery 2 Pin 1.27/1.25mm RTC battery input connector
Power supply DC 5V/3A via Type-C or GPIO header
PCB 8 Layer, 85 mm x 56 mm
Ambient Operating Temperature -20℃ to 70℃

Specifications may vary by configuration. Contact us for project-specific options.

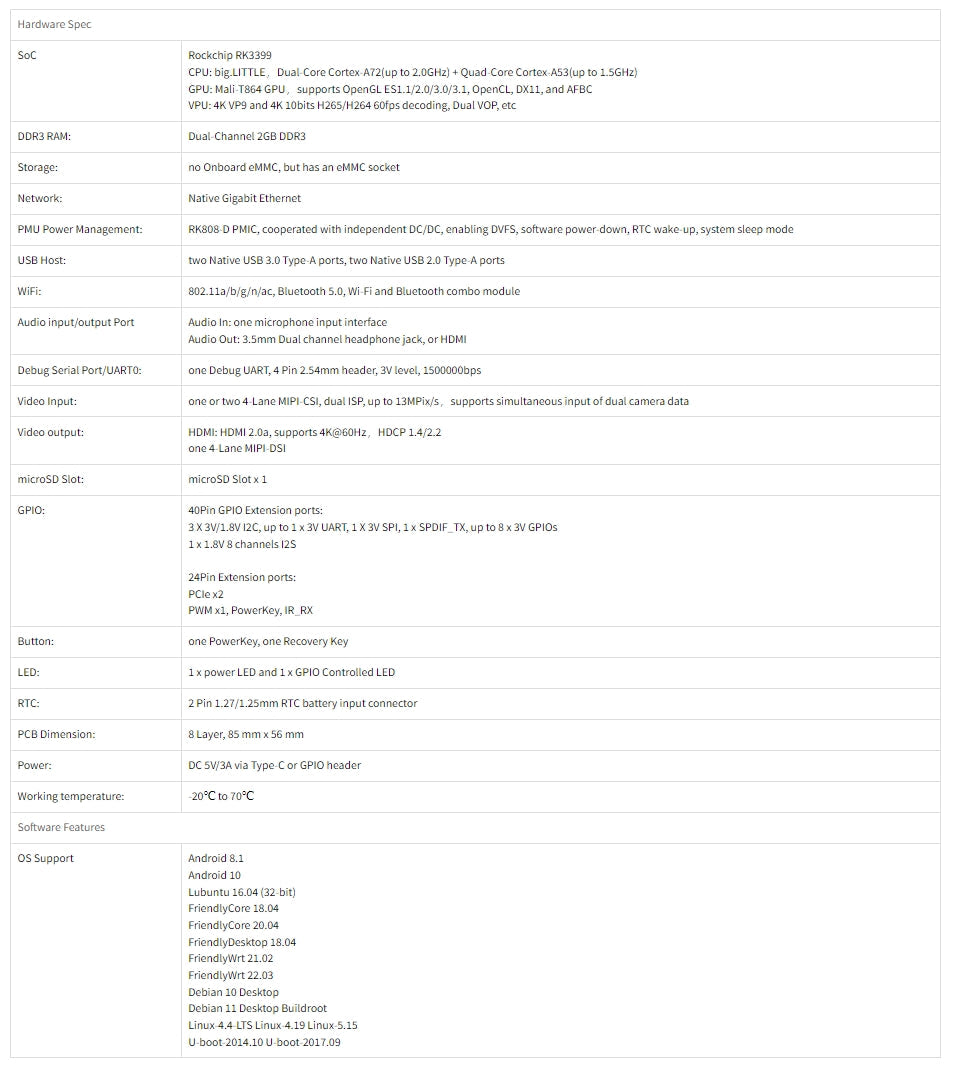

Specification Details

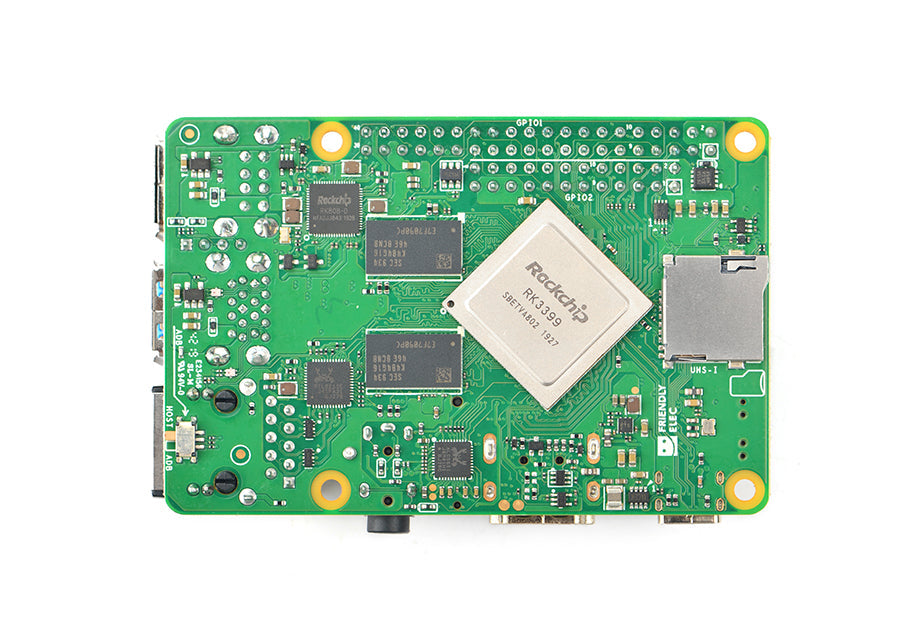

SoC Rockchip RK3399
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
RAM Dual-Channel 2GB DDR3
Flash no Onboard eMMC, but has a eMMC socket
Ethernet Native Gigabit Ethernet with unique MAC address
Wi-Fi/BT 802.11a/b/g/n/ac, Bluetooth 5.0, Wi-Fi and Bluetooth combo module
Video Input one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s,supports simultaneous input of dual camera data
Audio Out 3.5mm Dual channel headphone jack, or HDMI
Audio In one microphone input interface
USB Host two Native USB 3.0 Type-A ports, two Native USB 2.0 Type-A ports
Debug one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
LED 1 x power LED and 1 x GPIO Controlled LED
RTC Battery 2 Pin 1.27/1.25mm RTC battery input connector
Power supply DC 5V/3A via Type-C or GPIO header
PCB 8 Layer, 85 mm x 56 mm
Ambient Operating Temperature -20℃ to 70℃
CPU / SoC RK3399
