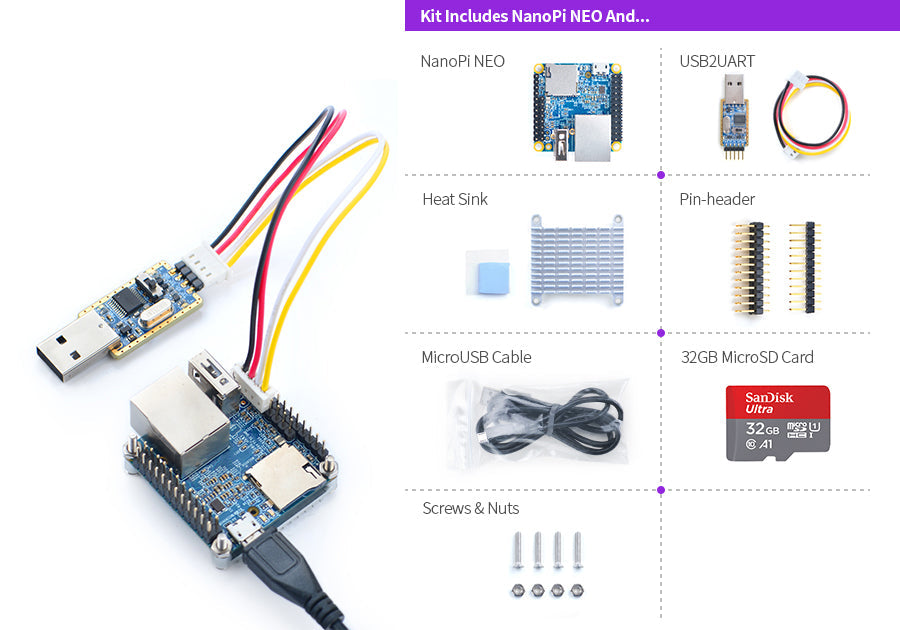

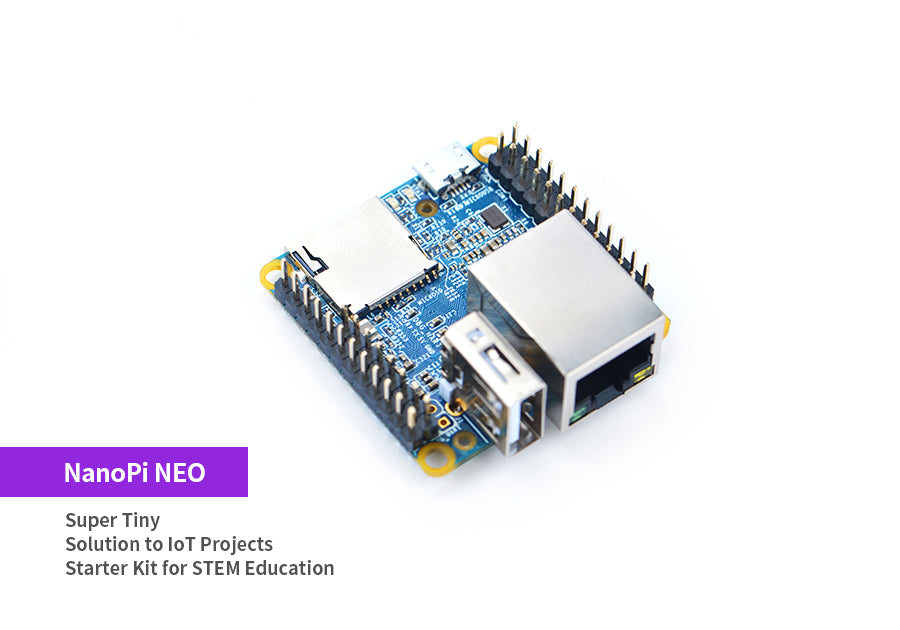

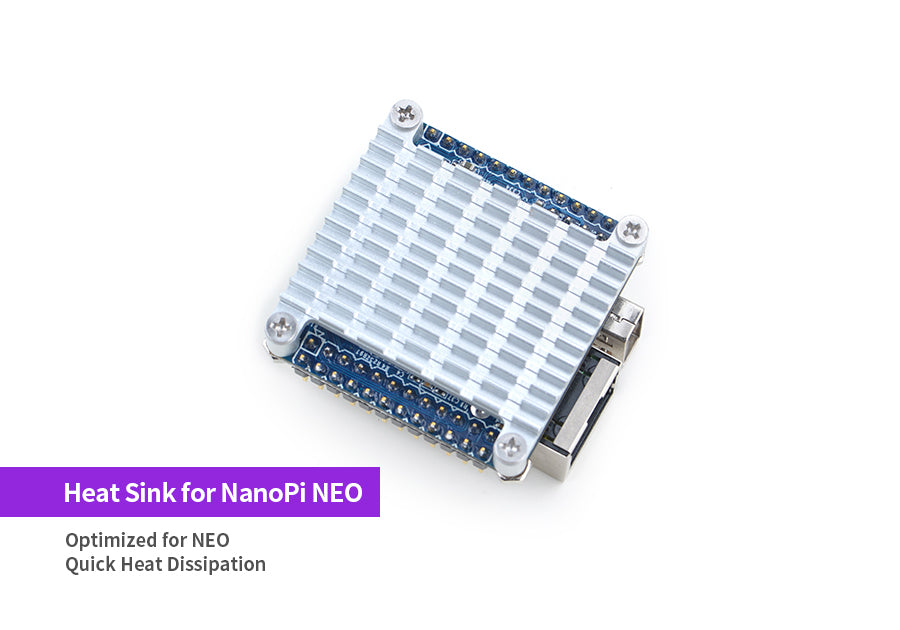

NEO Metal Complete Kit for NanoPi- All-in-One Solution

$25.50


NEO Metal Complete Kit for NanoPi- All-in-One Solution

SKU NEOBASIC-ST

NEO Metal Complete Kit for NanoPi- All-in-One Solution — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: NEOBASIC-ST
Technical specifications
SKU NEOBASIC-ST
Product NEO Metal Complete Kit for NanoPi- All-in-One Solution
Category Friendly Elec Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

Specification Details
CPU Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
DDR3 RAM 256MB/512MB
Connectivity 10/100M Ethernet
USB Host Type-A x 1, 2.54 mm pin x 2

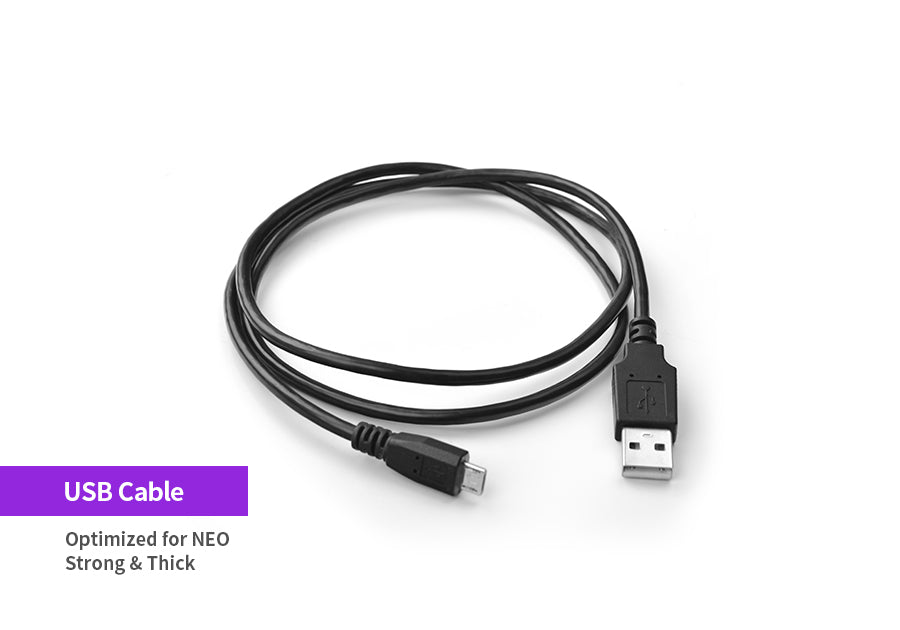

MicroUSB OTG, for power input

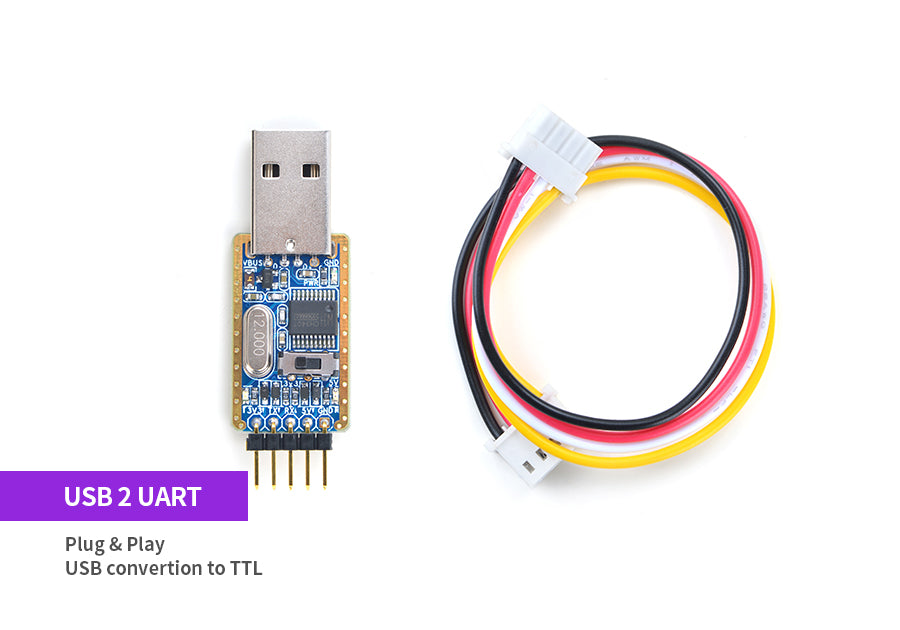

Debug Serial Port 4Pin, 2.54 mm pitch pin header
Audio input/output Port 5Pin, 2.0mm pitch pin header
GPIO 2.54mm pitch 36pin. It includes UART, SPI, I2C, IO etc
Power Supply DC 5V/2A
PCB Dimension 40 x 40 mm
Working Temperature -20℃ to 70℃
Weight 14g(WITHOUT Pin-headers)
OS/Software u-boot, UbuntuCore and Android
