NanoPC-T4: Powerful Single Board Computer for Versatile Applications

SKU NANOPC-T4

NanoPC-T4: Powerful Single Board Computer for Versatile Applications

Prepare the following items before using your NanoPC-T4. This guide will help you set up your device efficiently.

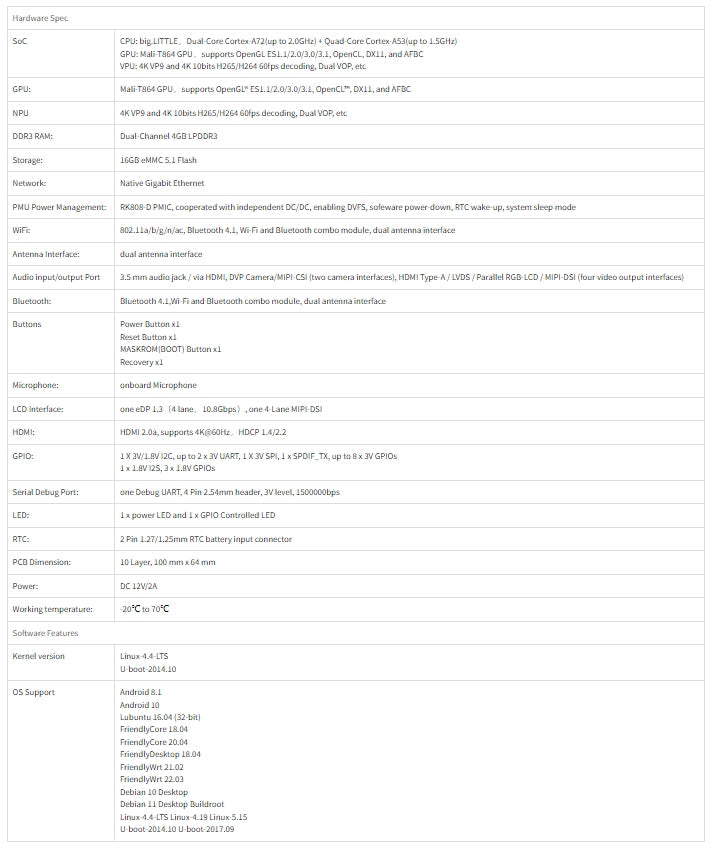

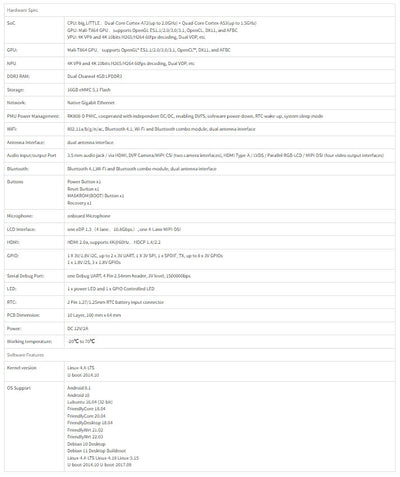

Technical specifications
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, sofeware power-down, RTC wake-up, system sleep mode
RAM Dual-Channel 4GB LPDDR3-1866
Flash 16GB eMMC 5.1 Flash
Ethernet Native Gigabit Ethernet

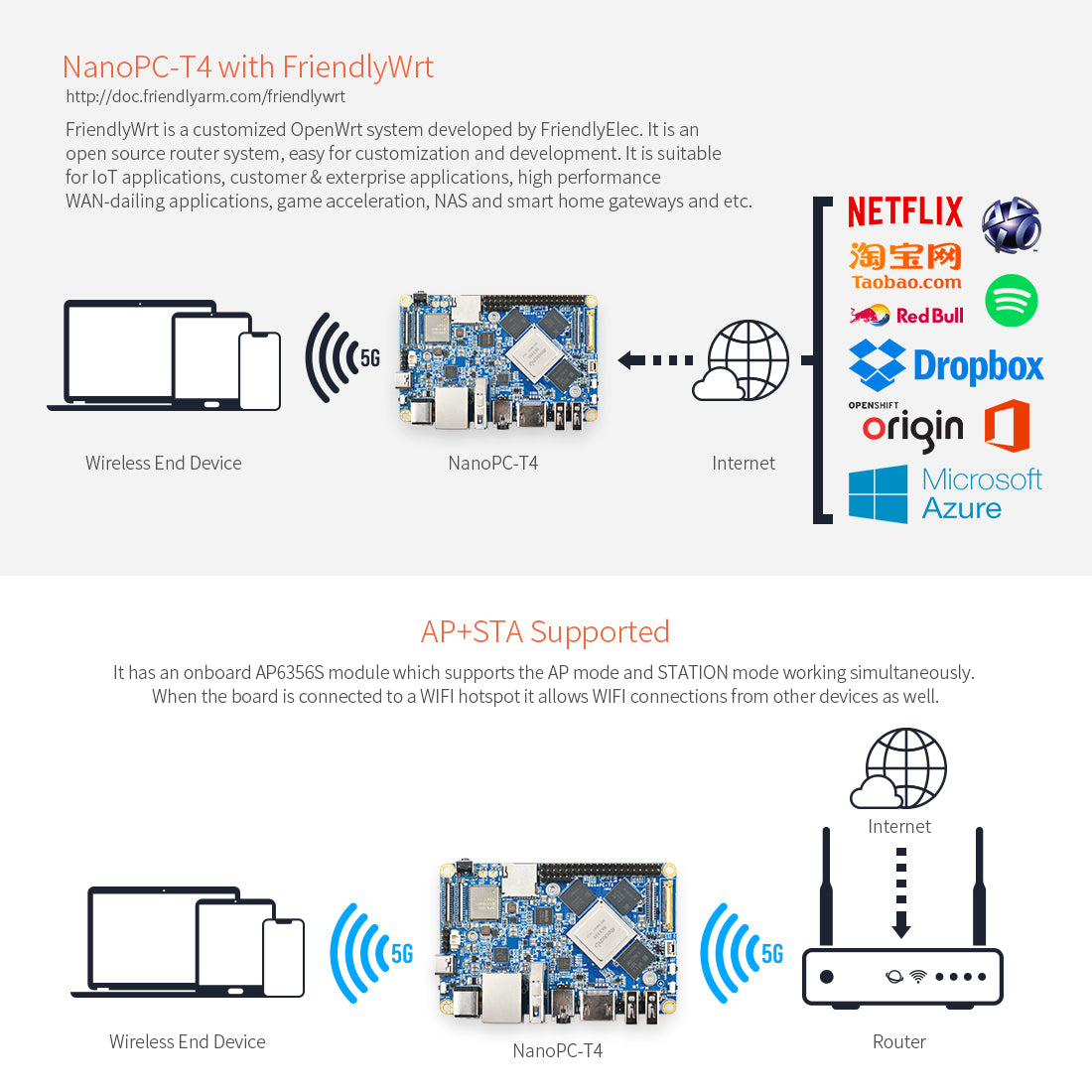

Wi-Fi/BT 802.11a/b/g/n/ac, Bluetooth 4.1, Wi-Fi and Bluetooth combo module, 2x2 MIMO, dual antenna interface

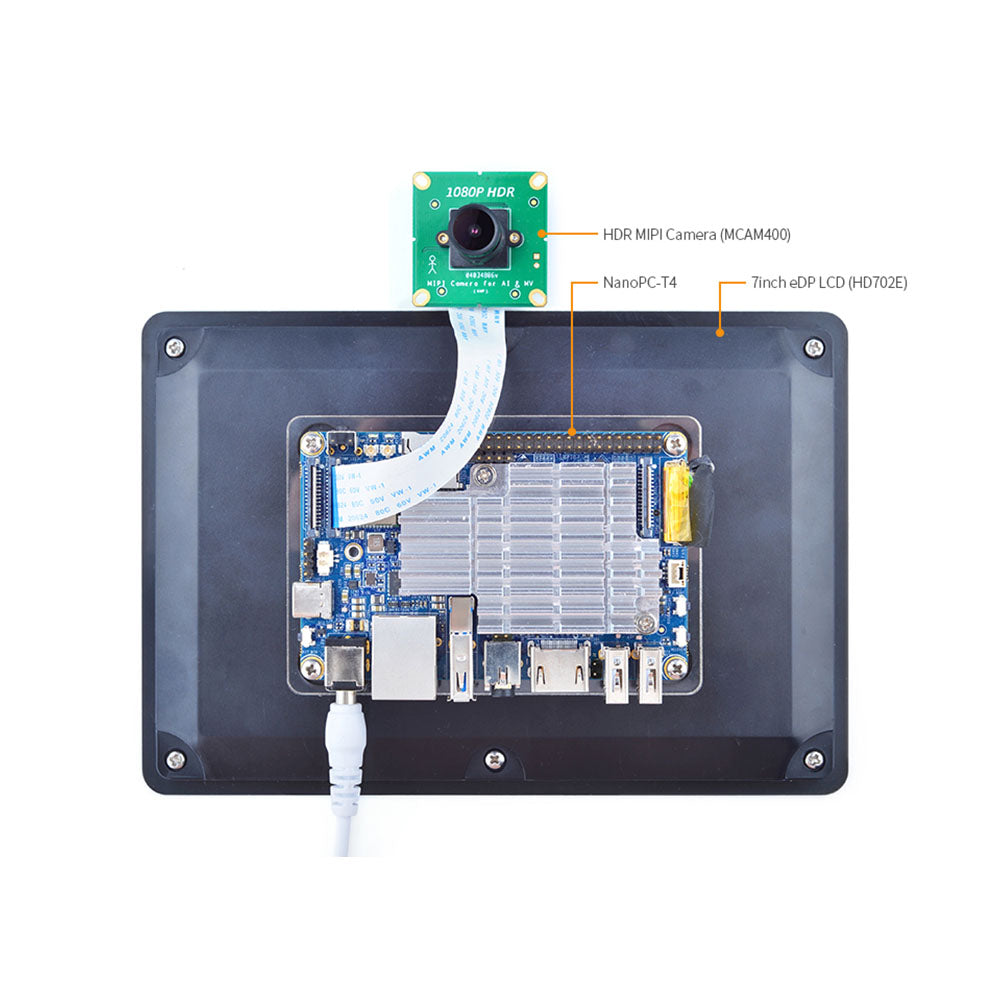

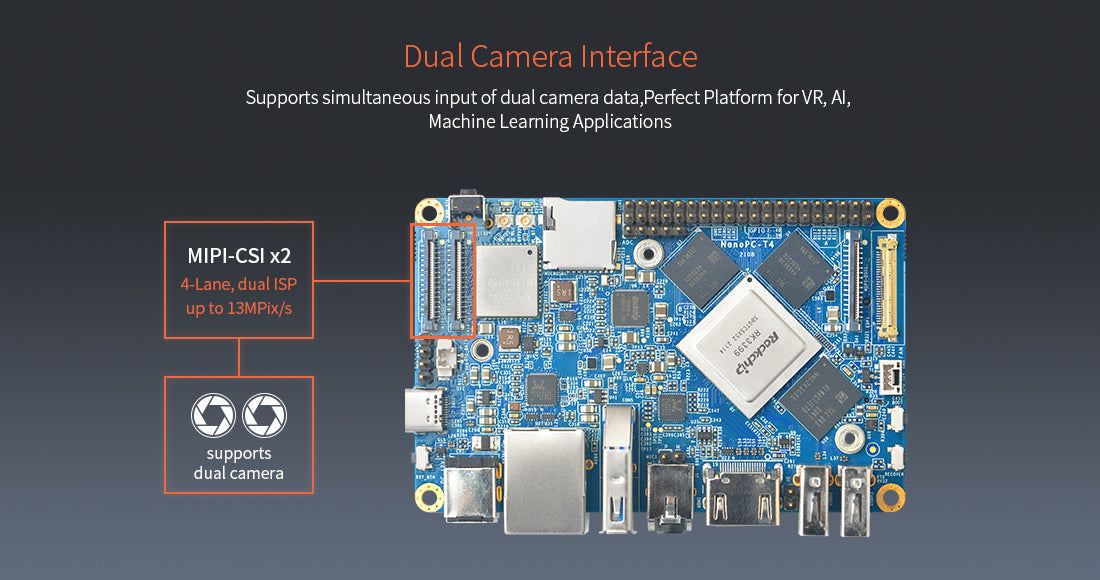

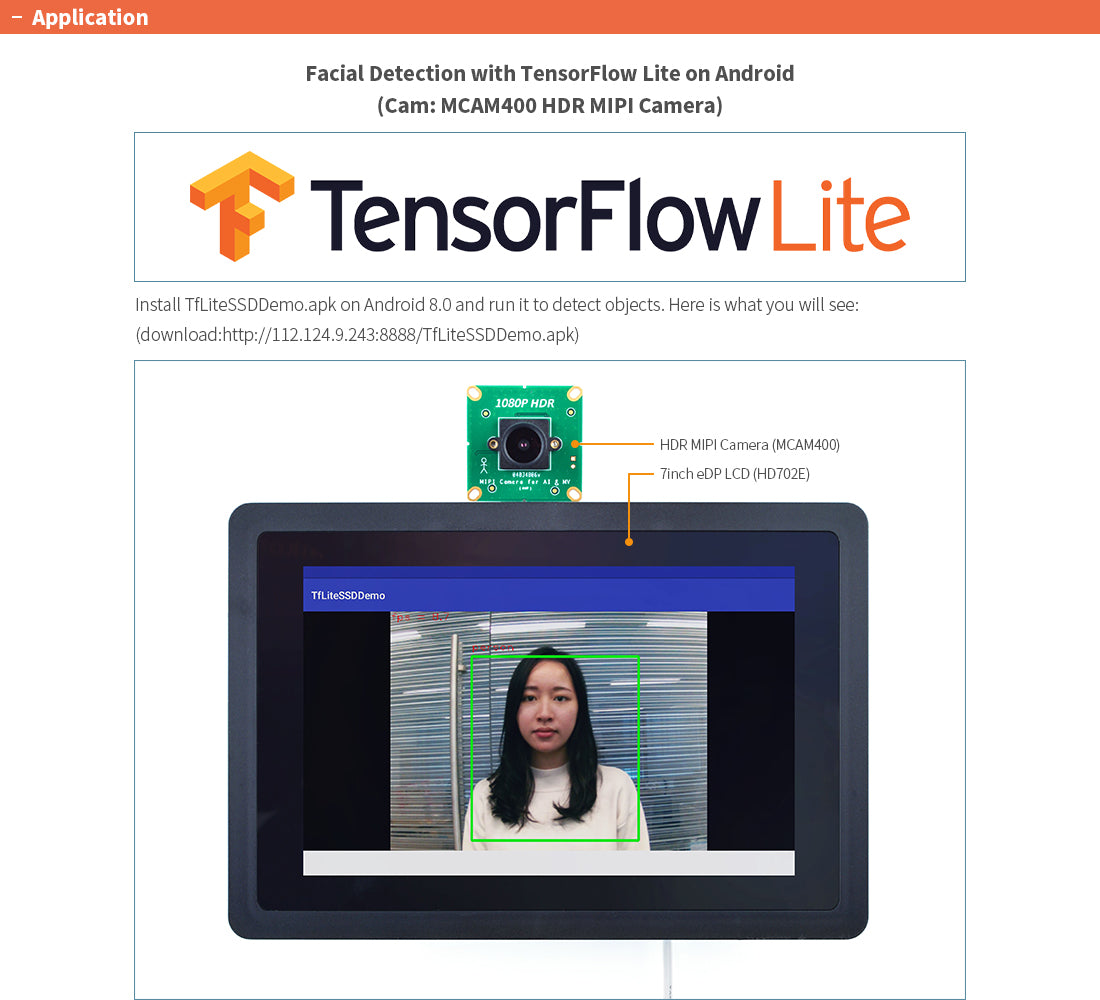

Video Input one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s,supports simultaneous input of dual camera data
Özellik Video output
Audio Out 3.5mm Dual channel headphone jack, or HDMI
Audio In 2-Pin 2.54mm microphone interface
USB 2.0 2 independent native USB 2.0 Host A interfaces

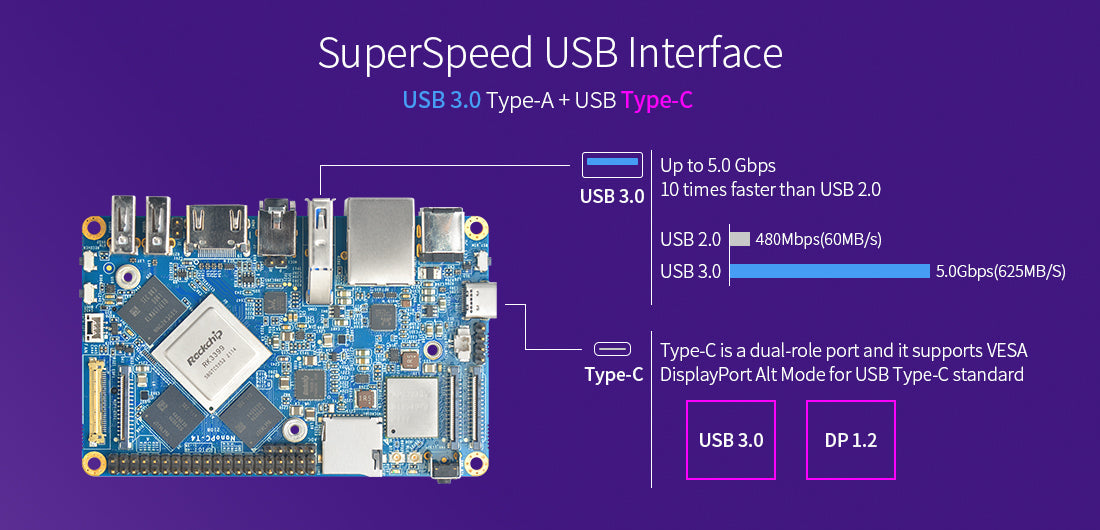

USB 3.0 1 native USB 3.0 Host A type interface

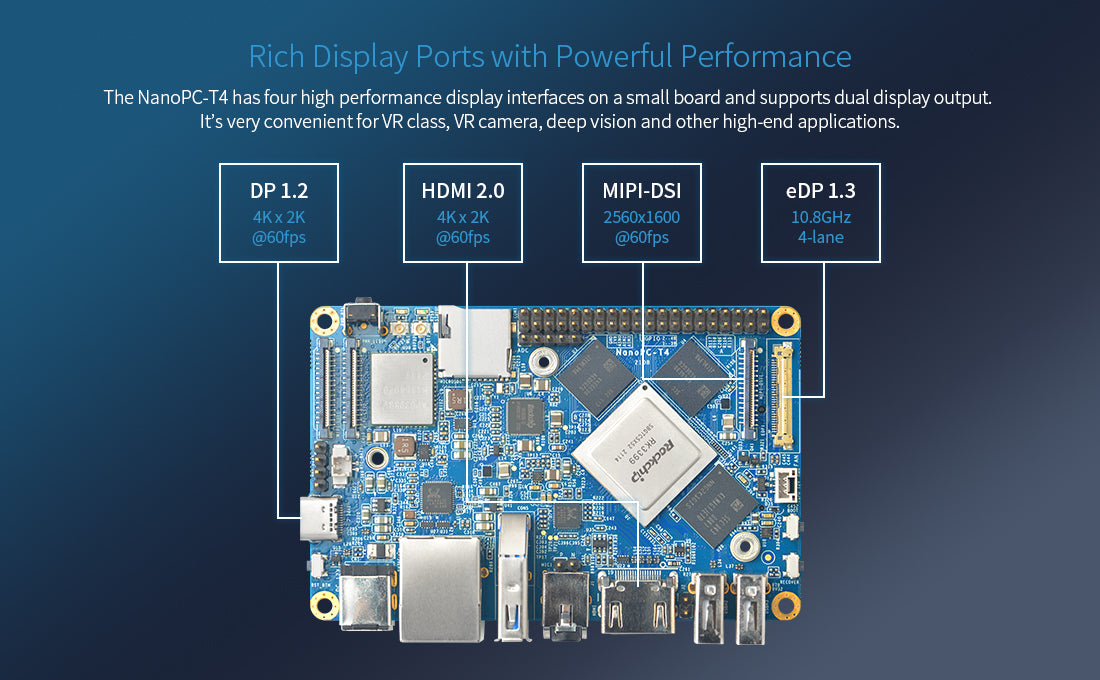

USB Type-C Supports USB3.0 Type-C and DisplayPort 1.2 Alt Mode on USB Type-C

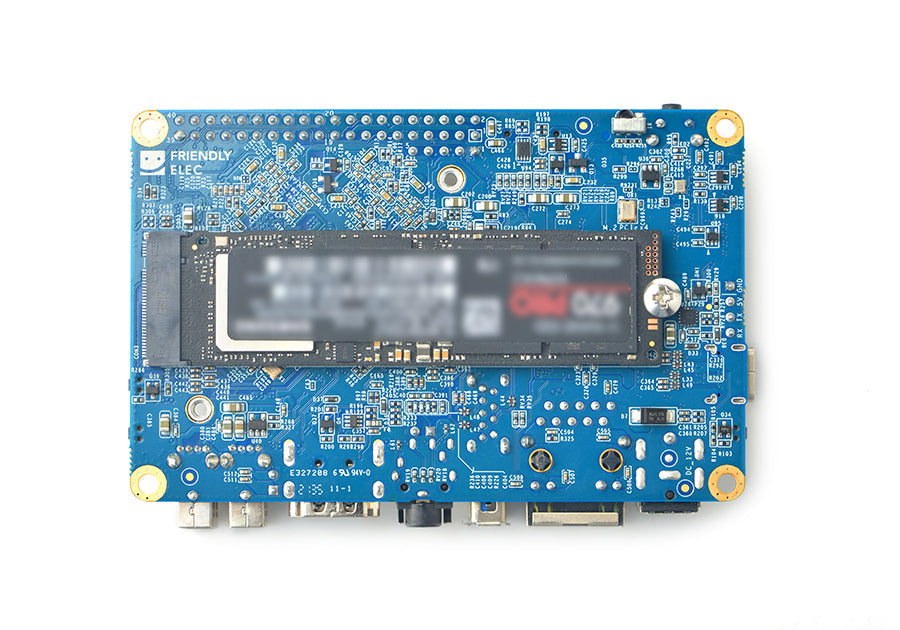

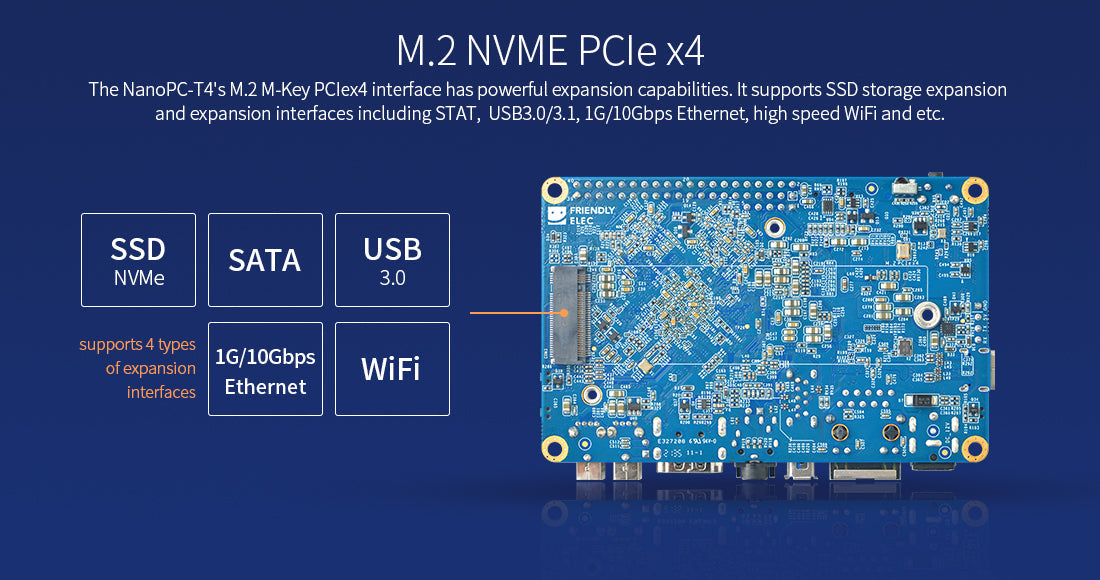

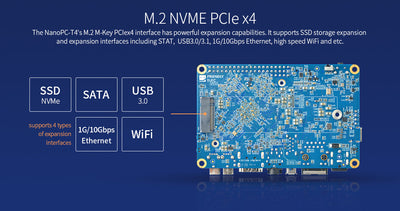

PCIe One M.2 M-Key PCIe x4 socket, compatible with PCIe 2.1, Dual operation mode; Onboard M3 PCB nut for mounting M.2 2280 module
Özellik microSD Slot x 1
Özellik 40Pin GPIO Extension ports:
ADC 3 x 1.8V ADC inputs, 5 Pin 2.54mm header
Debug one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
Keys PowerKey, Reset, MASKROM(BOOT), Recovery
LED 1 x power LED and 1 x GPIO Controlled LED
IR reciver Onboard IR reciver, Acceptes 38KHz carrier frequency

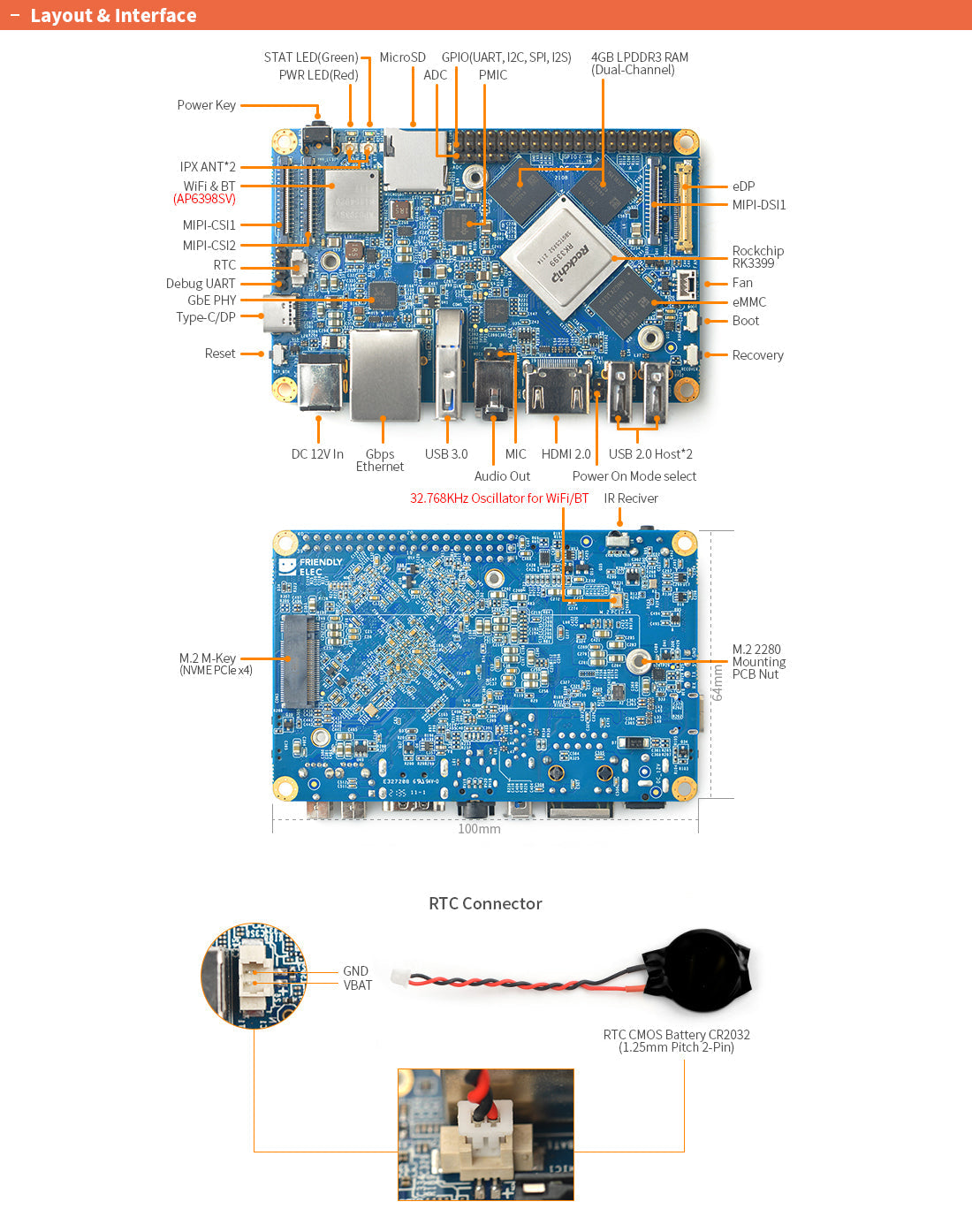

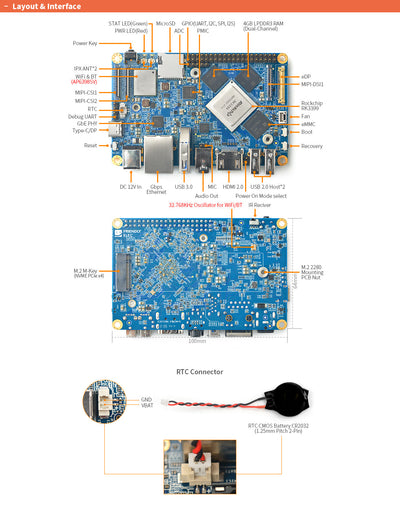

RTC Battery 2 Pin 1.27/1.25mm RTC battery input connector

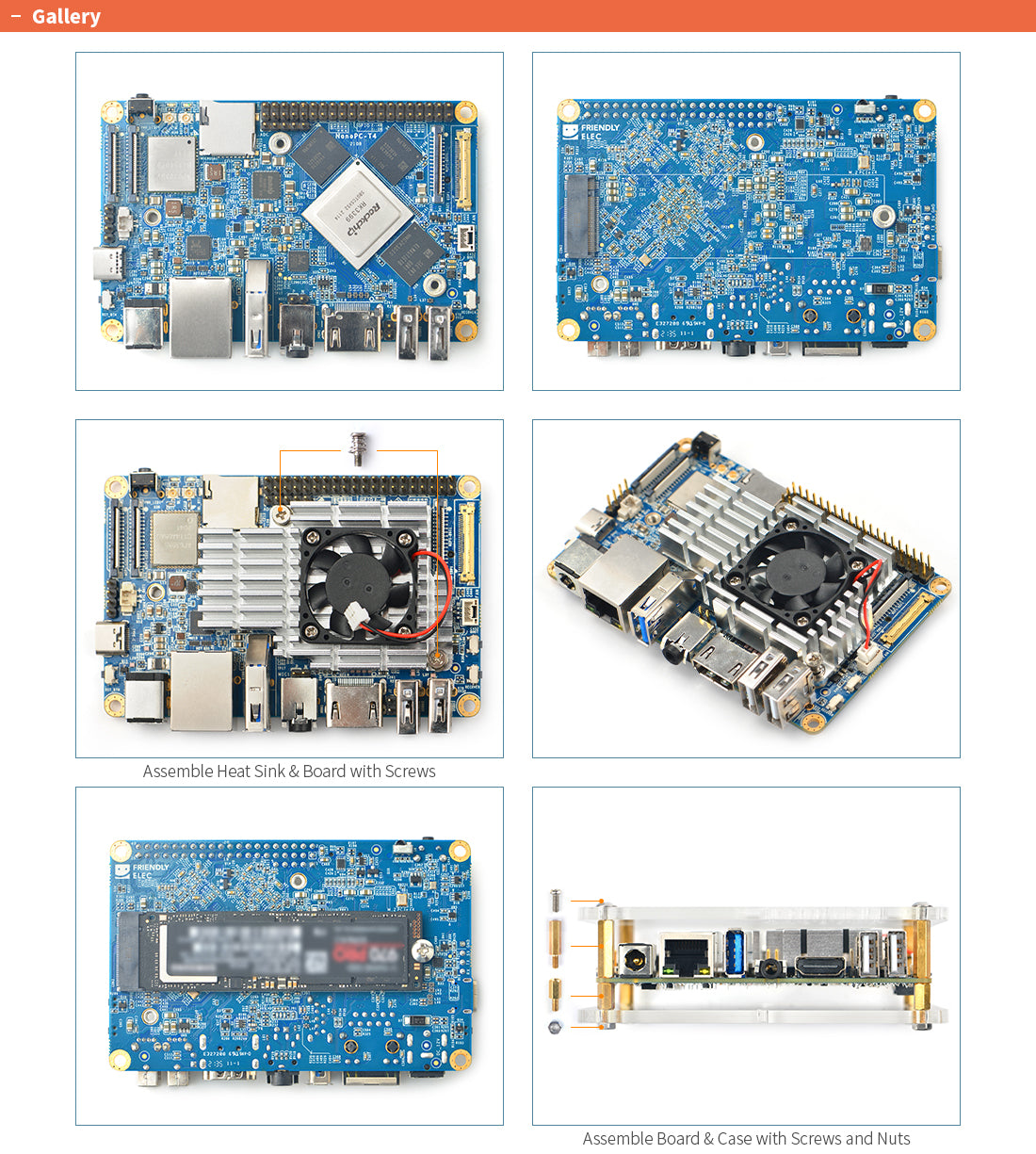

Cooling two 2.5mm PCB nuts for mounting heat sink; 3 Pin 12V cooling fan interface with PWM
Power supply DC 12V/2A

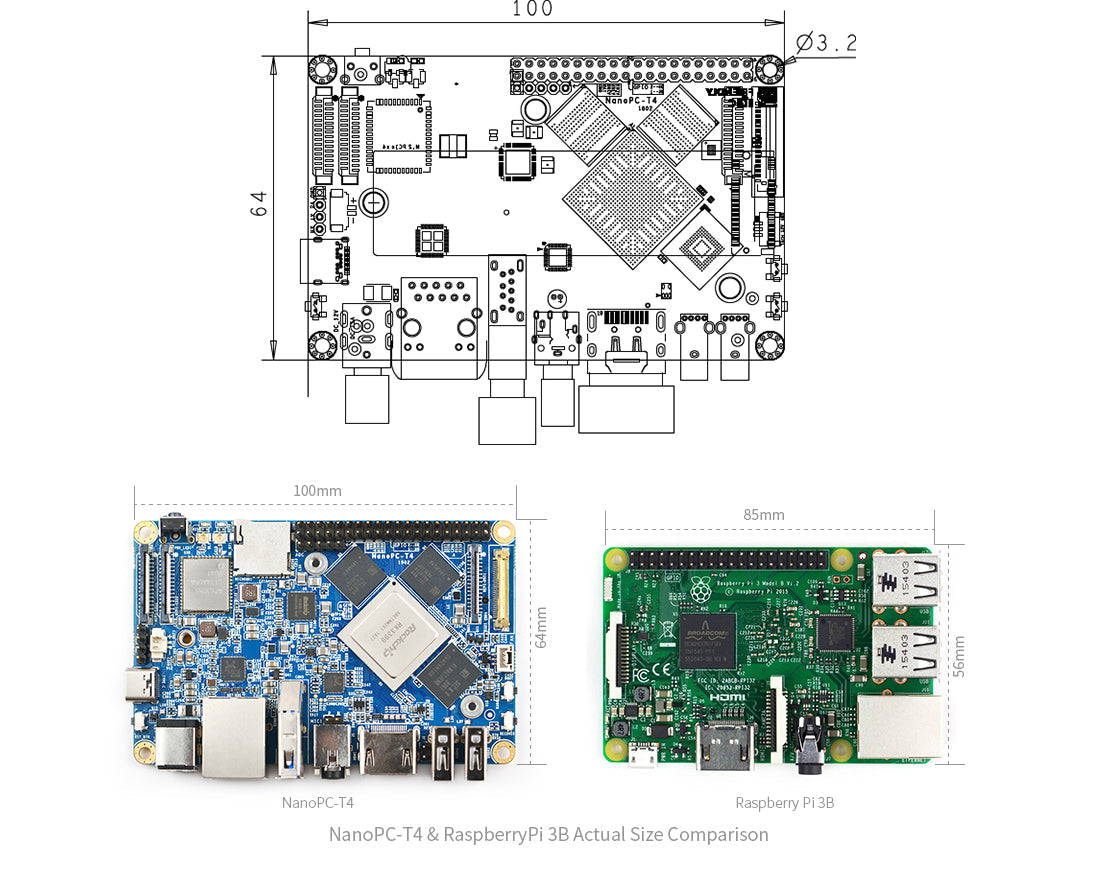

PCB Ten Layer, 100 mm x 64 mm
Ambient Operating Temperature -20℃ to 70℃

Specifications may vary by configuration. Contact us for project-specific options.

Specification Details
SoC Rockchip RK3399
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, sofeware power-down, RTC wake-up, system sleep mode
RAM Dual-Channel 4GB LPDDR3-1866
Flash 16GB eMMC 5.1 Flash
Ethernet Native Gigabit Ethernet
Wi-Fi/BT 802.11a/b/g/n/ac, Bluetooth 4.1, Wi-Fi and Bluetooth combo module, 2x2 MIMO, dual antenna interface
Video Input one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s,supports simultaneous input of dual camera data
Audio Out 3.5mm Dual channel headphone jack, or HDMI
Audio In 2-Pin 2.54mm microphone interface
USB 2.0 2 independent native USB 2.0 Host A interfaces
USB 3.0 1 native USB 3.0 Host A type interface
USB Type-C Supports USB3.0 Type-C and DisplayPort 1.2 Alt Mode on USB Type-C
PCIe One M.2 M-Key PCIe x4 socket, compatible with PCIe 2.1, Dual operation mode; Onboard M3 PCB nut for mounting M.2 2280 module
ADC 3 x 1.8V ADC inputs, 5 Pin 2.54mm header
Debug one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
Keys PowerKey, Reset, MASKROM(BOOT), Recovery
LED 1 x power LED and 1 x GPIO Controlled LED
IR reciver Onboard IR reciver, Acceptes 38KHz carrier frequency
RTC Battery 2 Pin 1.27/1.25mm RTC battery input connector
Cooling two 2.5mm PCB nuts for mounting heat sink; 3 Pin 12V cooling fan interface with PWM
Power supply DC 12V/2A
PCB Ten Layer, 100 mm x 64 mm
Ambient Operating Temperature -20℃ to 70℃
CPU / SoC RK3399
