NanoPC-T6 Plus: High-Performance Open Source Edge Computing Platform

$358.50
Opens WhatsApp with this product and current options


NanoPC-T6 Plus: High-Performance Open Source Edge Computing Platform

SKU NanoPC-T6-LTS

NanoPC-T6 Plus: High-Performance Open Source Edge Computing Platform

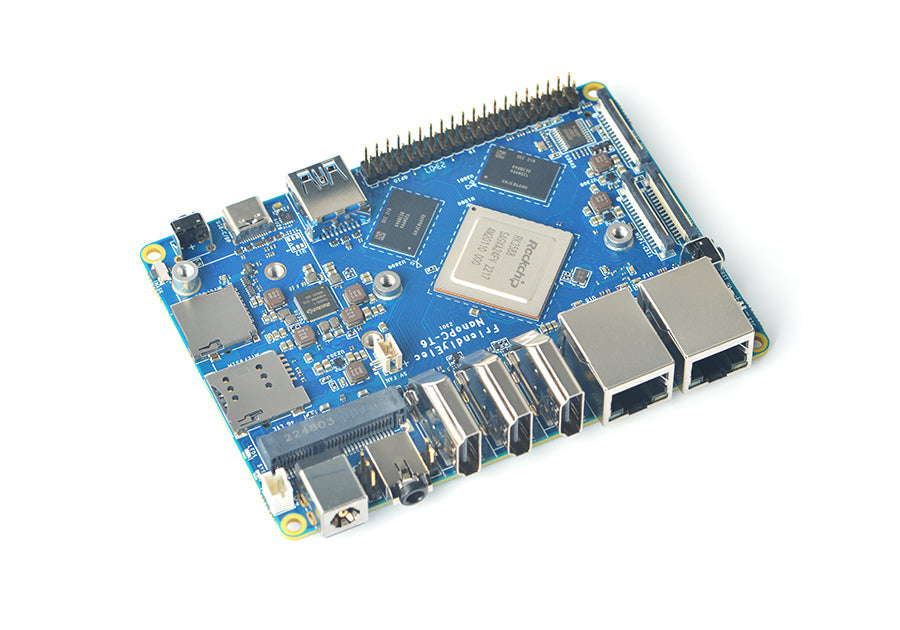

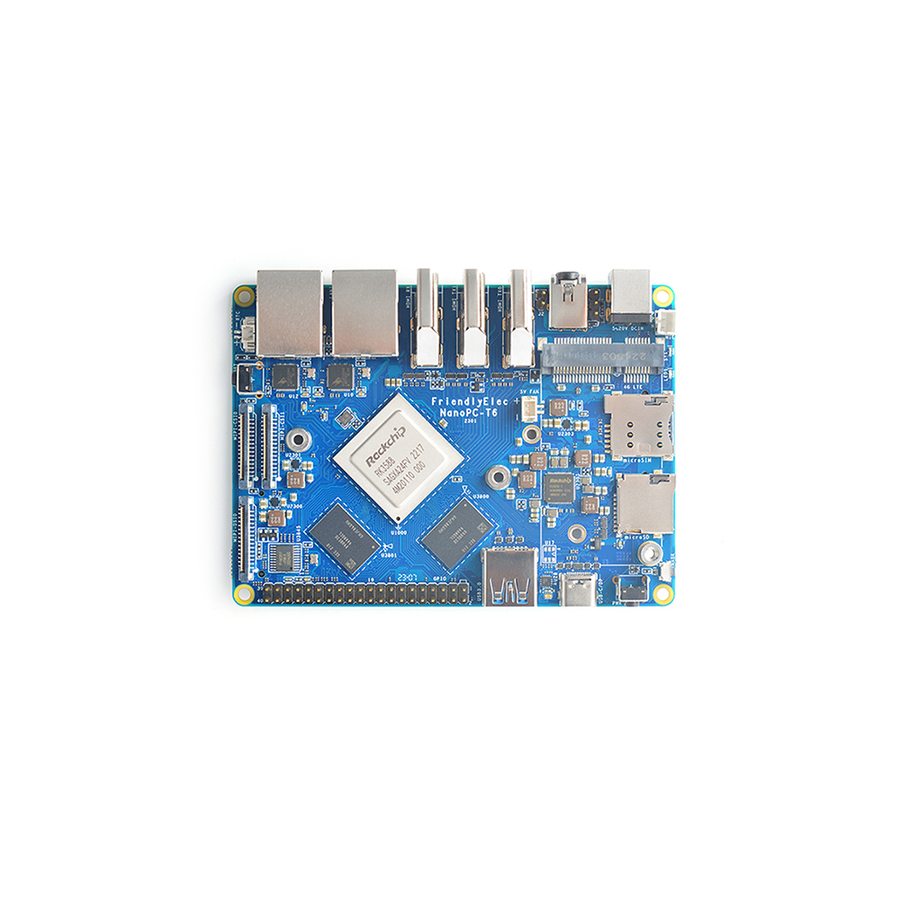

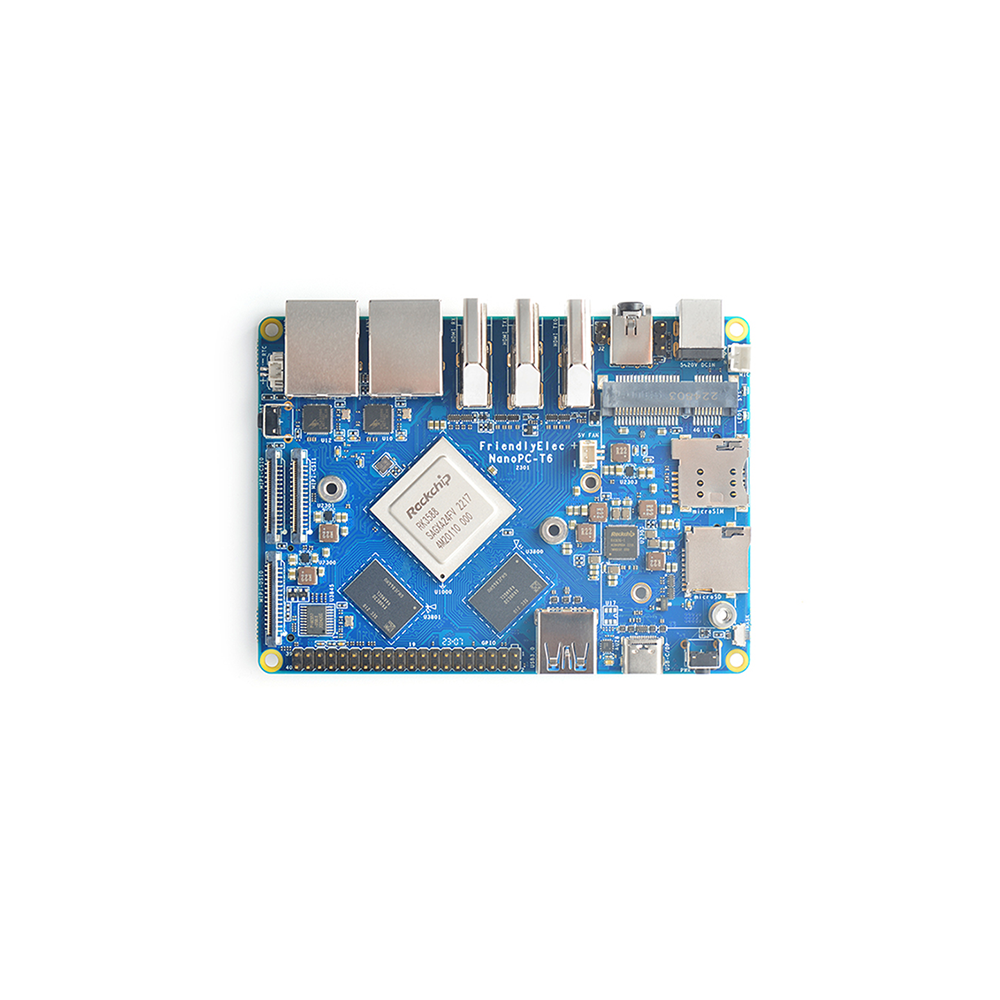

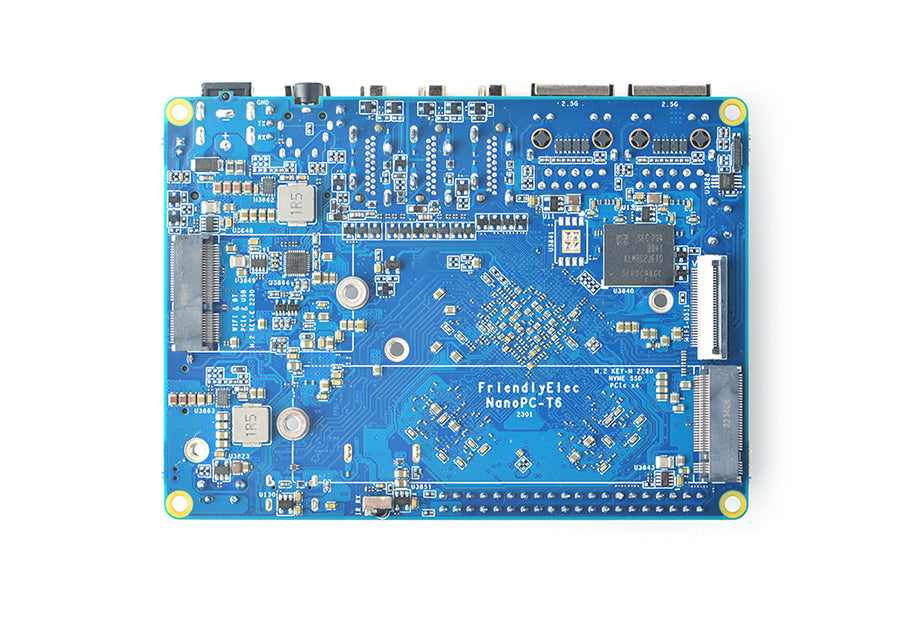

The NanoPC-T6 Plus (referred to as 'T6 Plus') is a versatile, high-performance open-source platform for edge computing, developed by the FriendlyElec team. It features dual 2.5G Ethernet ports and is powered by the Rockchip RK3588 SoC, with options for 8GB, 16GB, or 32GB of LPDDR5 RAM and eMMC storage ranging from 32GB to 256GB. The compact board supports various operating systems and is equipped with multiple HDMI ports, M.2 slots, and USB interfaces, making it ideal for both enterprise applications and hobbyist projects.

Technical specifications
RAM 64-bit 8GB/16GB/32GB LPDDR5
eMMC Flash 32GB/64GB/256GB eMMC, at HS400 mode
Nor Flash 32MB SPI Nor Flash
microSD support up to SDR104 mode
Ethernet 2 x PCIe 2.5G Ethernet
Özellik 1 x USB 3.0 Type-A
Özellik 1 x Full function USB Type‑C™ port, support DP display up to 4Kp60, USB 3.0
Özellik 2 x USB 2.0 Type-A
Özellik Video input:
Özellik Video output:
Özellik Audio:
Özellik GPIO:
Özellik M.2 Connectors
Özellik others:
Power supply 5.5*2.1mm DC Jack & 2-Pin 3.5mm pitch connector, 12VDC input.
PCB 8 Layer, 110x82.5x1.6mm
Ambient Operating Temperature 0℃ to 70℃

Specifications may vary by configuration. Contact us for project-specific options.

Specification Details
CPU / SoC Rockchip RK3588, Octa-Core (4×A76 + 4×A55) with NPU
GPU Arm Mali-G610 MP4
NPU Up to 6 TOPS
Operating system Android; Linux Ubuntu support
Display Multi-display LVDS / MIPI / HDMI / DP (model dependent)
I/O USB 3.0 / 2.0, RS232 / RS485, 2.5G/1G Ethernet (model dependent)
Wireless Wi-Fi / BT; optional 4G/5G (model dependent)
Power input DC 12–24 V
Operating temperature −10 °C to +60 °C (typical industrial)
