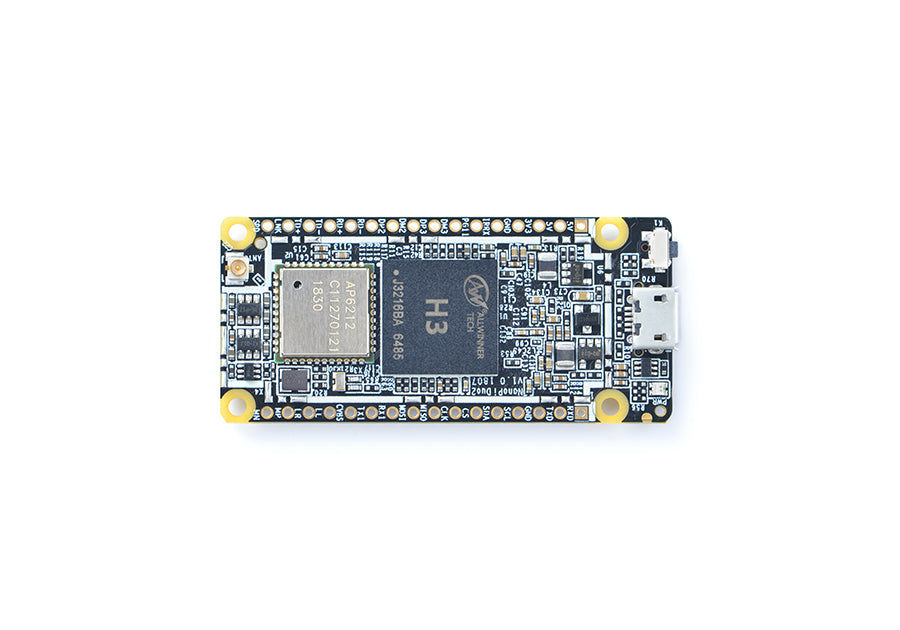

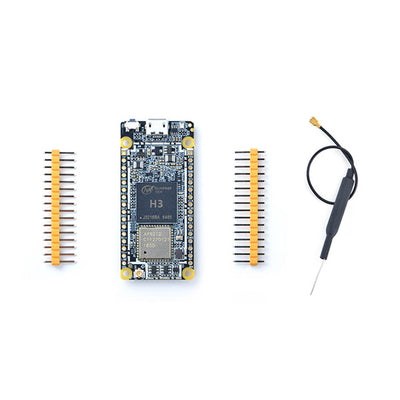

NanoPi Duo2: Compact and Versatile Development Board

SKU NanoPiDuo2

NanoPi Duo2: Compact and Versatile Development Board

Prepare the following items before using your NanoPi Duo2. This compact board is designed for various applications and offers a range of connectivity options.

Technical specifications
DDR3 RAM 512M
Connectivity 10/100M Ethernet

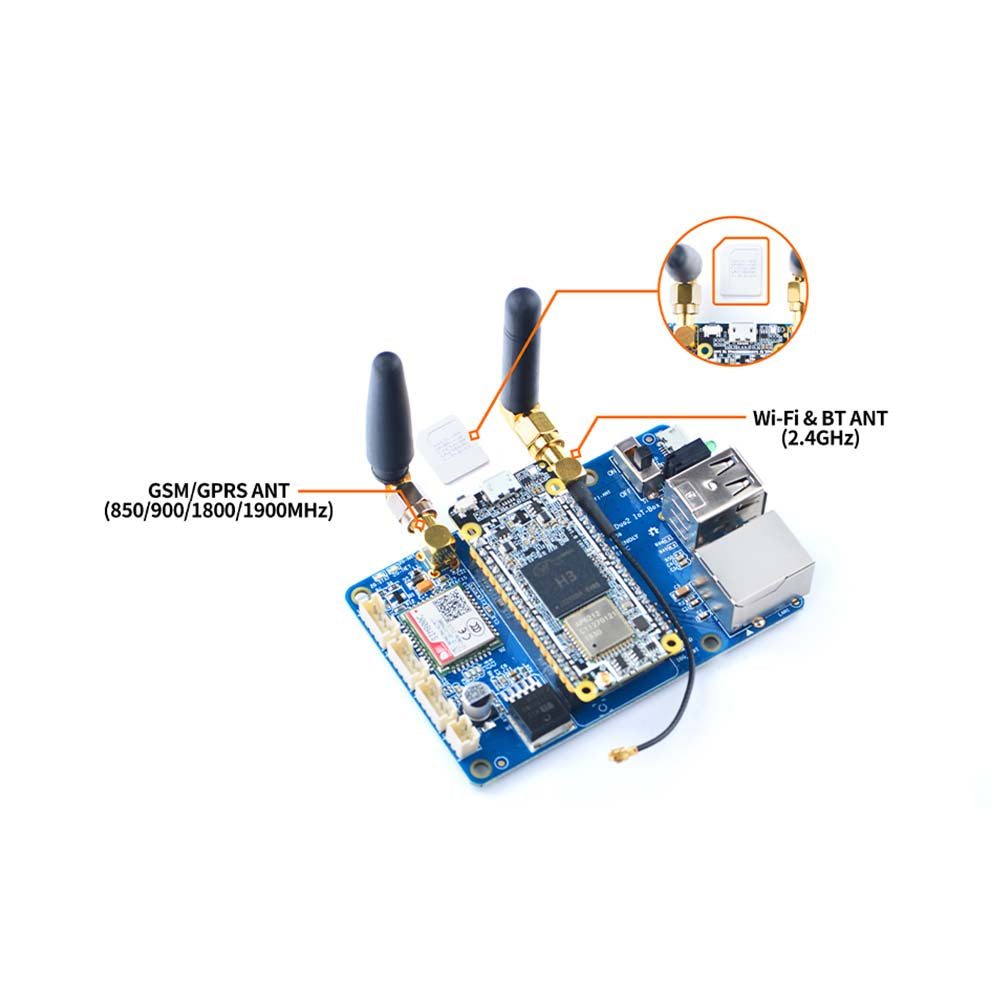

WiFi 802.11b/g/n
Bluetooth Bluetooth V4.0 of 1, 2 and 3 Mbps.

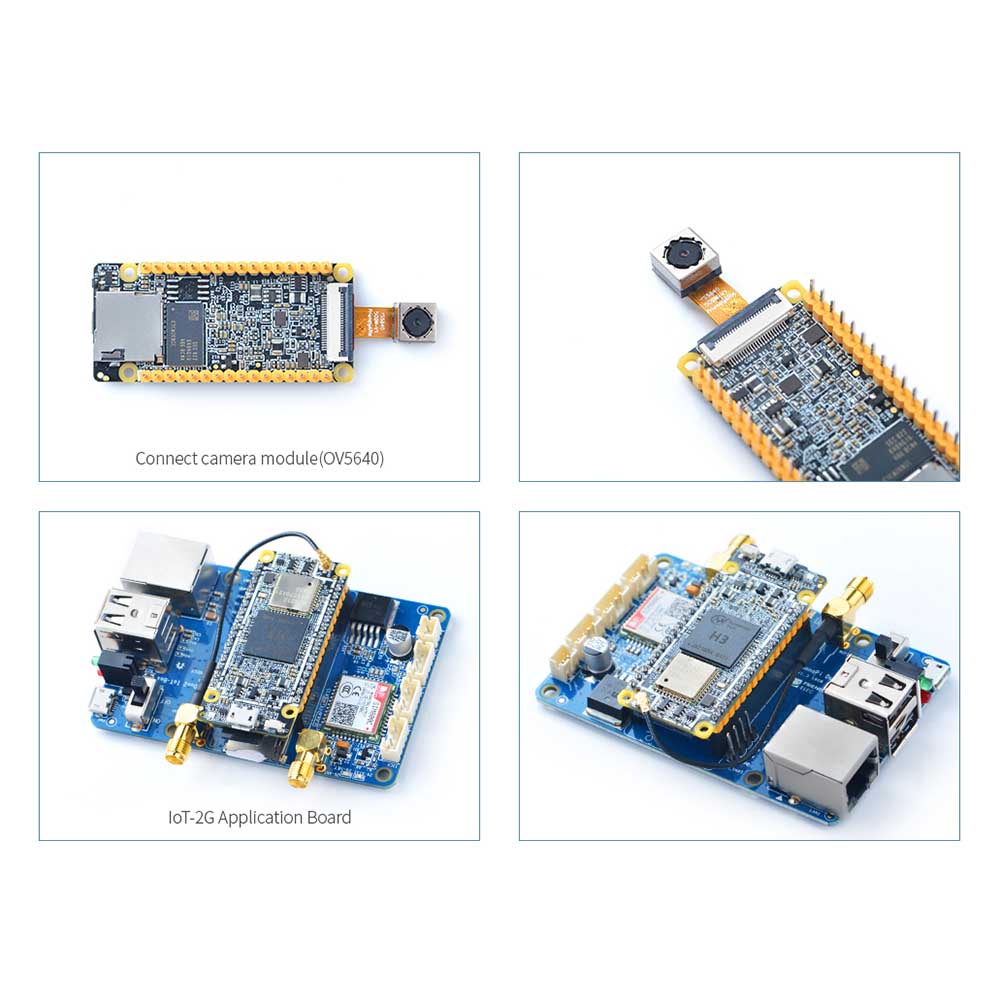

Camera OV5640
Key GPIO Key
USB Host 2.54mm pin x2, exposed in 2.54mm pitch pin header

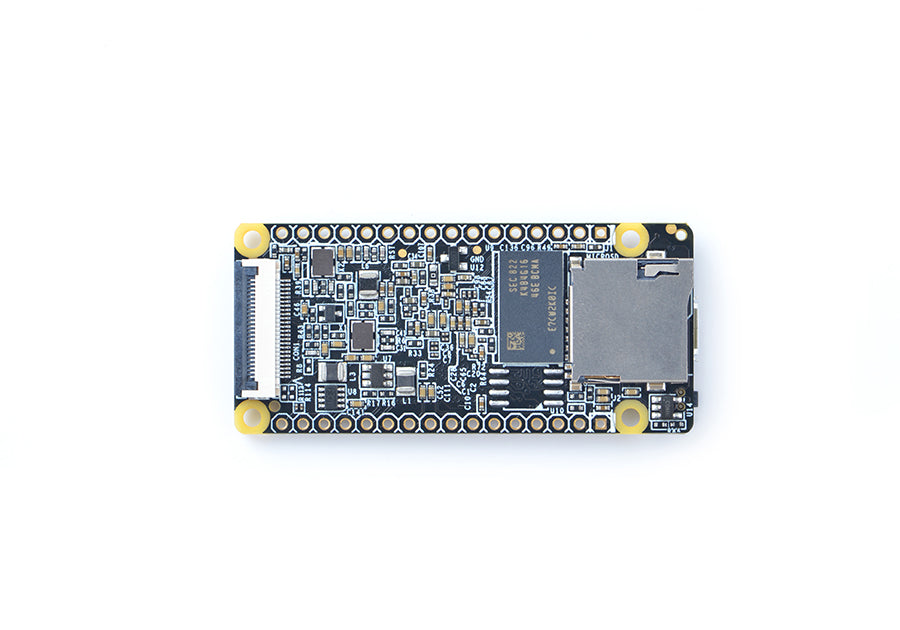

Özellik MicroSD Slot x 1
USB-C USB-C 2.0 DRP and power input
Debug Serial Interface exposed in 2.54mm pitch pin header
Audio input/output Interface exposed in 2.54mm pitch pin header

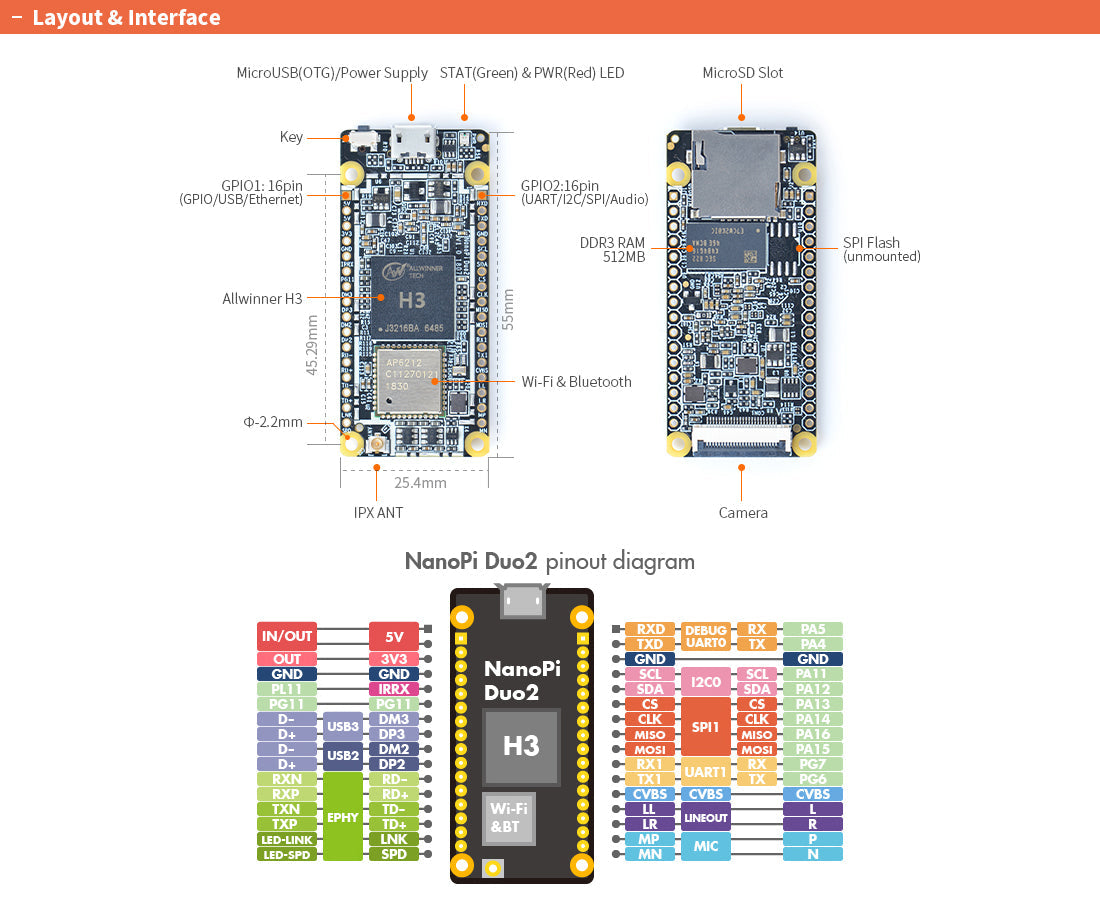

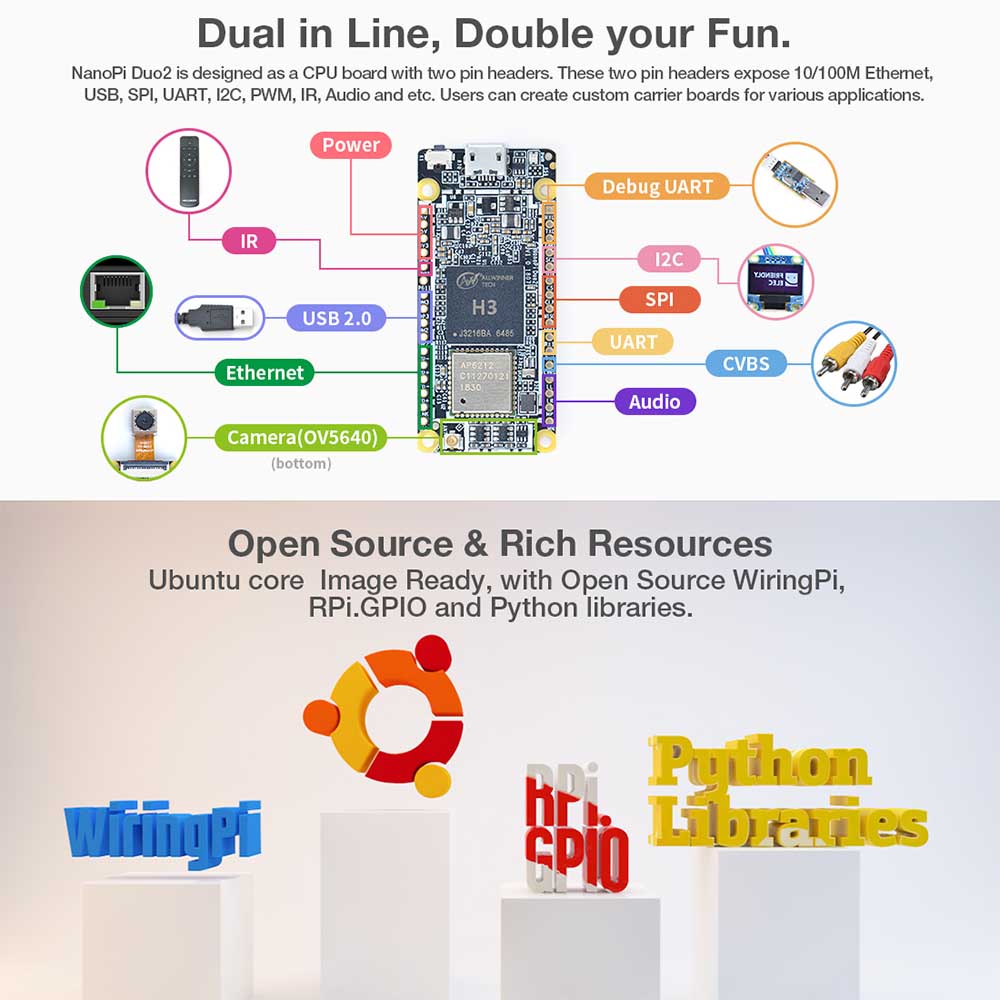

GPIO1 2.54mm spacing 16pin. It includes UART, SPI, I2C, Audio etc
GPIO2 2.54mm spacing 16pin. It includes USB,10/100M Ethernet, IO etc

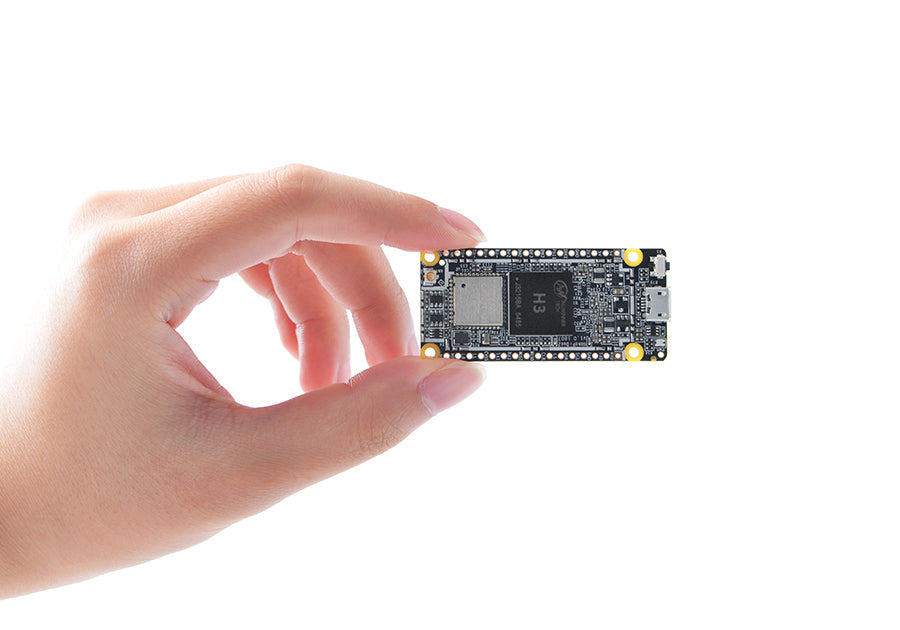

PCB Dimension 25.4 x 55mm
Power Supply DC 5V/2A
Temperature measuring range -20℃ to 70℃
OS/Software U-boot,Linux-4.14 / Linux-3.4, Ubuntu 16.04.2 LTS (Xenial)
Weight xxg(With Pin-headers)

Specifications may vary by configuration. Contact us for project-specific options.

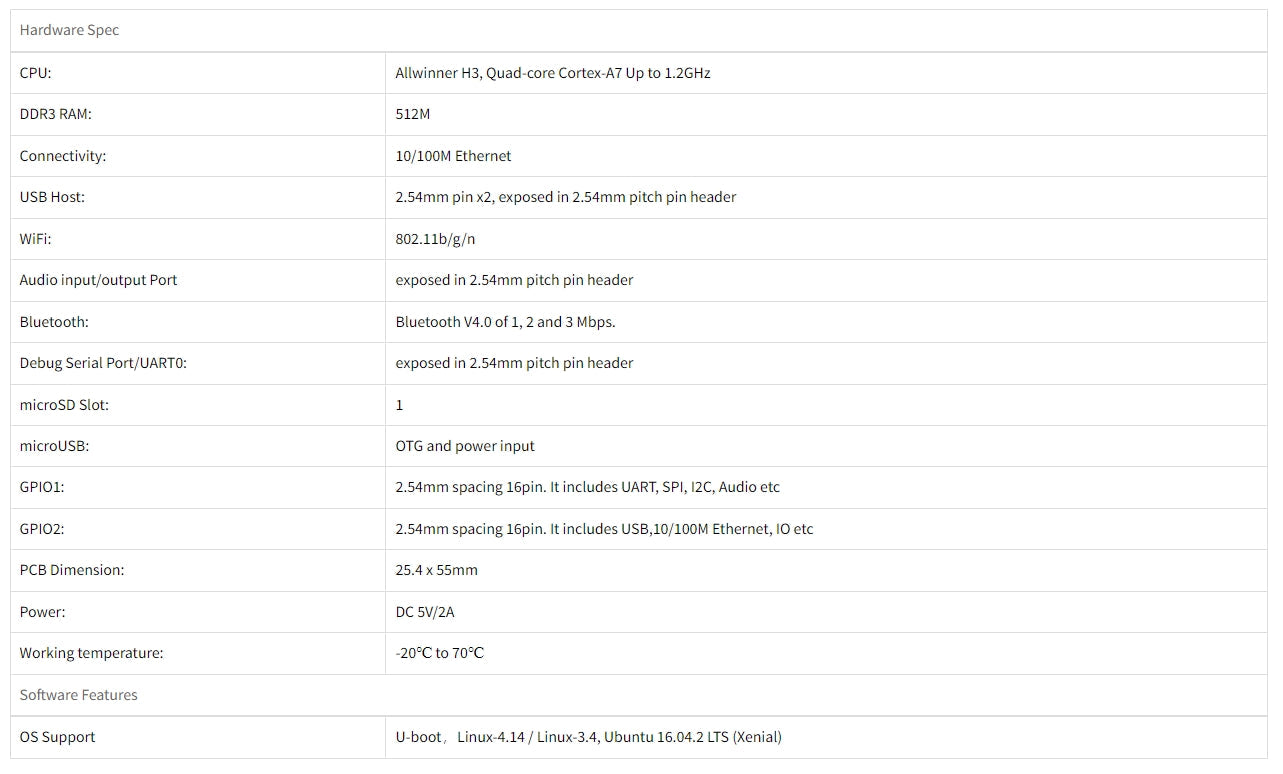

Specification Details
CPU Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
DDR3 RAM 512M
Connectivity 10/100M Ethernet
WiFi 802.11b/g/n
Bluetooth Bluetooth V4.0 of 1, 2 and 3 Mbps.
Camera OV5640
Key GPIO Key
USB Host 2.54mm pin x2, exposed in 2.54mm pitch pin header
USB-C USB-C 2.0 DRP and power input
Debug Serial Interface exposed in 2.54mm pitch pin header
Audio input/output Interface exposed in 2.54mm pitch pin header
GPIO1 2.54mm spacing 16pin. It includes UART, SPI, I2C, Audio etc
GPIO2 2.54mm spacing 16pin. It includes USB,10/100M Ethernet, IO etc
PCB Dimension 25.4 x 55mm
Power Supply DC 5V/2A
Temperature measuring range -20℃ to 70℃
OS/Software U-boot,Linux-4.14 / Linux-3.4, Ubuntu 16.04.2 LTS (Xenial)
Weight xxg(With Pin-headers)
CPU / SoC Allwinner H3
