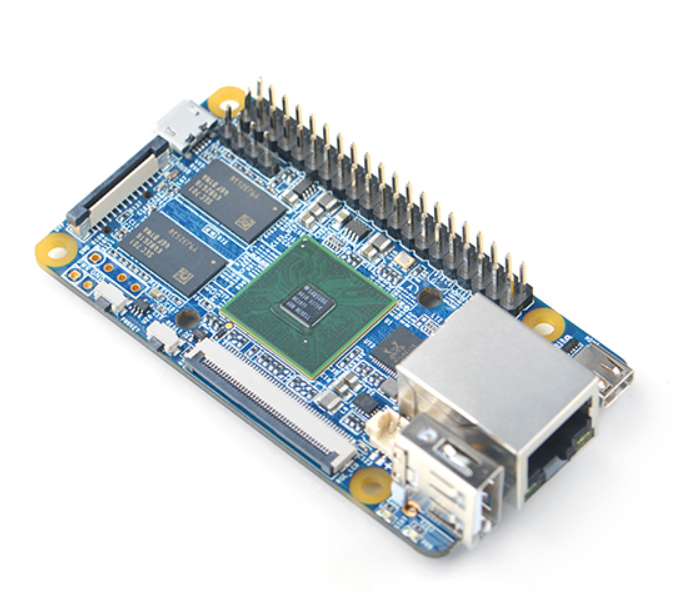

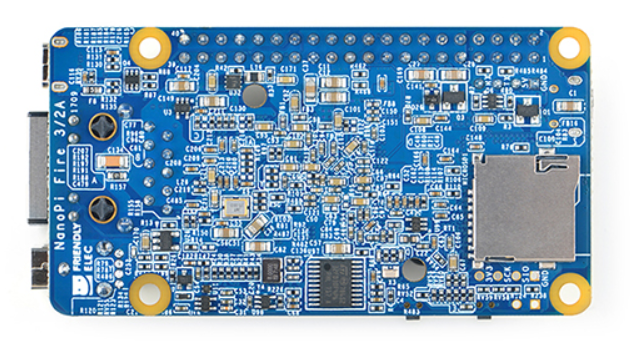

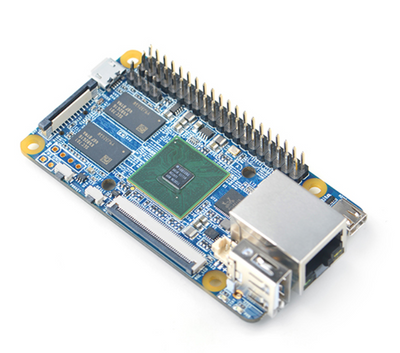

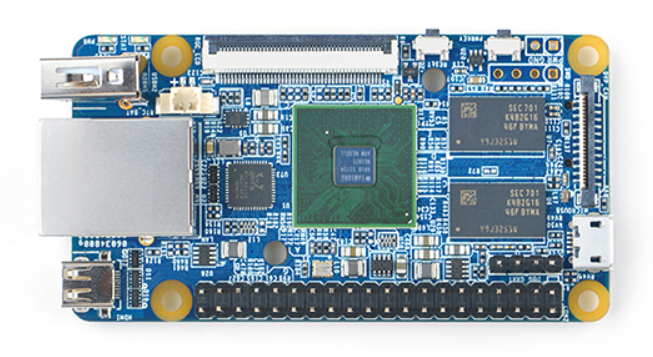

NanoPi Fire2A Board- High-Performance Development Platform

$29.49
Opens WhatsApp with this product and current options


NanoPi Fire2A Board- High-Performance Development Platform

SKU Fire2A

NanoPi Fire2A Board- High-Performance Development Platform — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: Fire2A
Technical specifications
SKU Fire2A
Product NanoPi Fire2A Board- High-Performance Development Platform
Category Friendly Elec Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

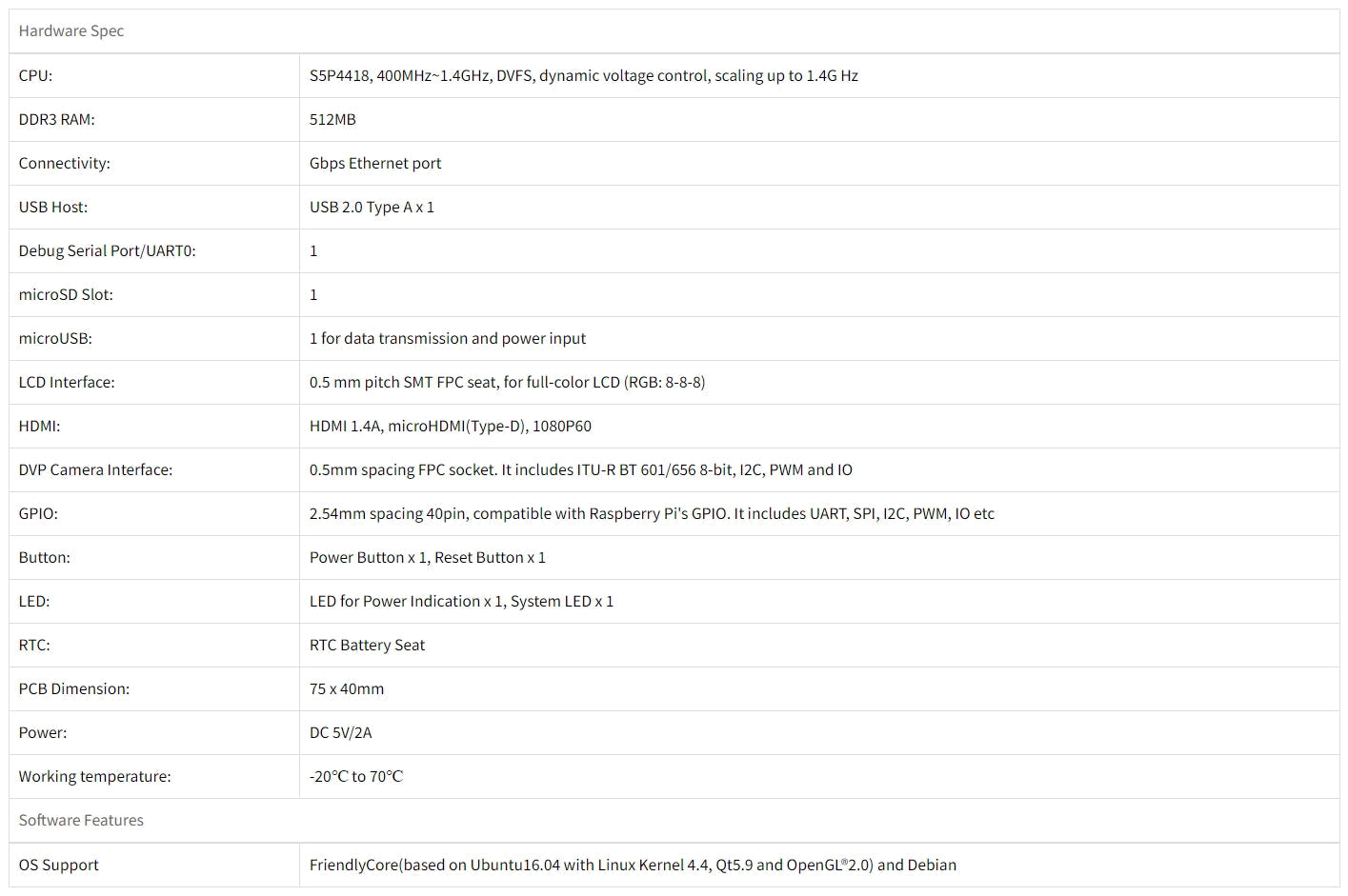

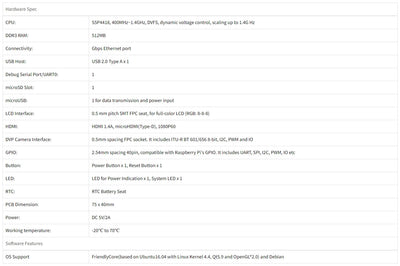

Specification Details
CPU S5P4418, 400MHz~1.4GHz, DVFS, dynamic voltage control, scaling up to 1.4G Hz
RAM 512MB DDR3
Connectivity Gbps Ethernet port
PMU Power Management Implemented by a Cortex-M0 MCU, support software power-off, and RTC alarm power-on functions
microUSB x 1 for data transmission and power input
LCD Interface 0.5 mm pitch SMT FPC seat, for full-color LCD (RGB: 8-8-8)
HDMI HDMI 1.4A, microHDMI(Type-D), 1080P60
DVP Camera Interface 0.5mm spacing FPC socket. It includes ITU-R BT 601/656 8-bit, I2C, PWM and IO
GPIO 2.54mm spacing 40pin, compatible with Raspberry Pi's GPIO. It includes UART, SPI, I2C, PWM, IO etc
Button Power Button x 1, Reset Button x 1
LED LED for Power Indication x 1, System LED x 1
RTC RTC Battery Seat
PCB Dimension 75 x 40mm
Power DC 5V/2A
Temperature measuring range -20℃ to 80℃
OS FriendlyCore(based on Ubuntu16.04 with Linux Kernel 4.4, Qt 5.10.0 and OpenGL2.0) and Debian
CPU / SoC S5P4418
