NanoPi M1 Plus/DUO2- Pure Aluminum Heat Sink with 3M Thermal Paste

$32.50
Opens WhatsApp with this product and current options


NanoPi M1 Plus/DUO2 - Pure Aluminum Heat Sink with 3M Thermal Paste

SKU NanoPiM1Plus

NanoPi M1 Plus/DUO2 - Pure Aluminum Heat Sink with 3M Thermal Paste

Before using your NanoPi M1, ensure you have the necessary items ready. This includes power supplies, storage options, and peripherals to get started effectively.

Product code: NanoPi M1 Plus/DUO2-Pure Aluminum Heat Sinkwith 3M thermal paste

Technical specifications
GPU Mali400MP2@600MHz,Supports OpenGL ES2.0
DDR3 RAM 512MB/1GB
Connectivity 10/100M Ethernet
Audio 3.5mm audio jack/Via HDMI
Microphone Onboard microphone
IR Receiver Onboard IR receiver
Özellik USB Host:Type A, USB 2.0 x 3
Özellik MicroSD Slot x 1
MicroUSB for data transmission and power input, OTG
Video Output HDMI 1.4 1080P, CVBS
DVP Camera Interface 24pin, 0.5mm pitch FPC seat
Debug Serial Port 4Pin, 2.54mm pitch pin header
GPIO 2.54mm spacing 40pin, compatible with Raspberry Pi's GPIO. It includes UART, SPI, I2C, IO etc
User Key GPIO Key x 1, Reset x 1
PC Size 64 x 56mm
Power Supply DC 5V/2A
Working Temperature -30℃ to 70℃
OS/Software u-boot,Ubuntu MATE,Debian

Specifications may vary by configuration. Contact us for project-specific options.

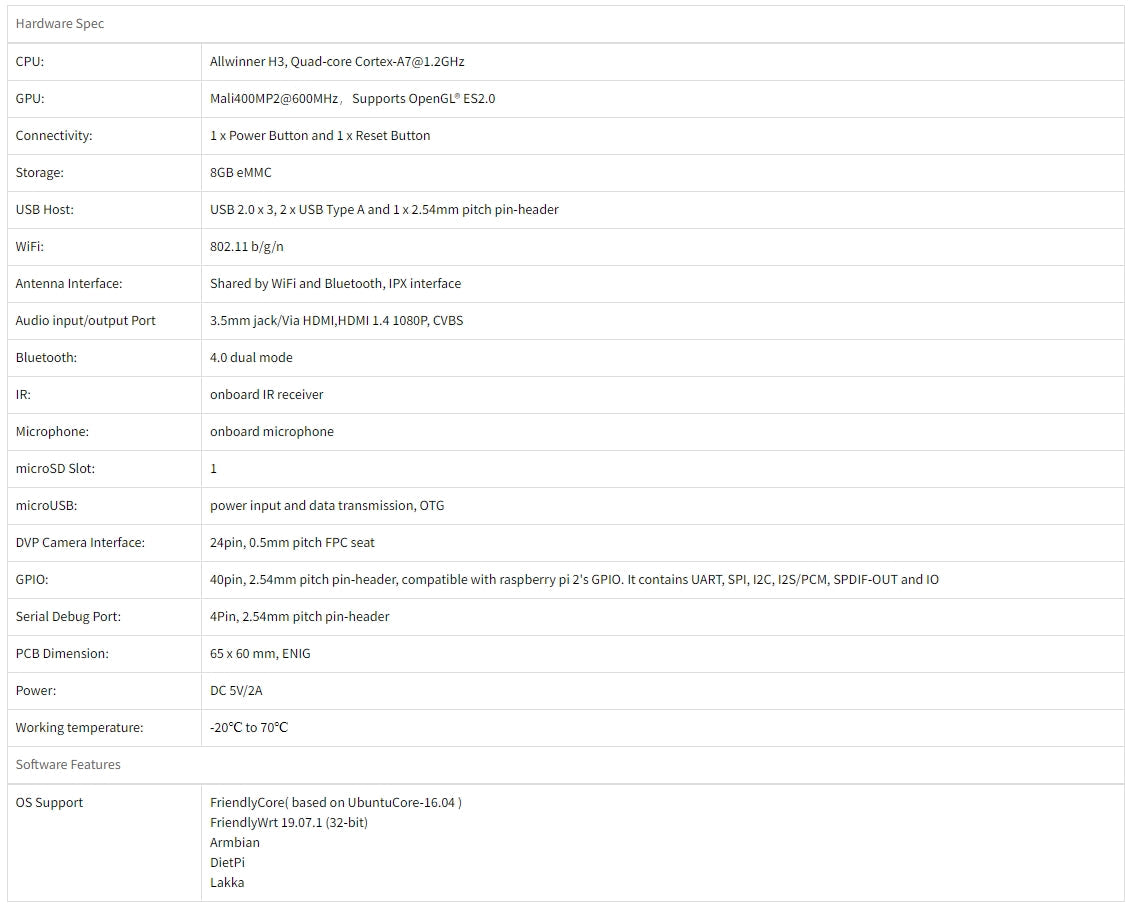

Specification Details
CPU Allwinner H3, Quad-core Cortex-A7@1.2GHz
GPU Mali400MP2@600MHz,Supports OpenGL ES2.0
DDR3 RAM 1GB
eMMC 8GB
Wireless 802.11 b/g/n
Bluetooth 4.0 dual mode
Antenna Interface Shared by WiFi and Bluetooth, IPX interface
Connectivity 10/100/1000M Ethernet
Audio 3.5mm jack/Via HDMI
Microphone onboard microphone
IR onboard IR receiver
USB Host USB 2.0 x 3, 2 x USB Type A and 1 x 2.54mm pitch pin-header
MicroSD Slot x1
MicroUSB power input and data transmission, OTG
Audio Output HDMI 1.4 1080P, CVBS
DVP Camera Interface 24pin, 0.5mm pitch FPC seat
Serial Debug Port 4Pin, 2.54mm pitch pin-header
User Button 1 x Power Button and 1 x Reset Button
LED 1 x Power LED and 1 x System Status LED

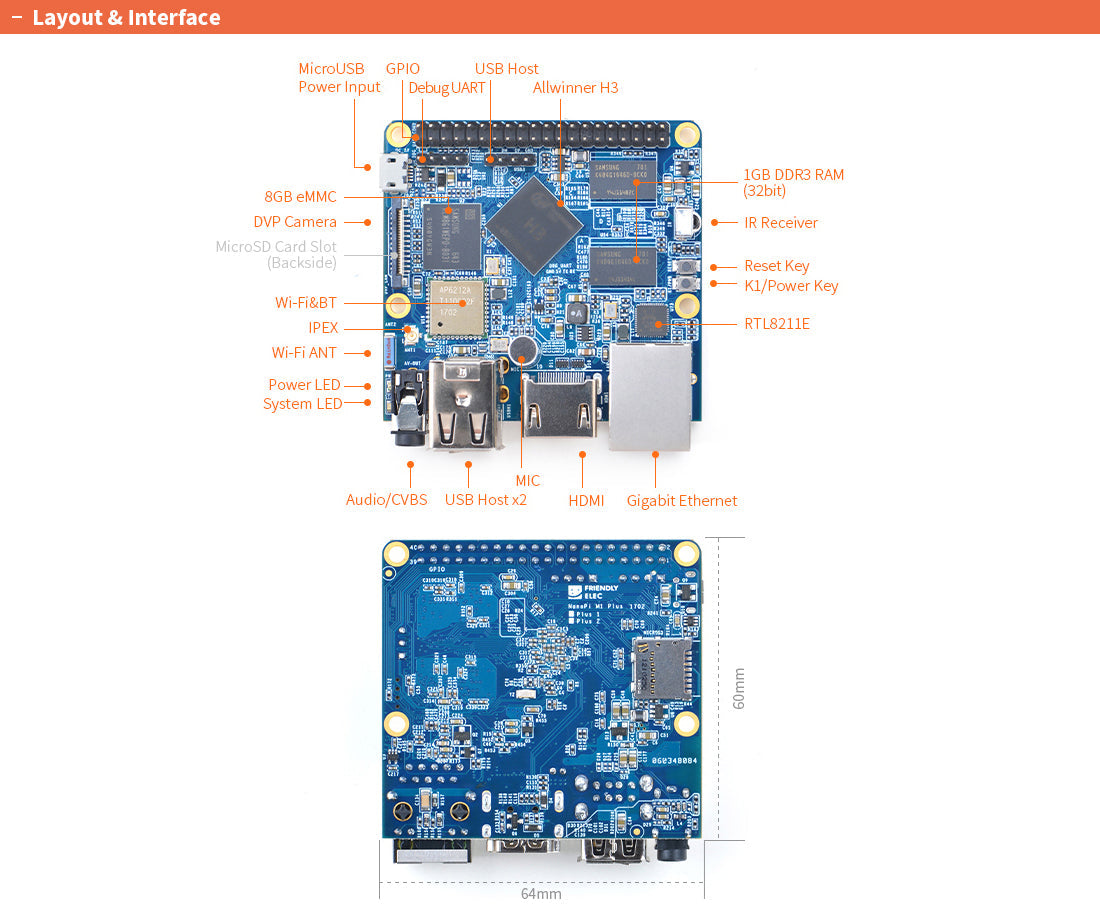

PCB Dimension 64 x 60 mm, ENIG
Power Supply DC 5V/2A
Working Temperature -30℃ to 80℃
OS/Software u-boot, Debian, Ubuntu-Core, eflasher, Android
CPU / SoC Allwinner H3
