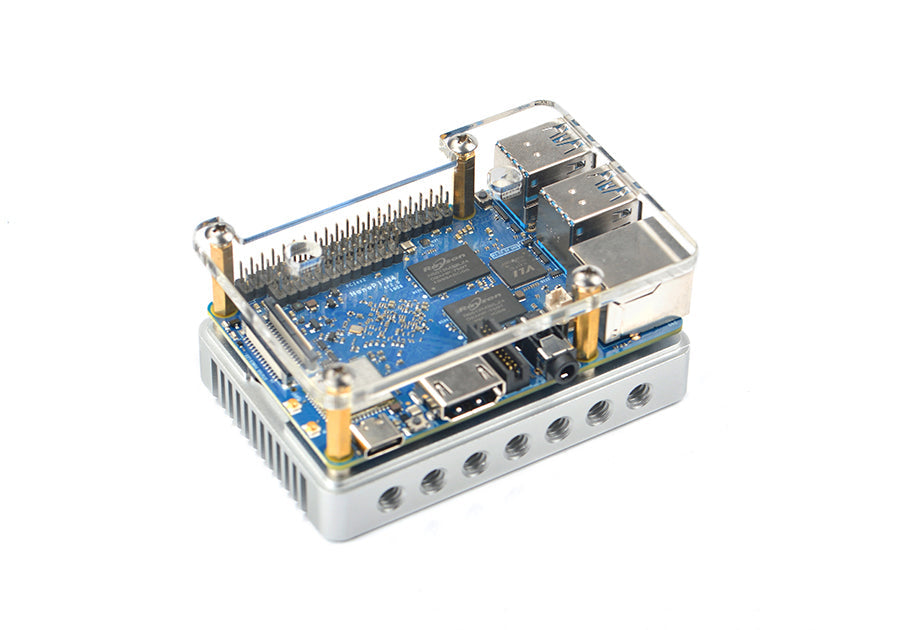

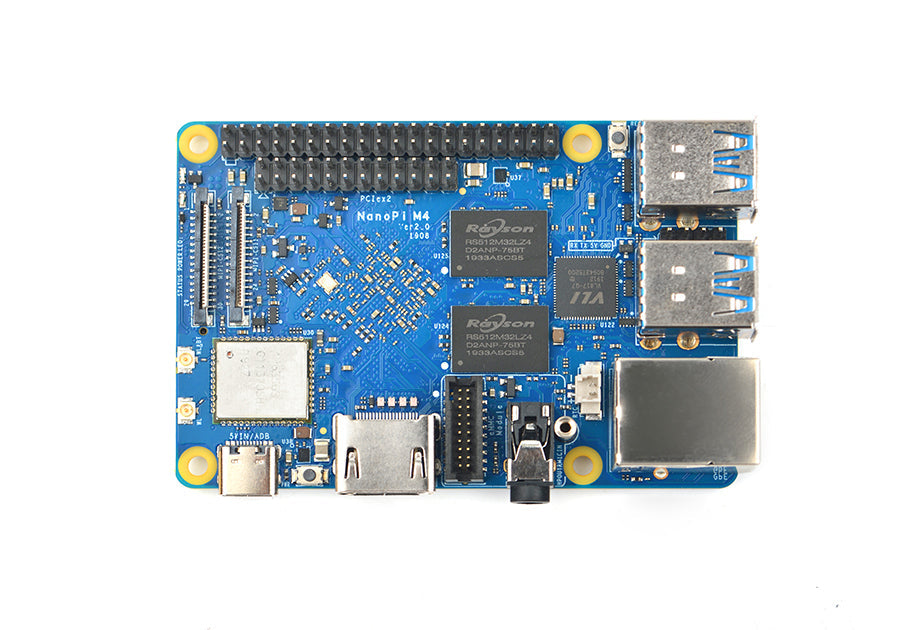

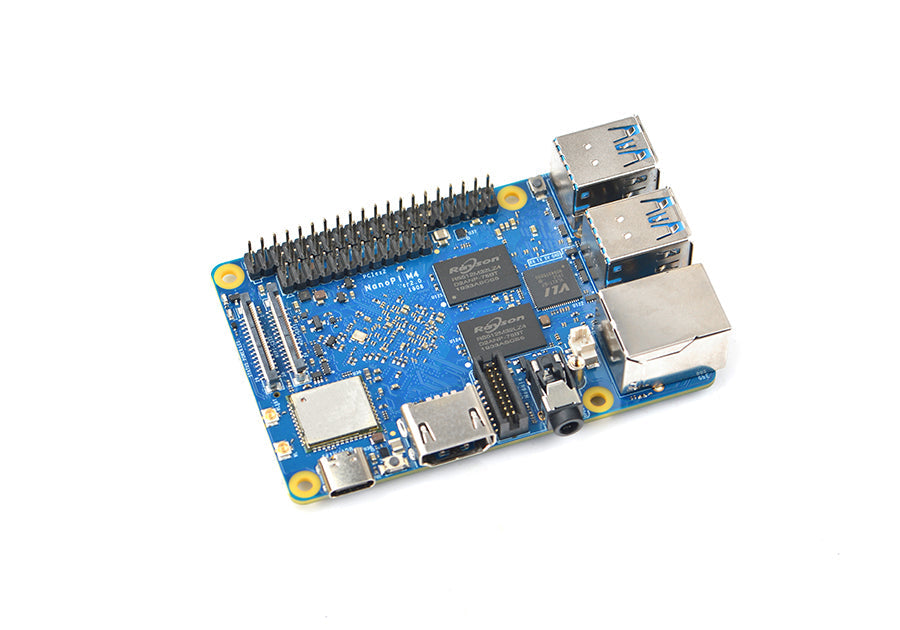

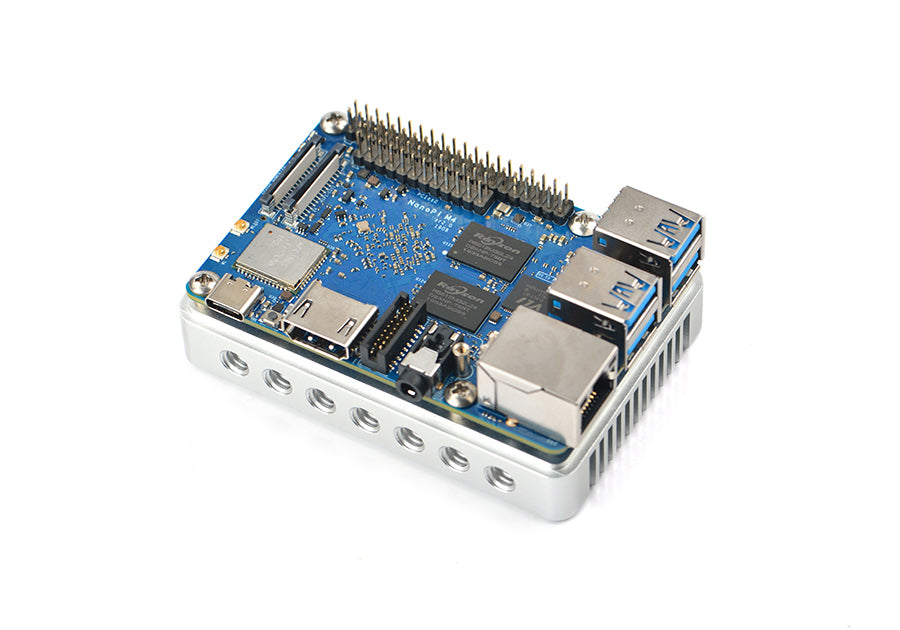

NanoPi M4V2- Powerful Single Board Computer with Versatile Connectivity

$79.50


NanoPi M4V2- Powerful Single Board Computer with Versatile Connectivity

SKU NanoPiM4V2

NanoPi M4V2- Powerful Single Board Computer with Versatile Connectivity — industrial / embedded computing hardware for automation, edge and OEM projects. GeniusCore.

Highlights
Industrial-grade design for continuous operation
Suitable for automation, HMI and embedded deployments
Order code: NanoPiM4V2
Technical specifications
SKU NanoPiM4V2
Product NanoPi M4V2- Powerful Single Board Computer with Versatile Connectivity
Category Friendly Elec Boards
Applications Automation, embedded computing, edge / IoT, OEM integration

Detailed I/O and memory options depend on configuration. Ask for the datasheet.

Specification Details

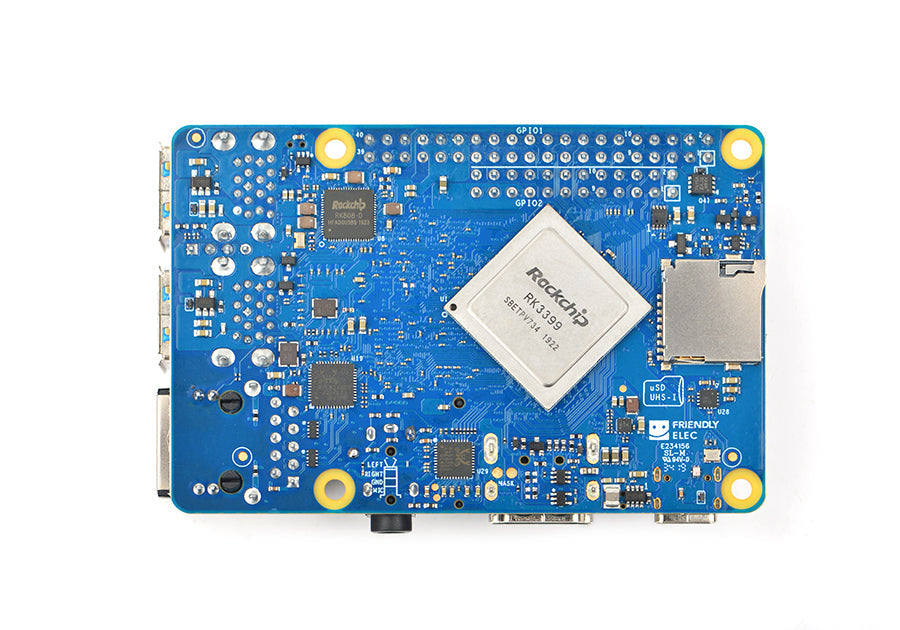

SoC Rockchip RK3399
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
RAM Dual-Channel 4GB LPDDR4
Flash no Onboard eMMC, but has a eMMC socket
Ethernet Native Gigabit Ethernet
Wi-Fi/BT 802.11a/b/g/n/ac, Bluetooth 4.1, Wi-Fi and Bluetooth combo module, 2x2 MIMO, dual antenna interface
Video Input one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s,supports simultaneous input of dual camera data
Audio Out 3.5mm Dual channel headphone jack, or HDMI
Audio In one microphone input interface
USB 3.0 four USB 3.0 Type-A ports
USB Type-C Supports USB2.0 OTG and Power input
Debug one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
LED 1 x power LED and 1 x GPIO Controlled LED
RTC Battery 2 Pin 1.27/1.25mm RTC battery input connector
Power supply DC 5V/3A
PCB 8 Layer, 85 mm x 56 mm
Ambient Operating Temperature -20℃ to 70℃
CPU / SoC RK3399
