NanoPi NEO3 Plus- Compact and Versatile Development Board

$25.50
Opens WhatsApp with this product and current options


NanoPi NEO3 Plus - Compact and Versatile Development Board

SKU NeoAirLTS512

NanoPi NEO3 Plus - Compact and Versatile Development Board

The NanoPi NEO3 Plus is a powerful and compact development board designed for various applications. It features the Rockchip RK3528A SoC and supports LPDDR4 RAM, making it suitable for a range of projects. With its native Gigabit Ethernet and multiple connectivity options, it is ideal for developers looking to create innovative solutions.

Technical specifications
RAM LPDDR4
Flash Supports eMMC Module
Ethernet one Native Gigabit Ethernet
Özellik USB Ports:
Özellik One microSD Slot
Özellik One 26-Pin FPC GPIO connector
Debug Debug UART, 3.3V level, 1500000bps
LEDs 2 x GPIO Controlled LEDs (SYS & LED1)
Özellik others:
Power supply DC 5V/2A, via USB-C connector or 2.54mm Header
PCB Size 48*48*1.2mm
Temperature measuring range 0℃ to 80℃

Specifications may vary by configuration. Contact us for project-specific options.

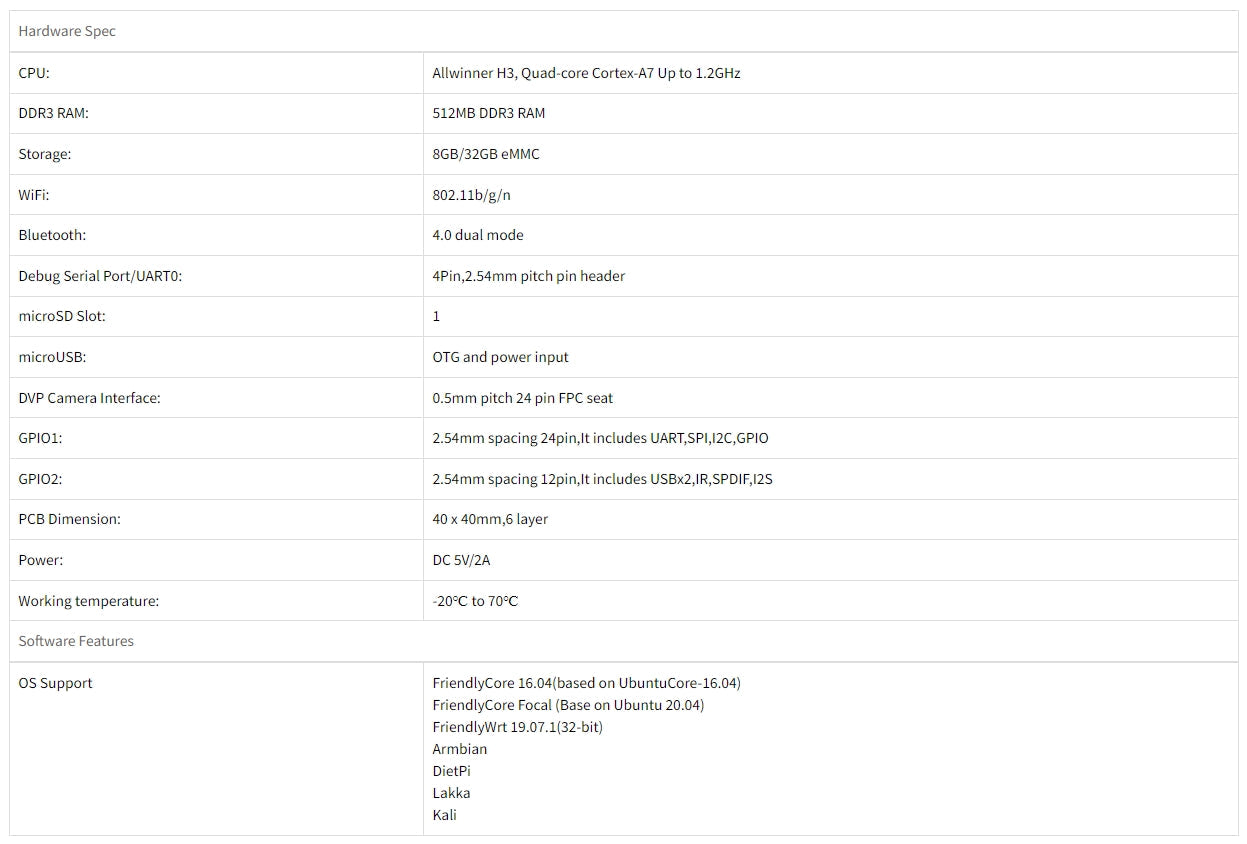

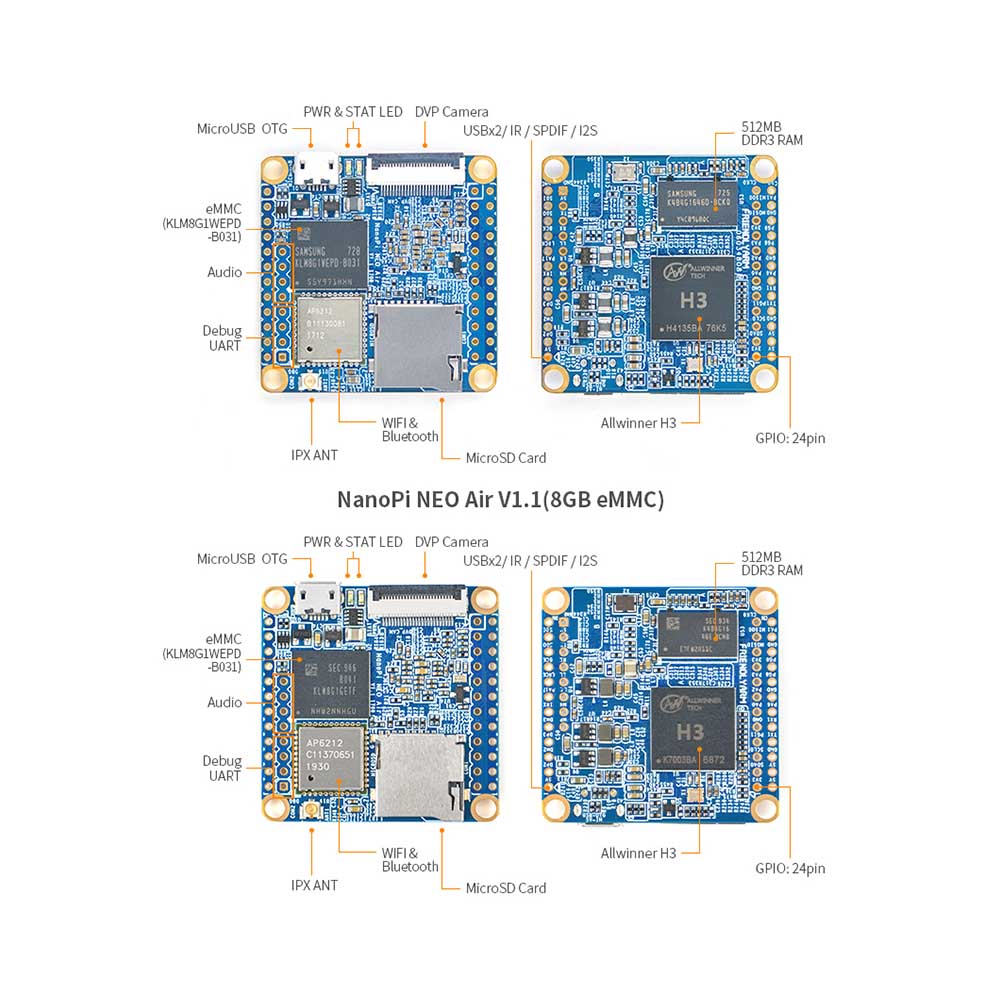

Specification Details

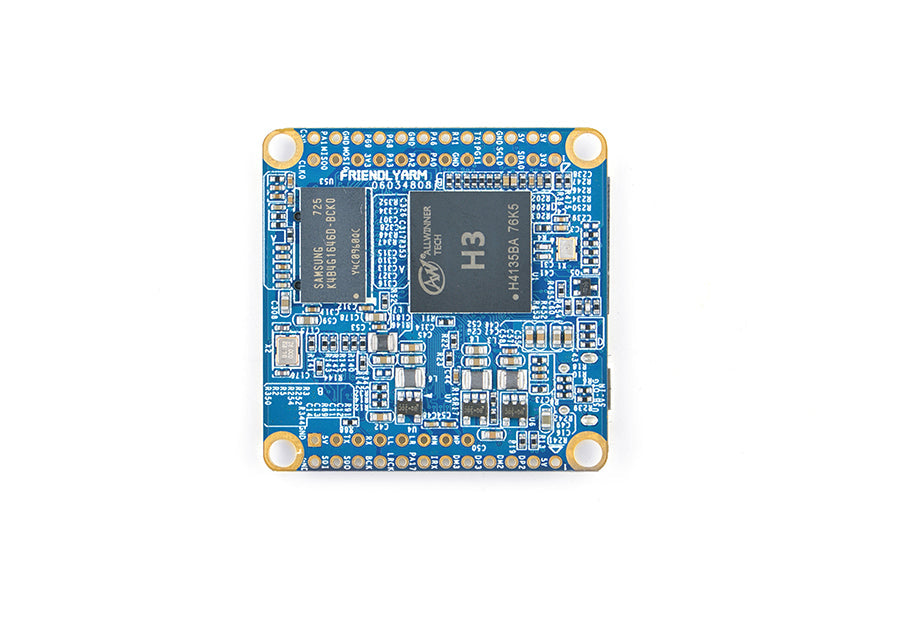

CPU Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
RAM 512MB DDR3 RAM
Storage 8GB eMMC
WiFi 802.11b/g/n
Bluetooth 4.0 dual mode
DVP Camera 0.5mm pitch 24 pin FPC seat
MicroUSB OTG and power input
Debug Serial Port 4Pin,2.54mm pitch pin header

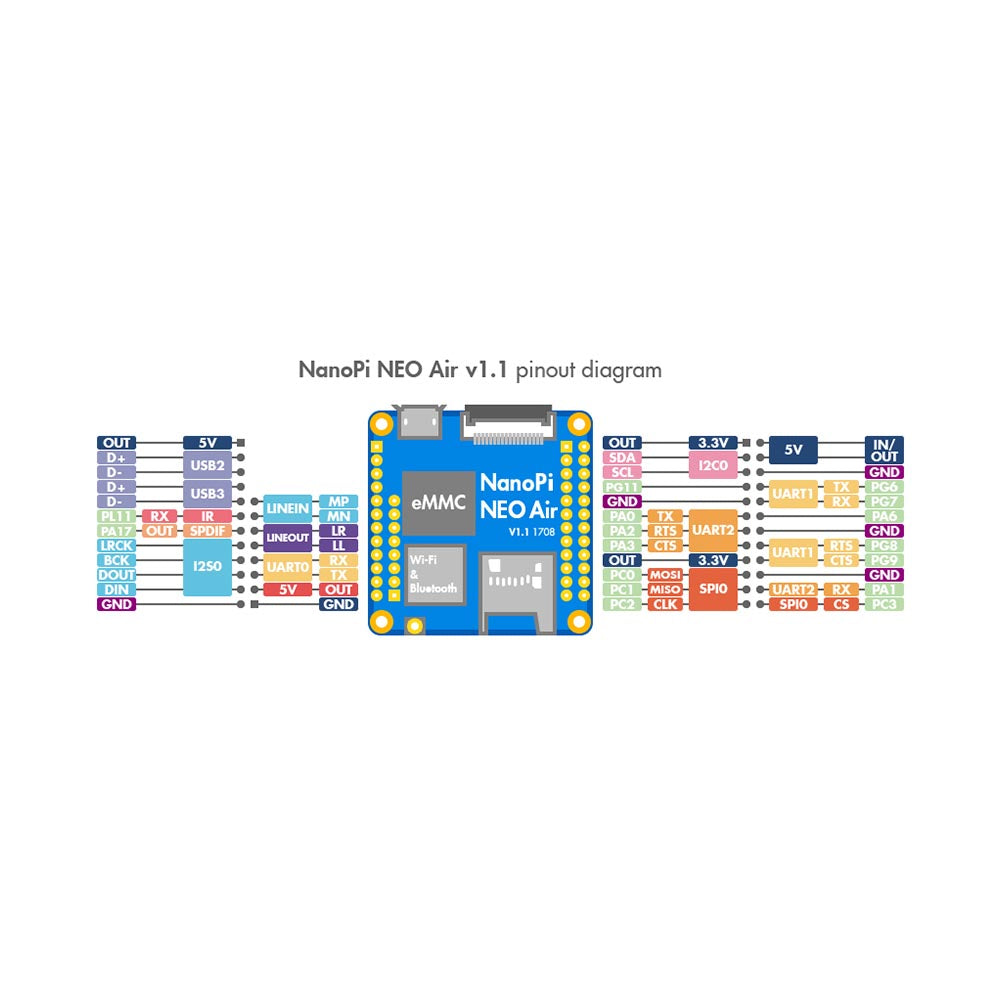

GPIO1 2.54mm spacing 24pin,It includes UART,SPI,I2C,GPIO
GPIO2 2.54mm spacing 12pin,It includes USBx2,IR,SPDIF,I2S
PCB Size 40 x 40mm
PCB layer 6
Power Supply DC 5V/2A
Working Temperature -20℃ to 70℃
OS/Software u-boot, UbuntuCore, eflasher

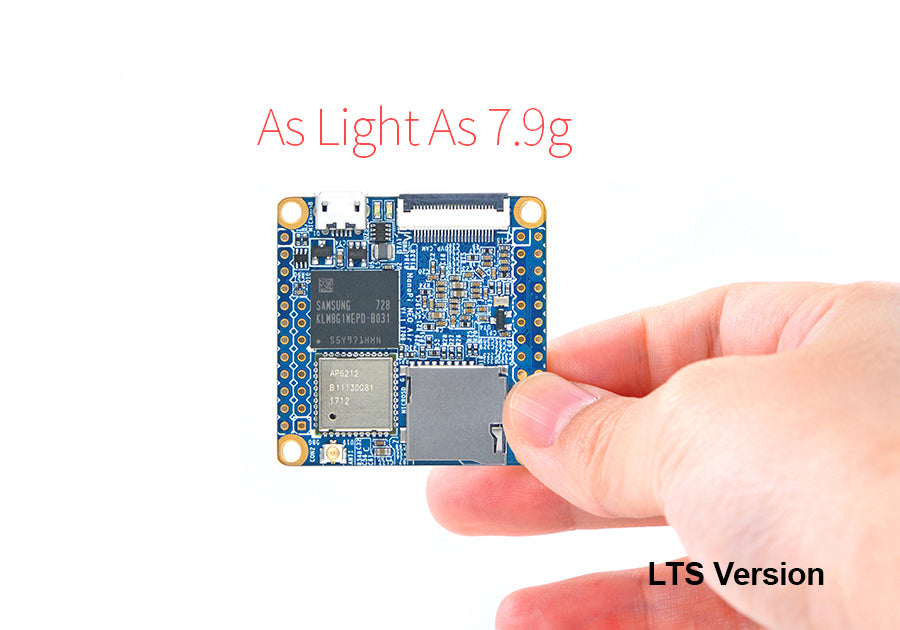

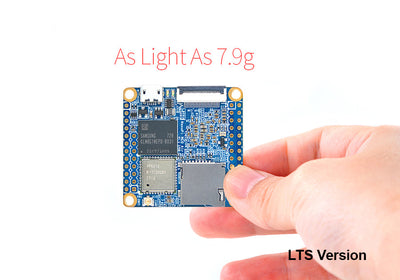

Weight 7.5g(WITHOUT Pin-headers)
CPU / SoC Allwinner H3
