NanoPi NEO3 Plus- Compact and Powerful Single Board Computer

$25.50
Opens WhatsApp with this product and current options


NanoPi NEO3 Plus - Compact and Powerful Single Board Computer

SKU NEOLTS512

NanoPi NEO3 Plus - Compact and Powerful Single Board Computer

Prepare the following items before using your NanoPi NEO3. This guide will help you get started with your new device efficiently.

Technical specifications
RAM 1GB/2GB DDR4
LAN 10/100/1000M Ethernet with unique MAC
USB Host 1x USB3.0 Type A and 2x USB2.0 on 2.54mm pin header
MicroSD Slot MicroSD x 1 for system boot and storage
LED Power LED x 1, System LED x 1
Key User Button x 1
Fan 2Pin JST ZH 1.5mm Connector for 5V Fan
GPIO 2.54mm pitch 26 pin-header, include I2C, UART, SPI, I2S, GPIO
Serial Debug Port 2.54mm pitch 3 pin-header, 1500000bps
Power 5V/1A, via Type-C or GPIO
PCB Dimension 48 x 48mm
Working Temperature -20℃ to 70℃
Weight 22g

Specifications may vary by configuration. Contact us for project-specific options.

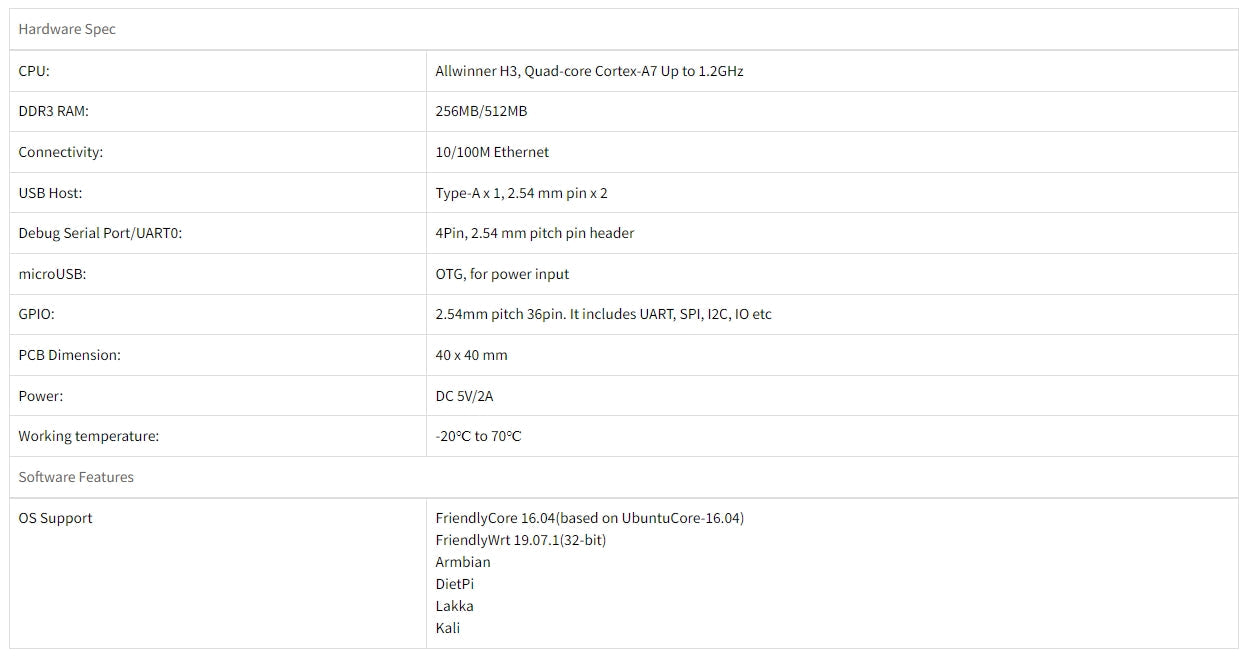

Specification Details

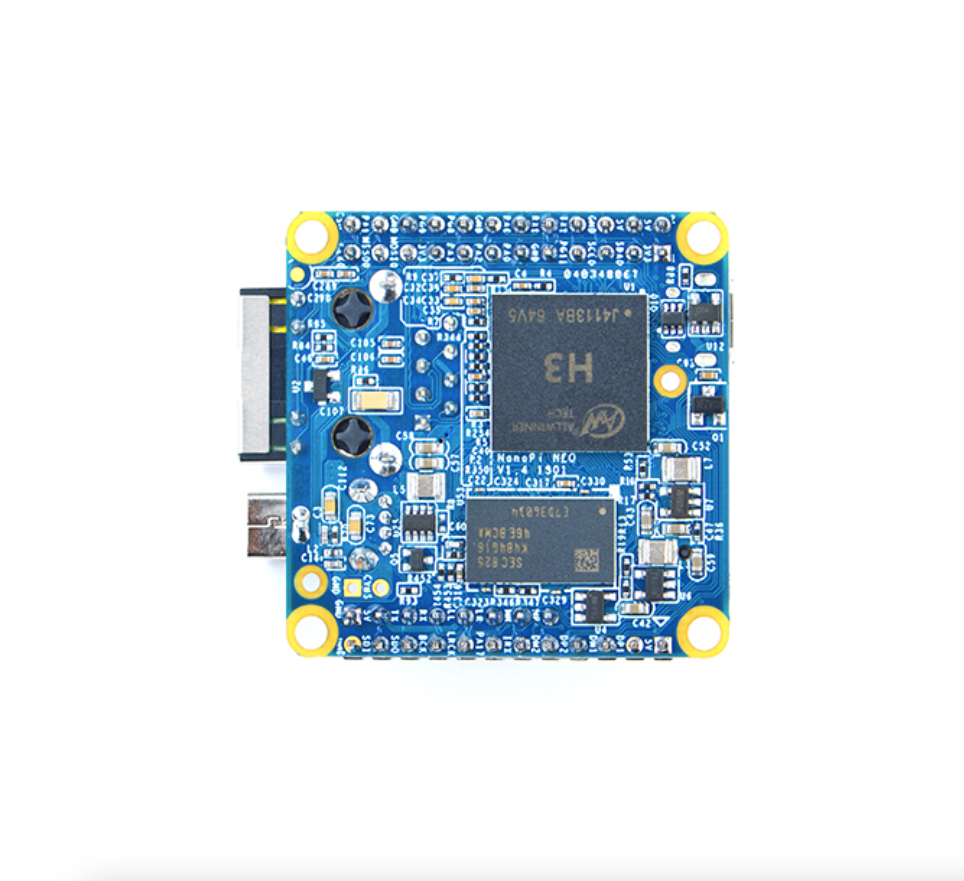

CPU Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
DDR3 RAM 256MB/512MB
Connectivity 10/100M Ethernet
USB Host Type-A x 1, 2.54 mm pin x 2
MicroUSB OTG, for power input

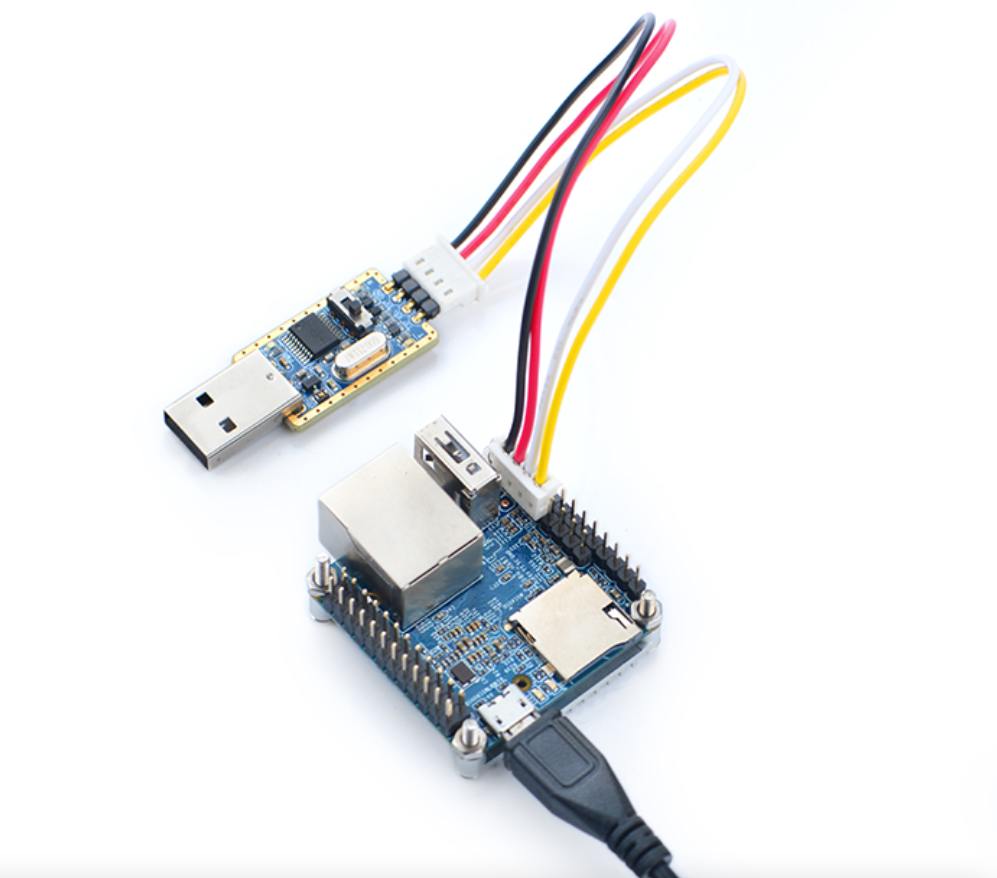

Debug Serial Port 4Pin, 2.54 mm pitch pin header
Audio input/output Port 5Pin, 2.0mm pitch pin header
GPIO 2.54mm pitch 36pin. It includes UART, SPI, I2C, IO etc
Power Supply DC 5V/2A
PCB Dimension 40 x 40 mm
Working Temperature -20℃ to 70℃
Weight 14g(WITHOUT Pin-headers)
OS/Software u-boot, UbuntuCore and Android
CPU / SoC Allwinner H3
