NanoPi R4S- High-Performance Single Board Computer

$74.50
Opens WhatsApp with this product and current options

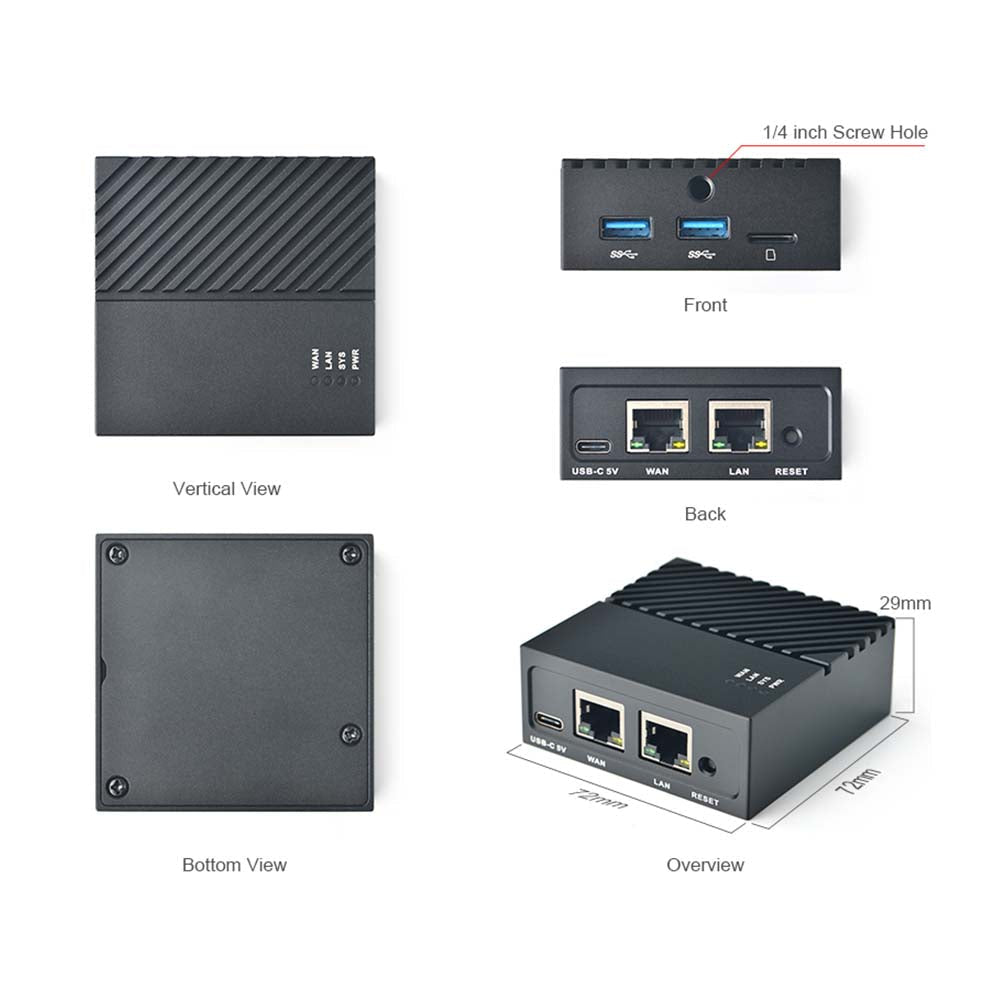

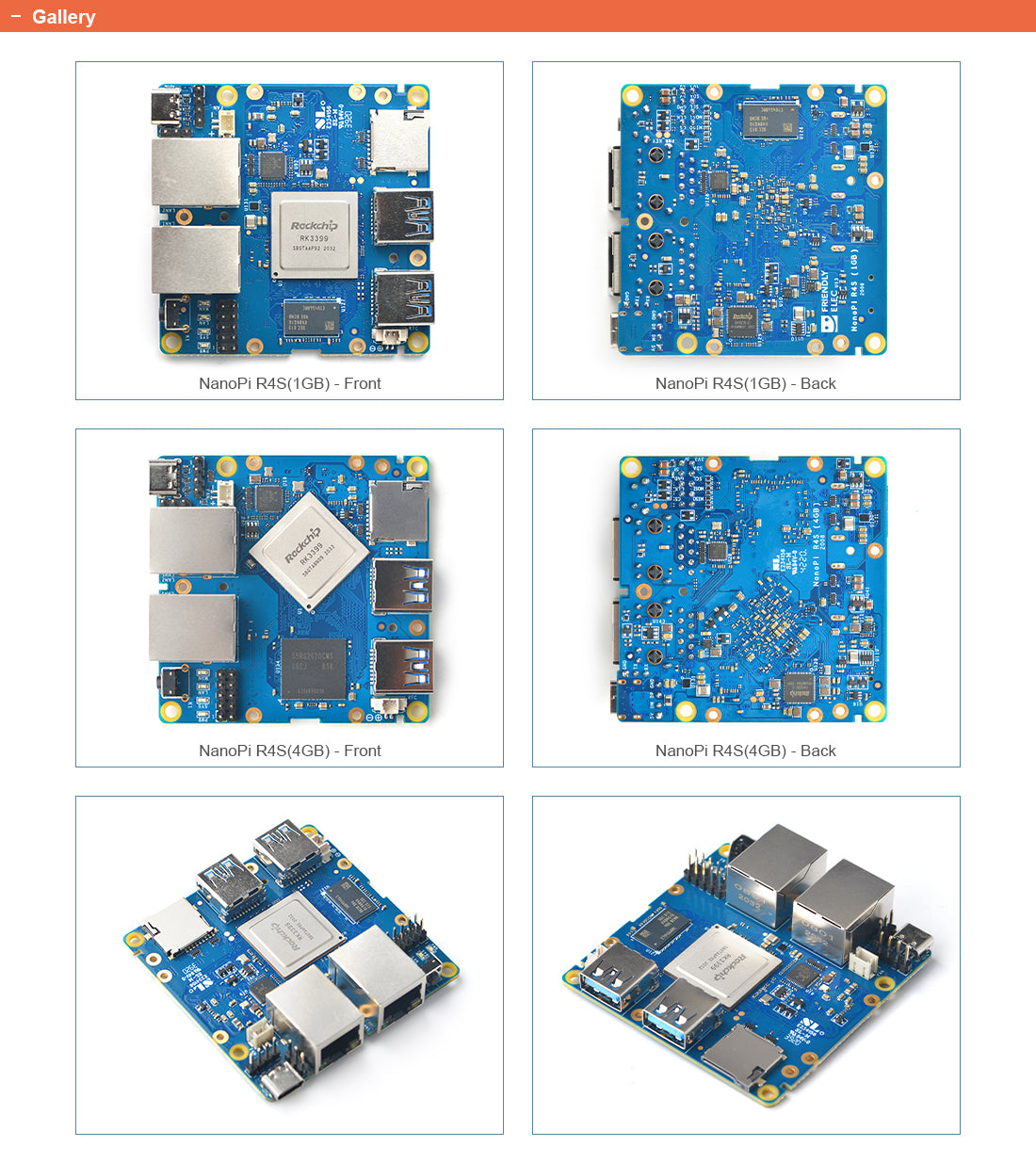

NanoPi R4S - High-Performance Single Board Computer

SKU NanoPi-R4S

NanoPi R4S - High-Performance Single Board Computer

The NanoPi R4S is a powerful single board computer designed for various applications. It features advanced connectivity options and robust performance capabilities, making it ideal for both development and deployment.

Resources
Official documentation (Wiki):
FriendlyElec product page:

Specifications may vary by configuration. Contact us for project-specific options.

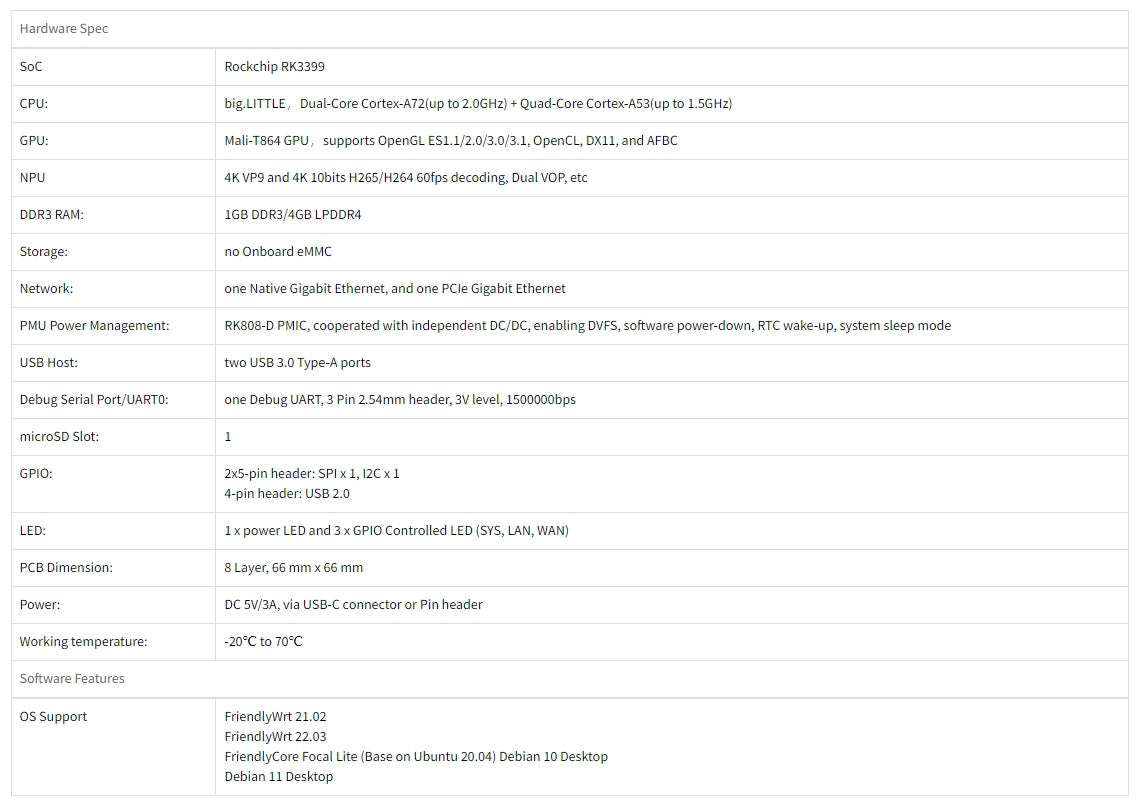

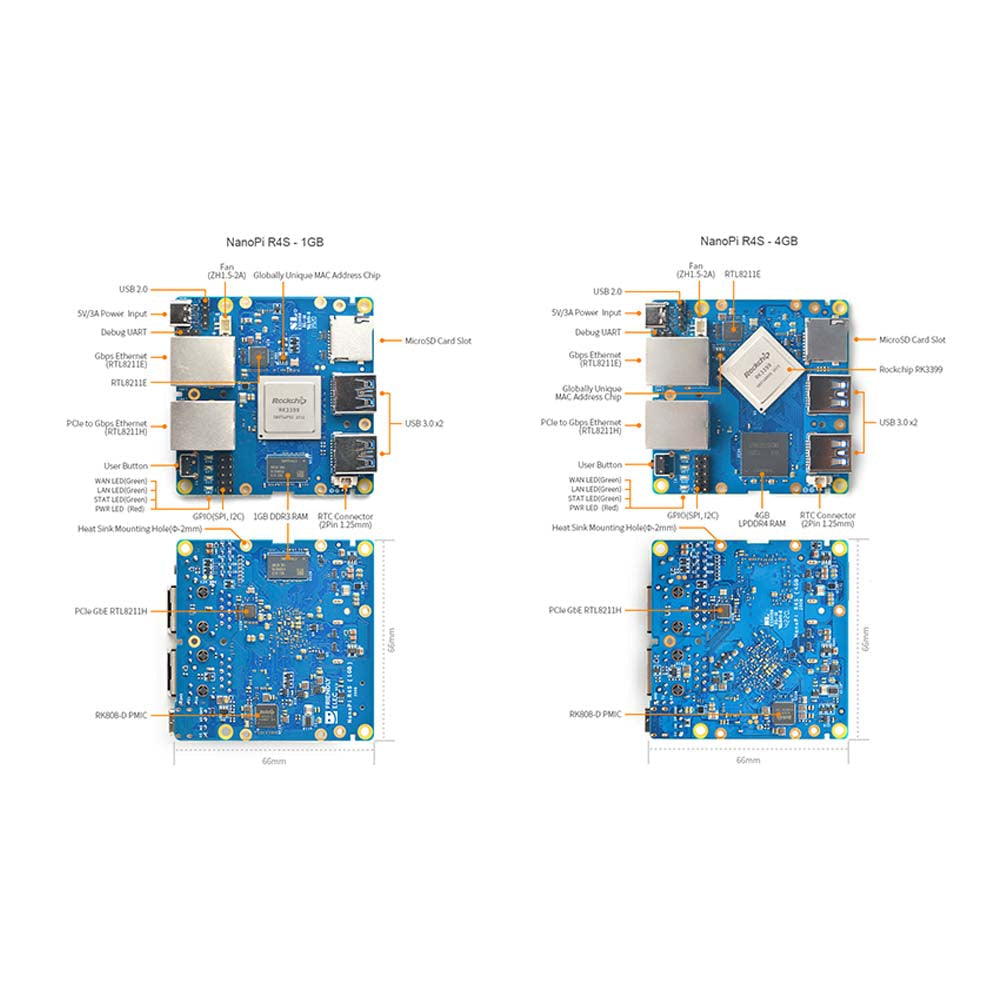

Specification Details

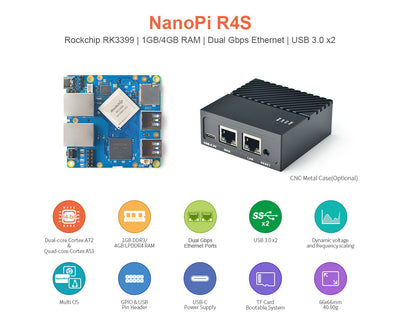

SoC Rockchip RK3399
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
RAM 1GB DDR3/4GB LPDDR4
Flash no Onboard eMMC

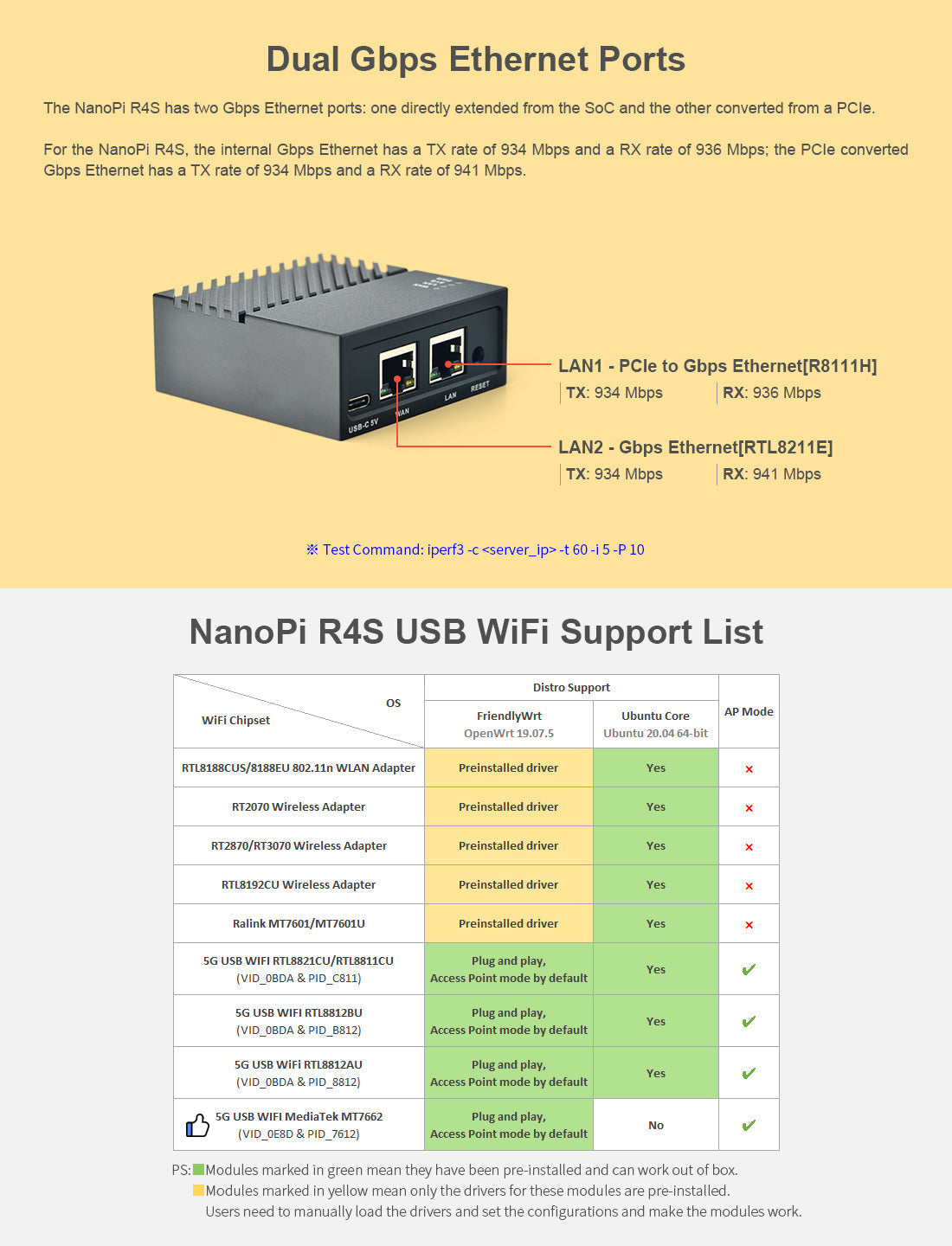

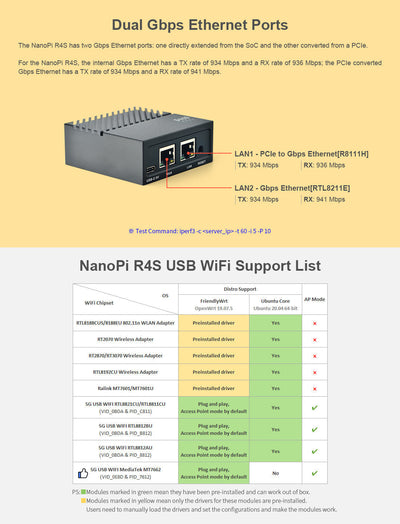

Ethernet one Native Gigabit Ethernet, and one PCIe Gigabit Ethernet

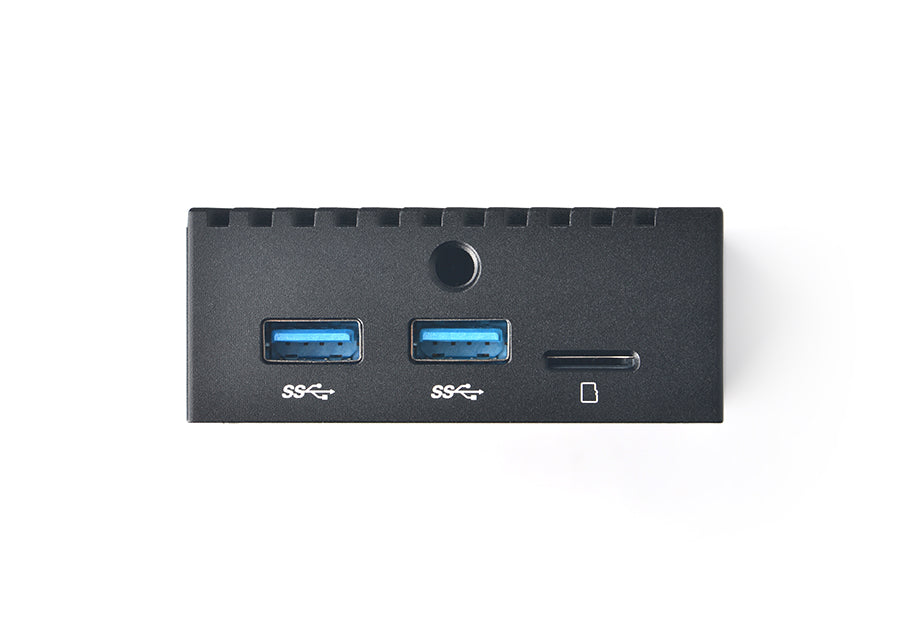

USB two USB 3.0 Type-A ports
Debug one Debug UART, 3 Pin 2.54mm header, 3V level, 1500000bps
LEDs 1 x power LED and 3 x GPIO Controlled LED (SYS, LAN, WAN)
Power supply DC 5V/3A, via USB-C connector or Pin header
PCB 8 Layer, 66 mm x 66 mm

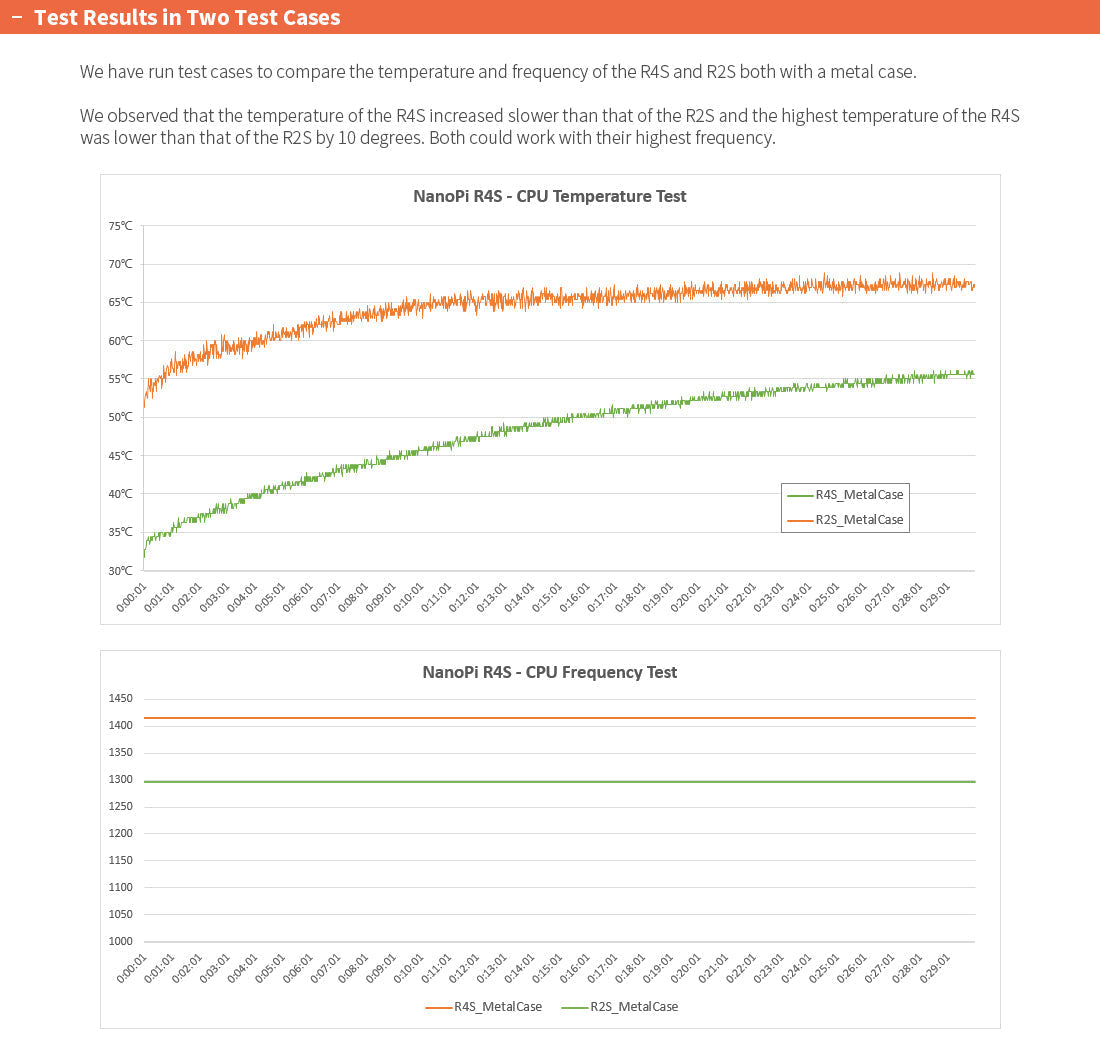

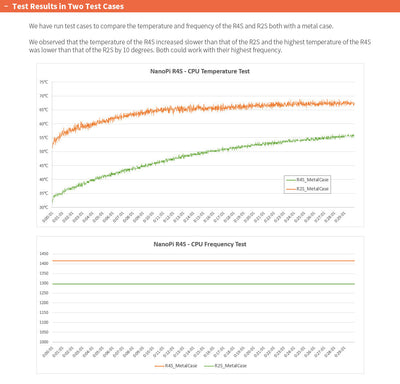

Temperature measuring range 0℃ to 80℃
CPU / SoC RK3399
