FriendlyElec

NanoPi R5C- Open-Source Mini IoT Gateway with Dual 2.5G Ethernet

$60.50
Opens WhatsApp with this product and current options


NanoPi R5C - Open-Source Mini IoT Gateway with Dual 2.5G Ethernet

SKU R5C-4GB

NanoPi R5C - Open-Source Mini IoT Gateway with Dual 2.5G Ethernet

The NanoPi R5C is an open-source mini IoT gateway device designed by FriendlyElec, featuring dual 2.5G Ethernet ports. It is powered by a Rockchip RK3568B2 CPU, 4GB LPDDR4x RAM, and 32GB eMMC flash, supporting various operating systems including FriendlyWrt. With a compact size of 58 x 58 mm, it offers rich hardware resources and is ideal for applications such as light NAS and video playback.

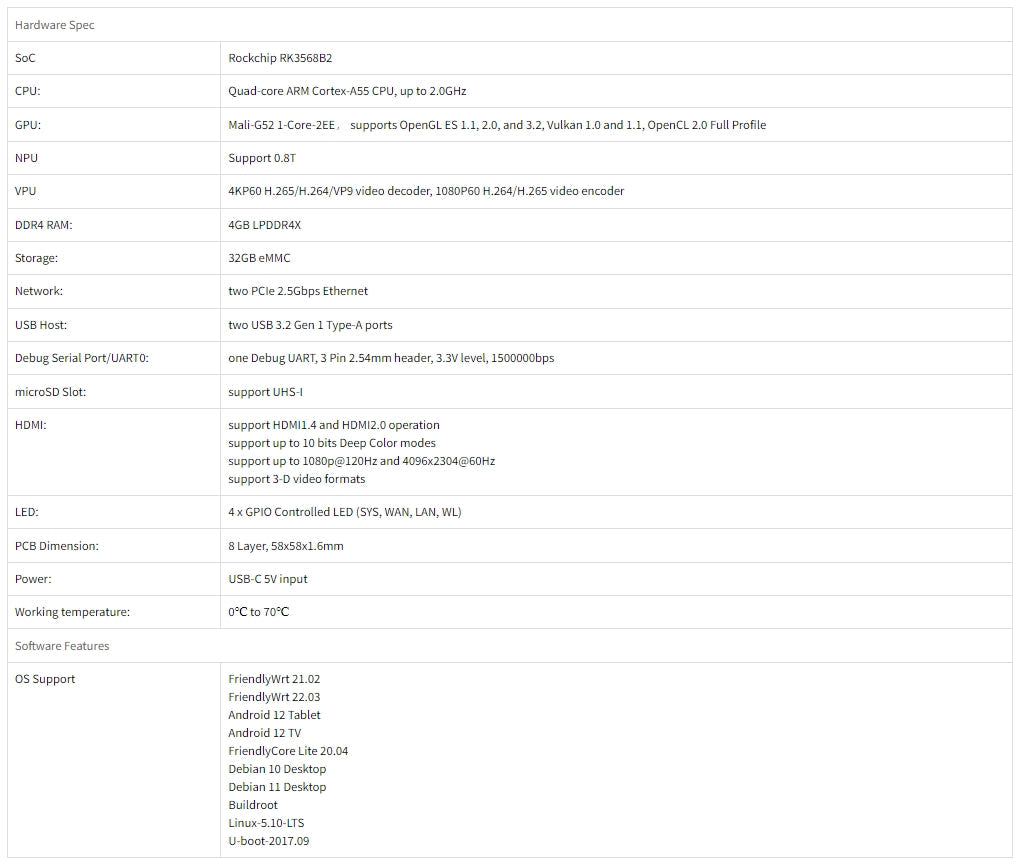

Technical specifications
RAM 4GB LPDDR4X
Flash 32GB eMMC
Ethernet two PCIe 2.5Gbps Ethernet
USB two USB 3.2 Gen 1 Type-A ports
Özellik HDMI:
M.2 Key E PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module.
microSD support UHS-I
Debug one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
LEDs 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)
Özellik others:
Power supply USB-C 5V input
PCB 8 Layer, 58x58x1.6mm
Ambient Operating Temperature 0℃ to 70℃

Specifications may vary by configuration. Contact us for project-specific options.

Specification Details
SoC Rockchip RK3568B2
RAM 4GB LPDDR4X
Flash 32GB eMMC
Ethernet two PCIe 2.5Gbps Ethernet
USB two USB 3.2 Gen 1 Type-A ports
M.2 Key E PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module.
microSD support UHS-I
Debug one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
LEDs 4 x GPIO Controlled LED (SYS, WAN, LAN, WL)
Power supply USB-C 5V input
PCB 8 Layer, 58x58x1.6mm
Ambient Operating Temperature 0℃ to 70℃
CPU / SoC RK3568
