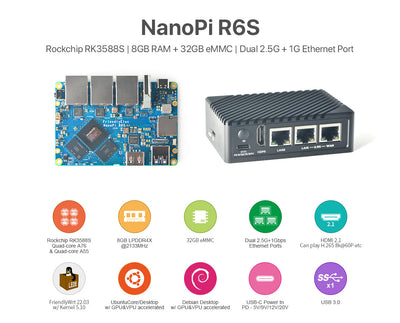

NanoPi R6S: Open-Source Mini IoT Gateway with RK3588S and Dual 2.5G Ethernet

$211.50
Opens WhatsApp with this product and current options


NanoPi R6S: Open-Source Mini IoT Gateway with RK3588S and Dual 2.5G Ethernet

SKU R6S

NanoPi R6S: Open-Source Mini IoT Gateway with RK3588S and Dual 2.5G Ethernet

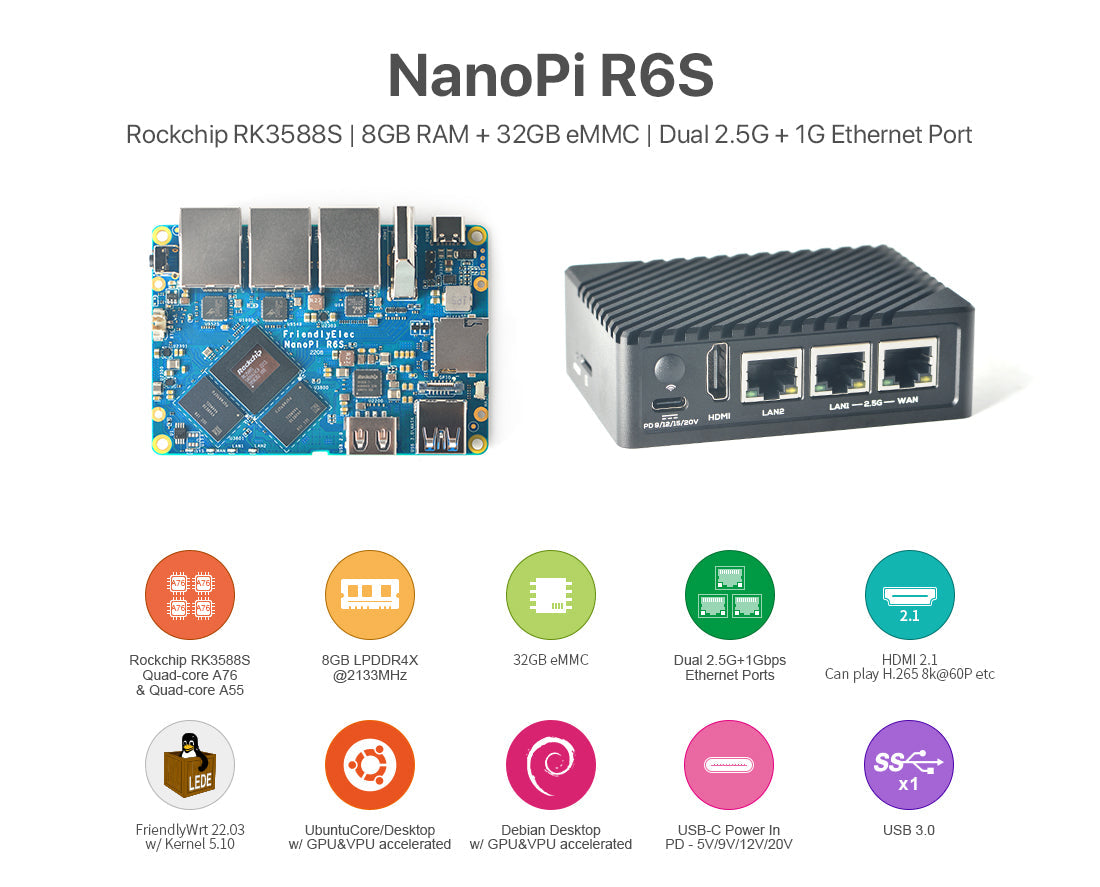

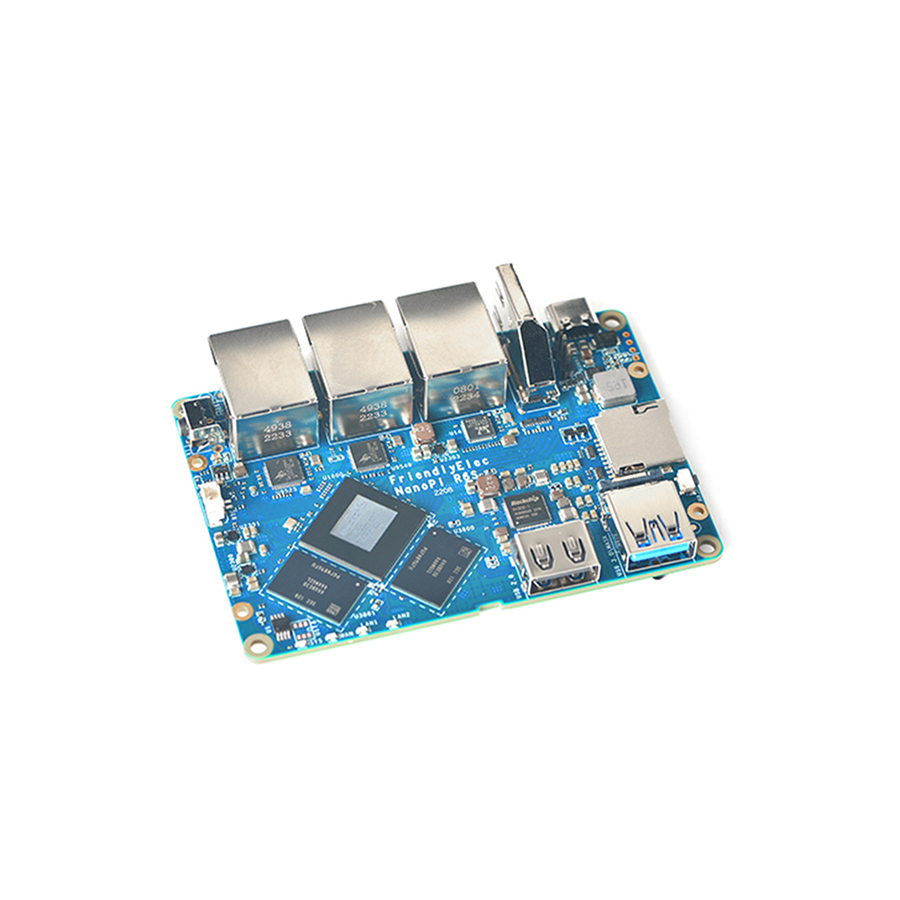

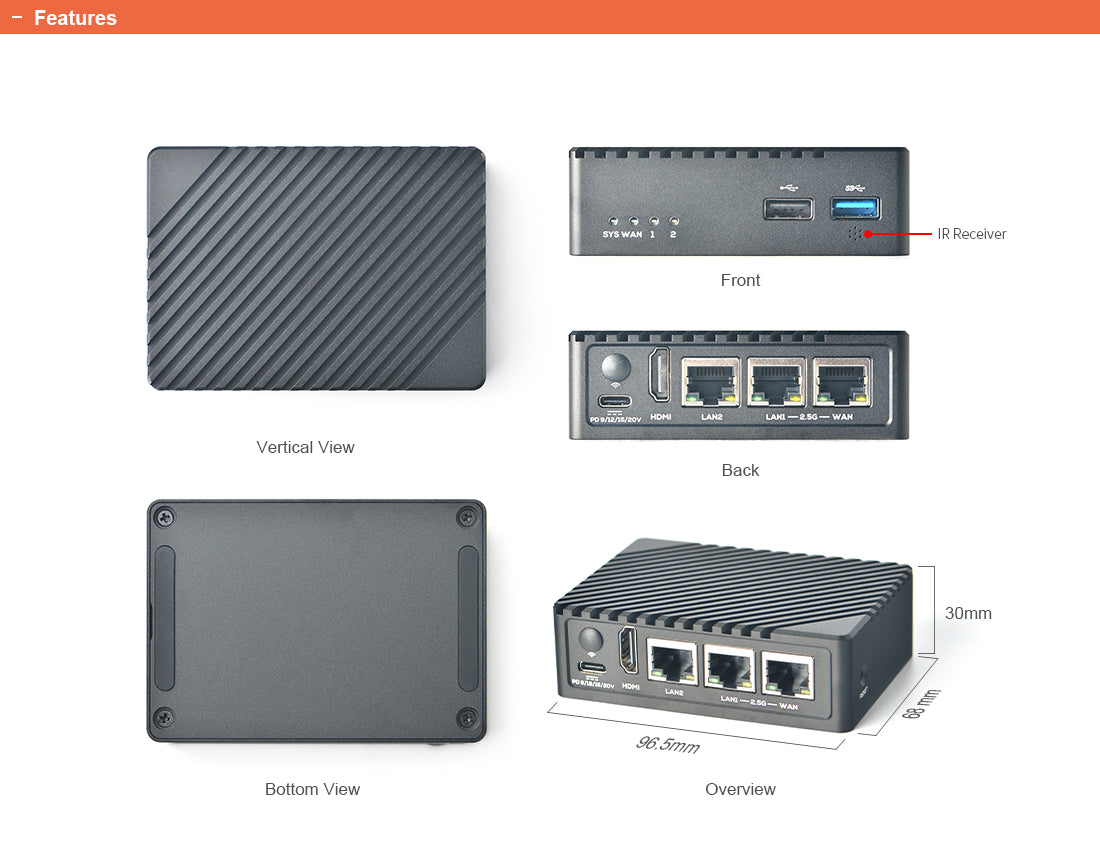

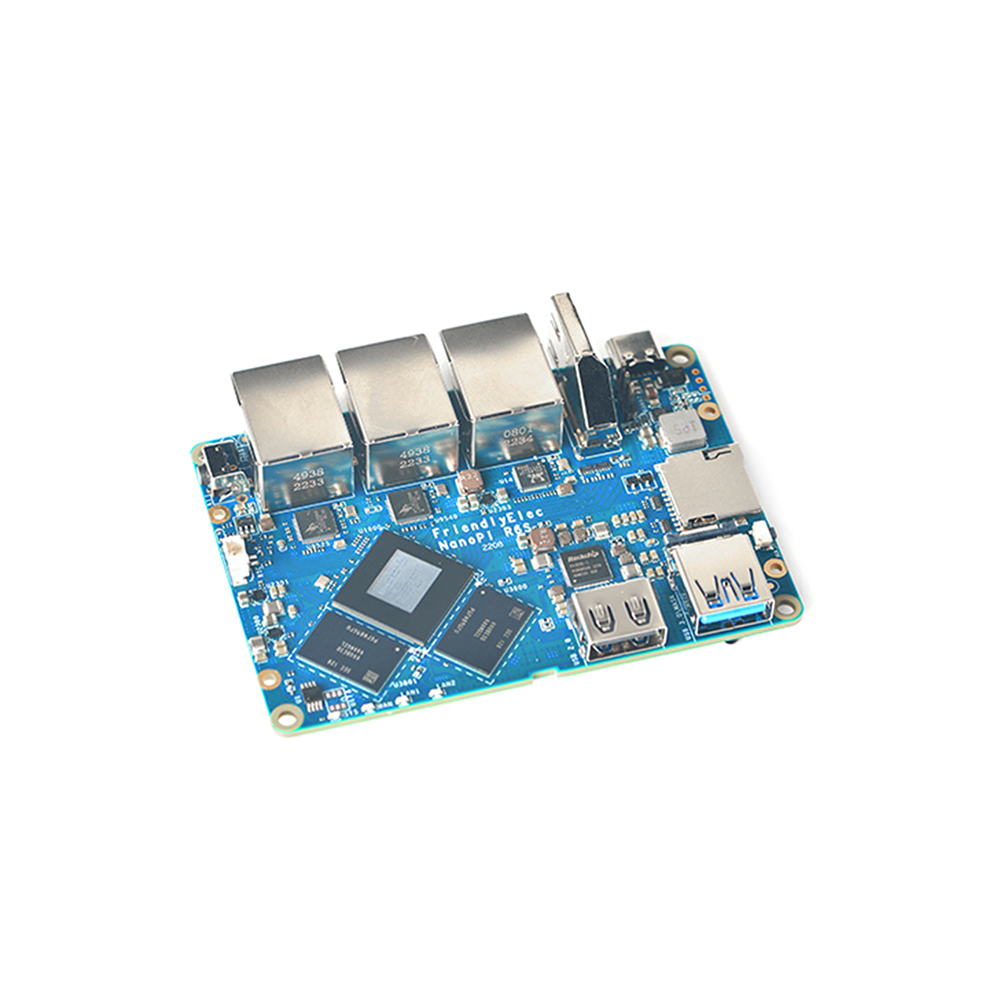

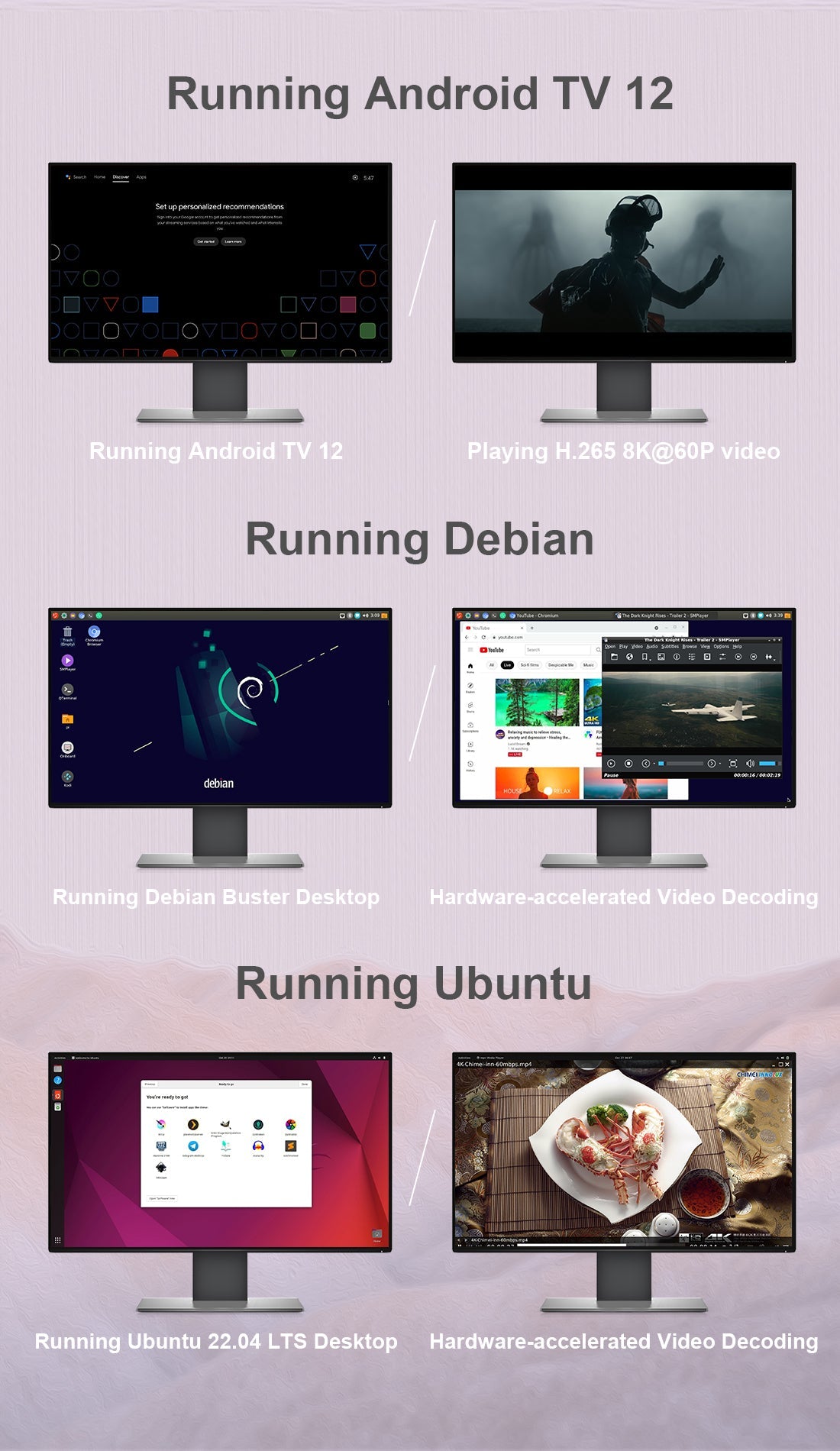

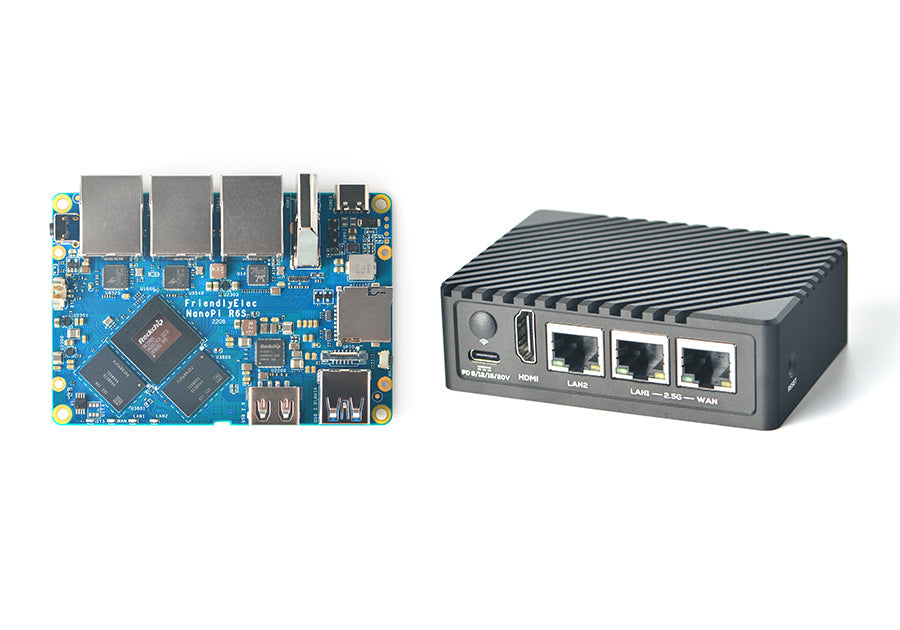

The NanoPi R6S is an open-sourced mini IoT gateway device featuring two 2.5G and one Gigabit Ethernet ports. Powered by a Rockchip RK3588S CPU, it includes 8GB LPDDR4x RAM and 32GB eMMC flash, supporting various operating systems such as FriendlyWrt. With a compact size of 90 x 62 mm, it is designed for versatility in applications like light NAS and video playback.

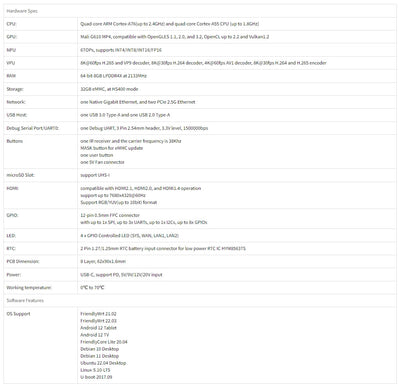

Technical specifications
RAM 64-bit 8GB LPDDR4X at 2133MHz
Flash 32GB eMMC, at HS400 mode

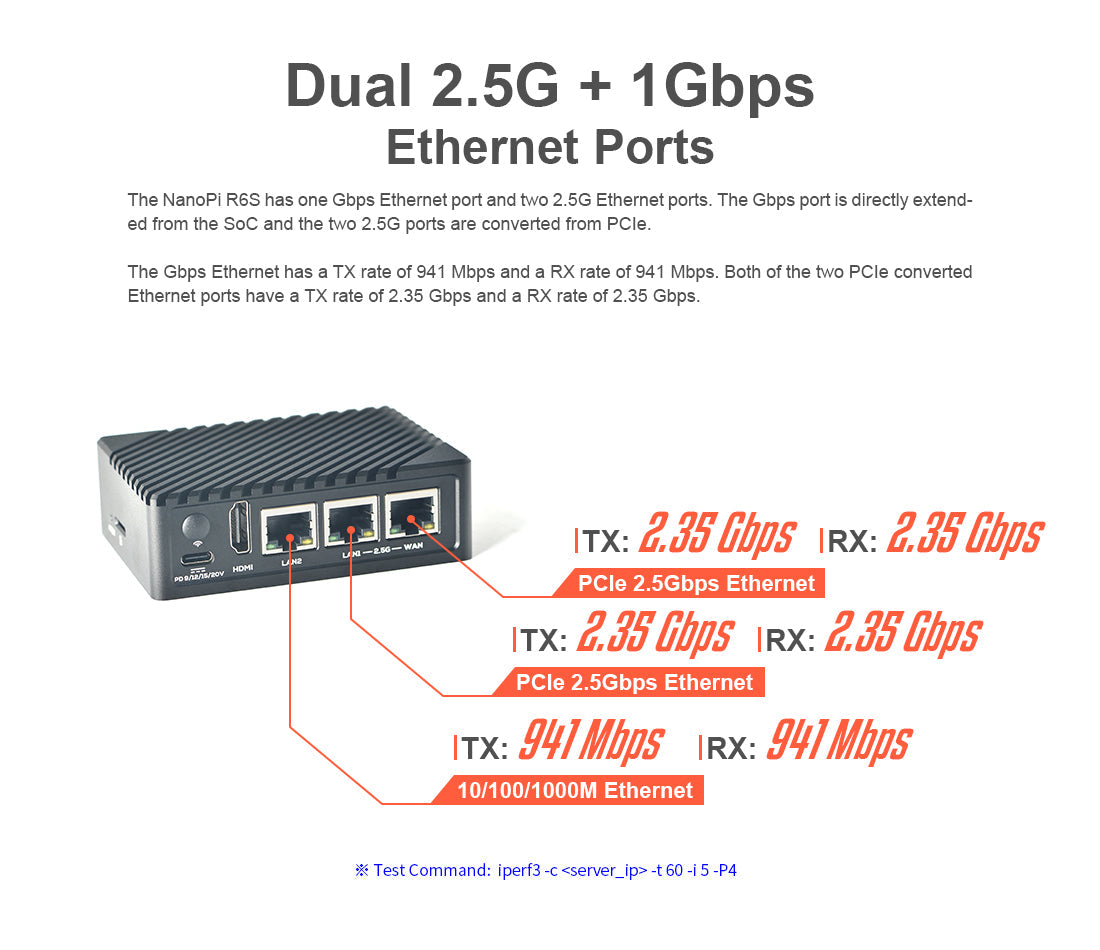

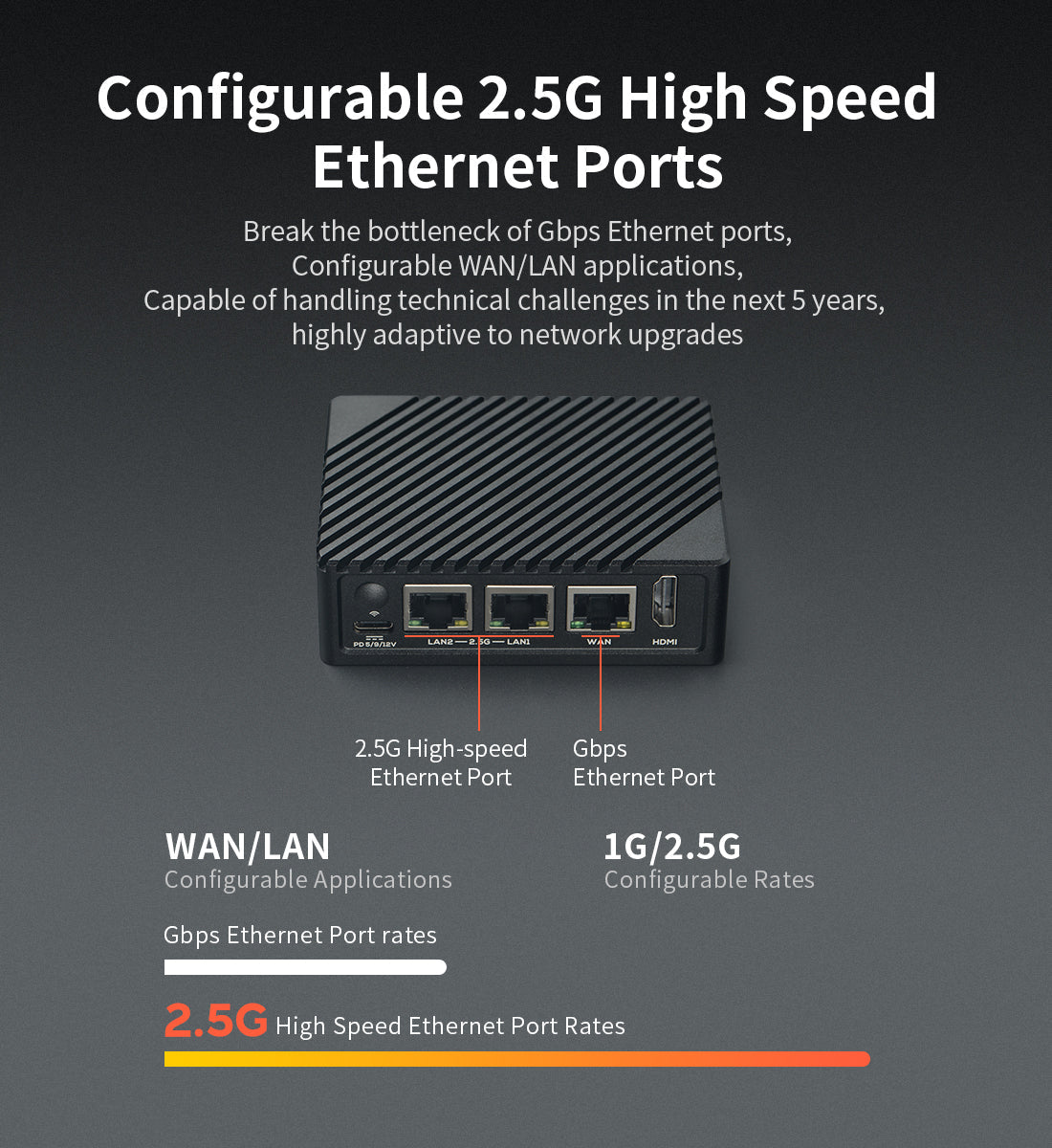

Ethernet one Native Gigabit Ethernet, and two PCIe 2.5G Ethernet
USB one USB 3.0 Type-A and one USB 2.0 Type-A
Özellik HDMI:
microSD support up to SDR104 mode
Özellik GPIO:
Debug one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
LEDs 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)
Özellik others:
Power supply USB-C, support PD, 5V/9V/12V/20V input
PCB 8 Layer, 62x90x1.6mm
Ambient Operating Temperature 0℃ to 70℃

Specifications may vary by configuration. Contact us for project-specific options.

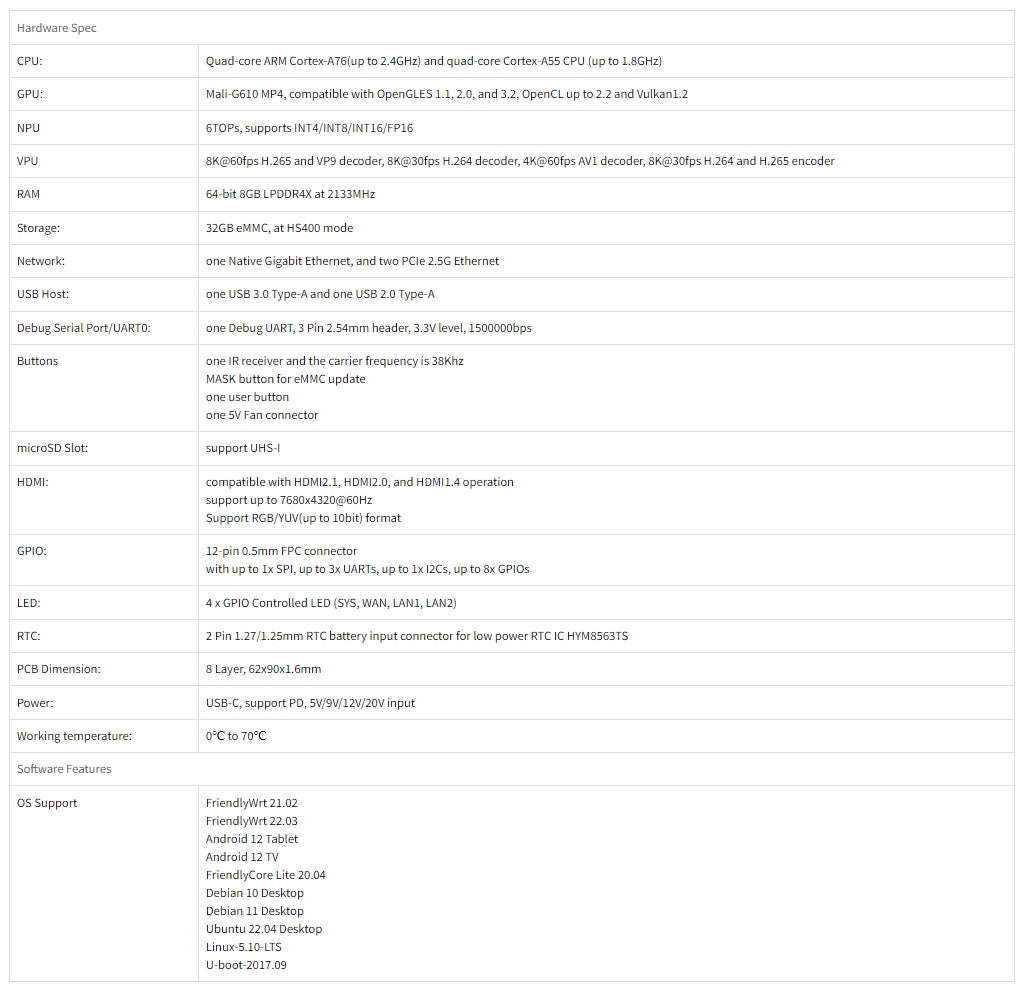

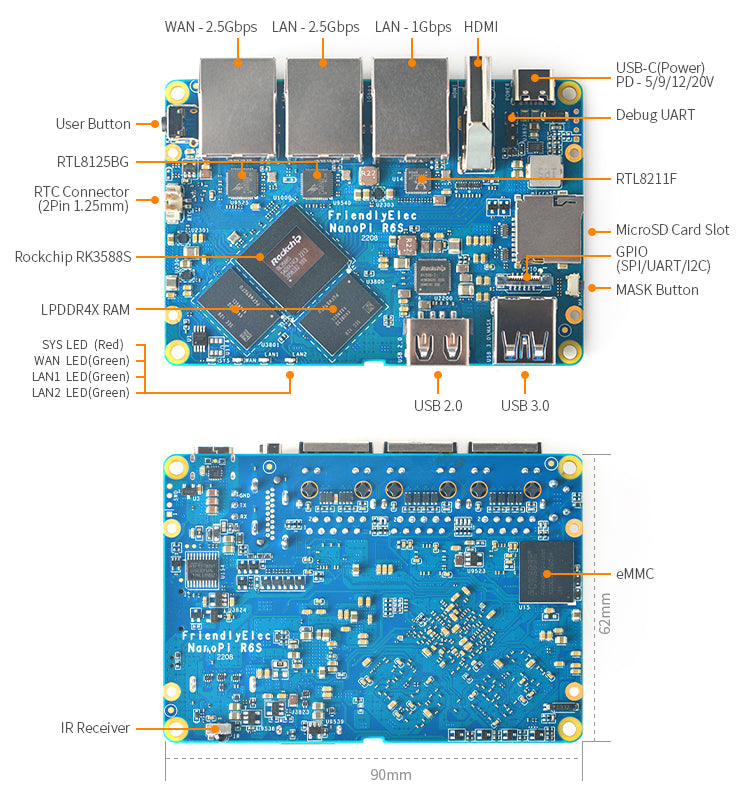

Specification Details

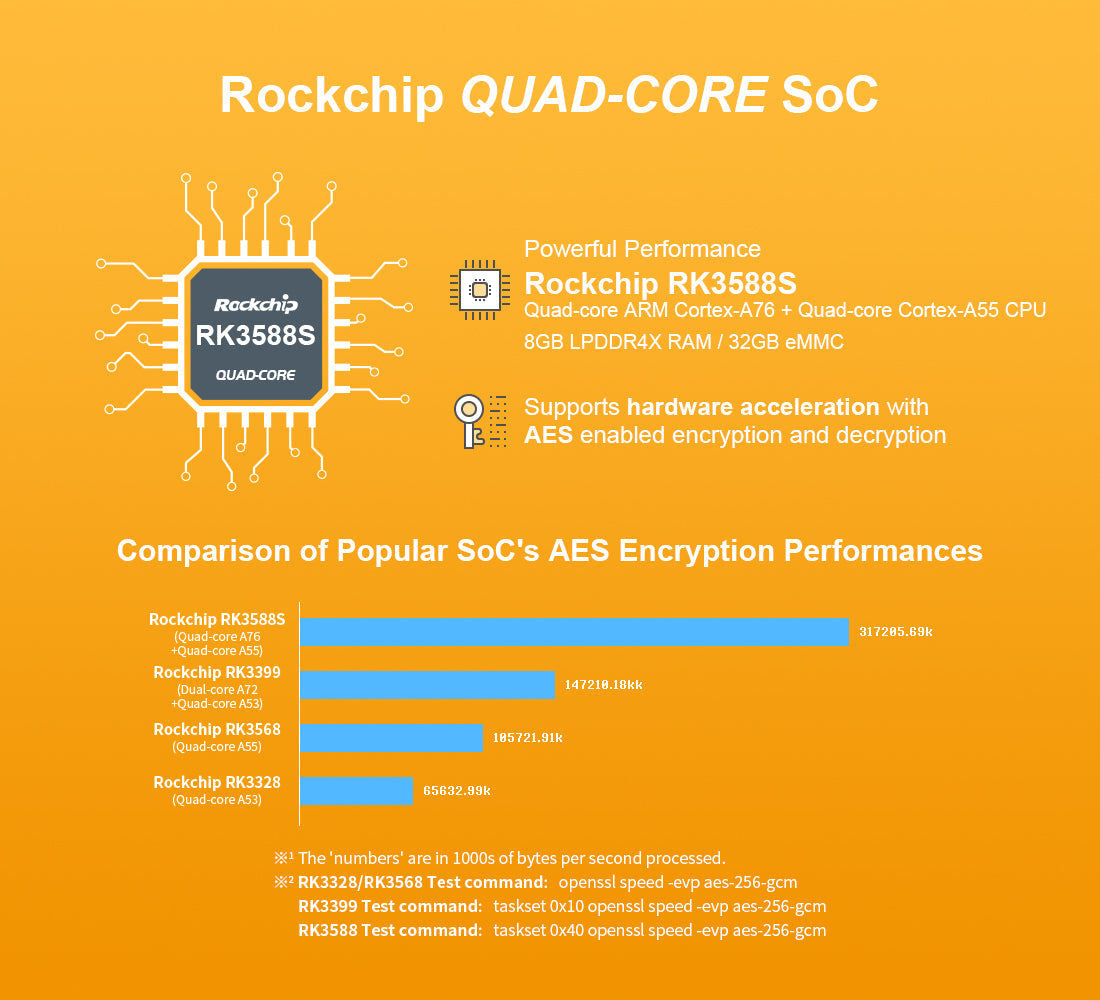

SoC Rockchip RK3588S
RAM 64-bit 8GB LPDDR4X at 2133MHz
Flash 32GB eMMC, at HS400 mode
Ethernet one Native Gigabit Ethernet, and two PCIe 2.5G Ethernet
USB one USB 3.0 Type-A and one USB 2.0 Type-A
microSD support up to SDR104 mode
Debug one Debug UART, 3 Pin 2.54mm header, 3.3V level, 1500000bps
LEDs 4 x GPIO Controlled LED (SYS, WAN, LAN1, LAN2)
Power supply USB-C, support PD, 5V/9V/12V/20V input
PCB 8 Layer, 62x90x1.6mm
Ambient Operating Temperature 0℃ to 70℃
CPU / SoC RK3588S
