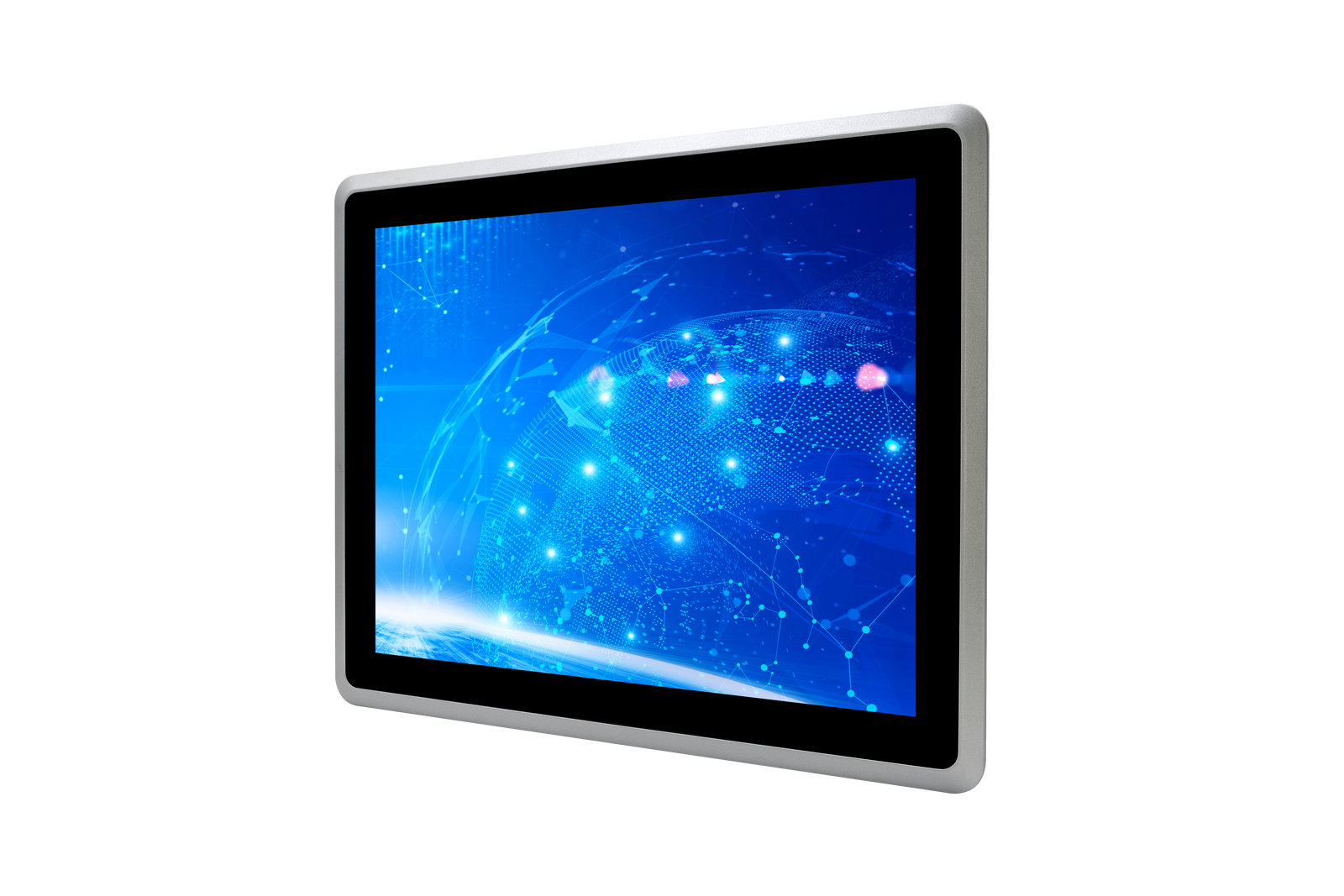

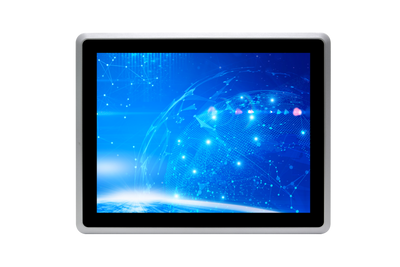

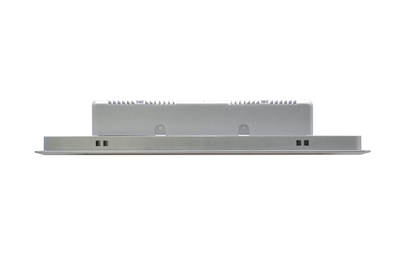

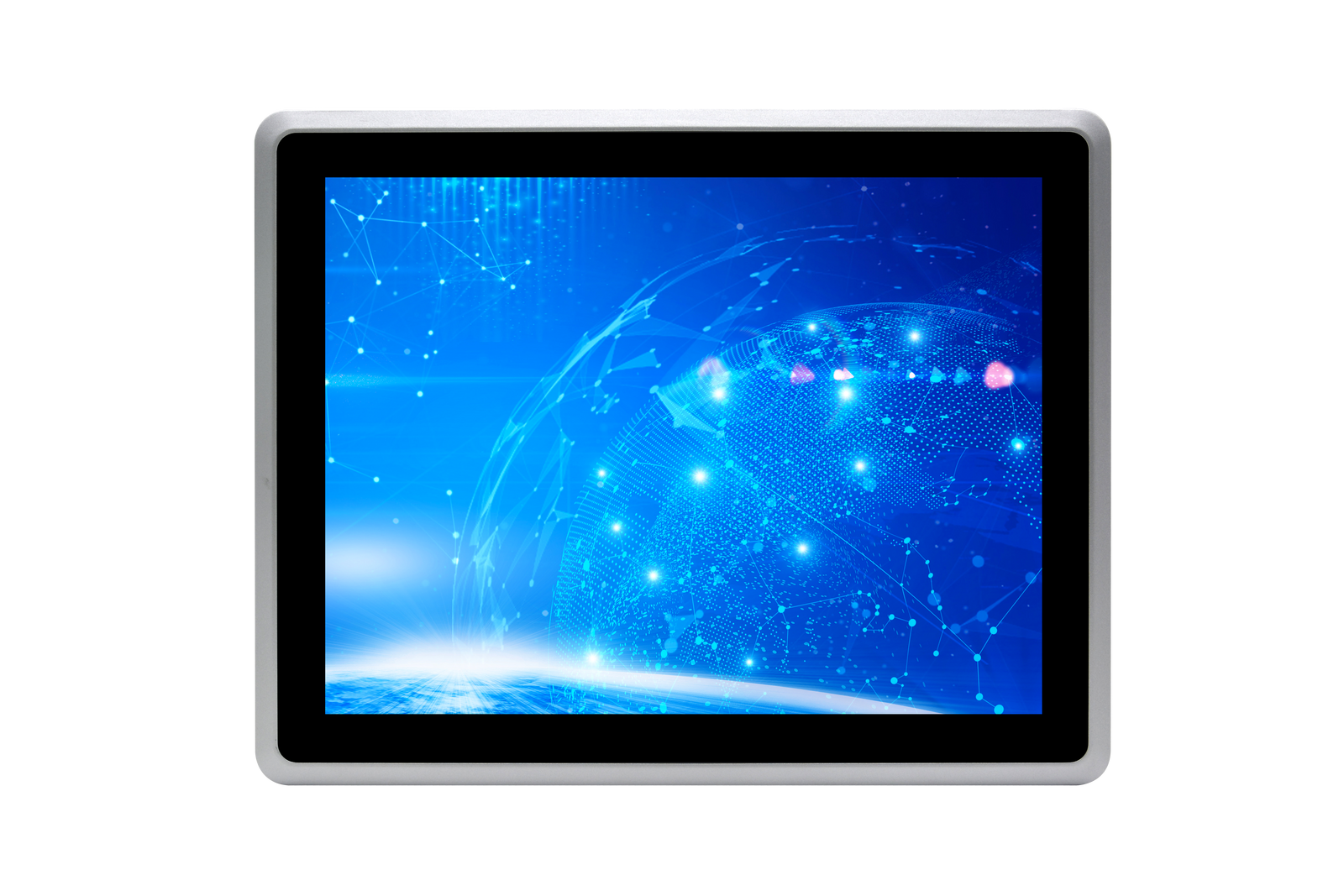

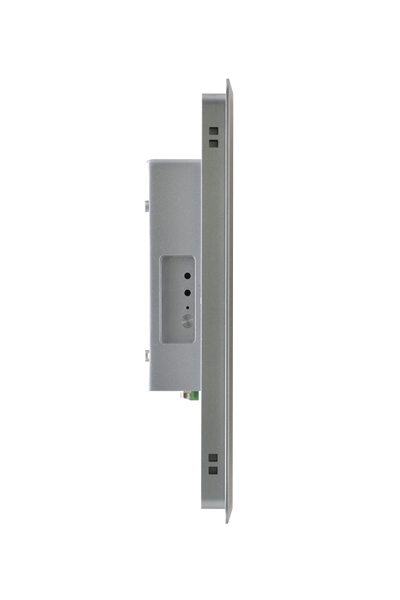

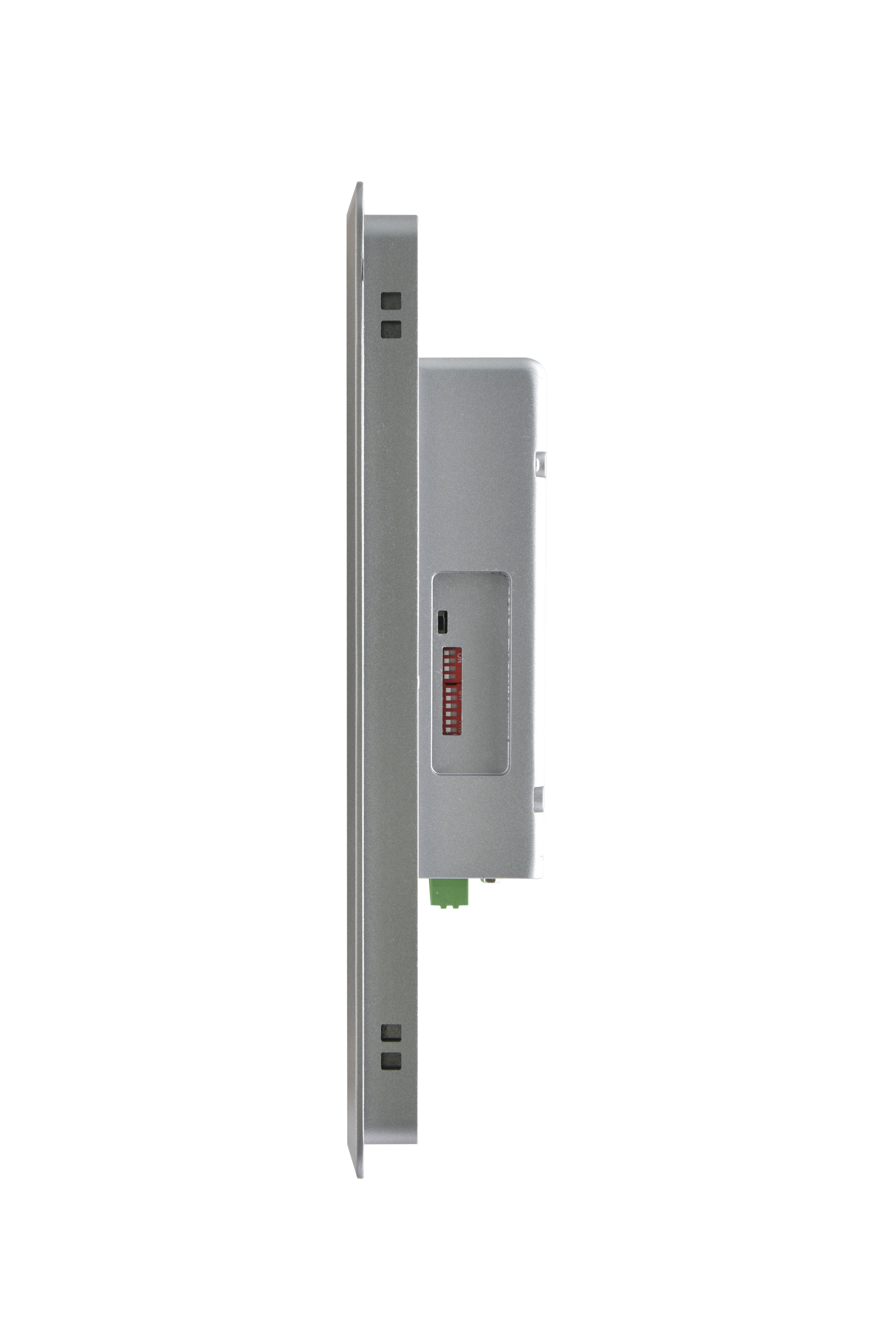

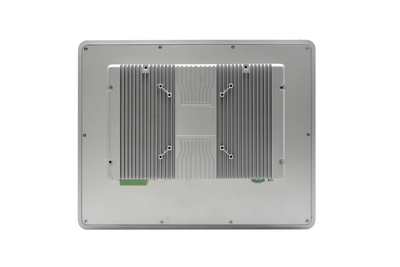

15″ Fanless Industrial Panel PC| Intel Core i5 Options| IP65 Front| HDMI+DP

$411.00


15″ Fanless Industrial Panel PC | Intel Core i5 Options | IP65 Front | HDMI+DP

SKU GH-PC15-V2-i5G

15″ Fanless Industrial Panel PC | Intel Core i5 Options | IP65 Front | HDMI+DP

P1571Y-C6 V2.0 is a

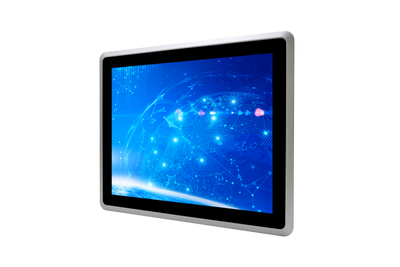

15″ fanless industrial panel PC built for HMI, automation, kiosks, and 24/7 shop-floor control.
This model is offered with Intel® Core™ i5 CPU options so you can match performance and budget
without changing the mechanical design or I/O layout.

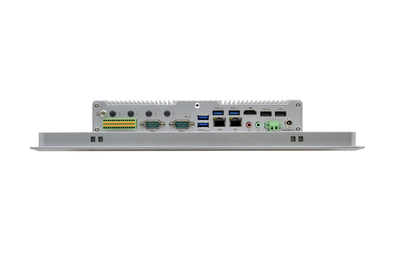

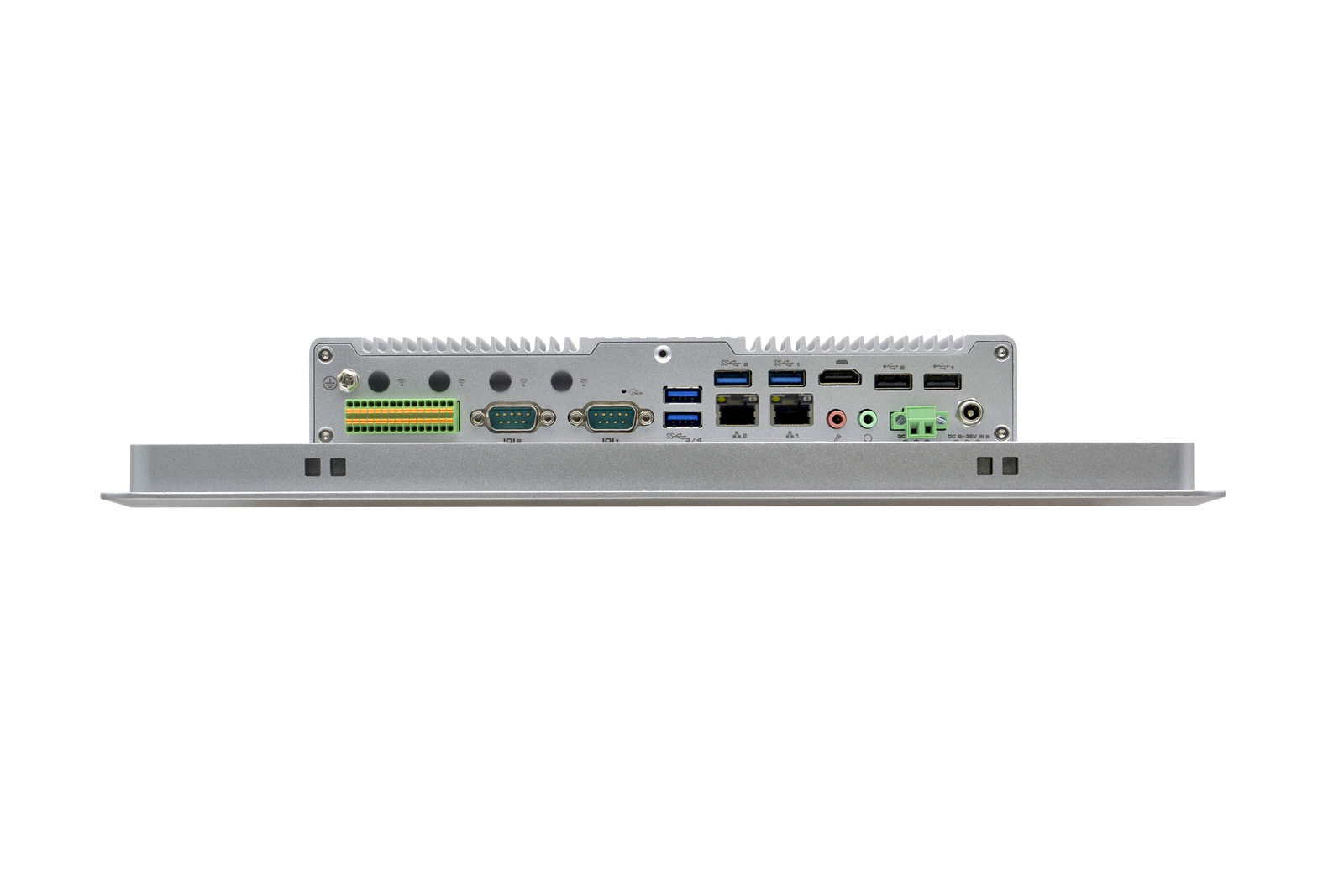

✔ HDMI + DP • 2×LAN • 6×RS232 • DC 9–36V

Technical specifications
Intel Core i5-8260U 8th Gen 2× DDR4 slots, up to 64GB
Intel Core i5-1135G7 11th Gen 2× DDR4 slots, up to 64GB
Intel Core i5-1235U 12th Gen 2× DDR4 slots, up to 64GB

Specifications may vary by configuration. Contact us for project-specific options.

Specification Details

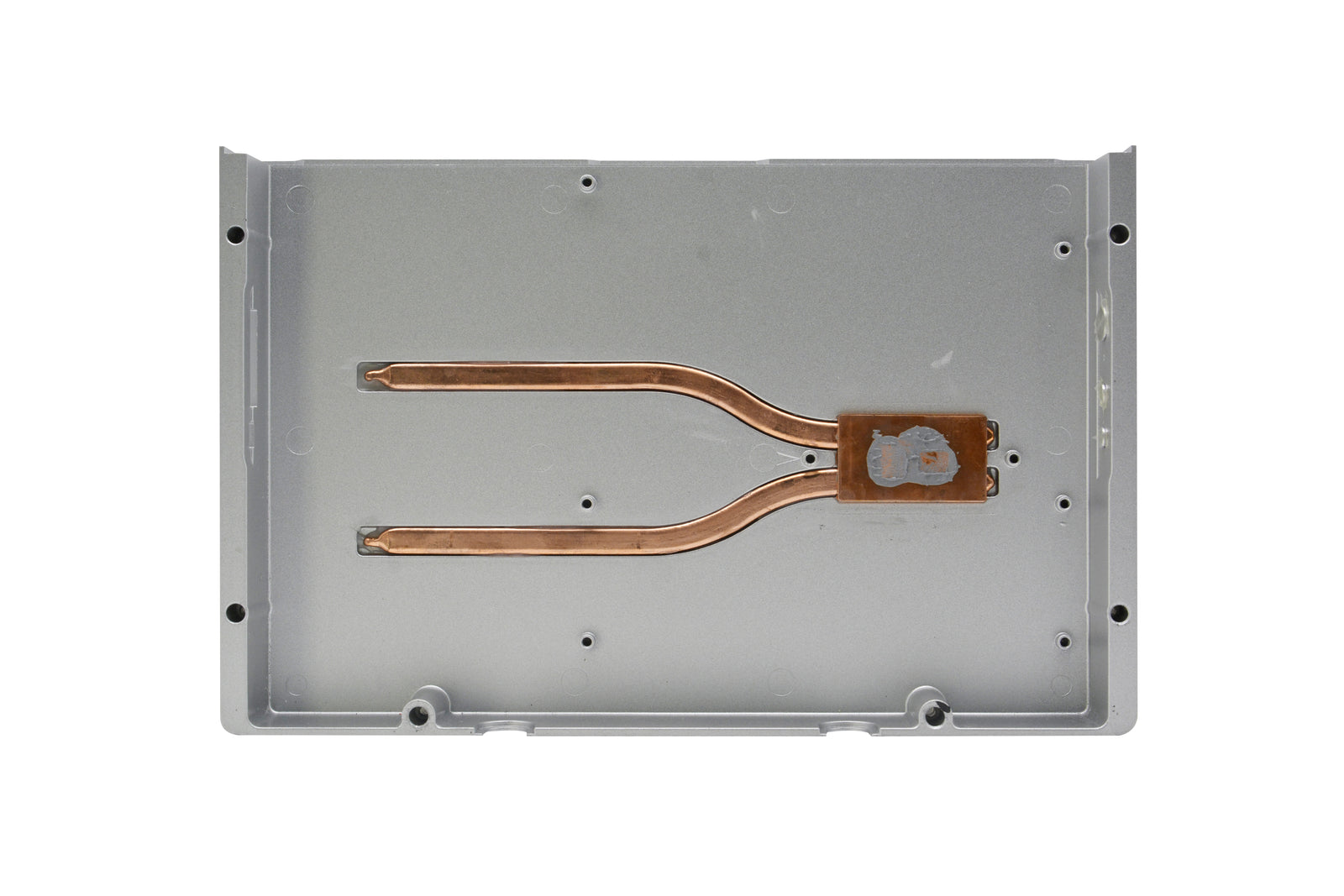

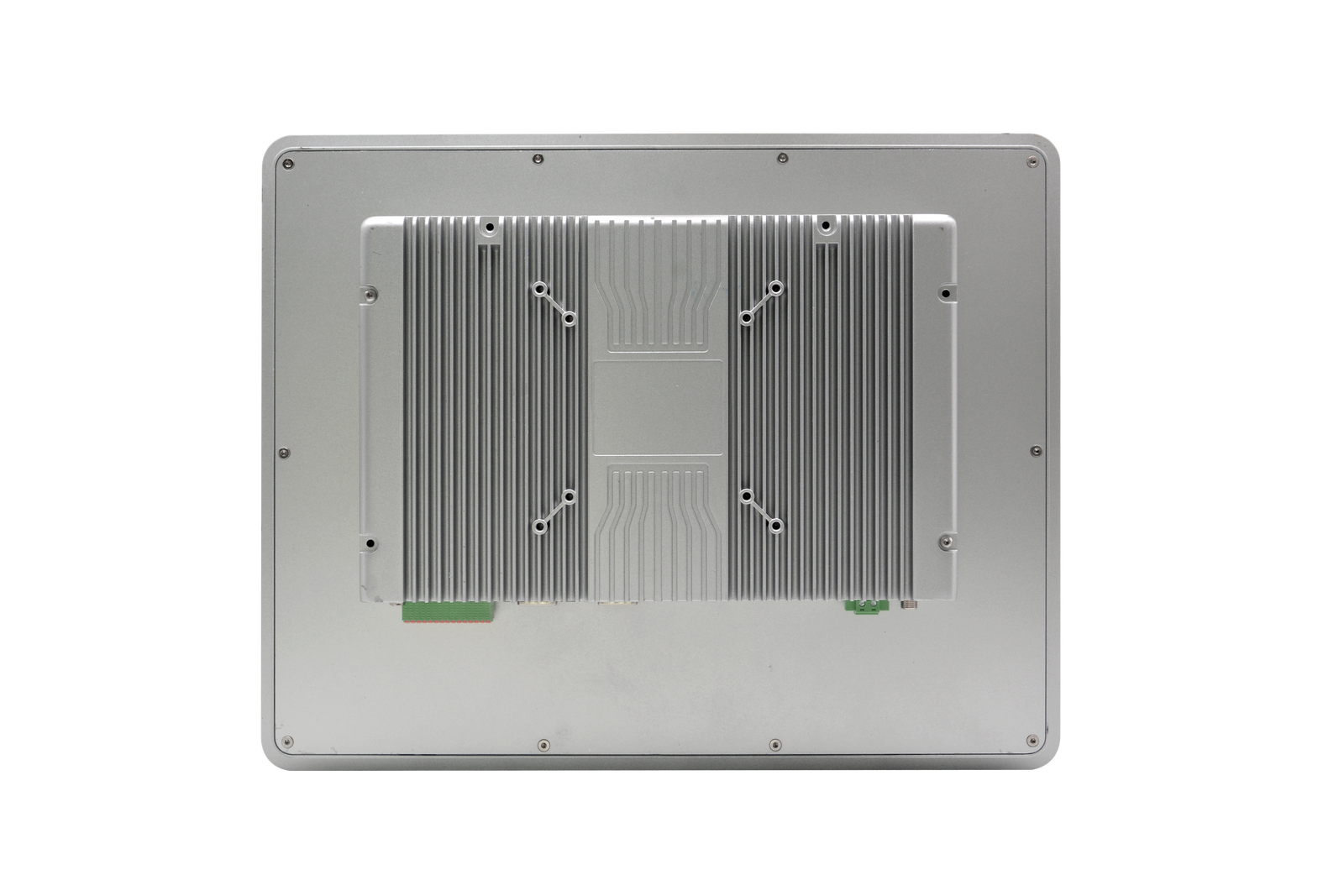

Cooling / structure Fanless
Screen size 15"
Aspect ratio 4:3
Resolution 1024*768
CPU I5-7300U
Memory (RAM) SC: 2*DDR4 slot (4/8/16/32GB options)
Storage 1*mSATA (32/64/128/256/512GB options) 1*M.2 Nvme SSD (128/256/512GB/1TB options) 1*2.5 inch SATA SSD (128/256/512GB/1TB/2TB options)
USB SC: 4*USB3.0, 2*USB2.0
HDMI SC: 1* HDMI
DisplayPort SC: 1* DP
Serial (COM) SC: 6*RS232 Option: 5*RS232+1*RS485 5*RS232+1*RS422 4*RS232+1*RS485+1*RS422 4*RS232+2*RS485 COM1 RS232 DB9 serial port COM2 RS232/RS485/RS422 DB9 serial port COM3 RS232/RS485 serial port on the 2*15pin phoenix connector COM4-COM6 RS232 serial port on the 2*15pin phoenix connector COM1-COM2 support 9th Pin charged
Ethernet (LAN) SC: 2*LAN
Power input DC 9~36V
Wi-Fi 1* Wifi/WIfi 6 Module option
4G / 5G 1* 4G/5G Module option
Operating system SC: Windows Linux Ubuntu option
LCD / touch SC: Capacitive Touch Option: Resistive Touch
Brightness SC: 350 cd/㎡
Operating temperature (-10-+50)
Enclosure SC: Aluminum alloy, Front panel IP65
Mounting VESA/Embedded
CPU Variant Generation · Memory Support
Intel Core i5-7300U 7th Gen · 2× DDR4 slots, up to 32GB
Intel Core i5-8260U 8th Gen · 2× DDR4 slots, up to 64GB
Intel Core i5-1135G7 11th Gen · 2× DDR4 slots, up to 64GB
Intel Core i5-1235U 12th Gen · 2× DDR4 slots, up to 64GB
