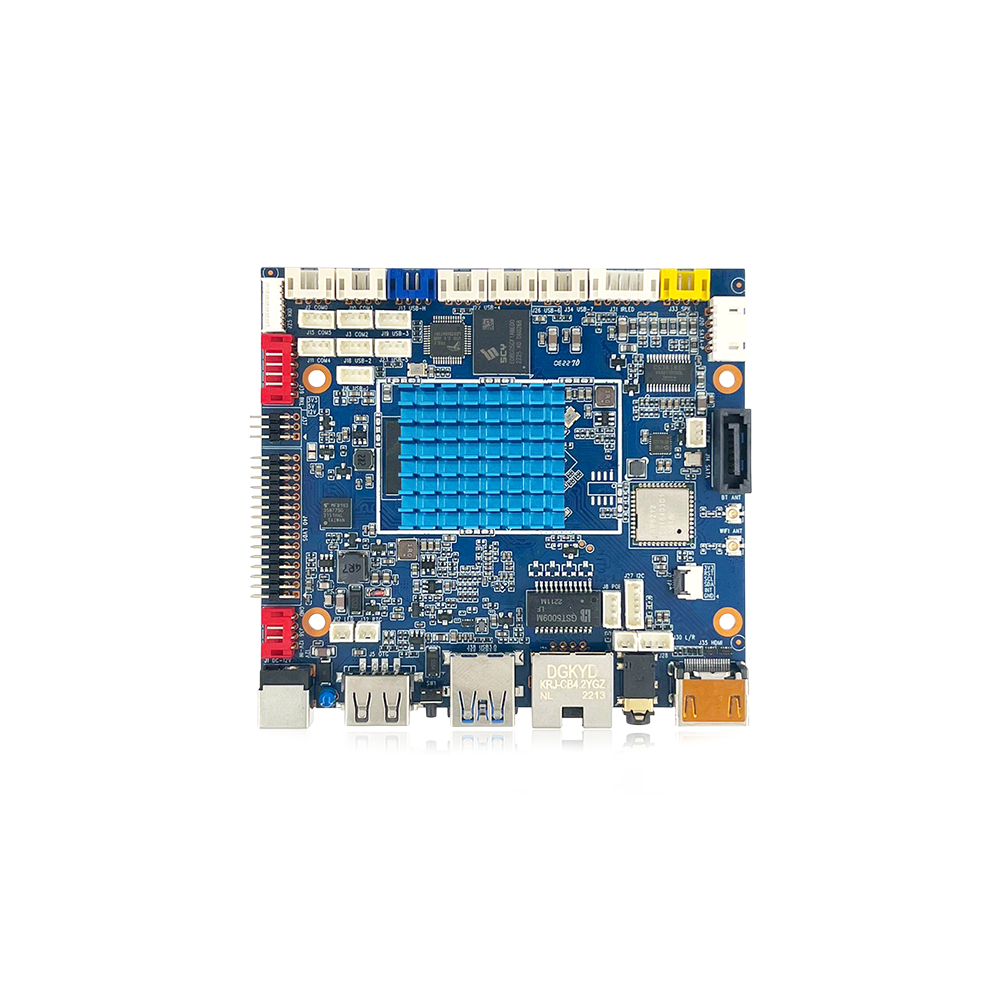

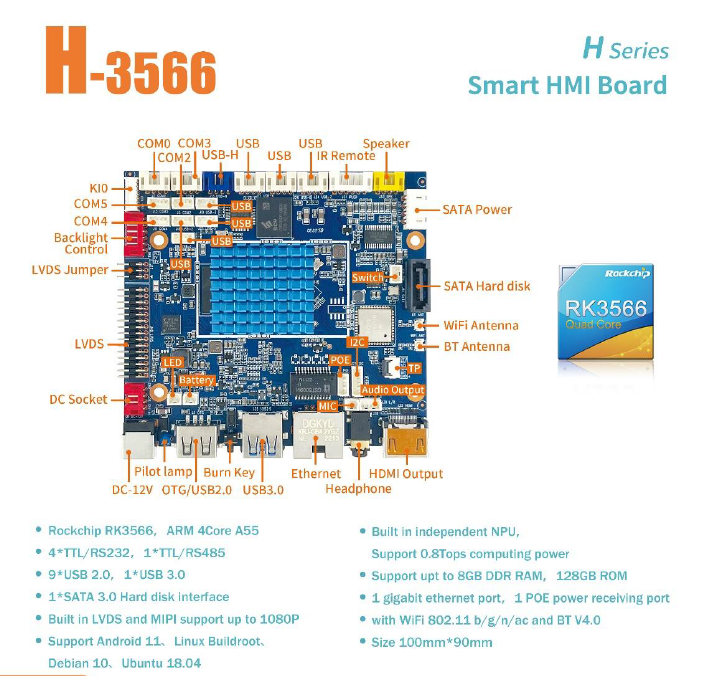

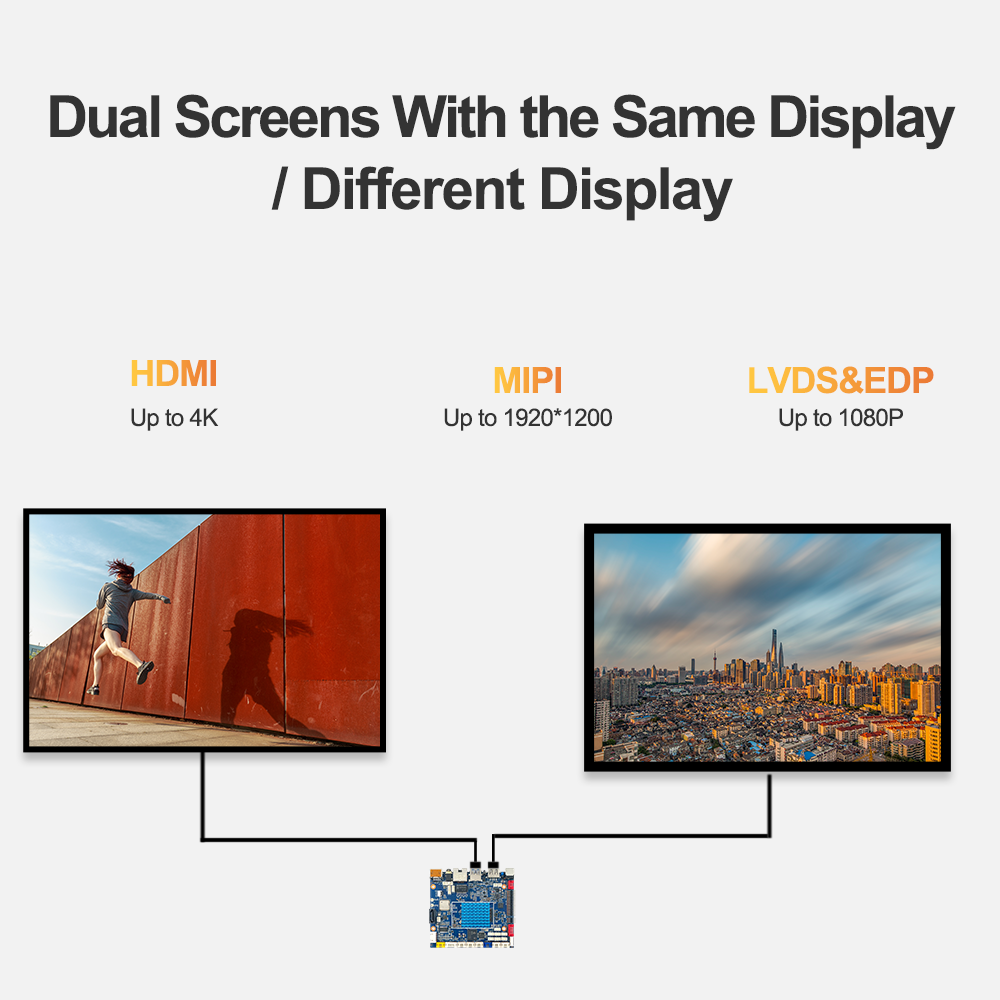

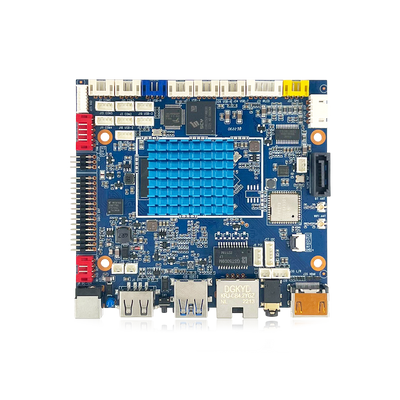

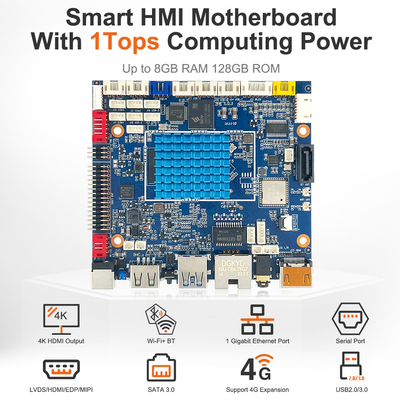

RK3566 Smart HMI Android Motherboard| LVDS eDP MIPI| H-3566

$80.00


RK3566 Smart HMI Android Motherboard| LVDS eDP MIPI| H-3566

SKU H-3566

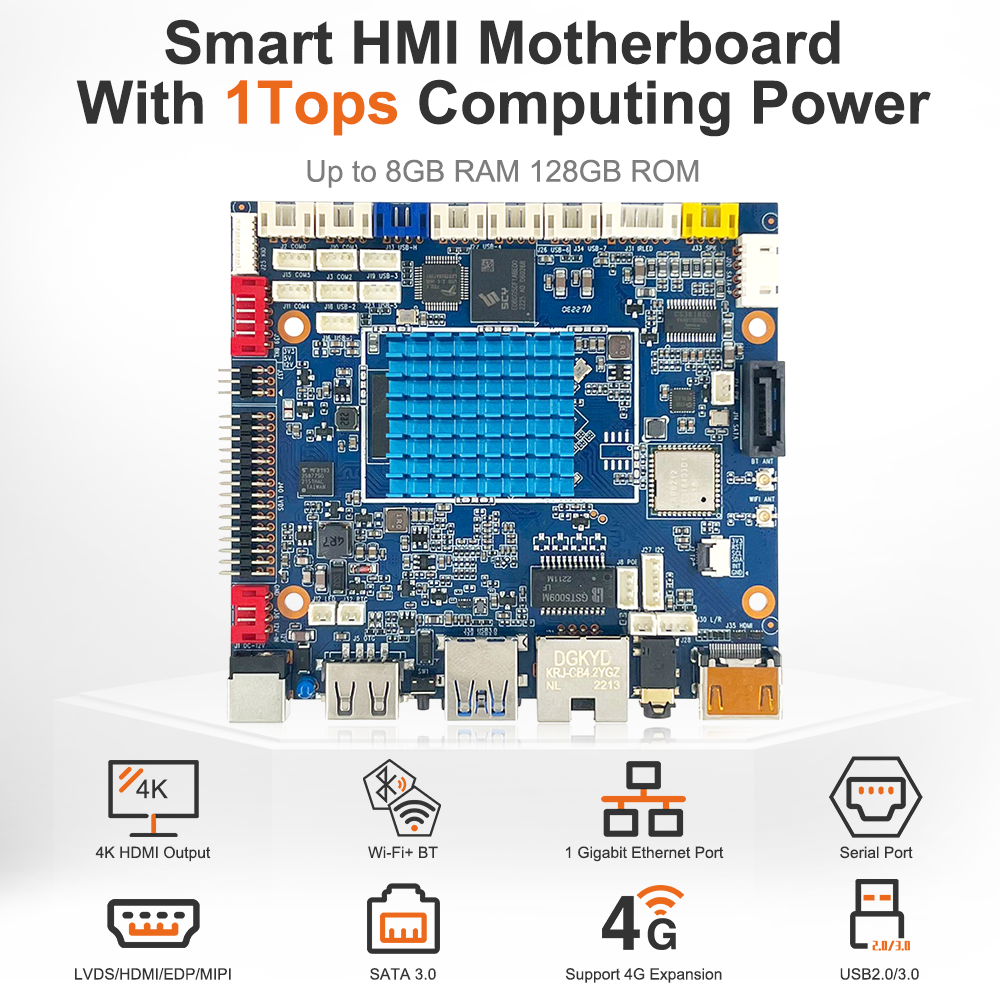

RK3566 Smart HMI Android Motherboard| LVDS eDP MIPI| H-3566 is an industrial Android HMI panel PC. Designed for machine control, SCADA operator stations, kiosk and embedded HMI projects. GeniusCore.

Highlights
Rockchip RK3566 Quad-Core Cortex-A55 up to 1.8 GHz, Mali-G52 GPU
IPS capacitive multi-touch display
Industrial panel housing for flush / embedded mounting
Android OS — HMI, kiosk and SCADA-ready application stack

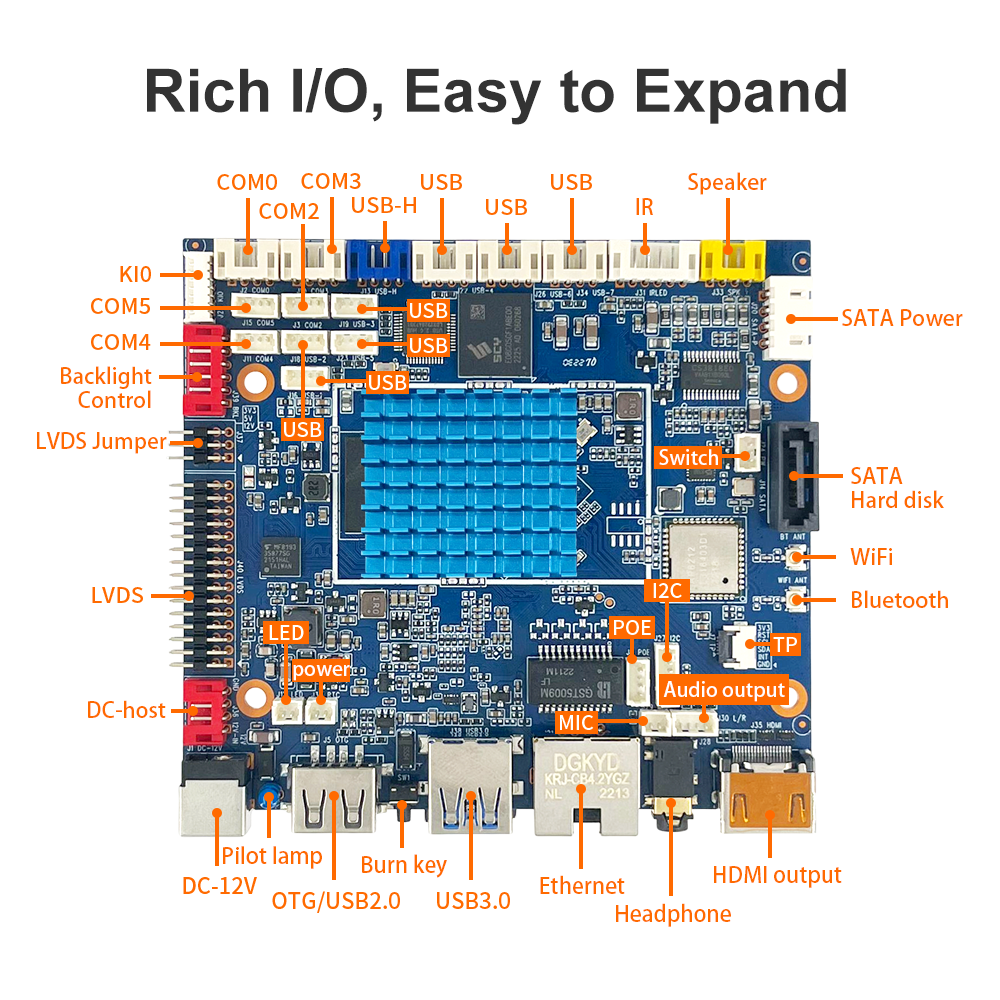

Industrial I/O: USB, serial (RS232/RS485), Ethernet / Wi-Fi (model dependent)
12–24 V DC industrial power input (typical)

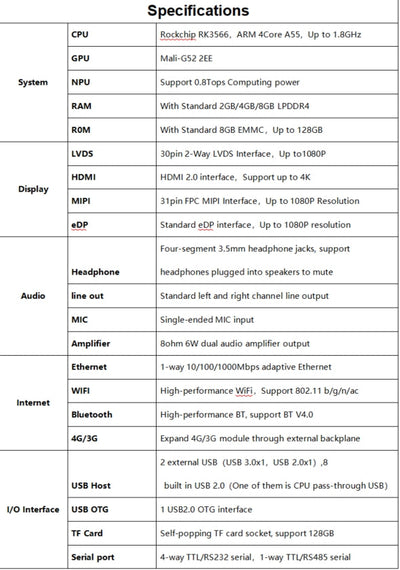

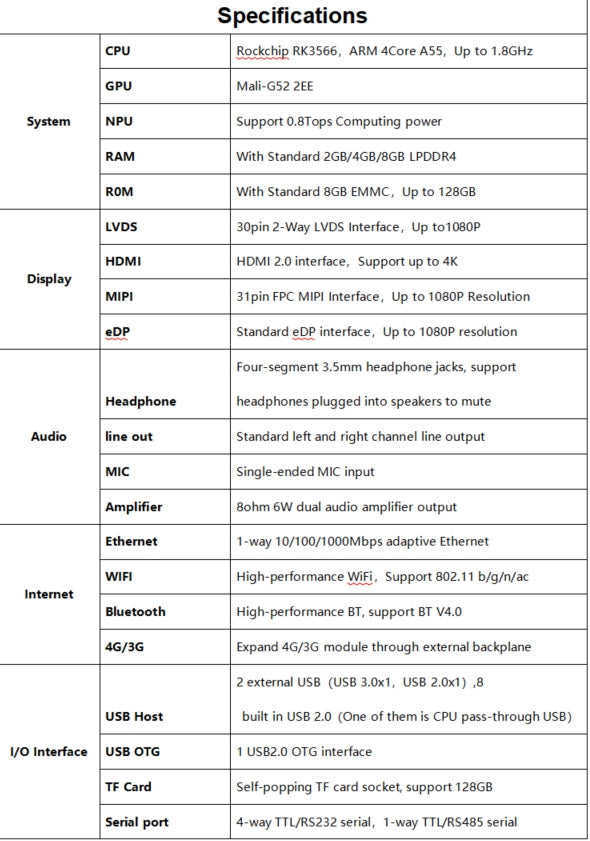

Technical specifications
Model / SKU H-3566
Display IPS LCD, capacitive multi-touch
CPU Rockchip RK3566 Quad-Core Cortex-A55 up to 1.8 GHz, Mali-G52 GPU
GPU 4× Cortex-A55
OS Android (version by configuration)
Storage / RAM eMMC + LPDDR (configuration dependent)
Networking Ethernet RJ45 and/or Wi-Fi (model dependent)
Serial RS232 / RS485 (model dependent)
USB Multiple USB ports (model dependent)
Expansion TF / MicroSD, SIM (4G optional on selected models)
Power DC 12–24 V industrial input (typical)
Form factor Enclosed industrial panel
Applications Machine HMI, SCADA, kiosk, IoT gateway UI

I/O and memory options vary by SKU. Contact us for project-specific configuration.

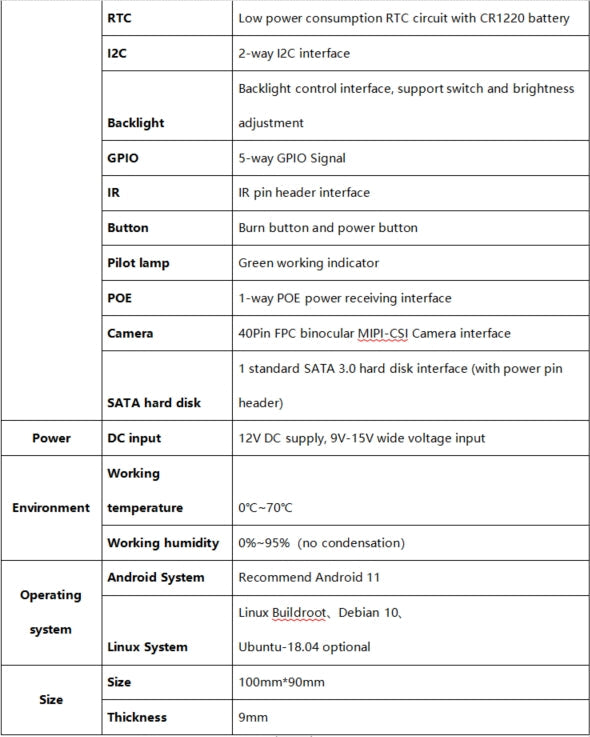

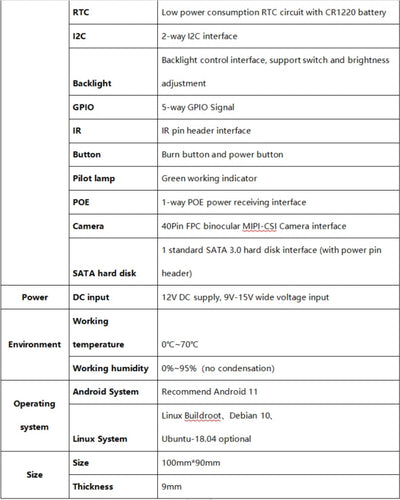

Specification Details
CPU / SoC Rockchip RK3566, Quad-Core Arm Cortex-A55
GPU Arm Mali-G52
Operating system Android; Linux support
Power input DC 12–24 V
